Schneider Electric

9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A

Category Miscellaneous

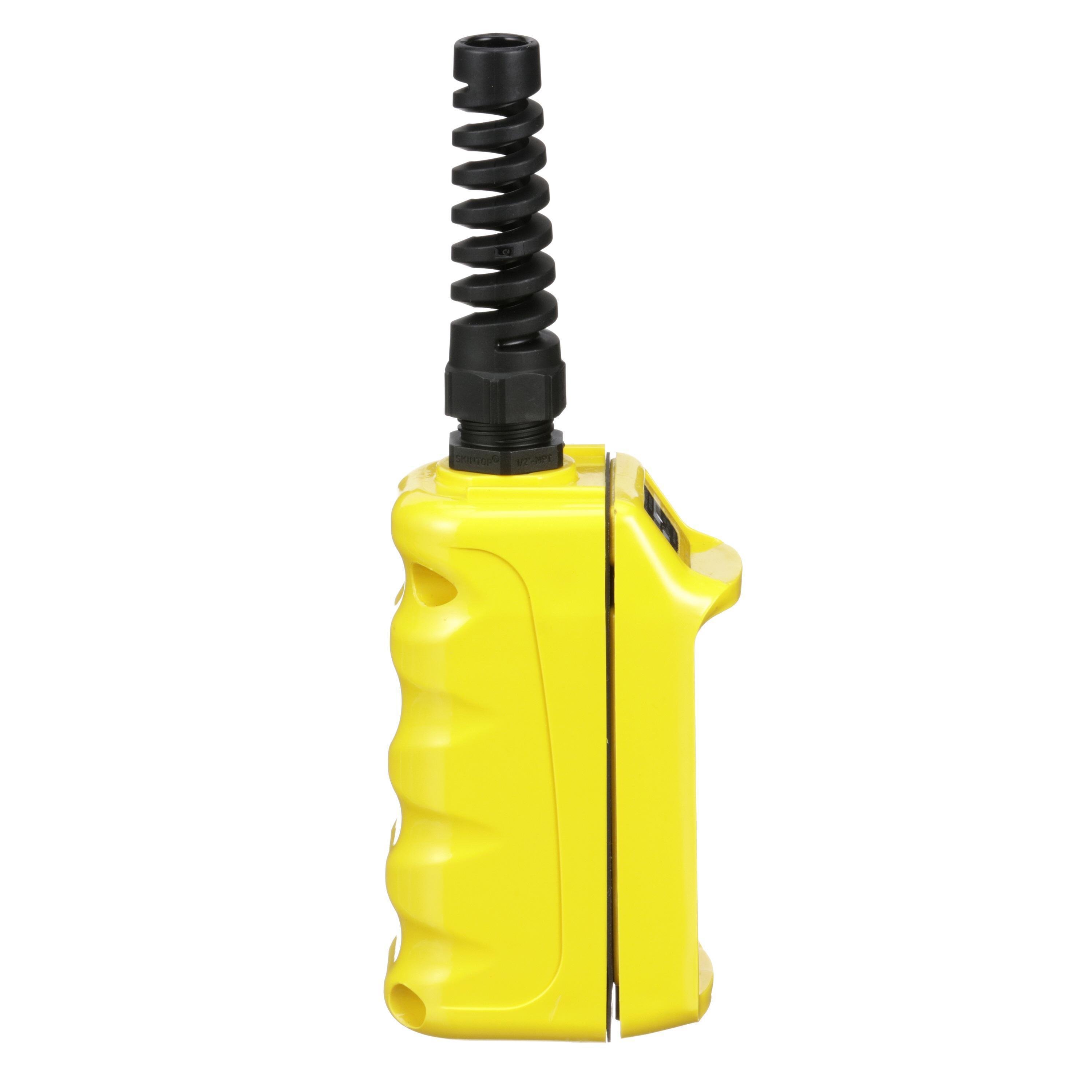

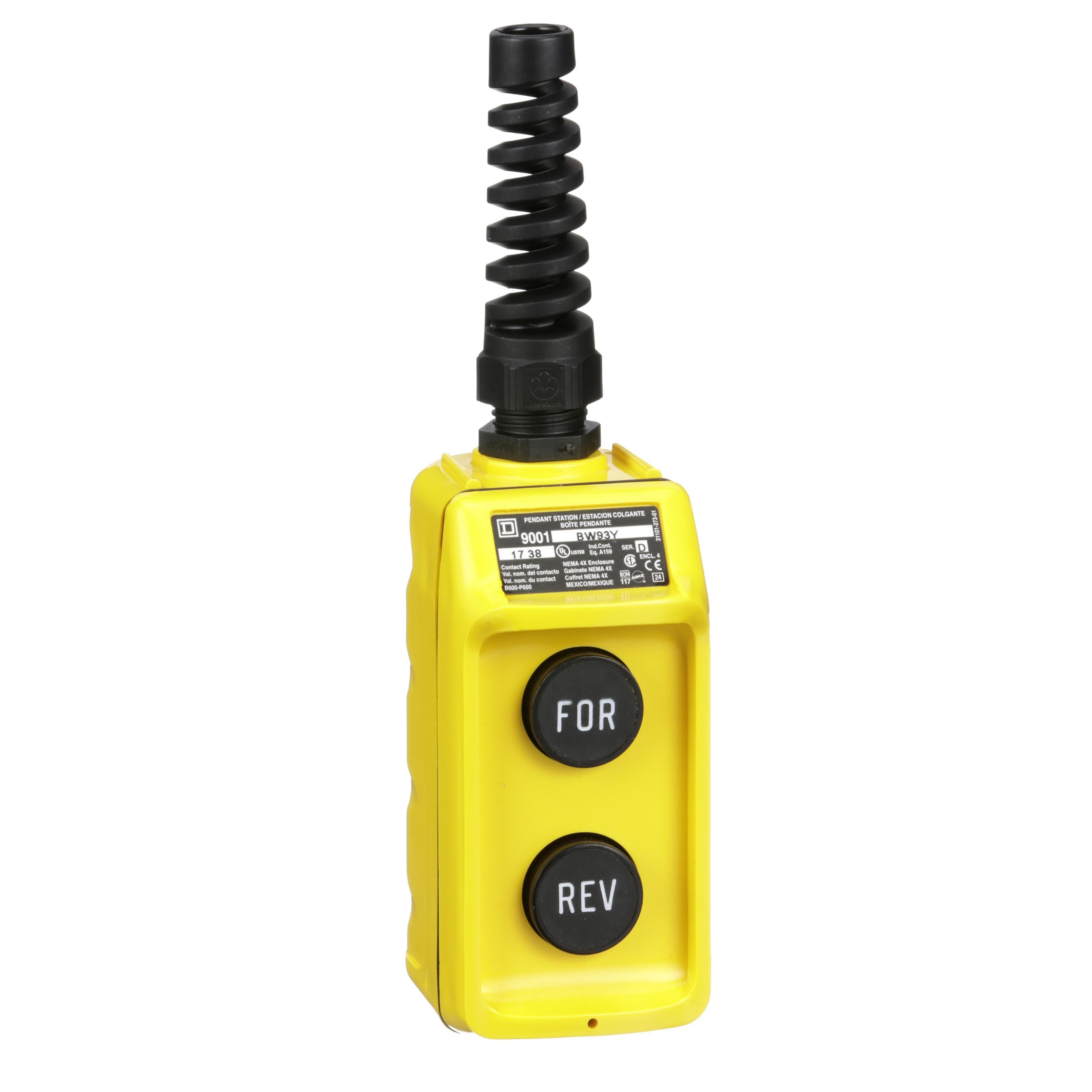

Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A
Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A
Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A Picture of 9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A
Schneider Electric

9001BW93Y - Pendant Station, 2 mechanically interlocked push buttons, NO contacts, FORWARD REVERSE, yellow enclosure, 600 VAC 5 A

Item Code: 853683
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001BW93Y

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

9001BW pendant stations have two push buttons that are fully assembled and are used for standard hoist applications. They can be used for single speed or two speed applications. These pendant stations are easy to hold in one hand with a contoured grip. They can have momentary and maintained contacts. The 9001BW pendant station enclosures can be yellow, black or red. The enclosures are made of high impact thermoplastic and have a self extinguishing flammability rating of UL94V. 9001BW pendants are often used for simple hoisting applications, for overhead cranes, for building cranes, for lifts, and jogging applications on conveyor systems. These 9001BW pendant stations are watertight, dusttight, oiltight, and corrosion resistent and have NEMA 1, 3, 3R, 4, 4X, & 13 ratings.

Specifications

Weight

0.7

Height

2.6

Width

7.92

Length

51.13

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9001BW93Y/9001BW93Y.spin

AD All Features

1/2 to 14 NPT cable entry

AD Application

Hoist Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Gtin

00785901852902

AD Invoice Description

STATION CTRL PENDANT 600VAC 5A 1NC-1NO 2

AD Item Features 01

1/2 to 14 NPT cable entry

AD Keywords

Harmony 9001BW93Y Type BW Pendant Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 1/3/3R/4/4X NEMA Rating ; Schneider Electric ; 9001BW93Y ; 785901852902 ; Pendant Control Stations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.6000

AD Package Height UOM

IN

AD Package Length

51.1300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

65.2900

AD Package Volume UOM

cu-in

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

7.9200

AD Package Width UOM

IN

AD Part Number Keywords

9001BW93Y ; 785901852902 ; 78590185290 ; 00785901852902

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 10 Attribute

Operating Temperature

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-13 to 140

Spec 11 Attribute

Operator Type

Spec 11 Attribute Value

Momentary

Spec 12 Attribute

Series

Spec 12 Attribute Value

9001B

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type BW

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 2 Attribute

Color

Spec 2 Attribute Value

Yellow

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NO-1NC

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.25 in H x 2.76 in W x 3.6 in D

Spec 5 Attribute

Legend

Spec 5 Attribute Value

Forward-Reverse

Spec 6 Attribute

Material

Spec 6 Attribute Value

Polycarbonate

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

NEMA Rating

Spec 8 Attribute Value

NEMA 1/3/3R/4/4X

Spec 9 Attribute

Number of Operators

Spec 9 Attribute Value

2
