Schneider Electric

9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts

Category Meter Socket & Metering Accessories

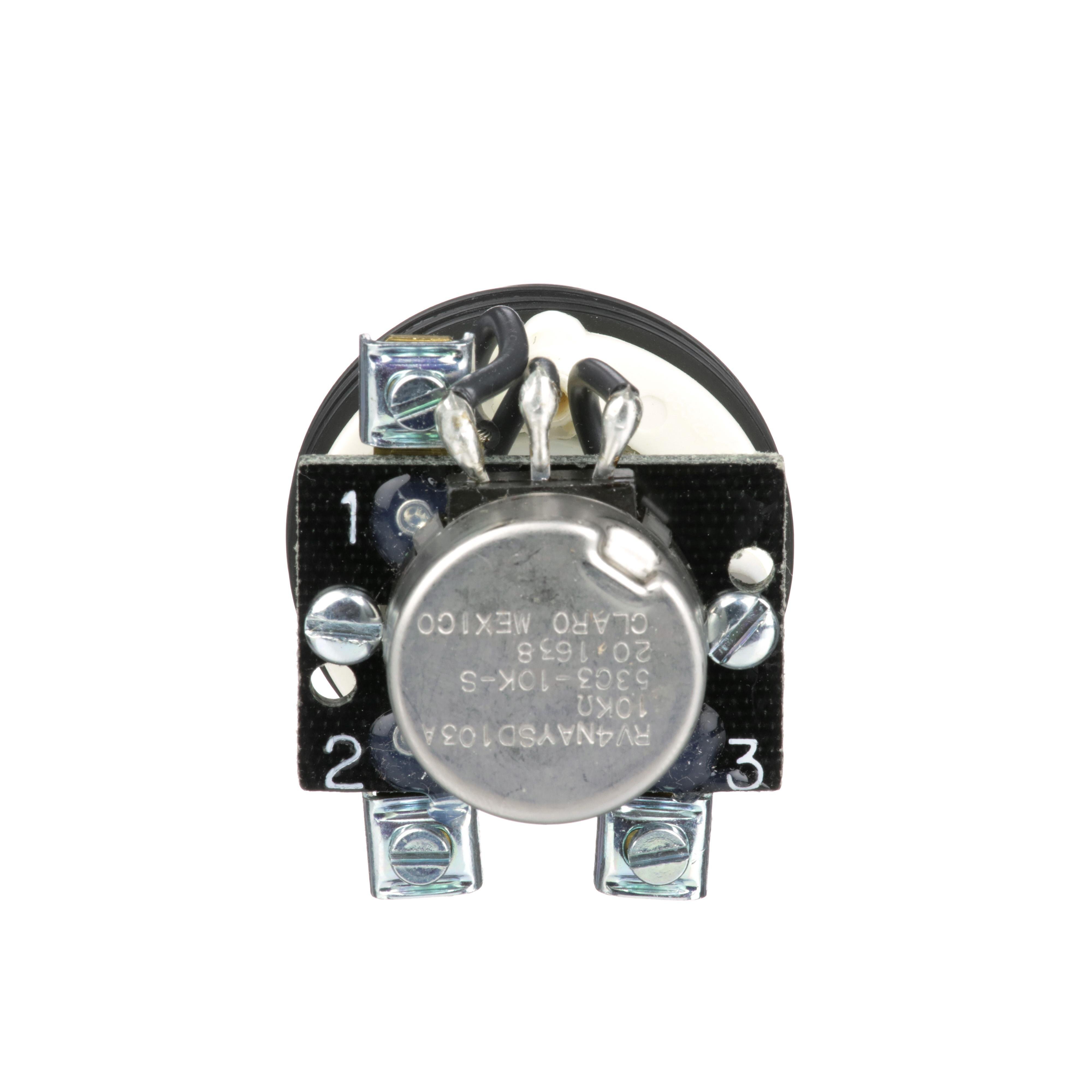

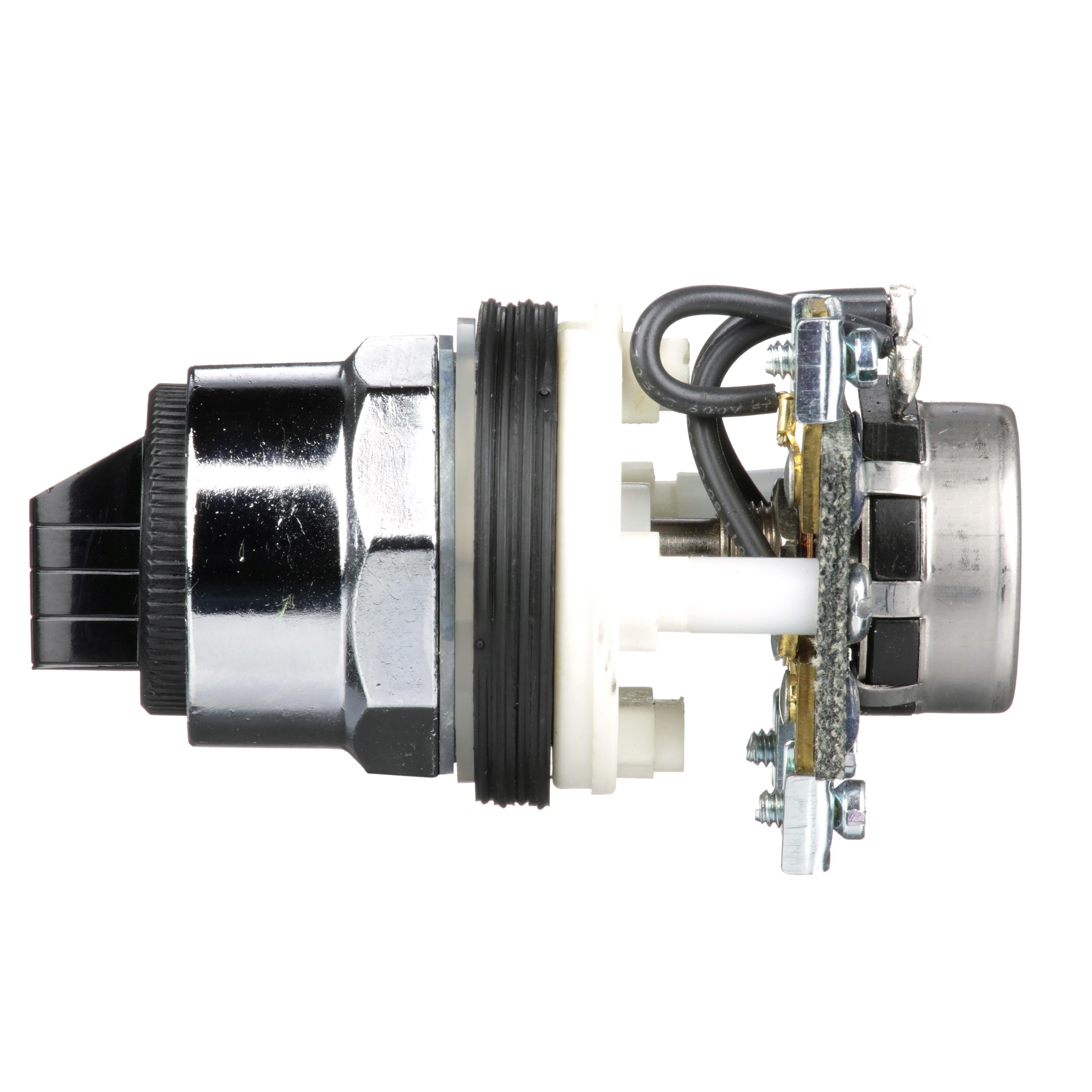

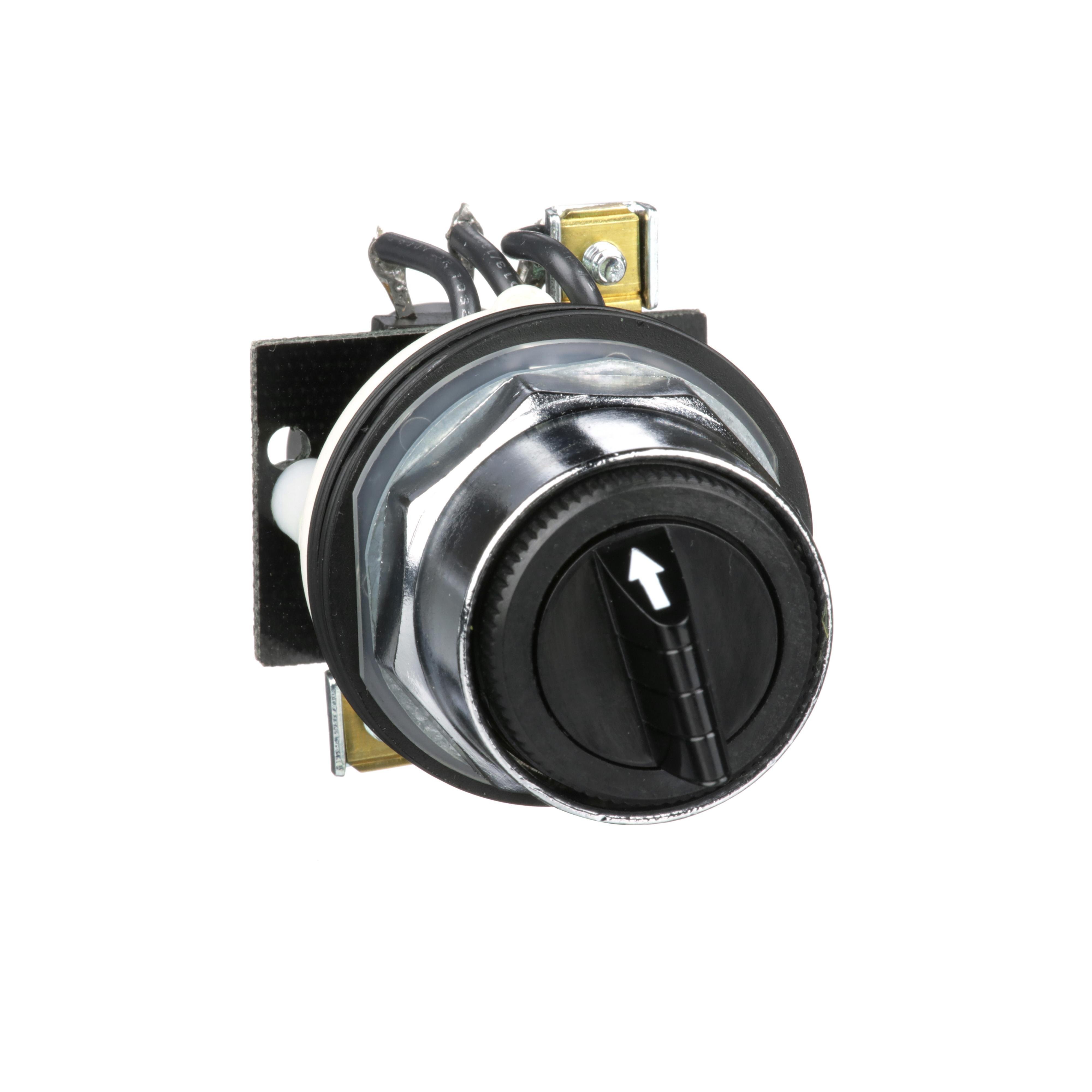

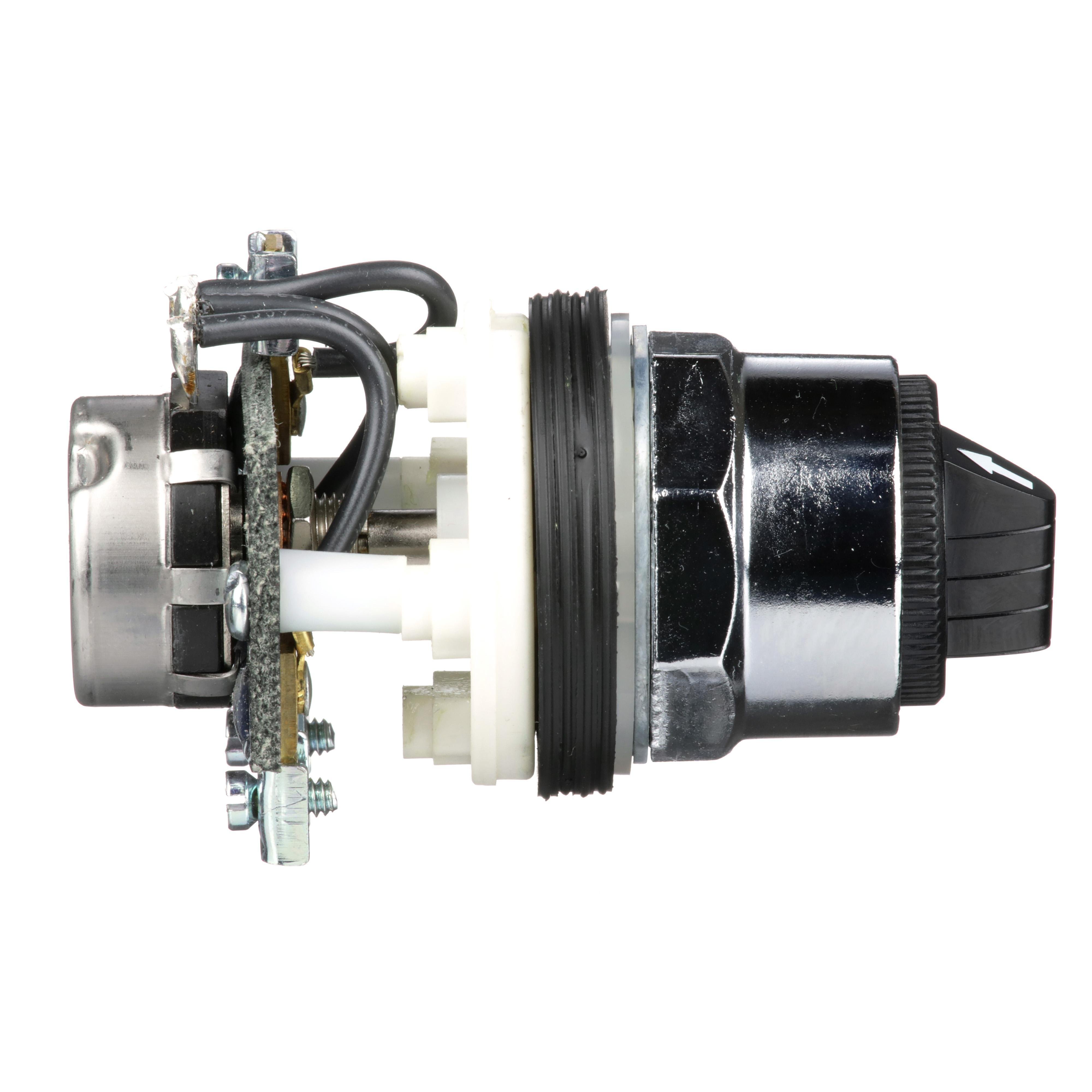

Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts
Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts
Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts
Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts
Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts Picture of 9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts
Schneider Electric

9001K2108 - 30mm Push Button, Type K, potentiometer, 10 kohm, 2 Watts

Item Code: 595975
Category Meter Socket & Metering Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001K2108

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is a NEMA 4/13 rated product. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries. It is easily installed into 1/16inch to 3/16inch diameter panel cut outs. This robust range offers long-term reliability in heavy duty industrial applications and extreme environments.

Specifications

Weight

0.28

Height

1.9

Width

2.08

Length

4.46

AD Application

For high visibility

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Includes

Pilot lights, Push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers

AD Invoice Description

POTENTIOMETER 300VAC 2W 10KOHM 30 MM H

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

4.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

19.6700

AD Package Volume UOM

cu-in

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

2.0800

AD Package Width UOM

IN

Brand

Square D

Category

METER SOCKET & METERING ACCESSORIES

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

30 mm H

Spec 2 Attribute

Material

Spec 2 Attribute Value

Metal

Spec 3 Attribute

Power Rating

Spec 3 Attribute UOM

W

Spec 3 Attribute Value

2

Spec 4 Attribute

Resistance

Spec 4 Attribute UOM

kOhm

Spec 4 Attribute Value

10

Spec 5 Attribute

Series

Spec 5 Attribute Value

K

Spec 6 Attribute

Type

Spec 6 Attribute Value

Panel Mounted

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

300
