Schneider Electric

9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

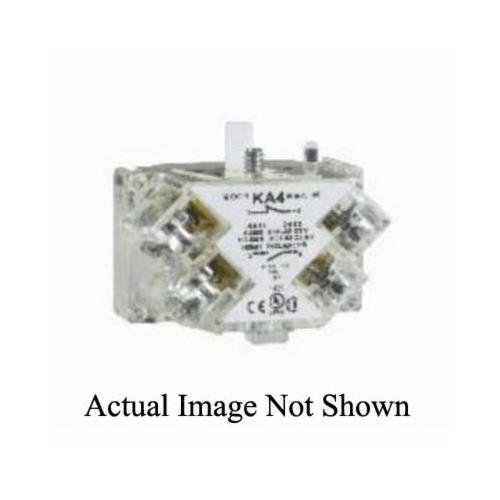

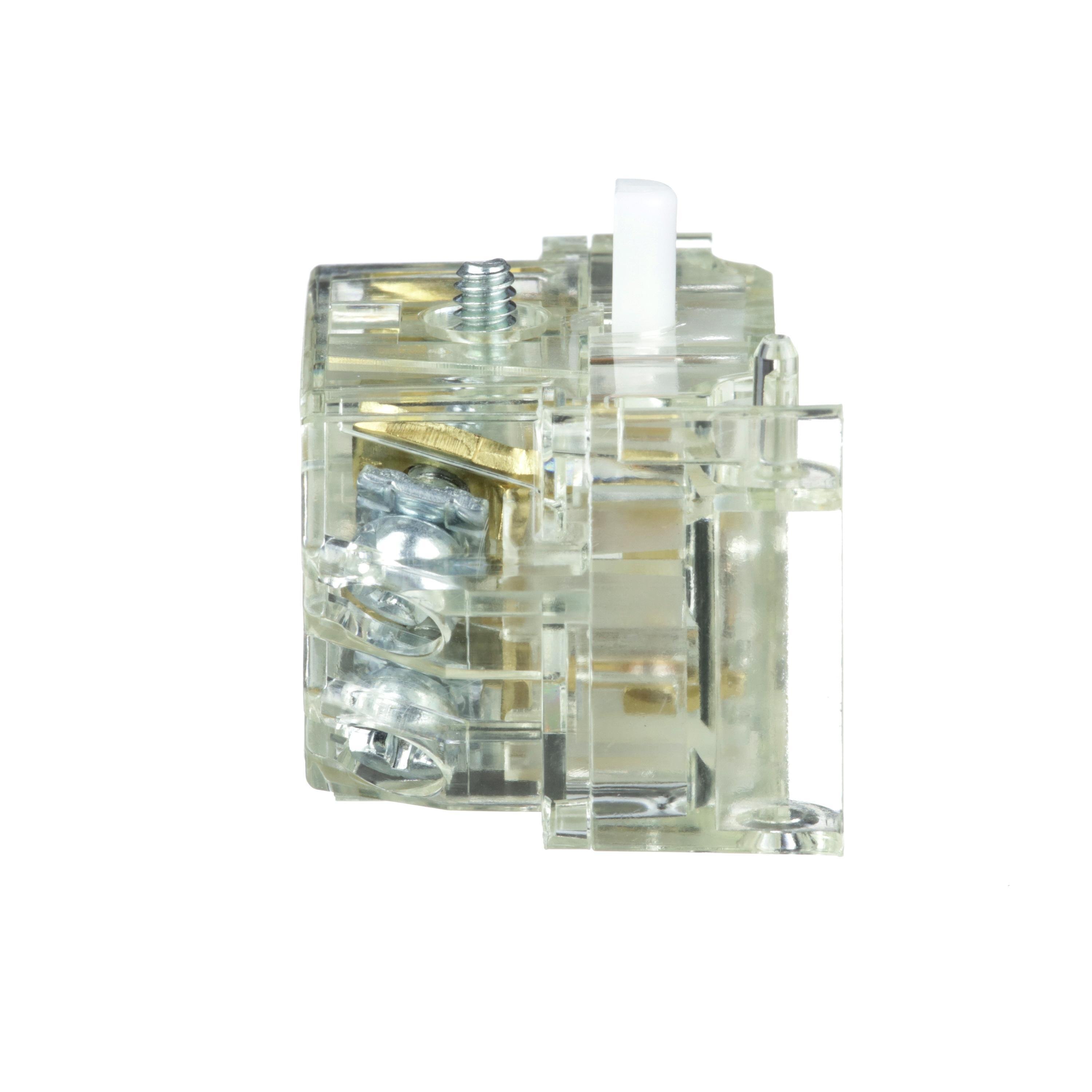

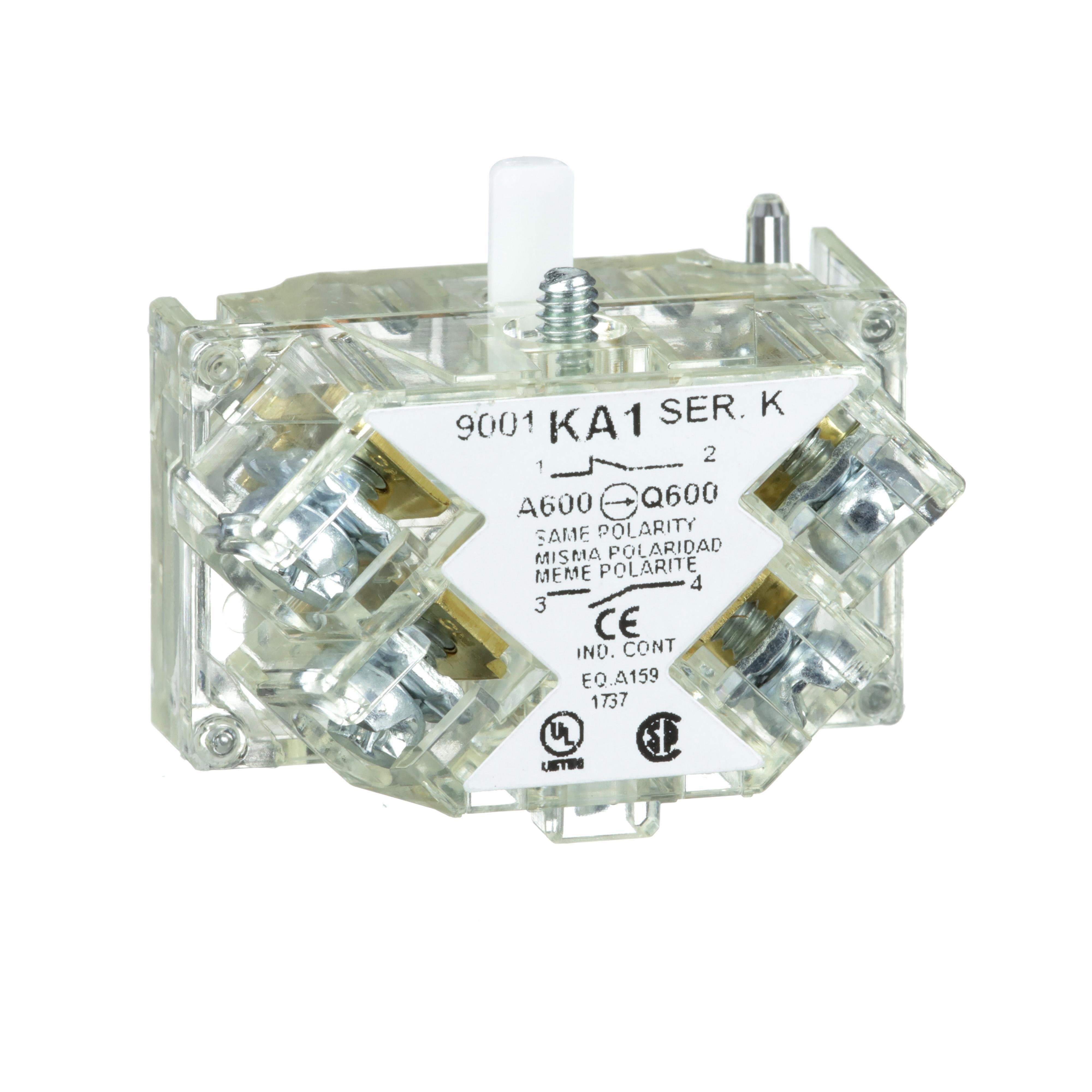

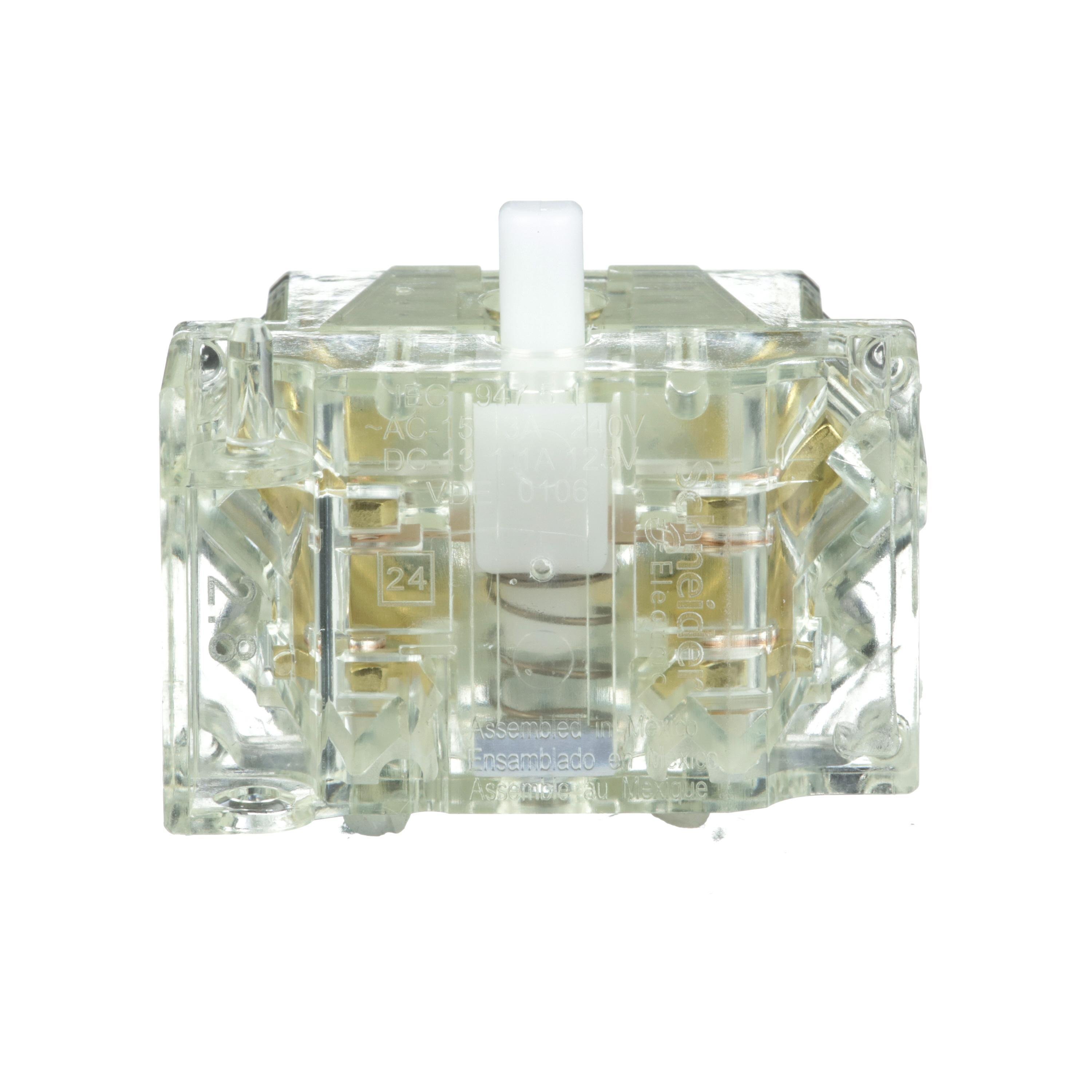

Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC
Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC
Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC
Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC
Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC Picture of 9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC
Schneider Electric

9001KA1 - 30mm Push Button, Types K, SK or KX, contact block, 1 NO and 1 NC

Item Code: 17397
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KA1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is compatible with Harmony 9001K push buttons and switches. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.06lb

Height

1.1mm

Width

1.17mm

Length

1.56mm

AD All Features

This Schneider Electric Harmony 9001K contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BLOCK CONT 30MM 1NO-1NC 10A 600VAC

AD Item Features 01

This Schneider Electric Harmony 9001K contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts

AD Item Features 02

It is compatible with Harmony 9001K push-buttons and switches

AD Item Features 03

It fits in a 30mm hole

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

1.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

26.4000

AD Package Volume UOM

cu-in

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

1.1700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/z4UUZQz35-w

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Action

Spec 1 Attribute Value

Momentary

Spec 10 Attribute

Series

Spec 10 Attribute Value

9001K

Spec 11 Attribute

Size

Spec 11 Attribute UOM

MM

Spec 11 Attribute Value

30

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 13 Attribute

Type

Spec 13 Attribute Value

Types K SK KX Finger Safe Standard

Spec 2 Attribute

Color

Spec 2 Attribute Value

Clear

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NO-1NC

Spec 4 Attribute

Contact Material

Spec 4 Attribute Value

Silver Alloy

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

10 A, 600 V AC

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

Material

Spec 7 Attribute Value

Nylon

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Threaded

Spec 9 Attribute

Operator Type

Spec 9 Attribute Value

Standard
