Square D

9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

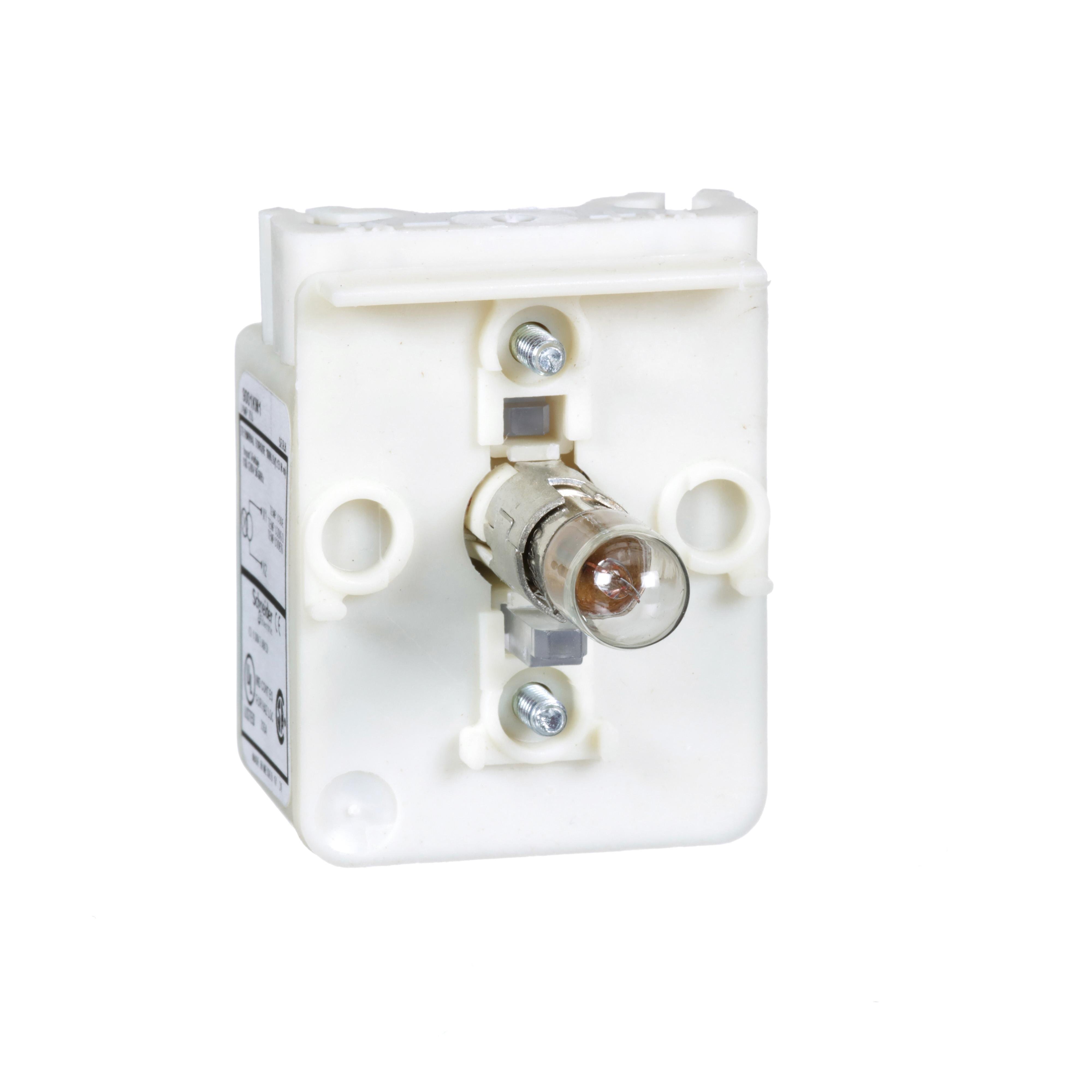

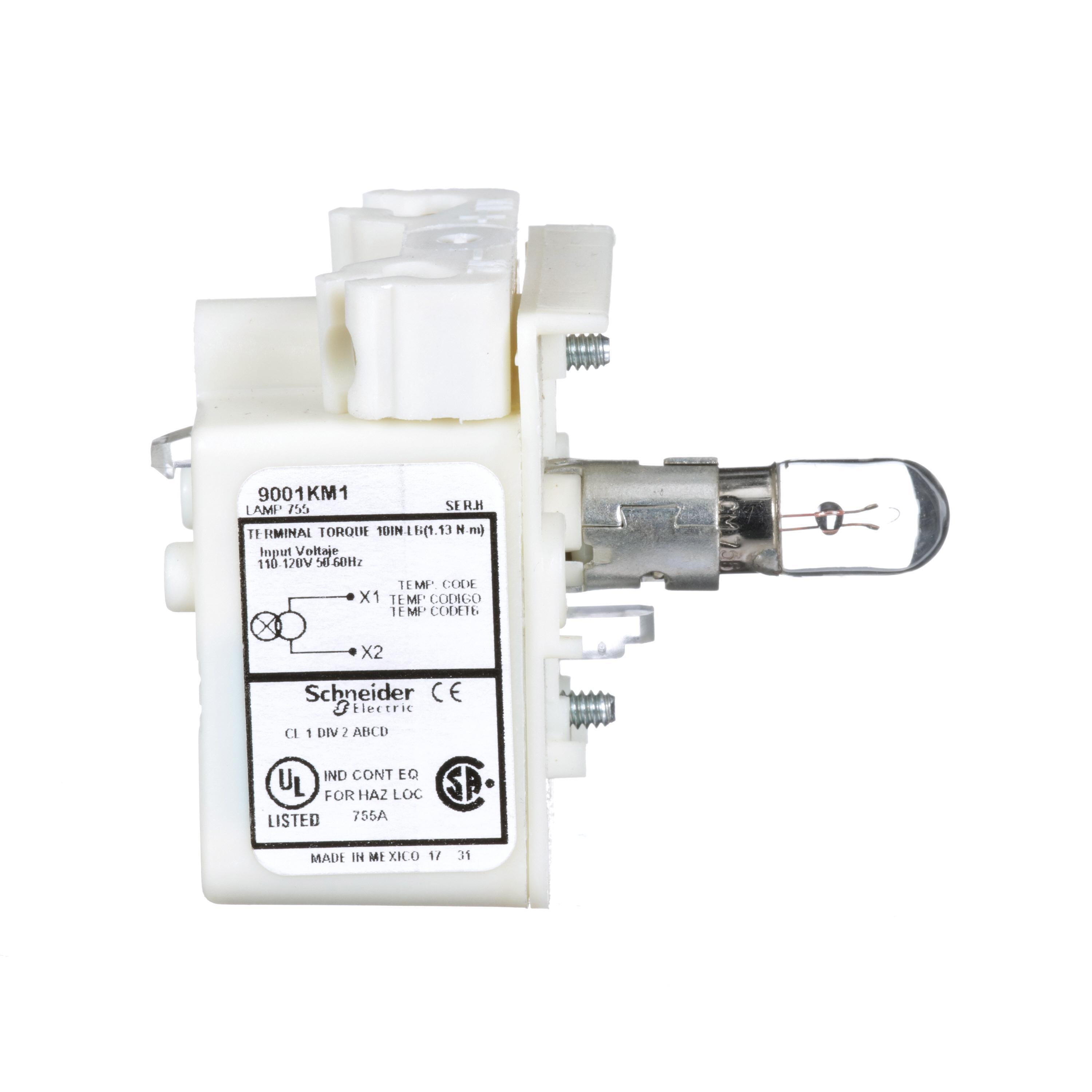

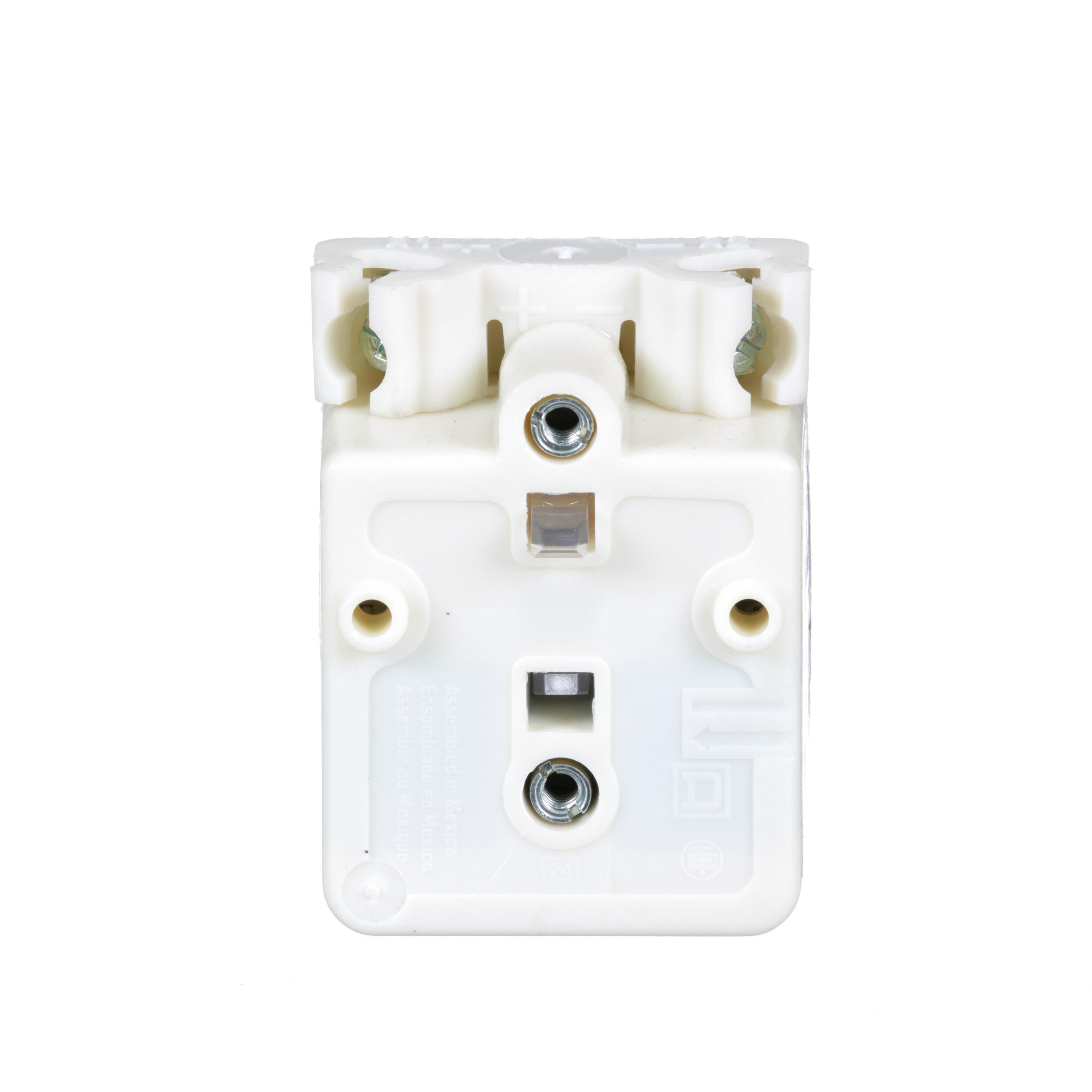

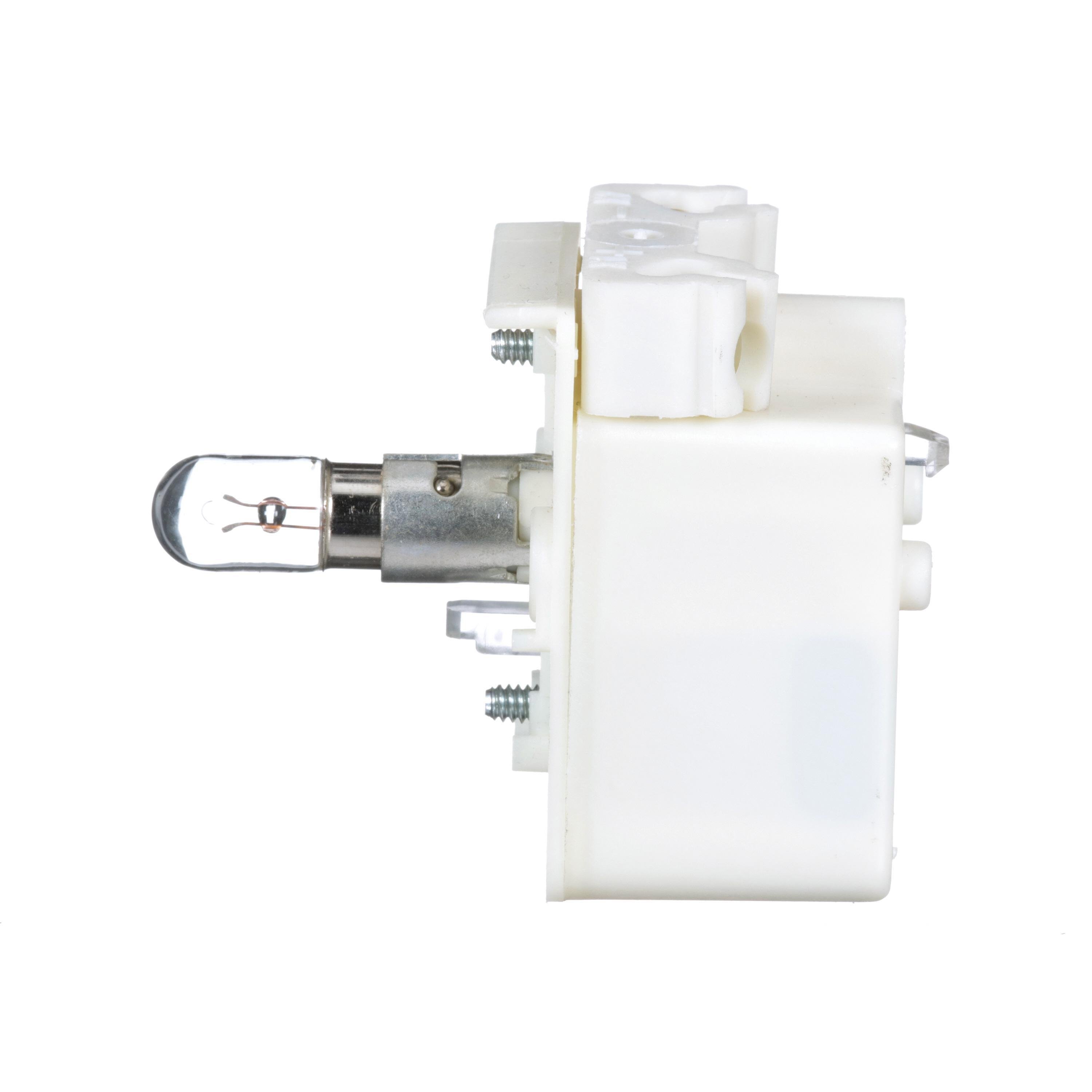

Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC Picture of 9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC
Square D

9001KM1 - 30mm Push Button, Types K, SK or KX, light module, transformer, 110/120 VAC

Item Code: 17403
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KM1

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.33lb

Height

1.8mm

Width

2.18mm

Length

3.67mm

AD Application

Light Module For Illuminating 30 mm Control Units Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

MODULE LT 30MM DIA INCAND 110/120VAC

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8000

AD Package Height UOM

IN

AD Package Length

3.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3300

AD Package Weight UOM

LB

AD Package Width

2.1800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=BUG4UOLSYCs

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

Clear

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/120

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

2.13 in W x 1.57 in H

Spec 3 Attribute

Lamp Type

Spec 3 Attribute Value

Incandescent

Spec 4 Attribute

Material

Spec 4 Attribute Value

BA 9S/Thermoplastic Polyester

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Direct/Surface

Spec 6 Attribute

Series

Spec 6 Attribute Value

9001K

Spec 7 Attribute

Size

Spec 7 Attribute Value

30 mm Dia

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Screw

Spec 9 Attribute

Type

Spec 9 Attribute Value

Transformer Style

Square D
