Schneider Electric

9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

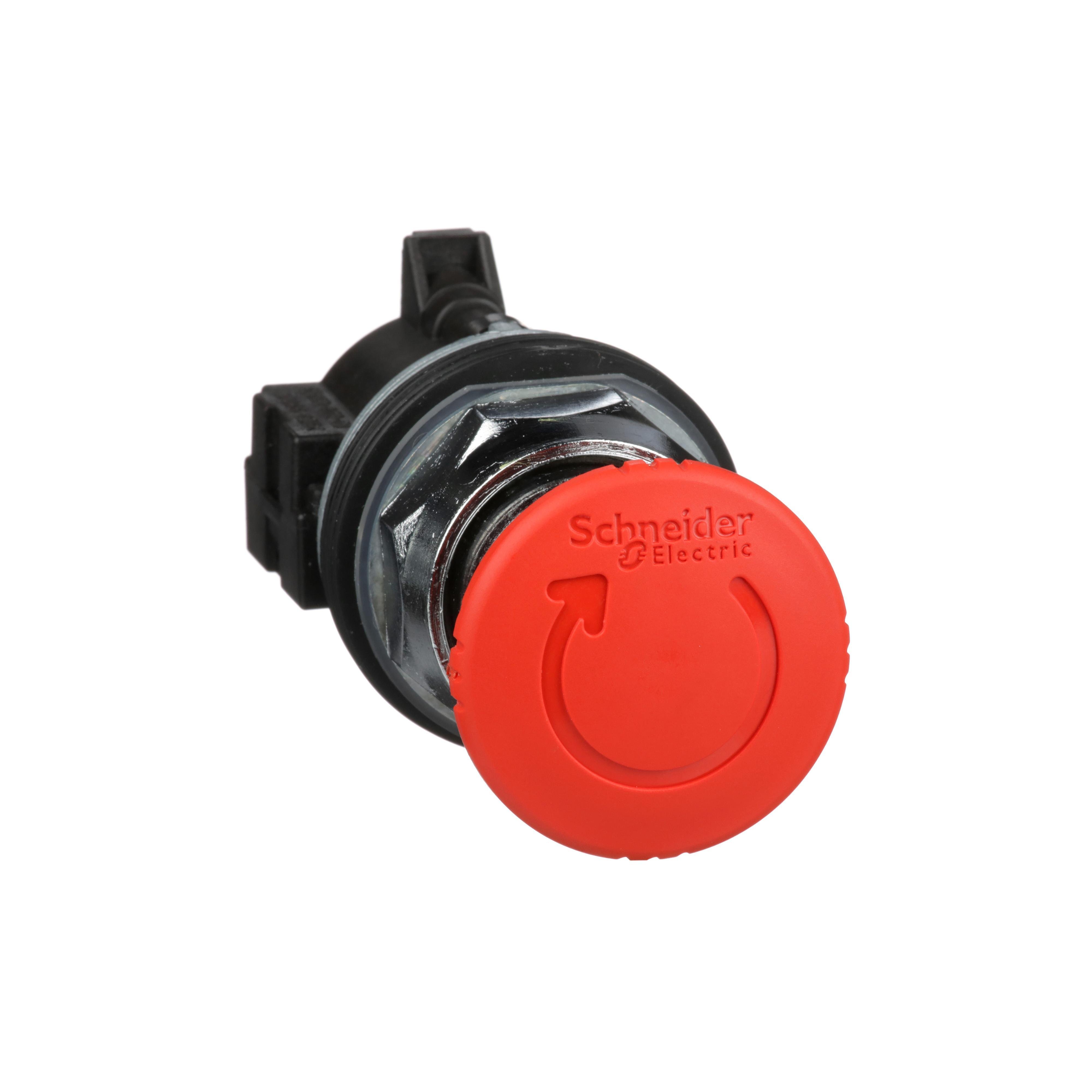

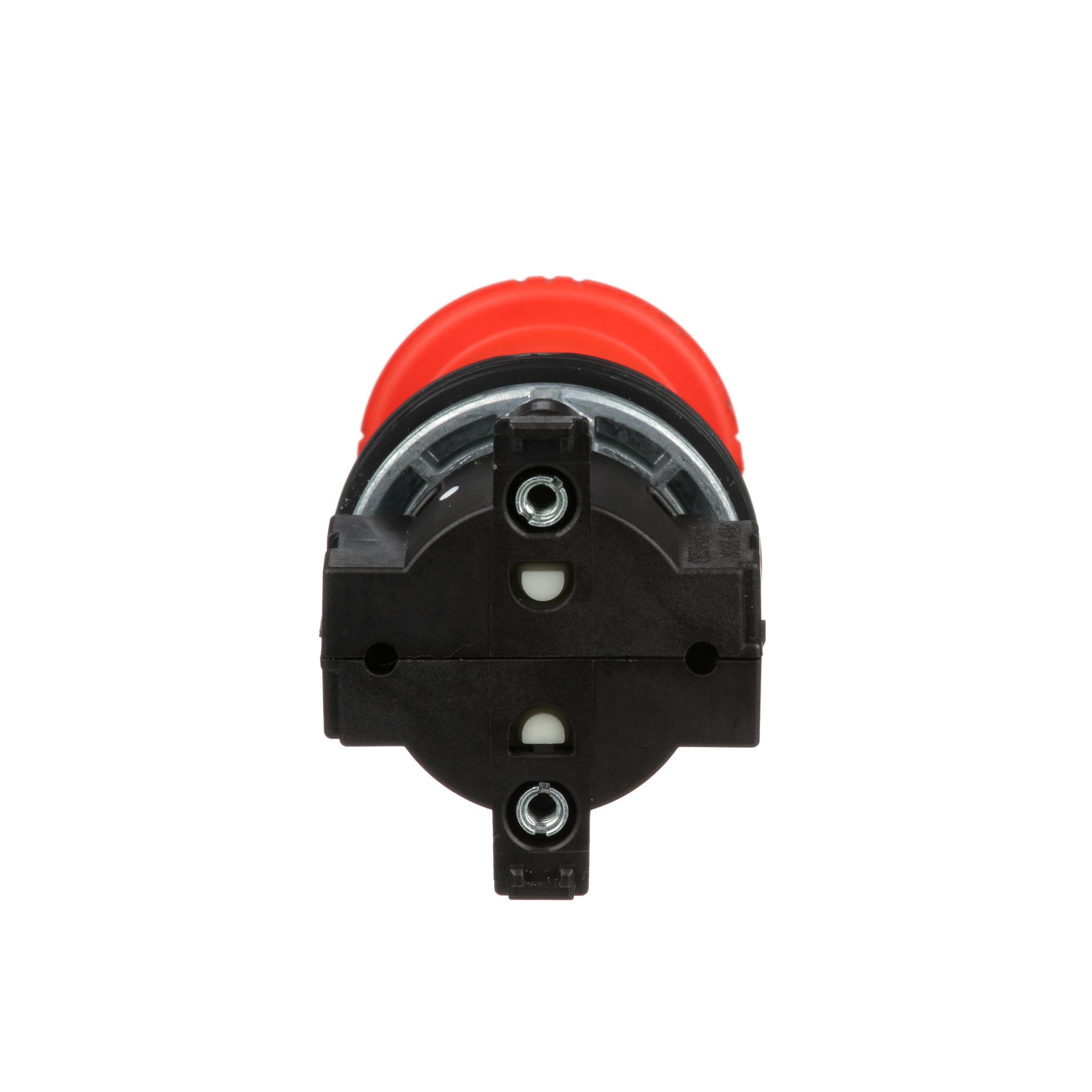

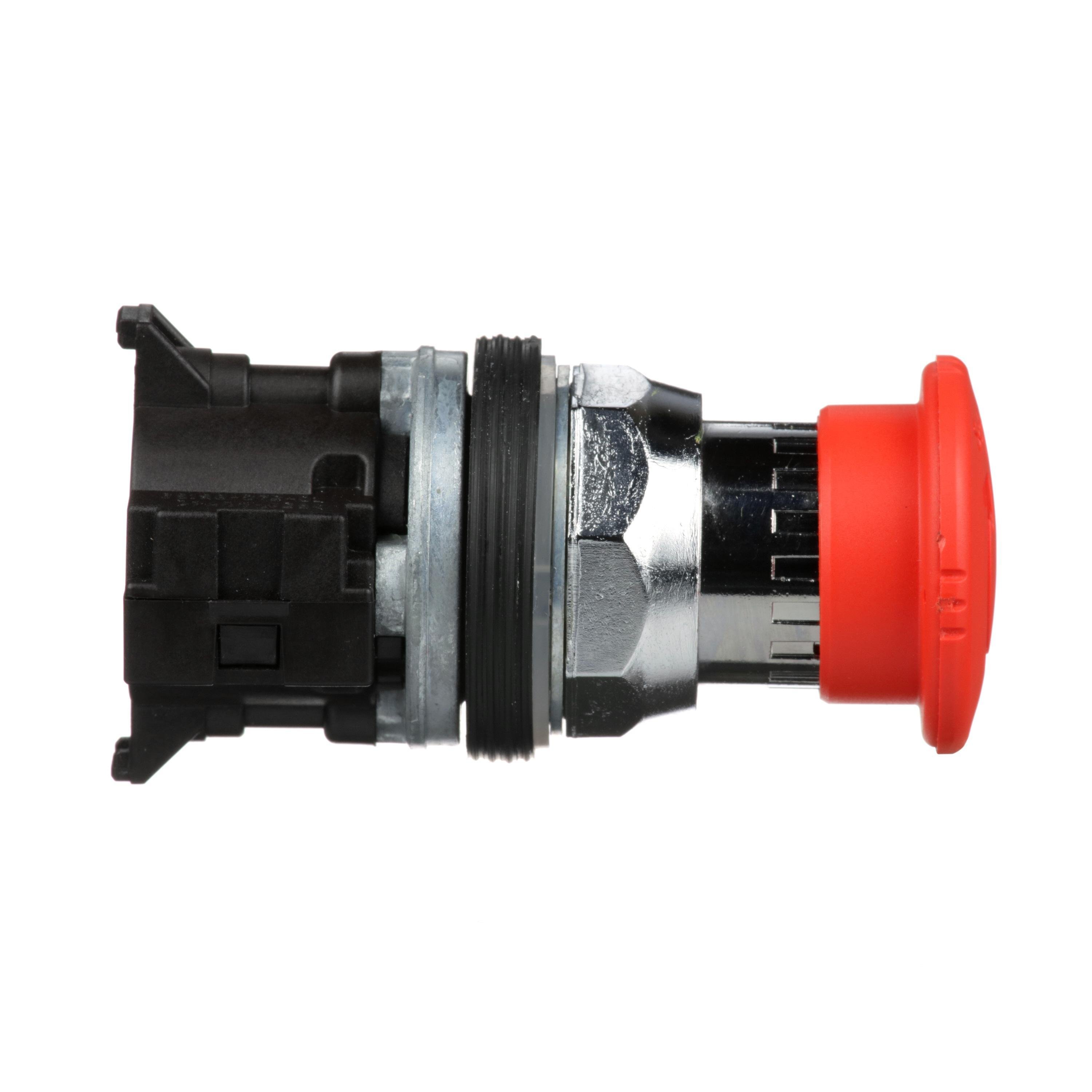

Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head
Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head
Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head
Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head
Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head Picture of 9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head
Schneider Electric

9001KR16 - 30mm Push Button, Type K, turn to release trigger action mushroom operator, 2 position, plastic red mushroom head

Item Code: 759810
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KR16

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 positions turn to release operator and it is supplied without contacts. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.38lb

Height

2.3mm

Width

1.98mm

Length

4.46mm

AD Application

Contact Block Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

PUSHBUTTON 30MM MAINTAINED TRIG ACTN 2 R

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.3000

AD Package Height UOM

IN

AD Package Length

4.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20.7000

AD Package Volume UOM

cu-in

AD Package Weight

0.3800

AD Package Weight UOM

LB

AD Package Width

1.9800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/z4UUZQz35-w

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom head

Spec 10 Attribute

Series

Spec 10 Attribute Value

9001K

Spec 11 Attribute

Size

Spec 11 Attribute UOM

MM

Spec 11 Attribute Value

30

Spec 12 Attribute

Type

Spec 12 Attribute Value

Emergency Stop Non-Illuminated

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Polished Chrome Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw-On

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained/Rotate-Unlatch

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1/2/3/3R/4/6/12/13/IP66

Spec 7 Attribute

Material

Spec 7 Attribute Value

Plastic

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Number of Positions

Spec 9 Attribute Value

2
