Schneider Electric

9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

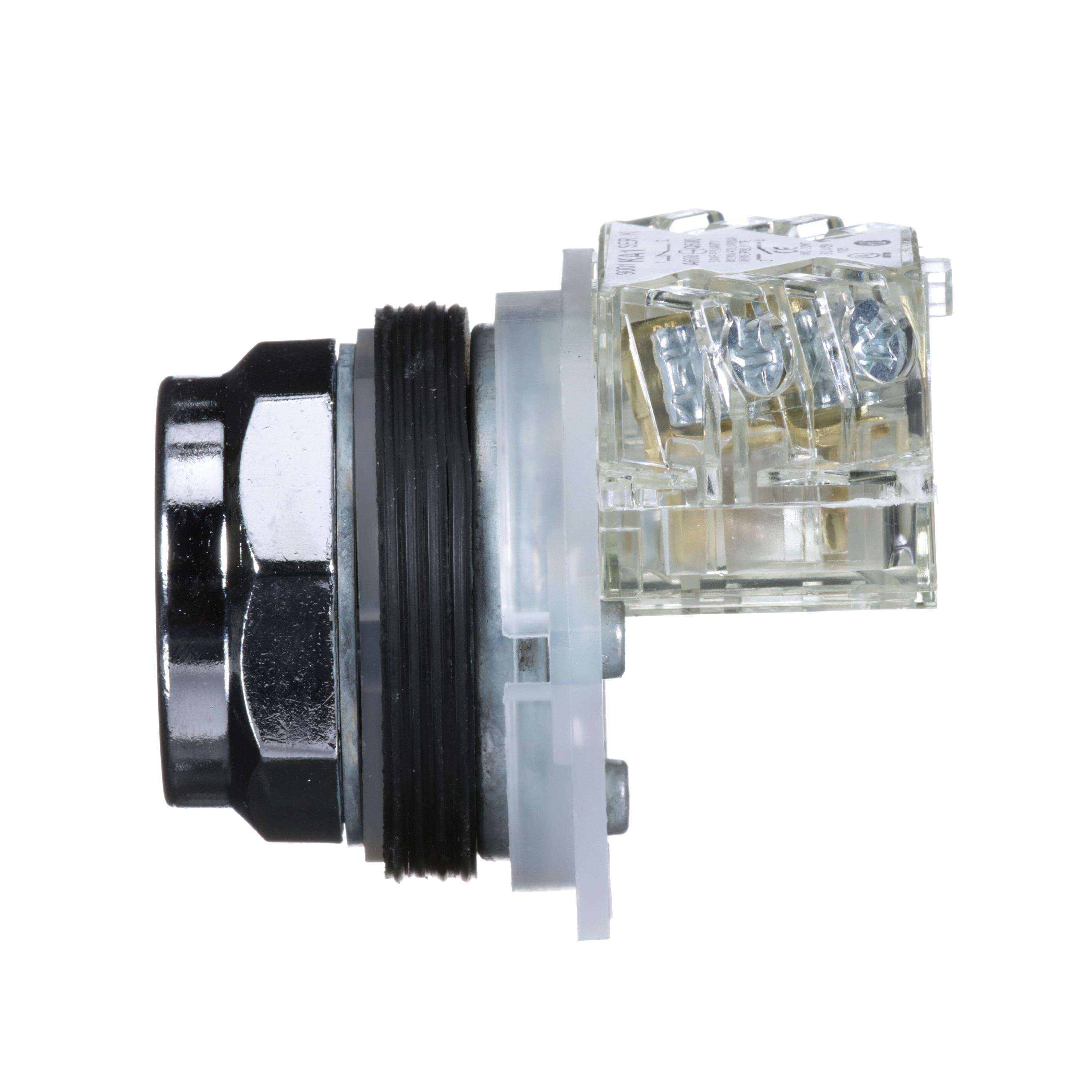

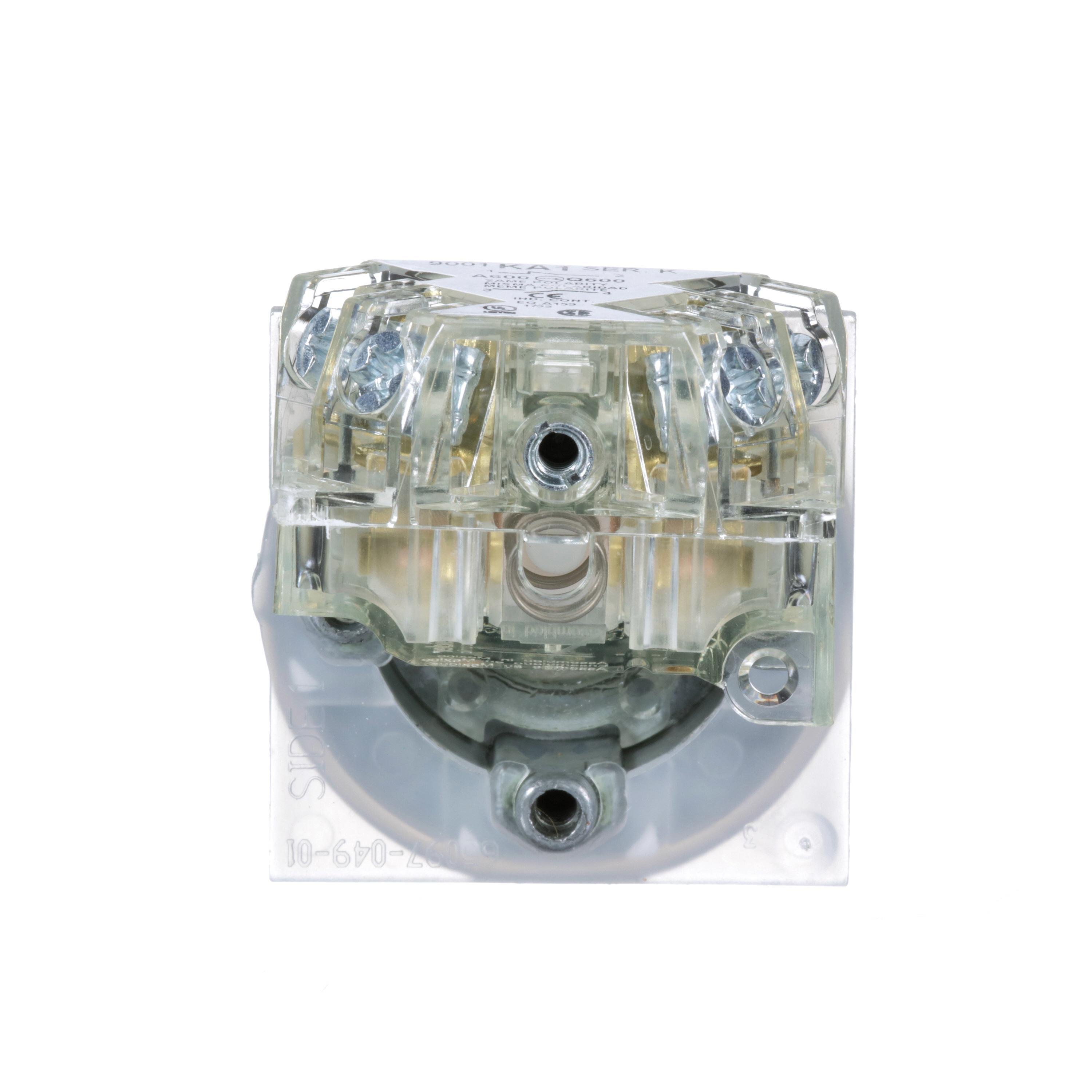

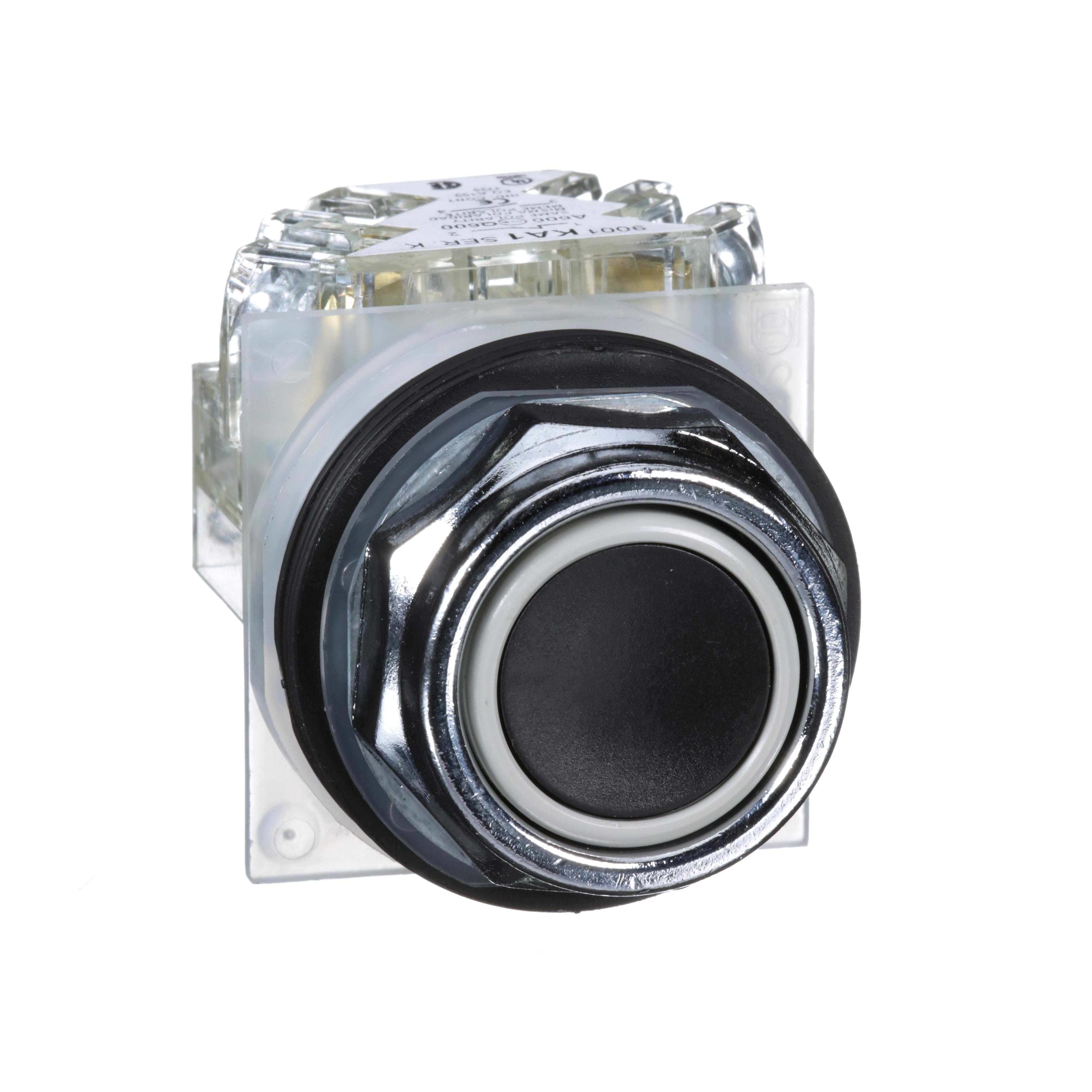

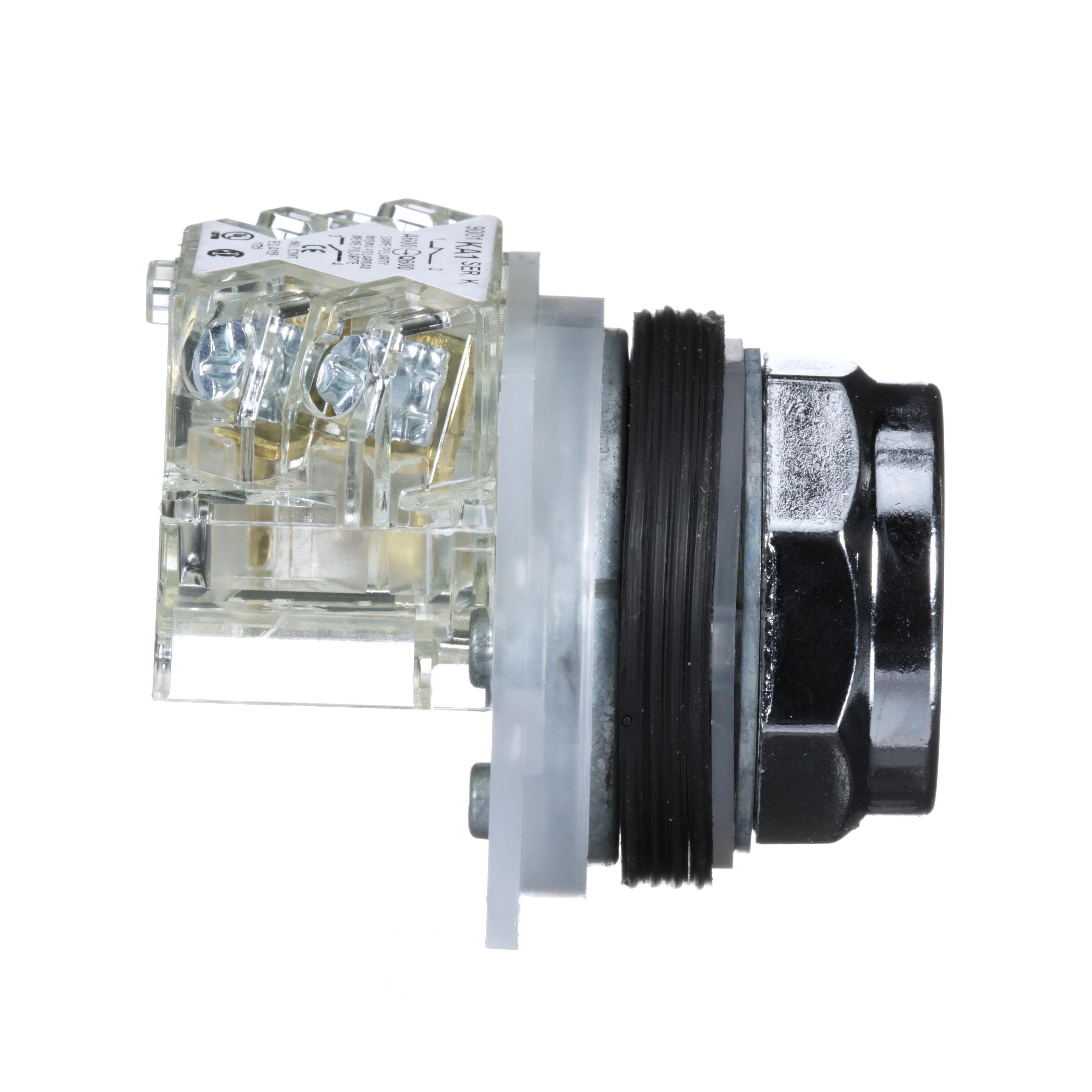

Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC
Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC
Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC
Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC
Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC Picture of 9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC
Schneider Electric

9001KR1BH13 - 30mm Push Button, Type K, push button, full guard, black, 1 NO and 1 NC

Item Code: 17478
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KR1BH13

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push but

Specifications

Weight

0.28

Height

1.9

Width

2.18

Length

3.51

AD Application

Indoor and outdoor applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 30MM 1NO-1NC

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

2.1800

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Flush Button/Spring Return

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Series

Spec 11 Attribute Value

9001K

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

30

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type K Standard

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Polished Chrome Bezel

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

1NO-1NC

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Momentary

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

10 A at 600 V AC

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

NEMA 1/2/3/3R/4/6/12/13/IP66

Spec 9 Attribute

Environmental Conditions

Spec 9 Attribute Value

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
