Square D™

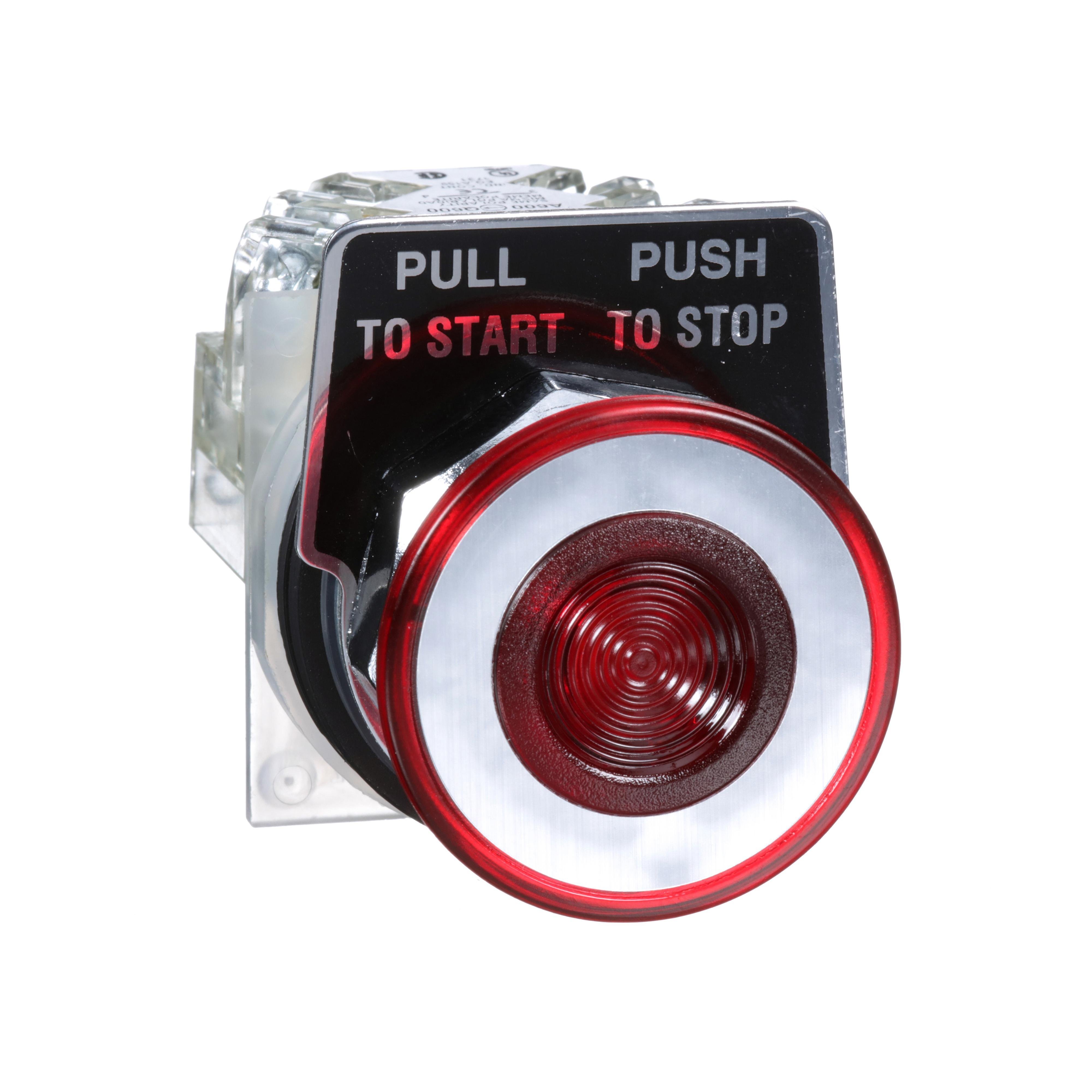

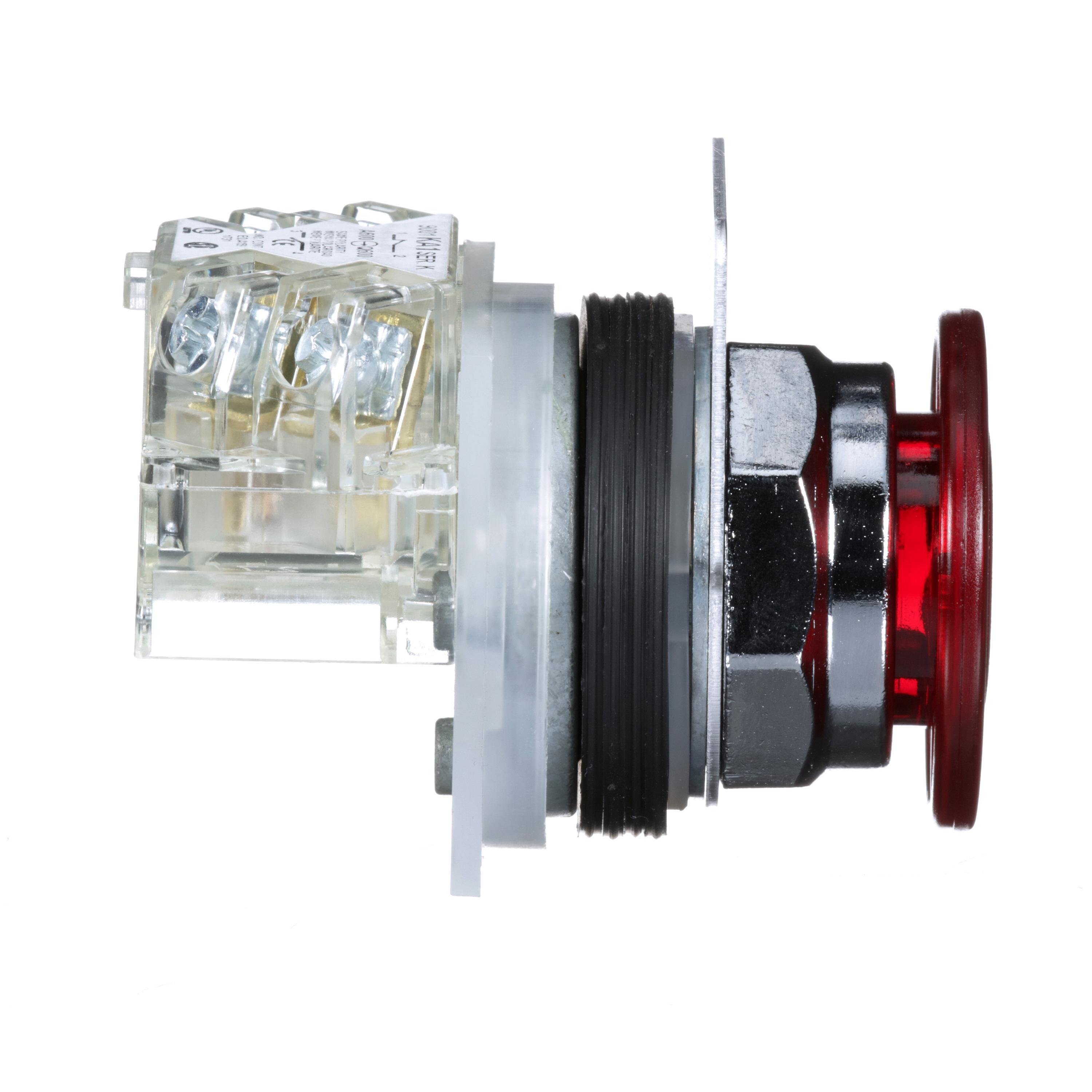

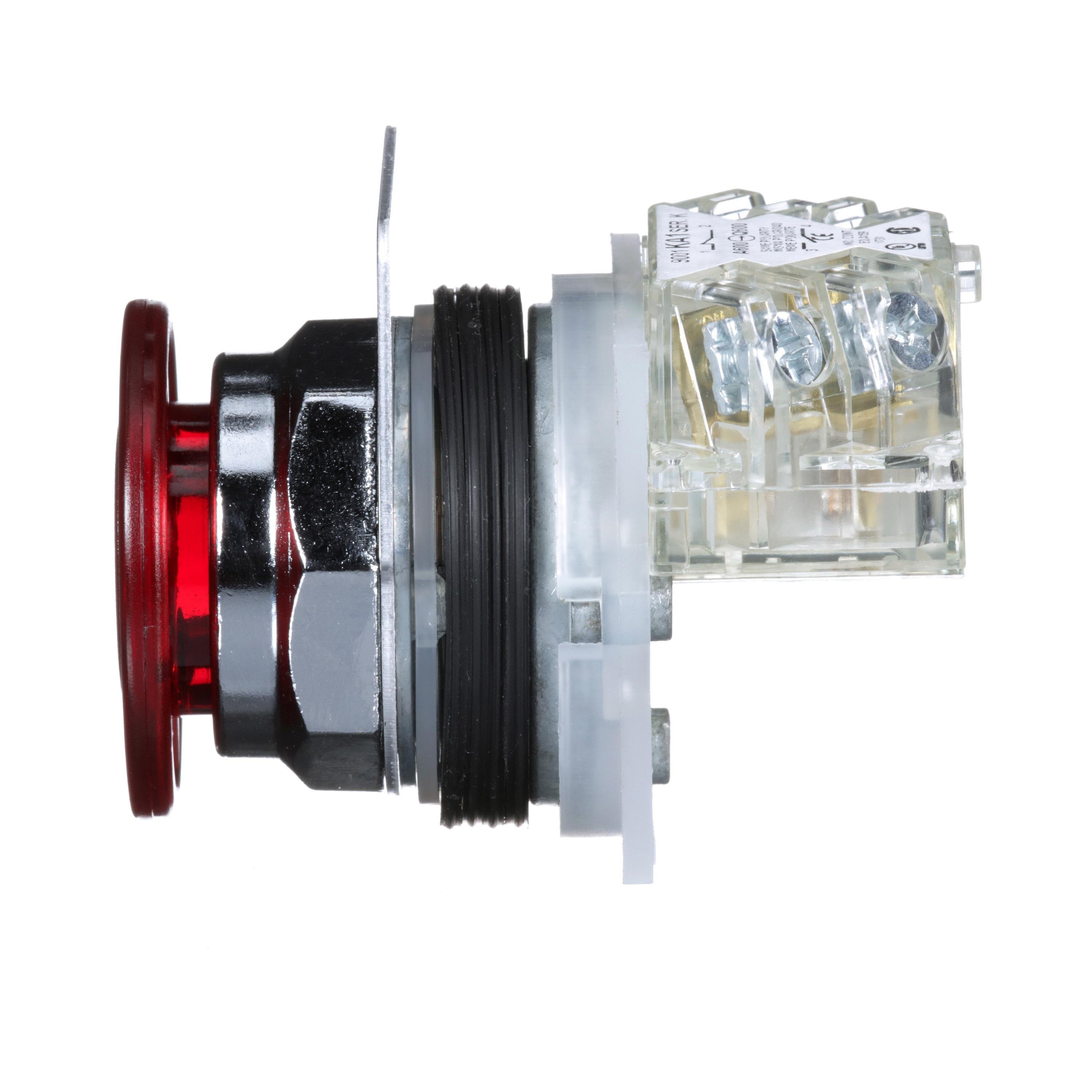

9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC

Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC
Square D™

9001KR9RH13 - 30mm Push Button, Type K, push pull operator, red mushroom cap, 1 NO and 1 NC

Item Code: 32560
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KR9RH13

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 maintained positions push pull operator and it is supplied with 1 x C/O contact and screw clamp terminals. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.32lb

Height

1.9mm

Width

1.98mm

Length

2.38mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9001KR9RH13/9001KR9RH13.spin

AD All Features

This Schneider Electric Harmony 9001K modular red push-button has 2 positions and operates with a stay-put mechanism

AD Alternative Part Number

8046006

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

0785901821090

AD Gtin

00785901821090

AD IDEA Index ID

8046006

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 30MM 1NC-1NO

AD Item Features 01

This Schneider Electric Harmony 9001K modular red push-button has 2 positions and operates with a stay-put mechanism

AD Item Features 02

It has a round shape and is supplied with contact block, 40mm mushroom head and 1 x NO + 1 x NC contact

AD Item Features 03

It fits in a 30mm hole

AD Keywords

Harmony Square D 9001KR9RH13 Type K Non-Illuminated Pushbutton, 30 mm, 1NO-1NC Contact, Red ; Schneider Electric ; 9001KR9RH13 ; 9001KR9RH13 ; 785901821090 ; Non-Illuminated Pushbuttons

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

2.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

15.8800

AD Package Volume UOM

cu-in

AD Package Weight

0.3200

AD Package Weight UOM

LB

AD Package Width

1.9800

AD Package Width UOM

IN

AD Part Number Keywords

9001KR9RH13 ; 8046006 ; 785901821090 ; 78590182109 ; 00785901821090 ; 0785901821090

AD Video Links

https://www.youtube.com/embed/z4UUZQz35-w

Brand

Square D

Category

PUSH BUTTON COMPLETE ASSEMBLIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom Head/Round

Spec 10 Attribute

Number of Positions

Spec 10 Attribute Value

2

Spec 11 Attribute

Series

Spec 11 Attribute Value

9001KR

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

30

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type K

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Polished Chrome Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO-1NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10 A at 600 V AC

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

NEMA 1/2/3/3R/4/6/12/13/IP66

Spec 8 Attribute

Environmental Conditions

Spec 8 Attribute Value

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel
