Schneider Electric

9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC

Category Relays, Push Buttons, Pilot Lights, Selector Switches

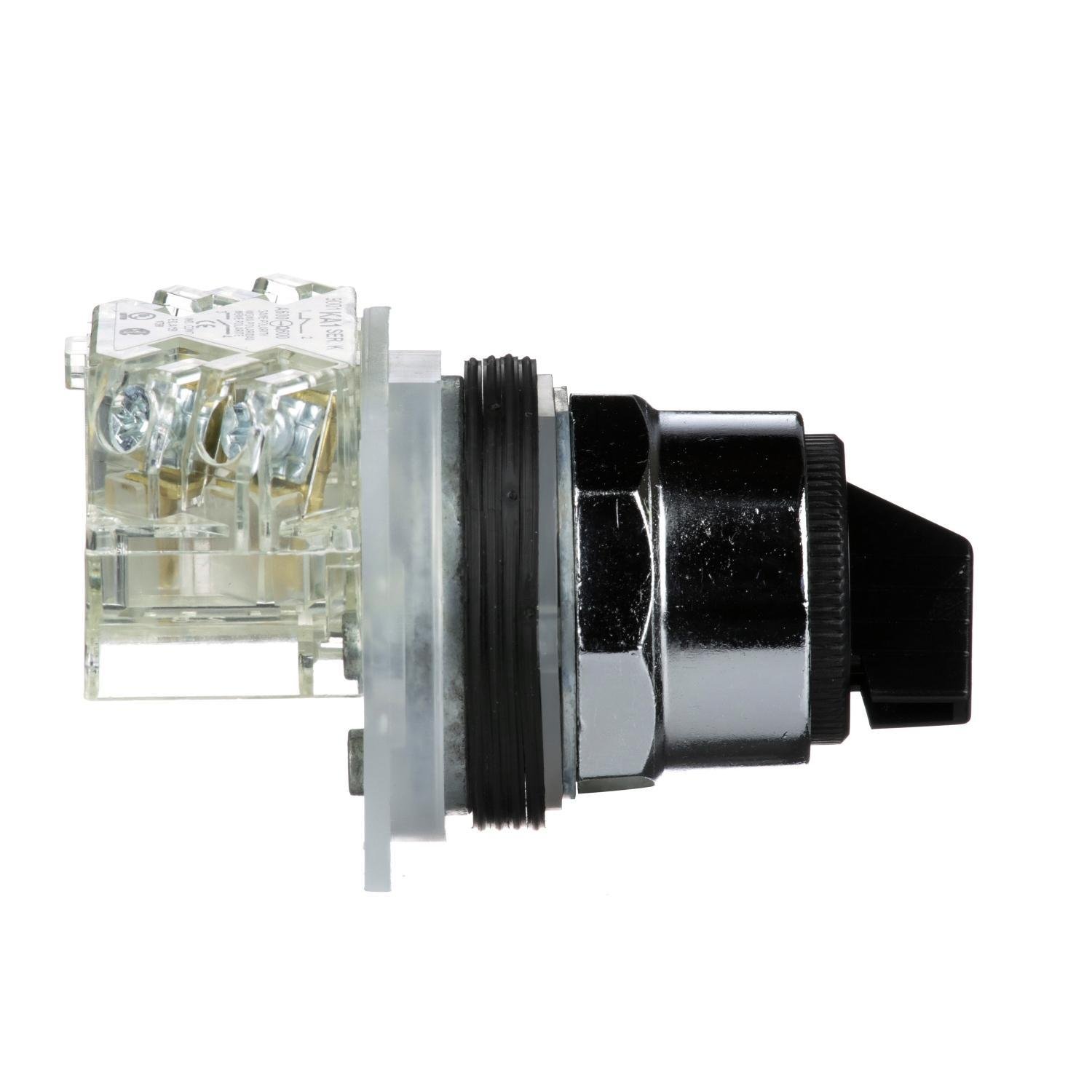

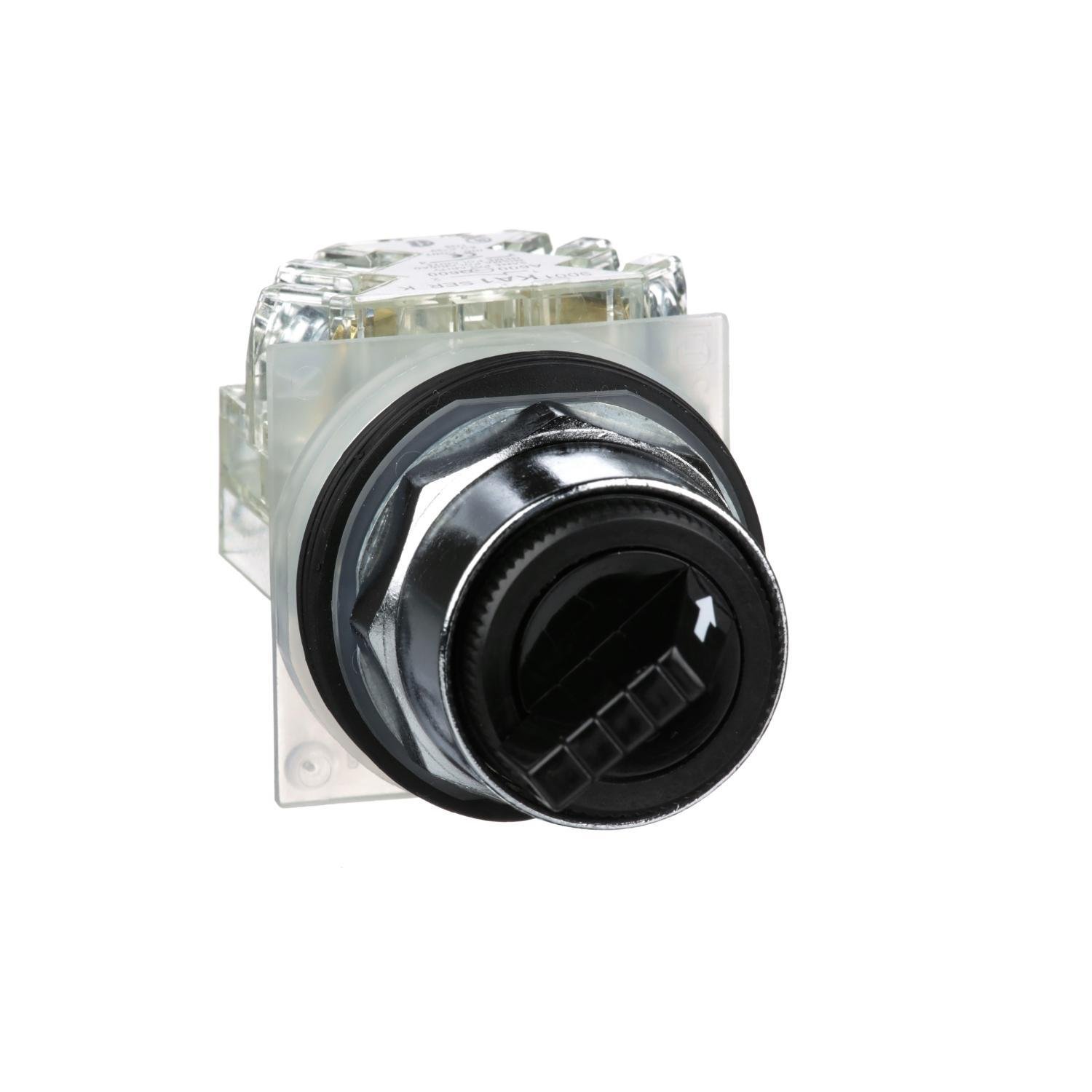

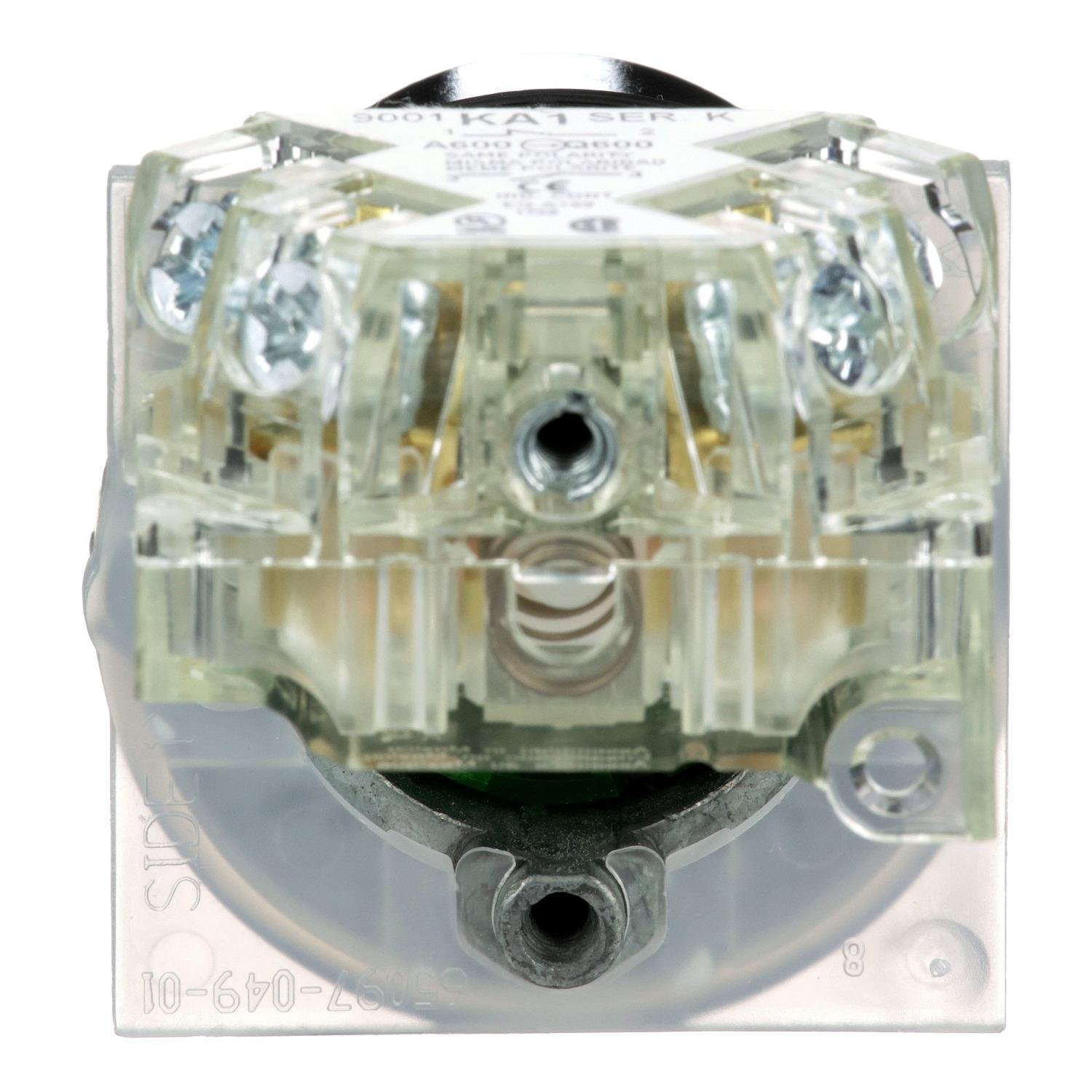

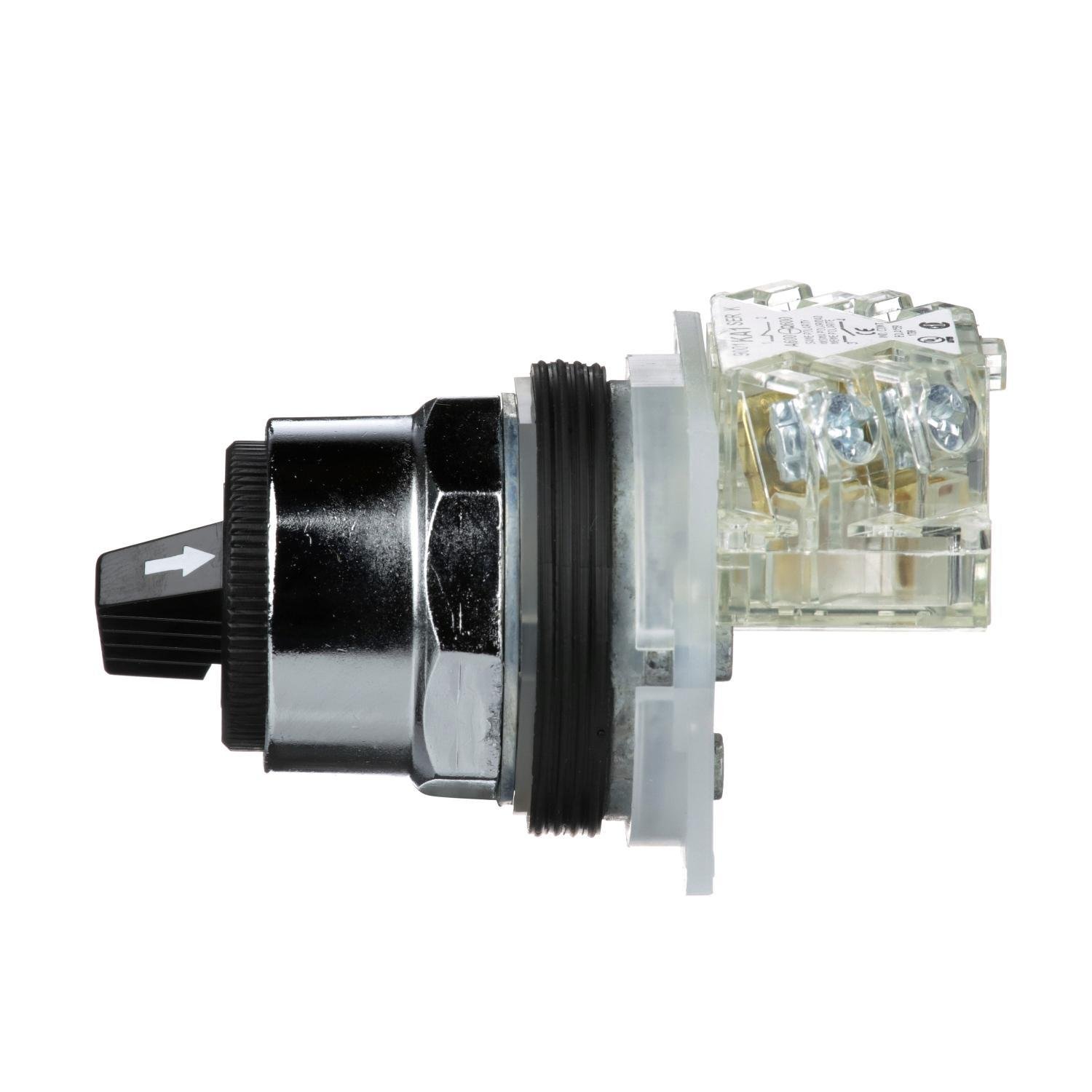

Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC Picture of 9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC
Schneider Electric

9001KS11BH13 - 30mm Push Button, Type K, selector switch, 2 position, black knob, 1NO and 1 NC

Item Code: 40722
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KS11BH13

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 positions operator and is supplied with 1 x C/O contact and screw clamp terminals. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.33lb

Height

1.8mm

Width

2.18mm

Length

3.67mm

AD Application

Food and Beverage, Chemical, Mining, Mineral and Metal Processing, Pulp and Paper, Water and Waste Water, Automotive, Crane and Hoists, Machine Tools, Airport and Transportation and Textile, Indoor and Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SEL NON-ILLUMINATED 30MM 1CO BK

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8000

AD Package Height UOM

IN

AD Package Length

3.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

13.6100

AD Package Volume UOM

cu-in

AD Package Weight

0.3300

AD Package Weight UOM

LB

AD Package Width

2.1800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=z4UUZQz35-w&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Push Button

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Number of Positions

Spec 11 Attribute Value

2

Spec 12 Attribute

Operator Type

Spec 12 Attribute Value

Knob

Spec 13 Attribute

Series

Spec 13 Attribute Value

9001KS

Spec 14 Attribute

Size

Spec 14 Attribute UOM

IN

Spec 14 Attribute Value

1.18

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Screw

Spec 16 Attribute

Throw

Spec 16 Attribute Value

70 deg Left/Right

Spec 17 Attribute

Type

Spec 17 Attribute Value

Heavy Duty Non-Illuminated

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Cam Code

Spec 3 Attribute Value

E

Spec 4 Attribute

Color

Spec 4 Attribute Value

Black

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

1CO

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Maintained

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

10 A at 600 V AC, AC15 - DC13

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

NEMA 1/2/3/3R/4/6/12/13

Spec 9 Attribute

Material

Spec 9 Attribute Value

Die Cast Zinc
