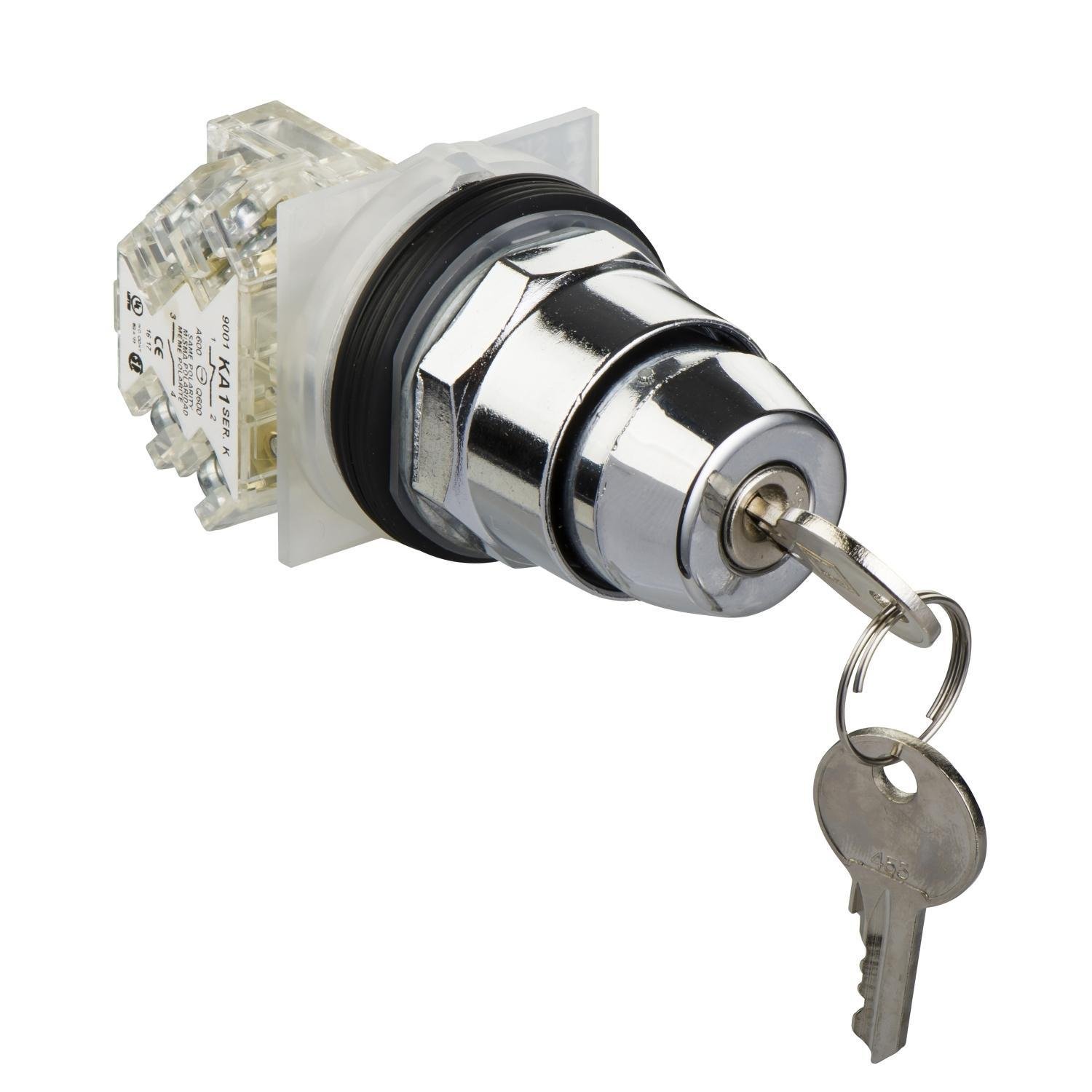

9001KS11K1H13 - Selector switch, Harmony 9001K, metal, key switch, key active left, 30mm, key E10, 2 positions, Cam E, stay put, 1 CO pos 2
Description
Specifications
0.44
2.5
2.18
3.67
8158684
Automotive, Machine Tool, Crane and Hoist, Food and Beverage, Industrial, Material Handling, Petrochemical, Non-Illuminated Pushbutton, Waste Water Treatment and Metallurgy, Indoor and Outdoor Applications
Schneider Electric
USA
MX
RoHS
Specification Sheet
Owners/User Manual
0785901034803
00785901034803
8158684
SWITCH SEL NON-ILLUMINATED 30MM 1NO-1NC
Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening
Schneider Electric
2.5000
IN
3.6700
IN
1
28.7500
cu-in
0.4400
LB
2.1800
IN
9001KS11K1H13 ; 8158684 ; 785901034803 ; 78590103480 ; 00785901034803 ; 0785901034803
https://www.youtube.com/watch?v=z4UUZQz35-w&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn
Square D
Actuator
2-Position Key
Enclosure Type
NEMA 1/2/3/3R/4/6/12/13/IP66
Environmental Conditions
-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Mounting Type
Panel
Number of Positions
2
Operator Type
Keyed
Series
9001KS
Size
IN
1.18
Terminal Type
Screw
Type
Heavy Duty Non-Illuminated Round Type K
Bezel/Housing
Chromium Plated Metal
Cam Code
E
Color
Black
Connection Type
Screw clamp
Contact Configuration
1NO-1NC
Contact Mode
Maintained
Contact Rating
6 A at 120 V AC, 3 A at 240 V AC, 1.5 A at 480 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC, AC15 - DC13
Contact Type
Slow Break
