Schneider Electric

9001KS11K3 - 30mm Push Button, Type K, keyed selector switch, 2 position, key removal on left or right

Category Relays, Push Buttons, Pilot Lights, Selector Switches

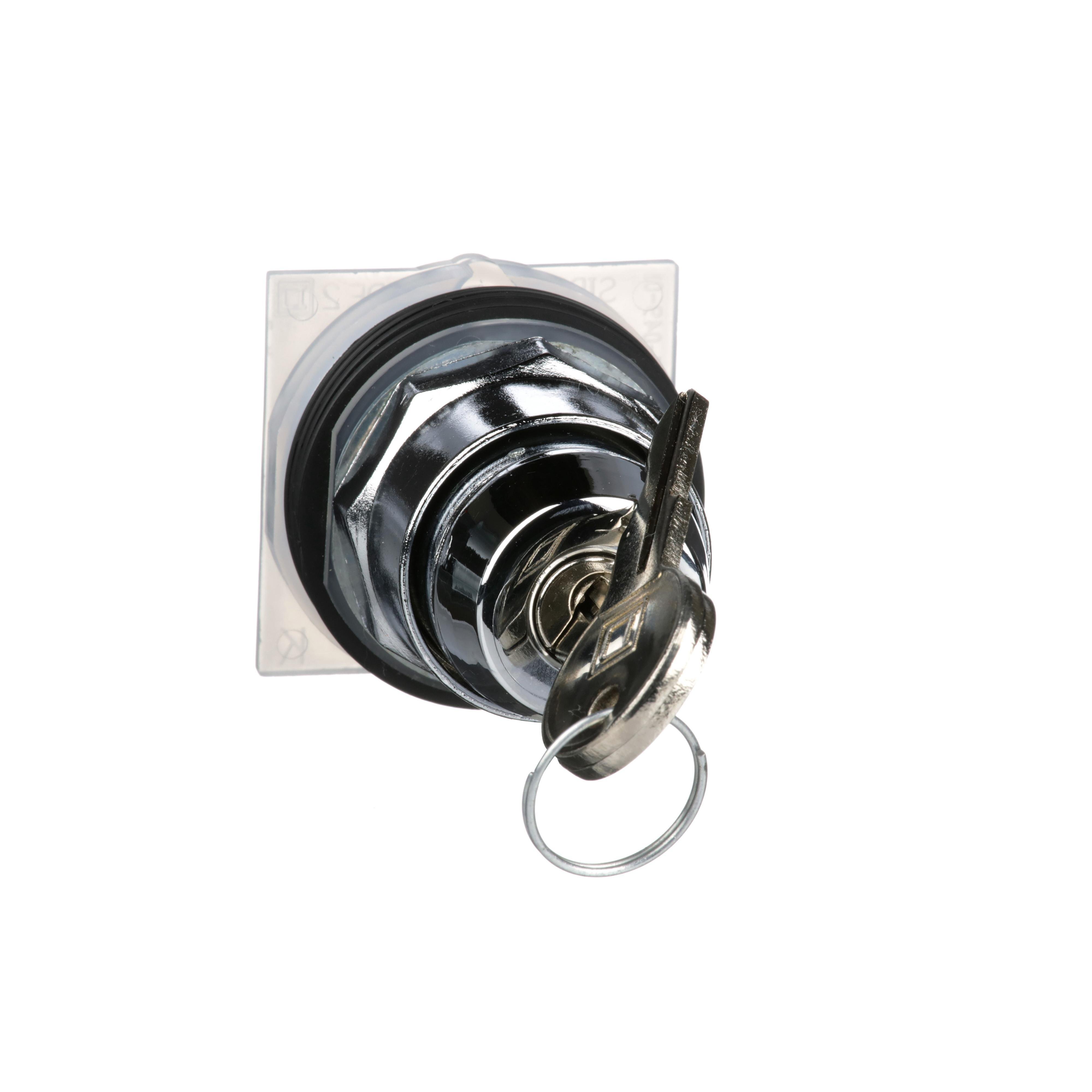

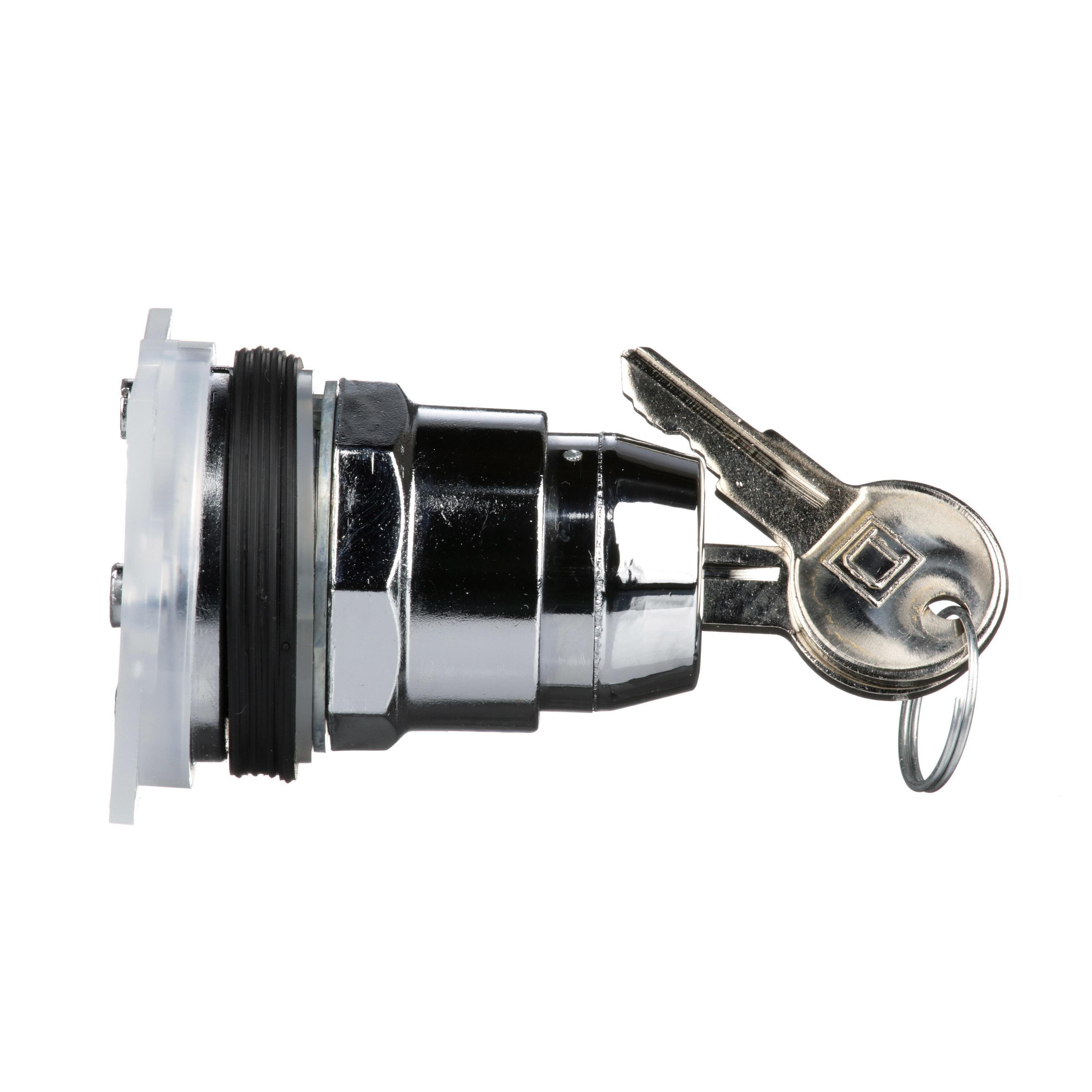

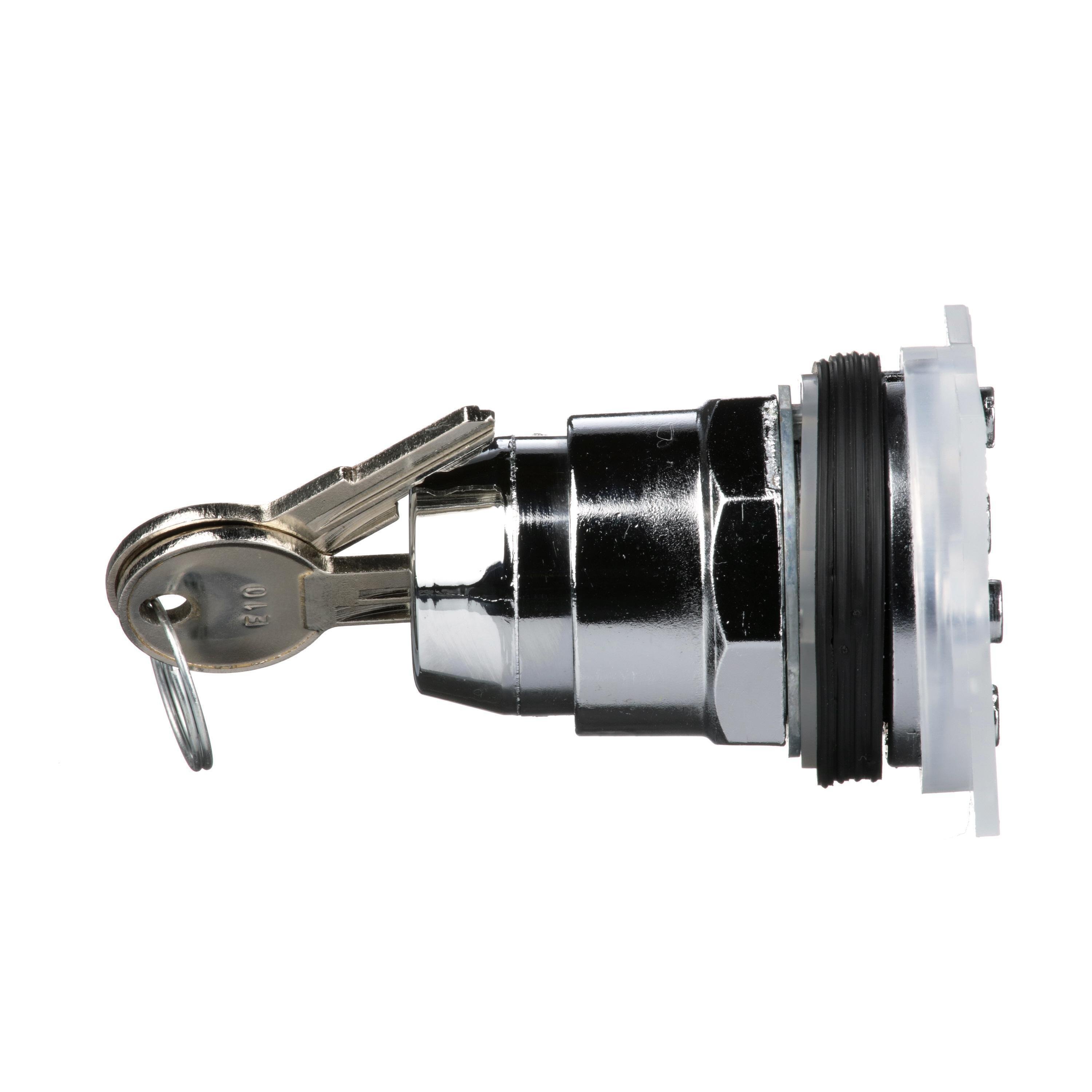

Picture of 9001KS11K3 - 30mm Push Button, Type K, keyed selector switch, 2 position, key removal on left or right
Schneider Electric

9001KS11K3 - 30mm Push Button, Type K, keyed selector switch, 2 position, key removal on left or right

Item Code: 17499
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KS11K3

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 positions maintained operator and is supplied without contacts. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.42lb

Height

1.9mm

Width

2.28mm

Length

3.67mm

Bezel/Housing

Chromium Plated Metal

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Color

Black

Contact Mode

Maintained

Enclosure Type

NEMA 1/2/3/3R/4/6/12/13/IP66

Mounting Type

Panel

Number of Positions

2

Operator Type

Maintained/Key Operated Knob

Series

9001K

Size

1.18 in

Temperature Rating

-25 to 70 deg C

Type

Non-Illuminated Round

Voltage Rating

600 V AC
