Square D

9001KS43BH13 - 30mm Push Button, Type K, selector switch, 3 position, C cam, black knob, 1NO and 1NC

Category Relays, Push Buttons, Pilot Lights, Selector Switches

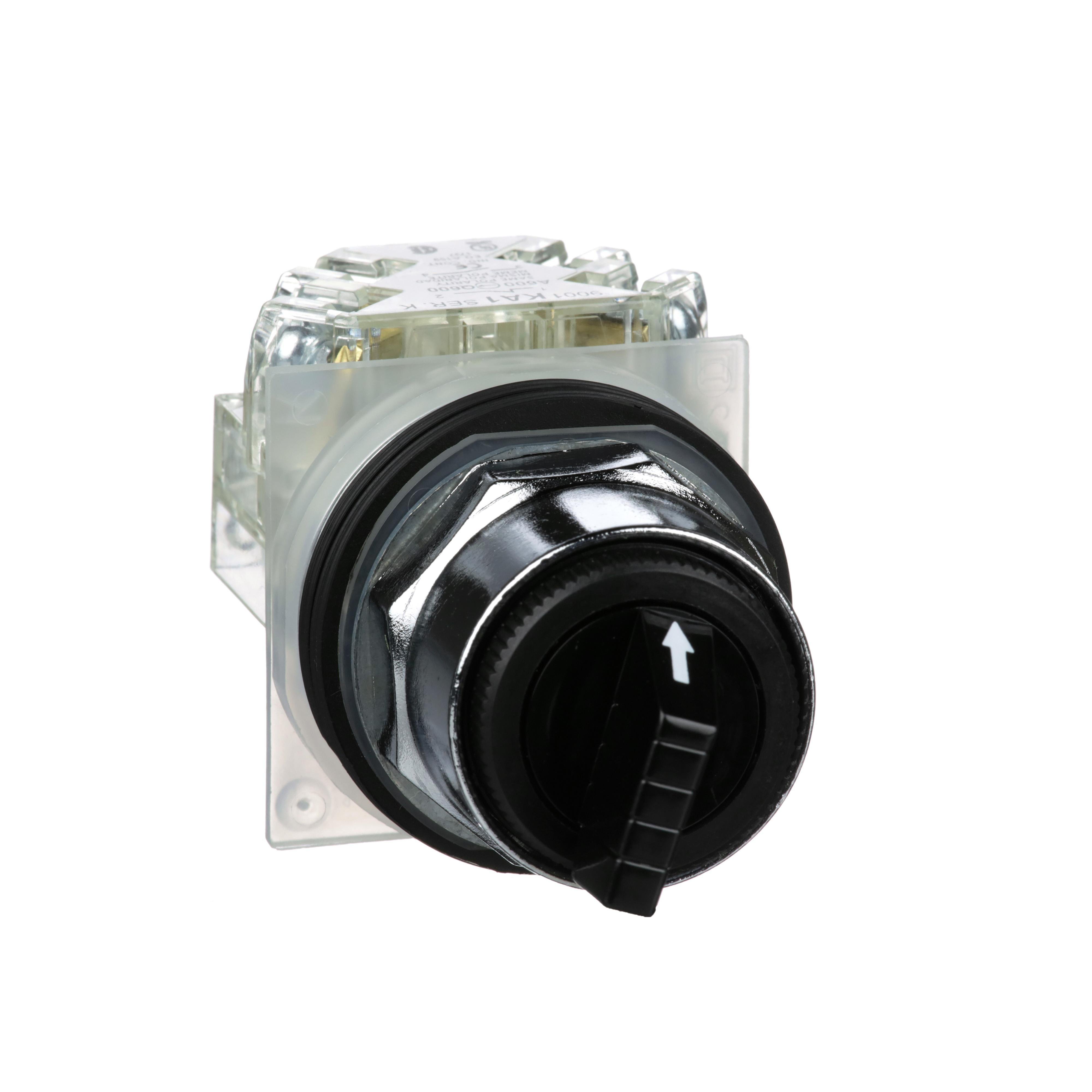

Picture of 9001KS43BH13 - 30mm Push Button, Type K, selector switch, 3 position, C cam, black knob, 1NO and 1NC
Square D

9001KS43BH13 - 30mm Push Button, Type K, selector switch, 3 position, C cam, black knob, 1NO and 1NC

Item Code: 32564
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KS43BH13

Full Engineering Drawing
Instruction Installation Manual
Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.31

Height

1.9

Width

2.89

Length

3.67

Actuator

Push Button

Bezel/Housing

Polished Chrome Metal

Brand

Square D

Cam Code

C

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Color

Black

Connection Type

Screw clamp

Contact Configuration

1CO

Contact Mode

Maintained

Contact Rating

10 A at 600 V AC

Enclosure Type

NEMA 1/2/3/3R/4/6/12/13

Mounting Type

Panel

Number of Positions

3

Operator Type

Knob

Series

9001K

Size

30 mm

Terminal Type

Screw clamp

Throw

70 deg Left/Center/Right

Type

Heavy Duty Non-Illuminated
