Square D

9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13

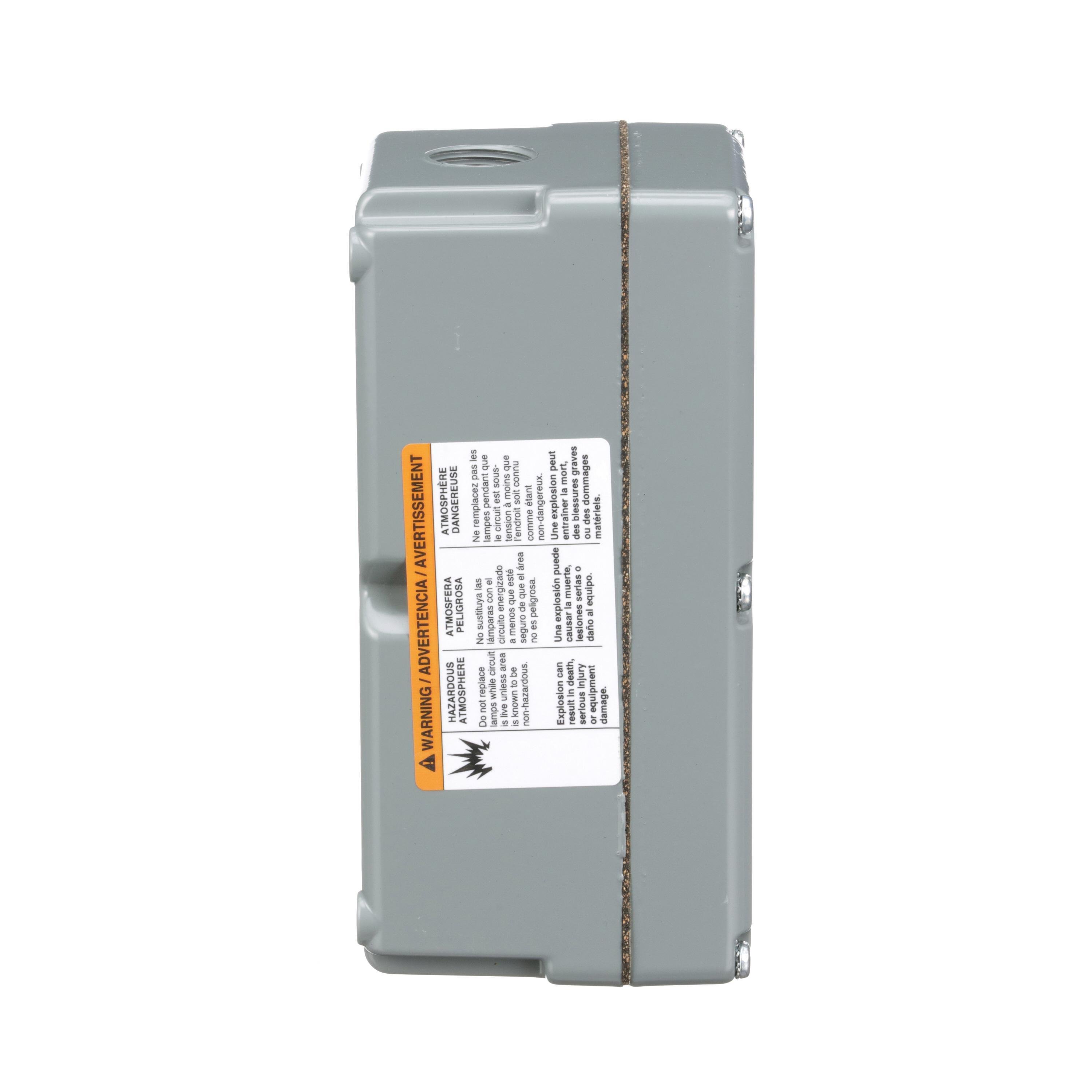

Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13 Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13
Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13 Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13
Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13 Picture of 9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13
Square D

9001KY3 - 30mm Push Button, Types K or SK, empty push button enclosure, cast aluminium, three 30 mm holes, NEMA 4 and 13

Item Code: 17534
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001KY3

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

3.59lb

Height

4.1mm

Width

4.29mm

Length

8.58mm

AD Application

30 mm Control and Signalling Units Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Non-Illuminated Operator, Selector Switch, Pilot Light, Illuminated Operator and Enclosure

AD Invoice Description

ENCLOSURE STA CTRL 7IN 3.62IN 3.53IN

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large metal set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.1000

AD Package Height UOM

IN

AD Package Length

8.5800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

131.2000

AD Package Volume UOM

cu-in

AD Package Weight

3.5900

AD Package Weight UOM

LB

AD Package Width

4.2900

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/z4UUZQz35-w

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Gray

Spec 10 Attribute

Width

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

3.62

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

3.53

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

7

Spec 4 Attribute

Material

Spec 4 Attribute Value

Aluminum

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 1/3/4/6/12/13

Spec 7 Attribute

Number of Outlets

Spec 7 Attribute Value

3

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-25 to 70

Spec 9 Attribute

Type

Spec 9 Attribute Value

Dusttight Oiltight Watertight
