Schneider Electric

9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

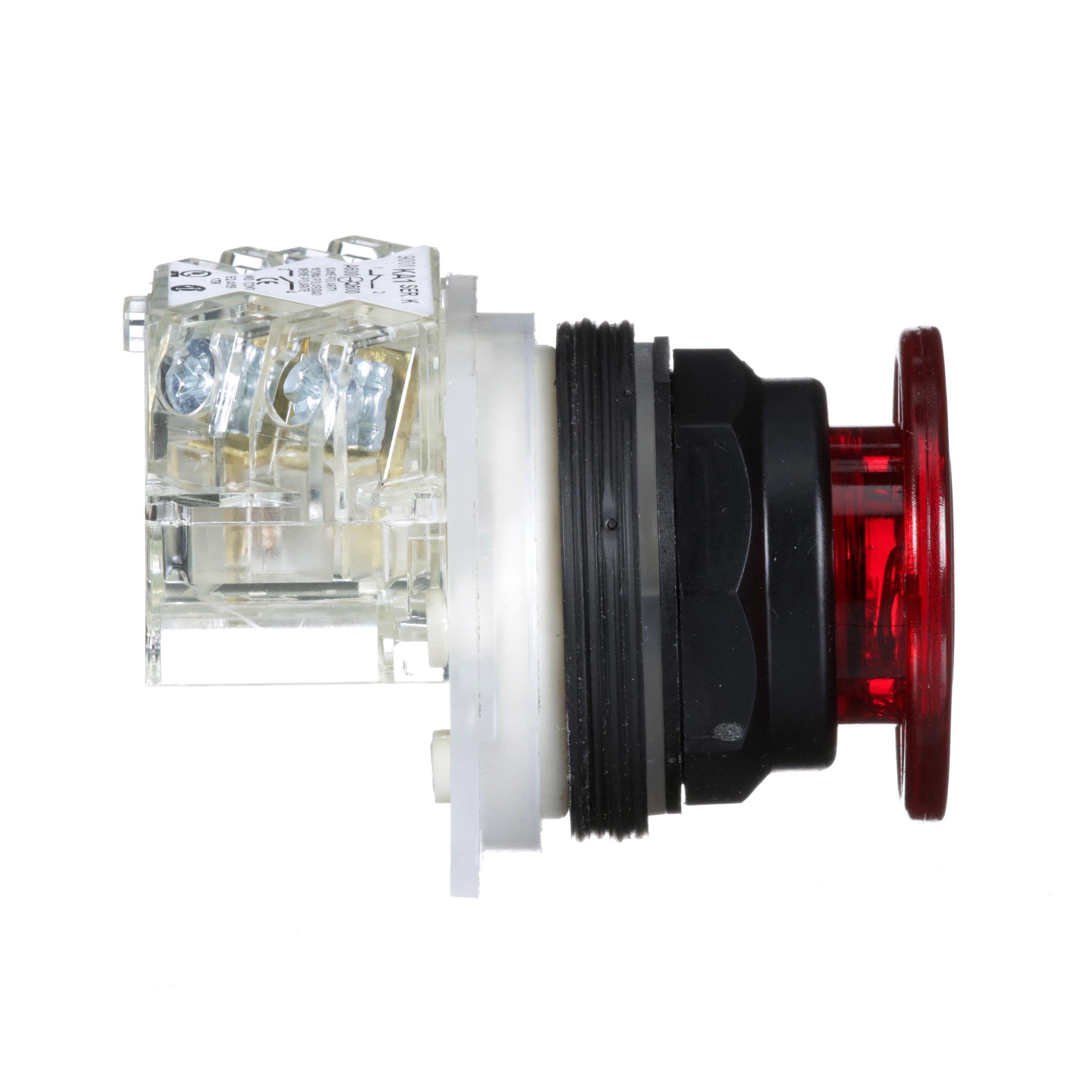

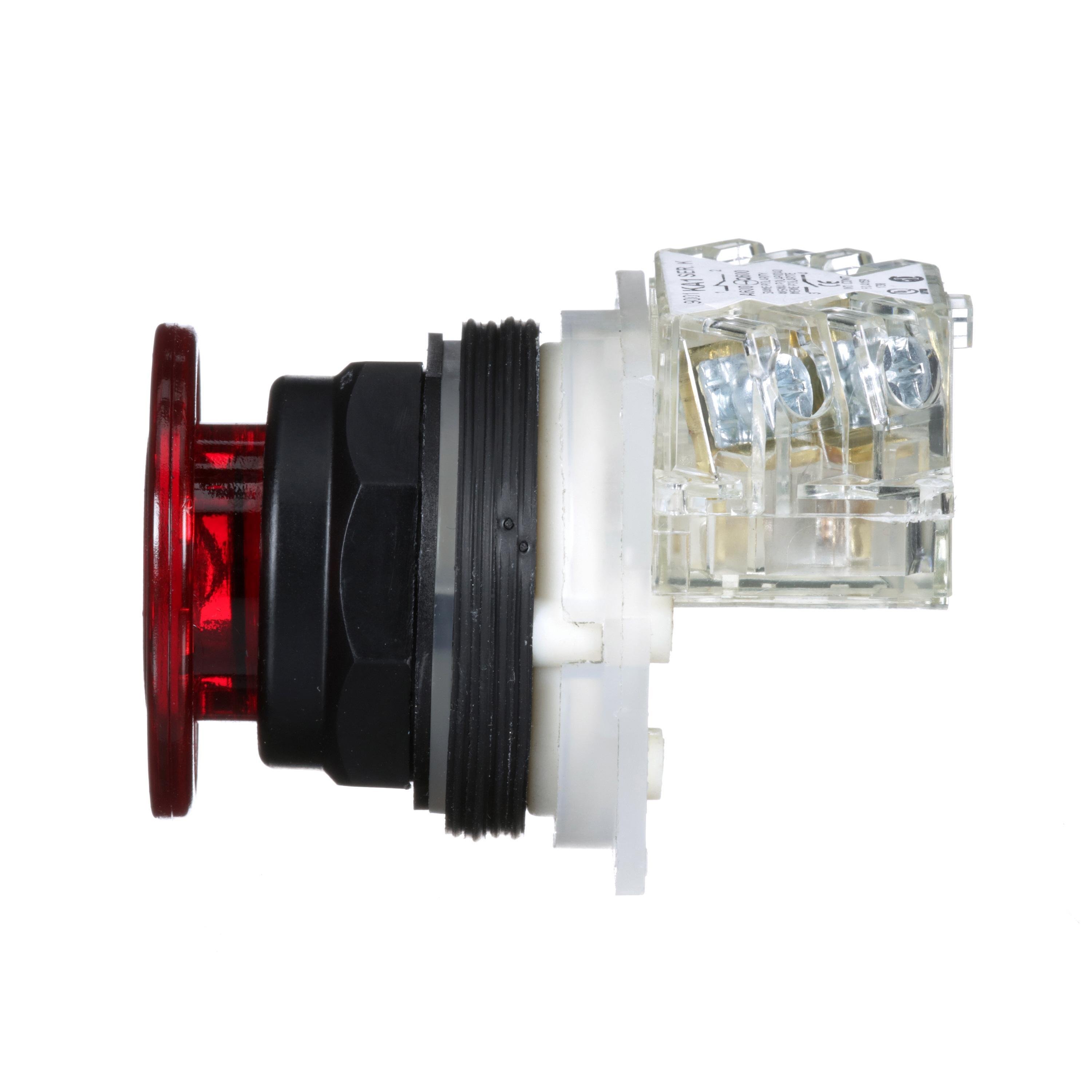

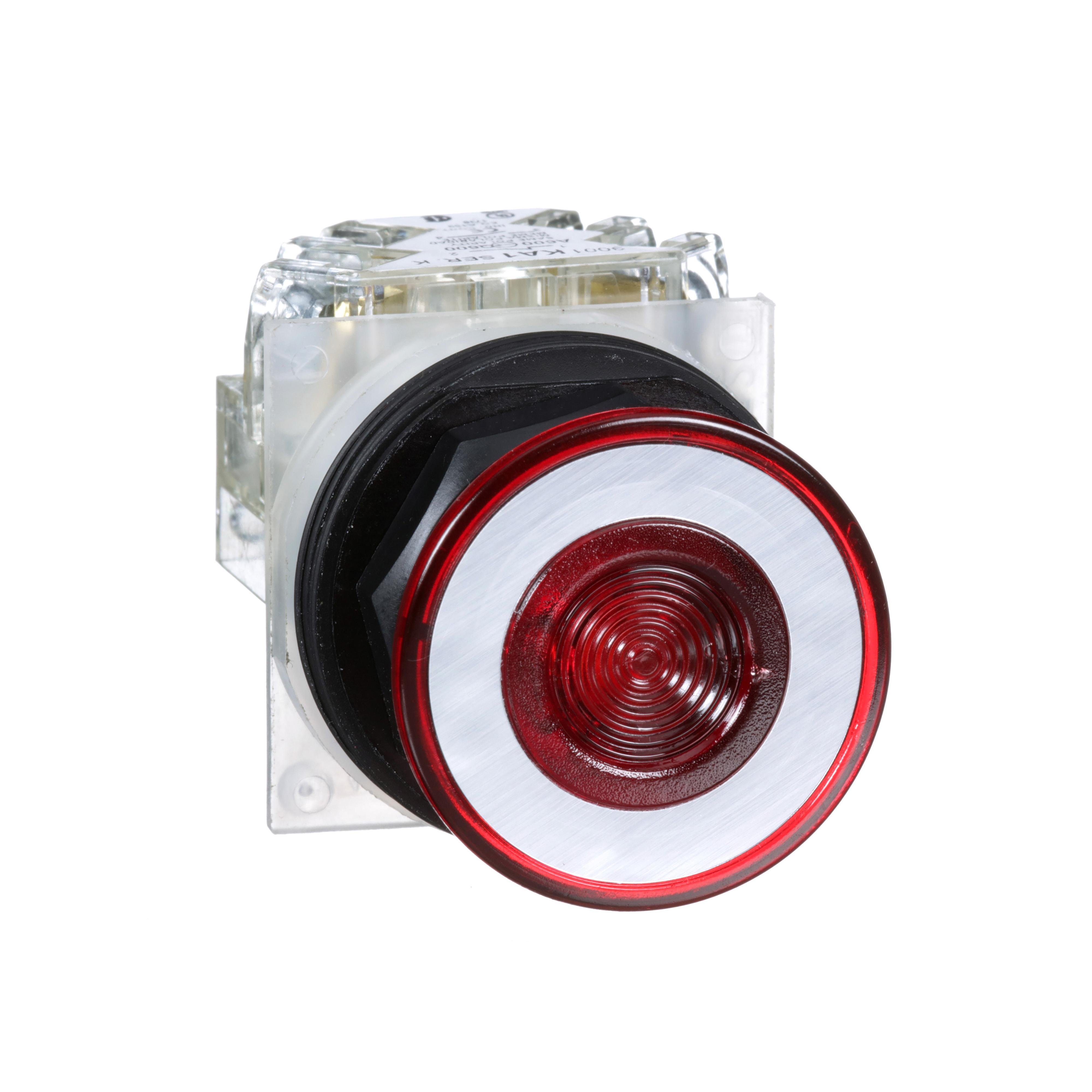

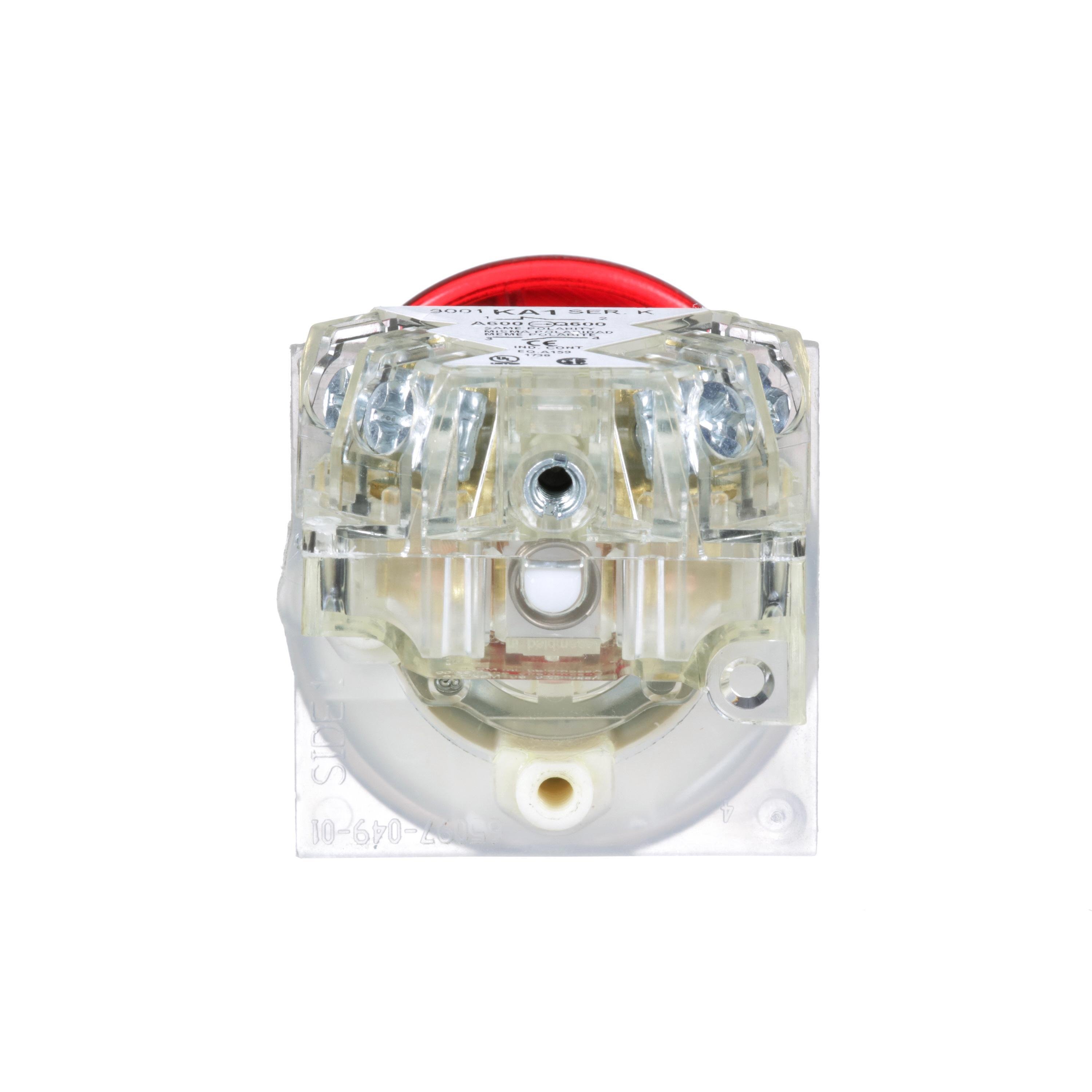

Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC
Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC Picture of 9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC
Schneider Electric

9001SKR9RH13 - 30mm Push Button, Type SK, push pull operator, red mushroom cap, 1 NO and 1 NC

Item Code: 1112507
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001SKR9RH13

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 2 maintained positions push pull operator and it is supplied with 1 x C/O contact and screw clamp terminals. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.2lb

Height

1.9mm

Width

2.18mm

Length

3.67mm

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 30MM 1NC-1NO

AD Item Features 01

Improved security thanks to finger-safe contact blocks and light modules

AD Item Features 02

Robustness to withstand the harshest environments

AD Item Features 03

Easy, secure mounting system

AD Item Features 04

Automatic self-grounding operators without additional wiring

AD Item Features 05

A large plastic set of accessories to customize your product

AD Item Features 06

Single screw Contact Block Fastening

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

3.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2000

AD Package Weight UOM

LB

AD Package Width

2.1800

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom head

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Number of Positions

Spec 11 Attribute Value

2

Spec 12 Attribute

Series

Spec 12 Attribute Value

9001SK

Spec 13 Attribute

Size

Spec 13 Attribute UOM

IN

Spec 13 Attribute Value

1.18

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw

Spec 15 Attribute

Type

Spec 15 Attribute Value

Non-Illuminated Round Type SK Unmarked

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Plastic

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

1NO-1NC

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Maintained

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

10 A at 600 V AC, AC15 - DC13

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

NEMA 1/2/3/3R/4/4X/6/12/13/IP66

Spec 9 Attribute

Environmental Conditions

Spec 9 Attribute Value

-25 to 70 deg c operating temperature
