Schneider Electric

9001SKS43B - 30mm Push Button, Type SK, selector switch, 3 position, C cam, black knob

Category Relays, Push Buttons, Pilot Lights, Selector Switches

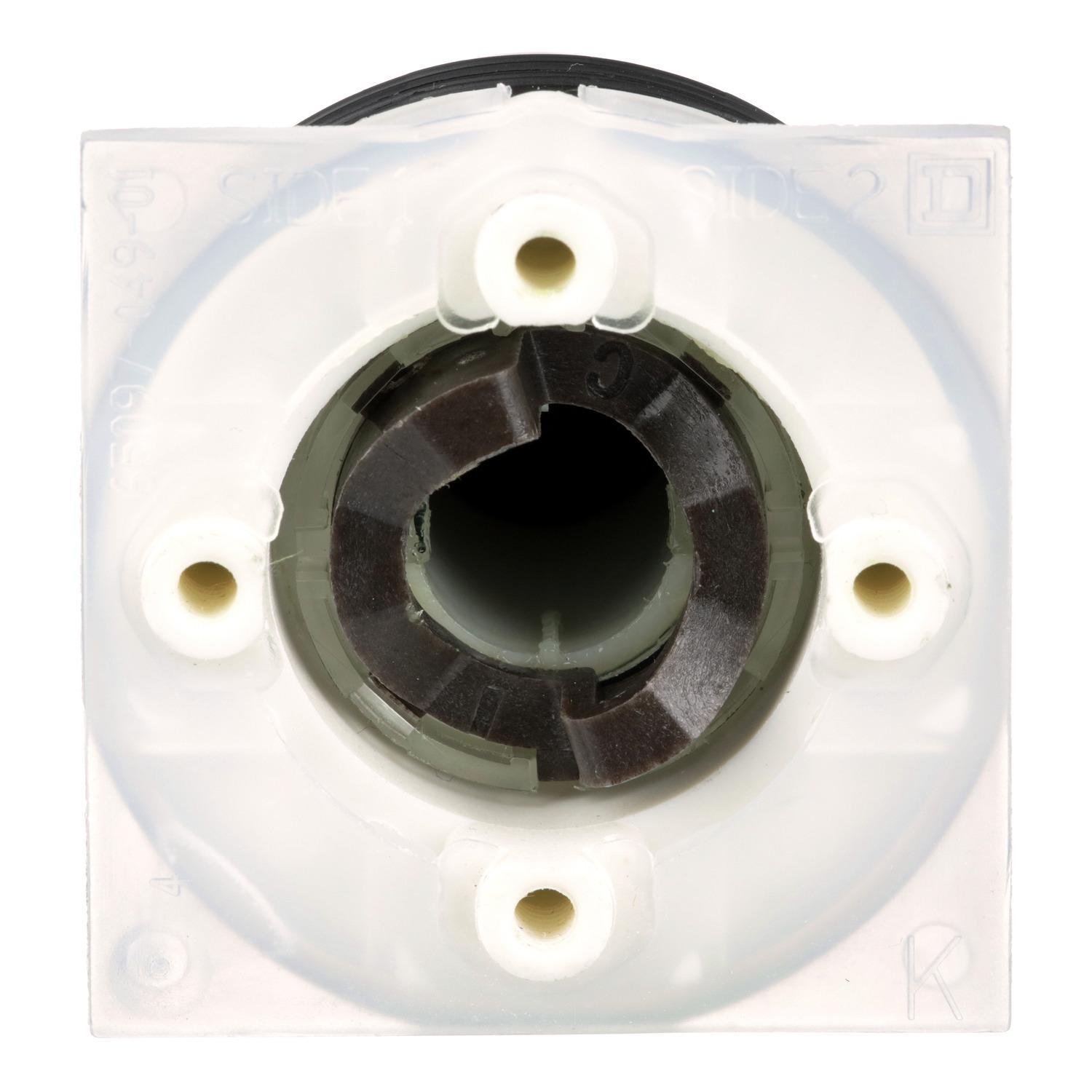

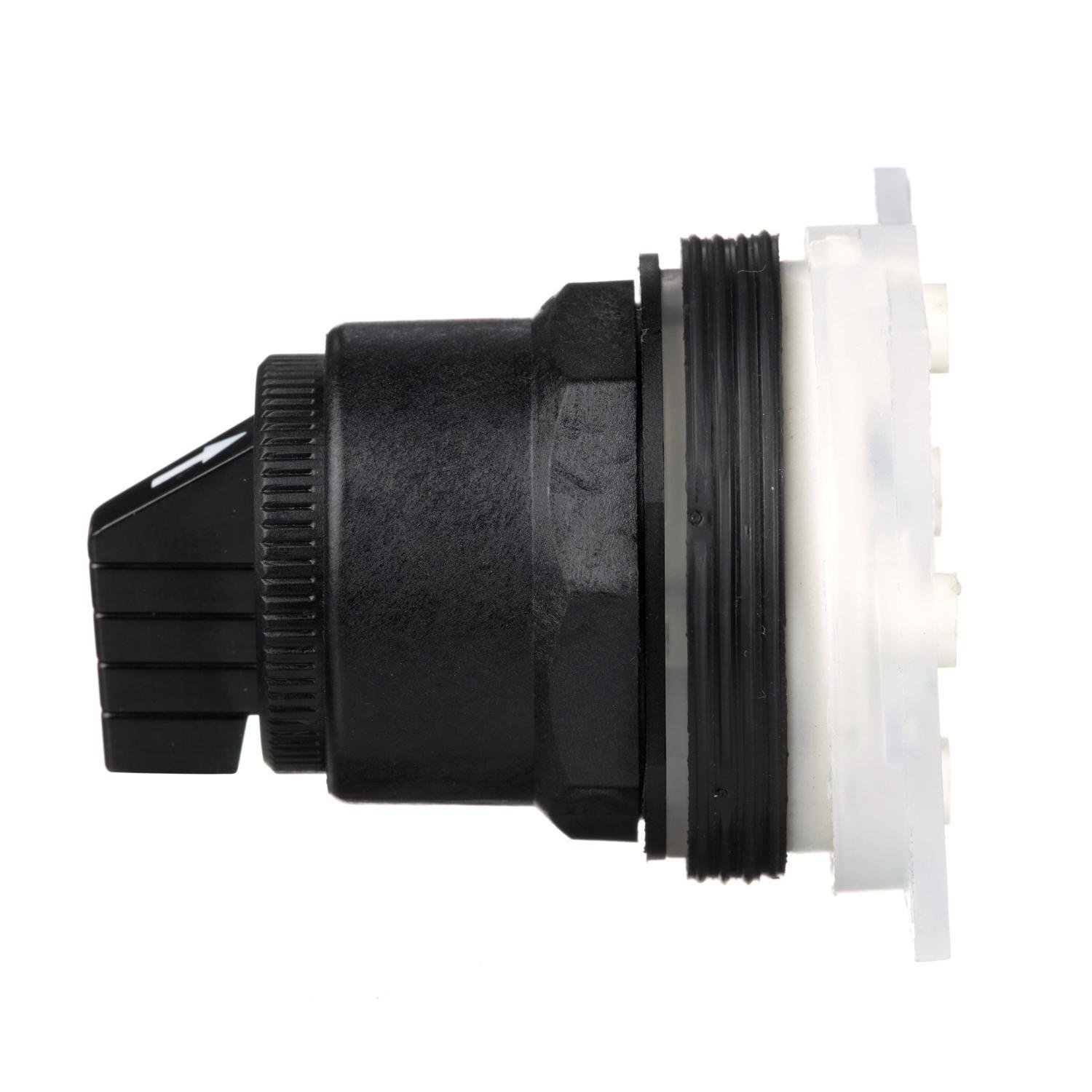

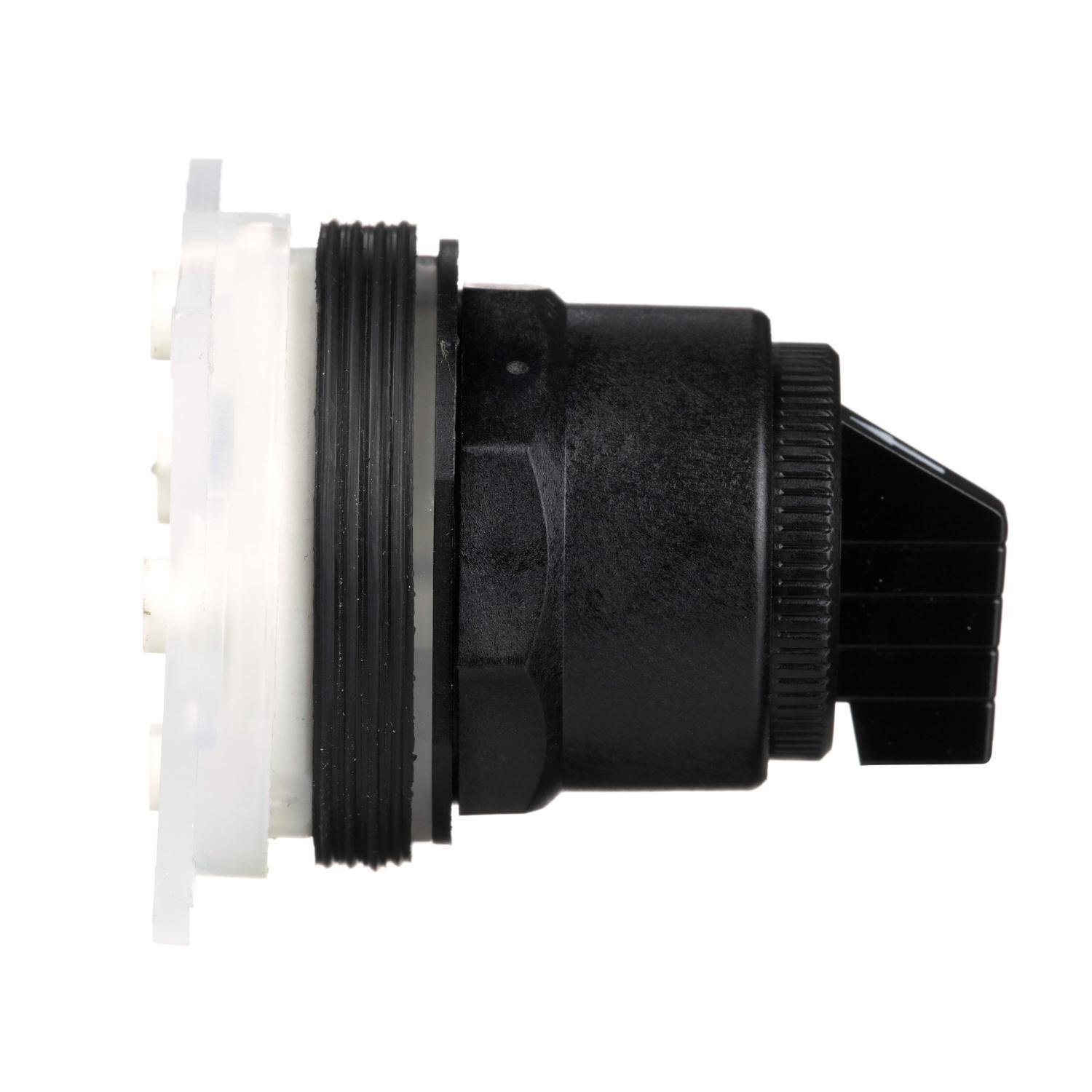

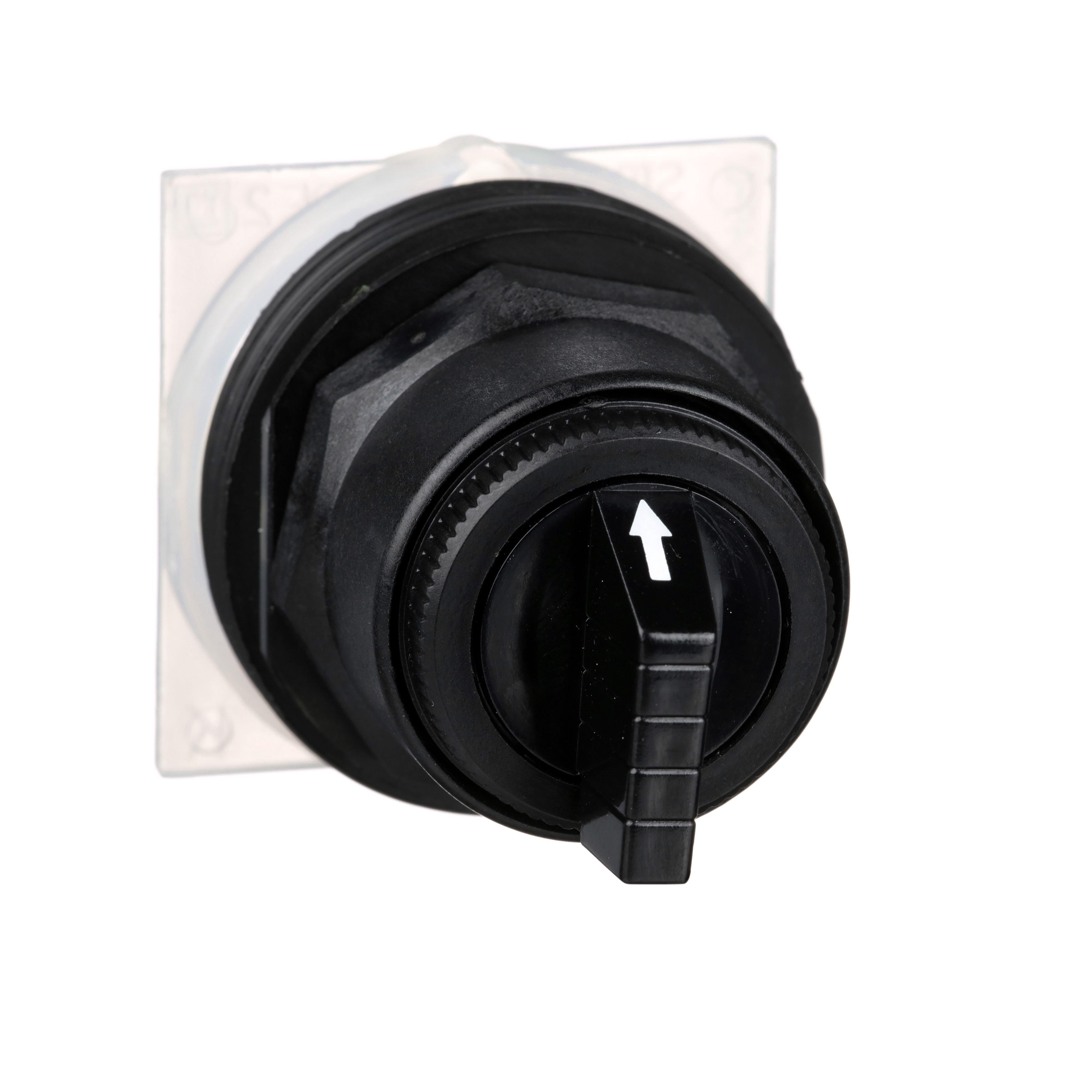

Picture of 9001SKS43B - 30mm Push Button, Type SK, selector switch, 3 position, C cam, black knob
Schneider Electric

9001SKS43B - 30mm Push Button, Type SK, selector switch, 3 position, C cam, black knob

Item Code: 914860
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001SKS43B

Full Engineering Drawing
Instruction Installation Manual
Owners User Manual
RoHS
Call for Availability
Add to Favorites
Compare

Description

30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It features 3 positions. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.

Specifications

Weight

0.12lb

Height

2.8mm

Width

2.28mm

Length

2.08mm

Bezel/Housing

Plastic

Brand

Square D

Cam Code

C

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Color

Black

Contact Mode

Maintained

Enclosure Type

NEMA 1/2/3/3R/4/4X/6/12/13/IP66

Mounting Type

Panel

Number of Positions

3

Operator Type

Knob

Series

9001SK

Size

30 mm

Temperature Rating

-25 to 70 deg C

Throw

70 deg Left/Center/Right

Type

Heavy Duty

Voltage Rating

600 V AC
