Square D

9001SKY201 - 30mm push button, Type SK, control station, START and STOP, 6A inductive at 120VAC, NEMA 4, 4X

Category Miscellaneous

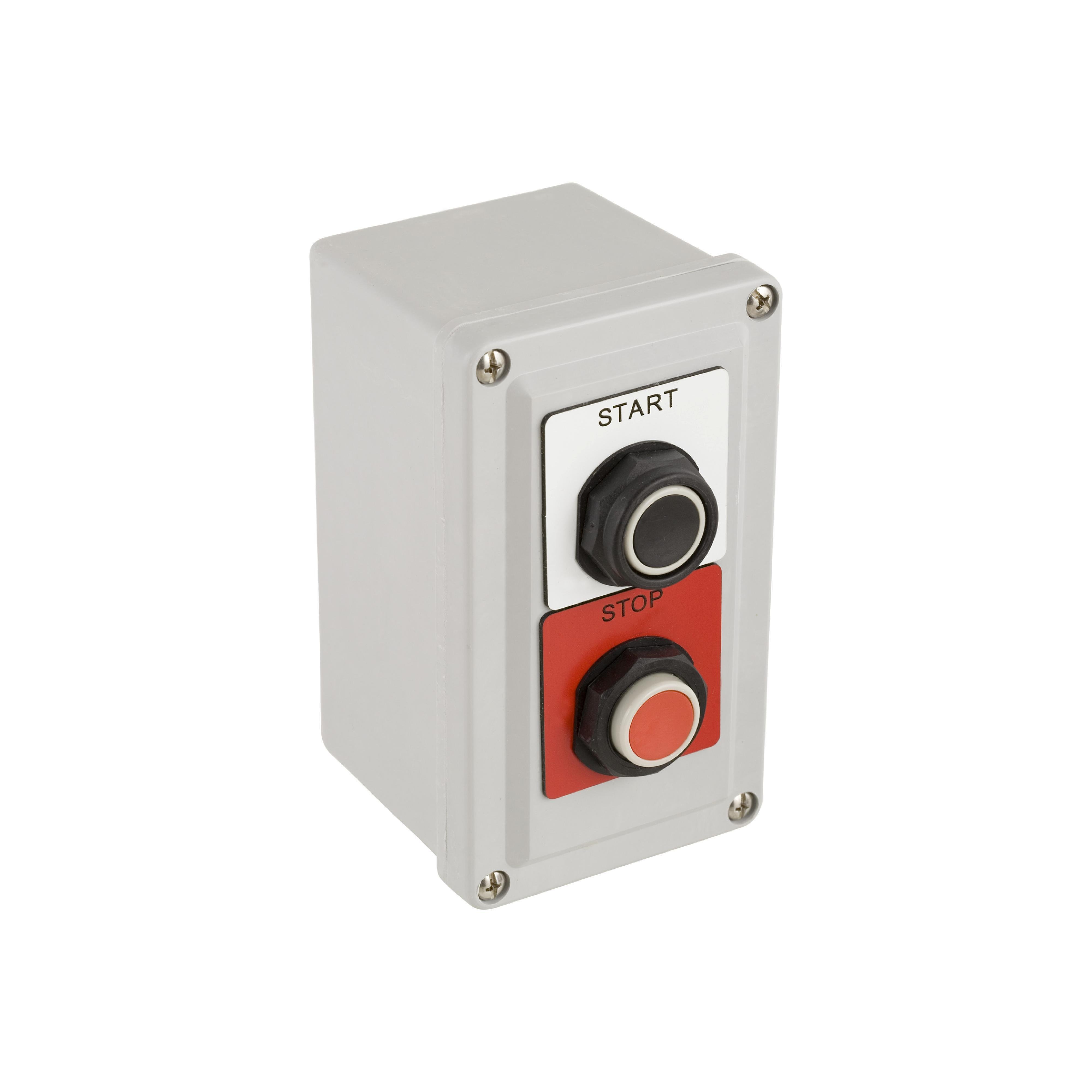

Picture of 9001SKY201 - 30mm push button, Type SK, control station, START and STOP, 6A inductive at 120VAC, NEMA 4, 4X
Square D

9001SKY201 - 30mm push button, Type SK, control station, START and STOP, 6A inductive at 120VAC, NEMA 4, 4X

Item Code: 911054
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9001SKY201

Document
Document
Call for Availability
Add to Favorites
Compare

Description

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has polymeric (plastic) enclosure (9001SKY2) with two push button operators. Control station has a black full guard momentary push button (9001SKR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a legend plate that is marked START (9001SKN101WP). Control station has a red no guard momentary push button (9001SKR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001SKN102RP). The enclosure has one 0.75 inch conduit hub with 14 NPT thread. Enclosure is 7.65 inches tall, 3.82 inches wide and 4.53 inches deep. This enclosure is rated for NEMA 1, 3, 4, 4X 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Specifications

Weight

2

Height

5

Width

5.93

Length

8.74

AD All Features

KA1, KA3 contact block and KN101WP, KN102RP legend plate

AD Alternative Part Number

8050277

AD Application

Water Tight, Dust Tight, Oil Tight, Indoor and Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901154181

AD Gtin

00785901154181

AD IDEA Index ID

8050277

AD Includes

Label Plate and Start-Stop Marking

AD Invoice Description

STATION CTRL 600VAC 10A 2 1NO-2NC WALL

AD Item Features 01

KA1, KA3 contact block and KN101WP, KN102RP legend plate

AD Keywords

9001SKY201 Control Station, 600 V AC, 10 A, 1NO-2NC Contact, 2 Operators, NEMA 1/3/4/13 NEMA Rating ; Schneider Electric ; Square D ; 9001SKY201 ; 9001SKY201 ; 785901154181 ; Push Button Control Stations

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.0000

AD Package Height UOM

IN

AD Package Length

8.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

264.0000

AD Package Volume UOM

cu-in

AD Package Weight

2.0000

AD Package Weight UOM

LB

AD Package Width

5.9300

AD Package Width UOM

IN

AD Part Number Keywords

9001SKY201 ; 8050277 ; 785901154181 ; 78590115418 ; 00785901154181 ; 0785901154181

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Operator Type

Spec 10 Attribute Value

Push Button

Spec 11 Attribute

Series

Spec 11 Attribute Value

9001SK

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Screw clamp

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

1NO-2NC

Spec 4 Attribute

Dimensions

Spec 4 Attribute UOM

MM

Spec 4 Attribute Value

30

Spec 5 Attribute

Material

Spec 5 Attribute Value

Polyester

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Wall

Spec 7 Attribute

NEMA Rating

Spec 7 Attribute Value

NEMA 1/3/4/13

Spec 8 Attribute

Number of Operators

Spec 8 Attribute Value

2

Spec 9 Attribute

Operating Temperature

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-40 To 60
