Square D

9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC

Category Miscellaneous

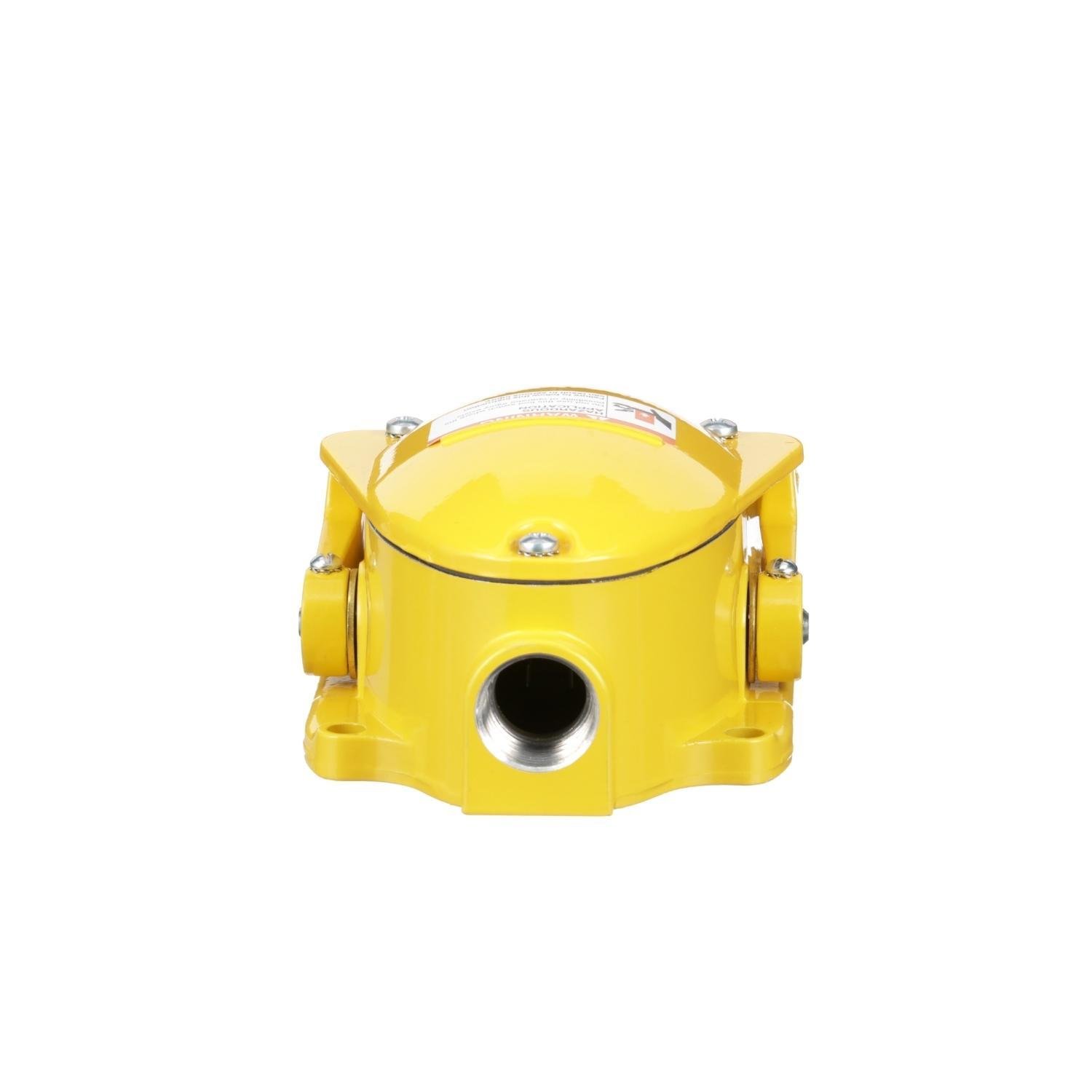

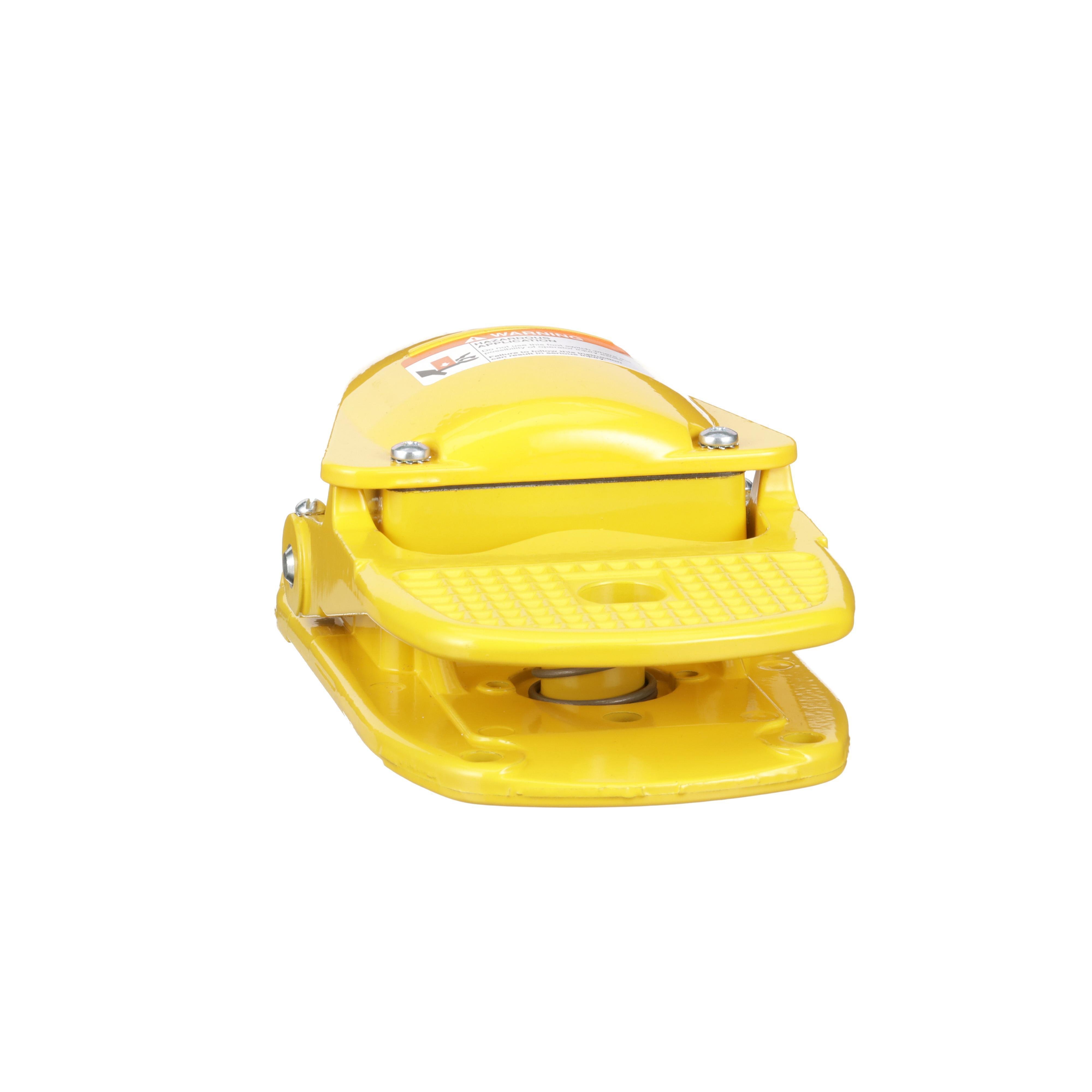

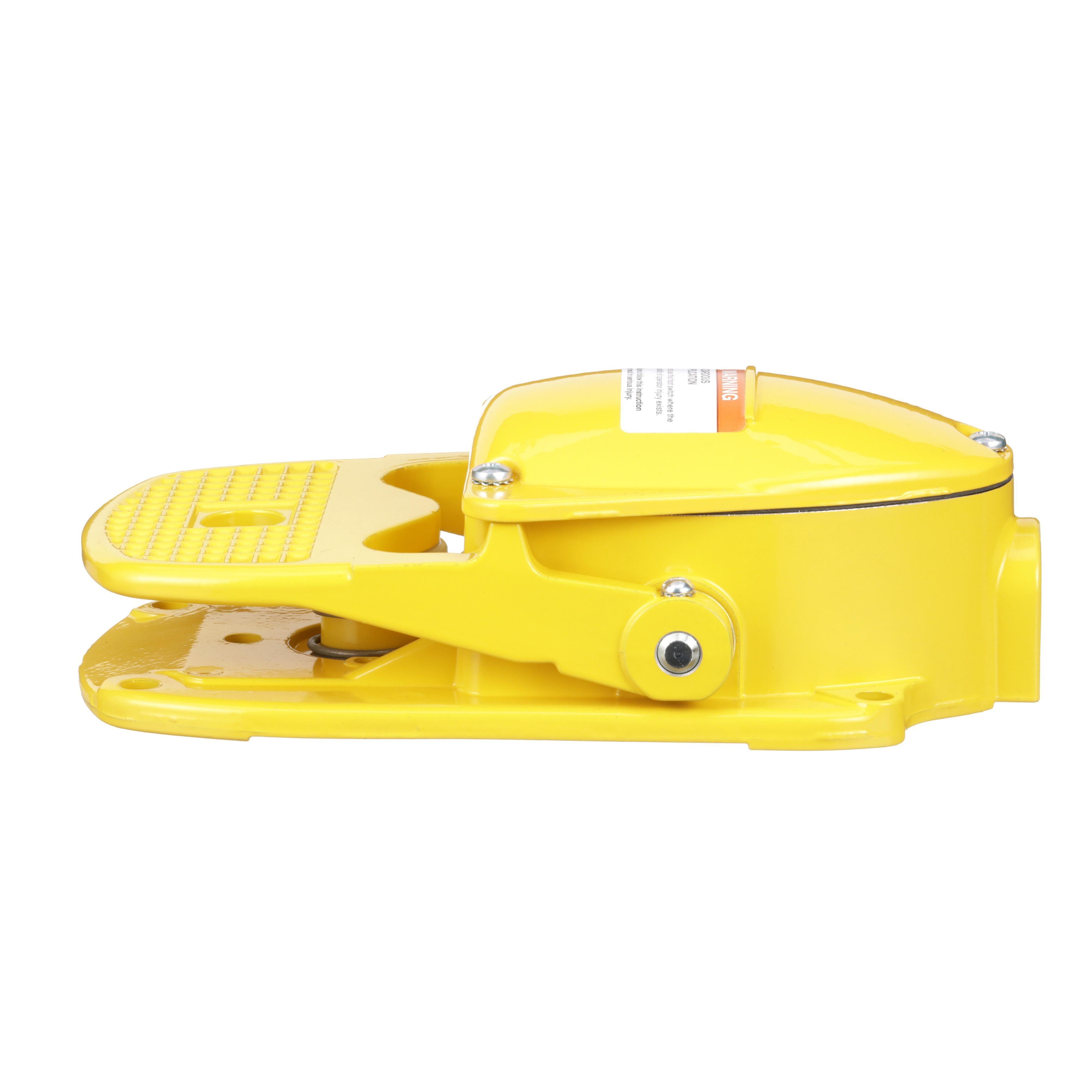

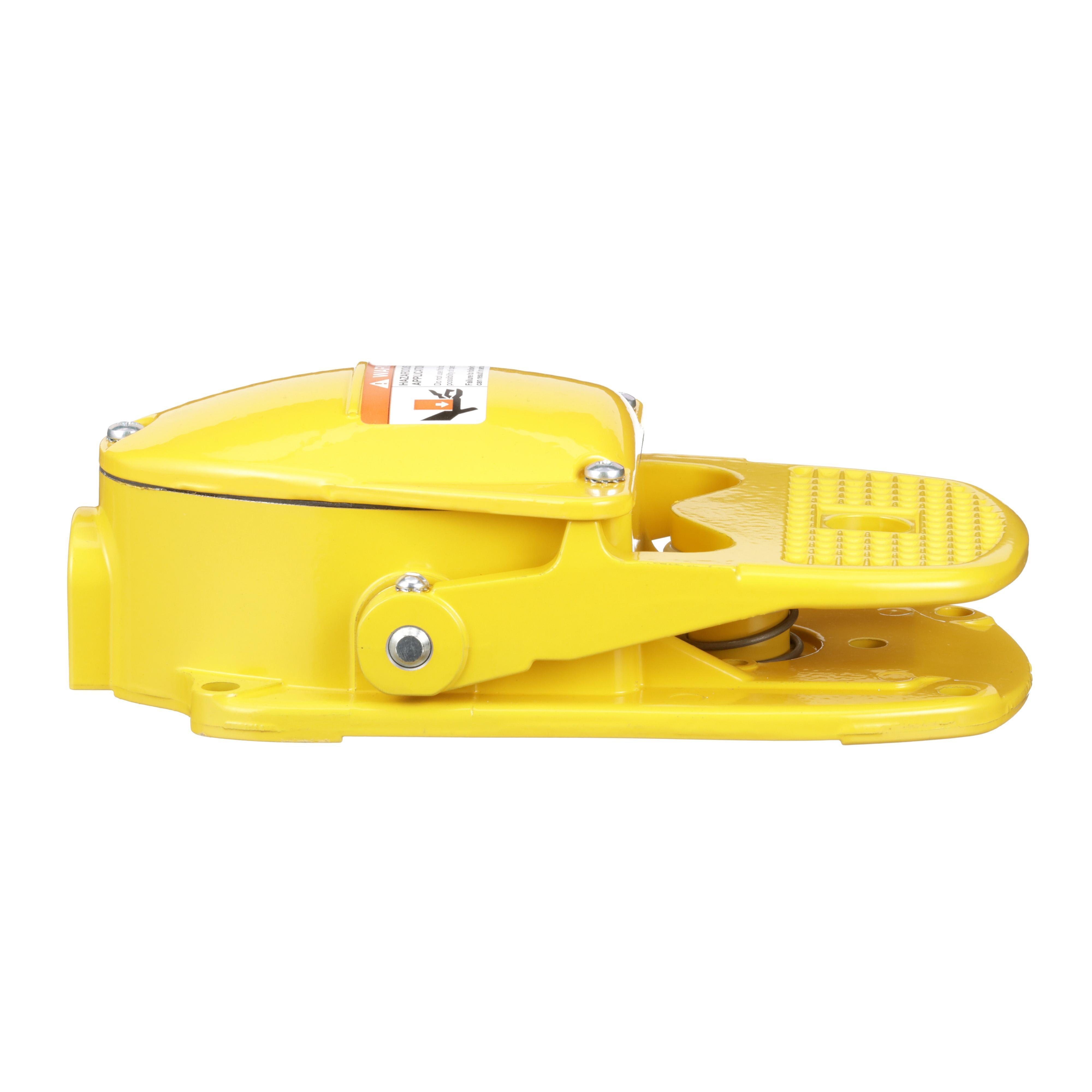

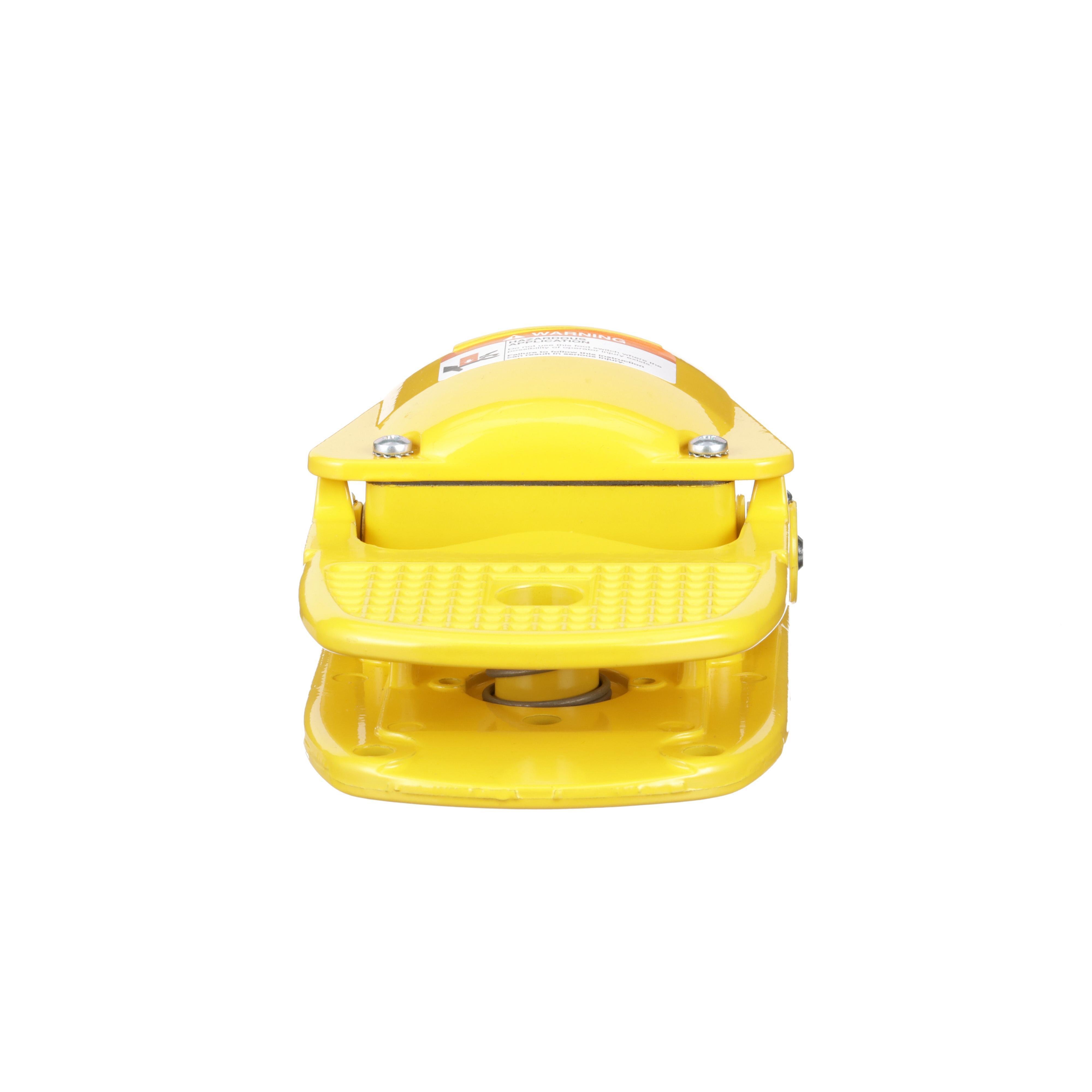

Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Square D

9002AW1 - Foot Switch, Harmony 9002AW, industrial, unshielded, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC

Item Code: 259486
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9002AW1

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no sheilding. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.

Specifications

Weight

3.1

Height

3.5

Width

4.95

Length

8.92

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9002AW1/9002AW1.spin

AD All Features

Wide availability throughout an extensive distribution network

AD Alternative Part Number

8044419

AD Application

Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901815433

AD Gtin

00785901815433

AD IDEA Index ID

8044419

AD Invoice Description

SWITCH FT 600VAC/VDC 5A 1 SPDT SPR RTN

AD Item Features 01

Wide availability throughout an extensive distribution network

AD Keywords

9002AW1 9002 Heavy Duty Unshielded Foot Switch, 600 V AC/DC, 5 A, 1 Poles ; Square D ; 9002AW1 ; 8044419 ; 785901815433 ; Foot Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

8.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.1000

AD Package Weight UOM

LB

AD Package Width

4.9500

AD Package Width UOM

IN

AD Part Number Keywords

9002AW1 ; 8044419 ; 785901815433 ; 78590181543 ; 00785901815433 ; 0785901815433

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Spring Return

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

9002

Spec 12 Attribute

Type

Spec 12 Attribute Value

Heavy Duty Unshielded

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC/DC

Spec 13 Attribute Value

600

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Pedal

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

5

Spec 4 Attribute

Color

Spec 4 Attribute Value

Yellow

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

Spdt

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

15 A at 120 V AC, 10 A at 240 V AC, 6 A at 480 V AC, 5 A at 600 V AC, 15 A at 125/250/600 V DC

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

8-9/16 in L x 4-1/2 in W x 3-7/8 in H

Spec 8 Attribute

Enclosure

Spec 8 Attribute Value

NEMA 2/4/13

Spec 9 Attribute

Material

Spec 9 Attribute Value

Aluminum
