Square D

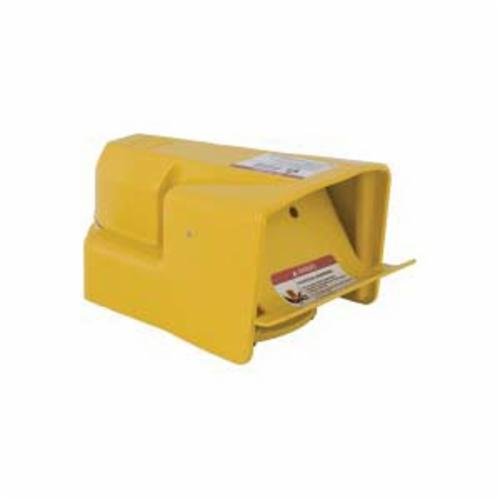

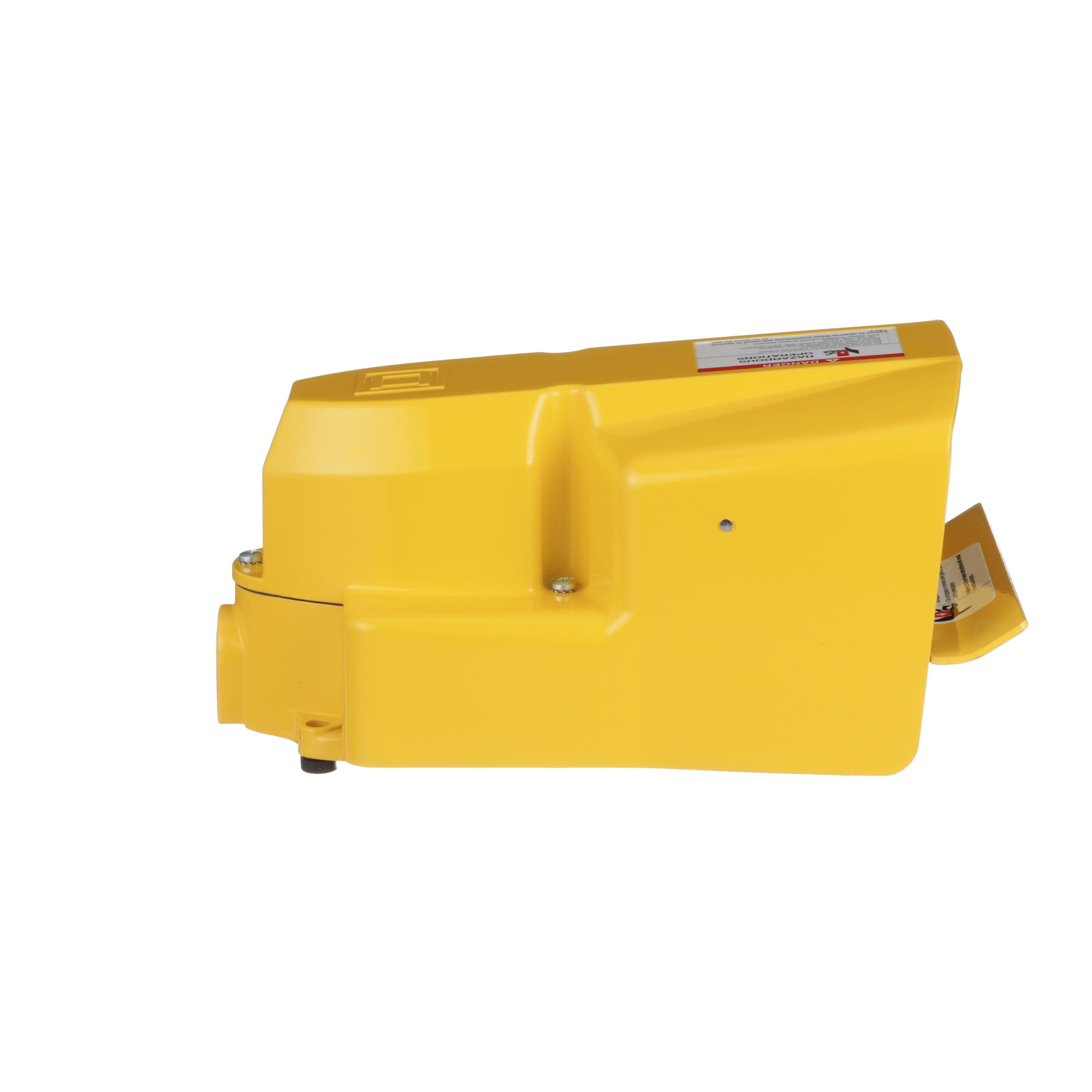

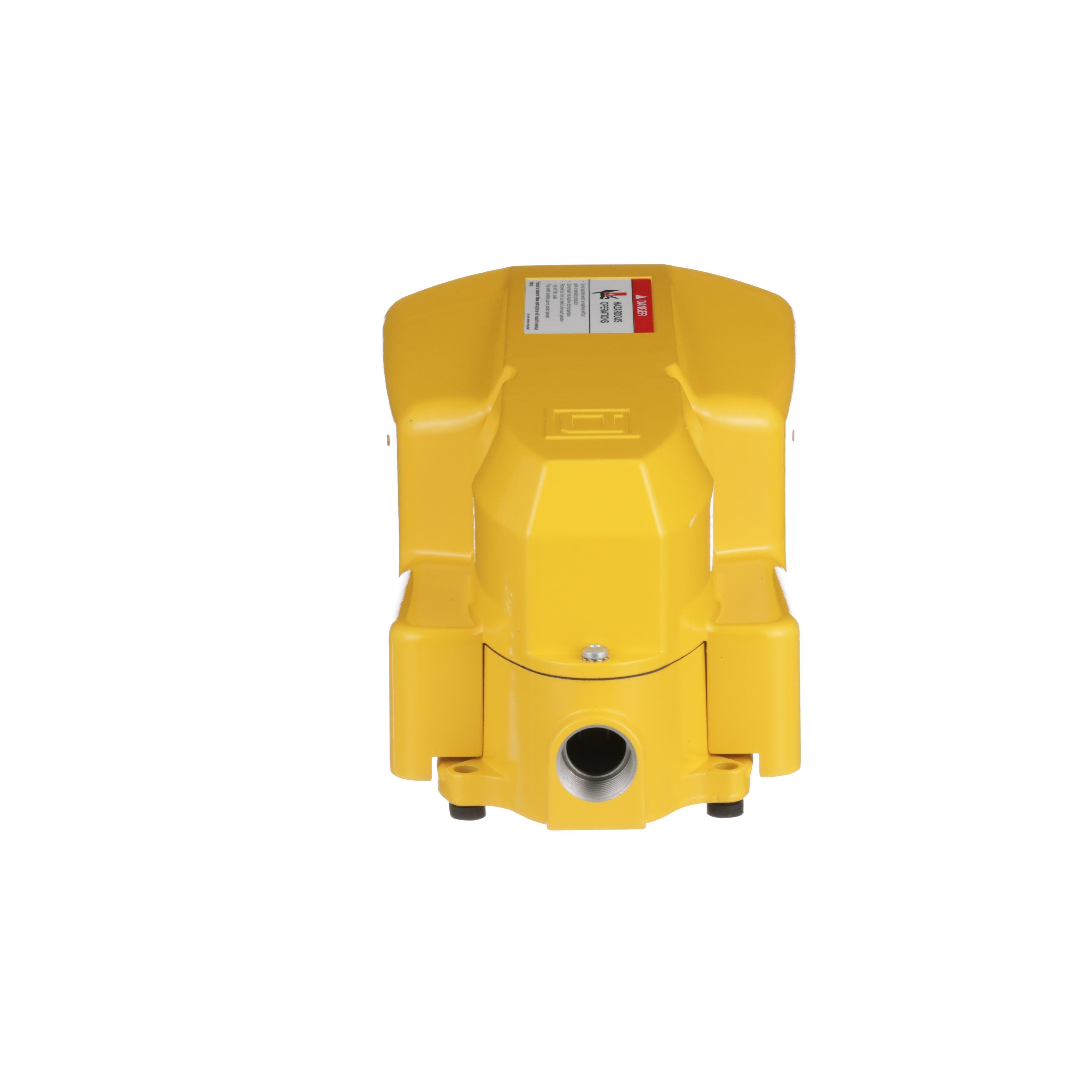

9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC

Category Foot Switches & Accessories
Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC
Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC
Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC
Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC Picture of 9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC
Square D

9002AW117 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC

Item Code: 678624
Category Foot Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9002AW117

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.

Specifications

Weight

11.33

Height

6.5

Width

6.94

Length

11.51

AD Application

Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH FT 600VAC/VDC 5A 1 SPDT PEDAL STL

AD Item Features 01

This industrial switch is part of the 9002 Heavy Duty Industrial Foot Switch product range

AD Item Features 02

It has single pole double throw operation with a spring return with mechanical latch

AD Item Features 03

The safety door interlocks with the pedal to prevent operation from shock or vibration

AD Item Features 04

Fully shielded with oversized pedal shield, side shields, and heavy duty cast metal provide a robust design

AD Item Features 05

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.5000

AD Package Height UOM

IN

AD Package Length

11.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

514.1500

AD Package Volume UOM

cu-in

AD Package Weight

11.3300

AD Package Weight UOM

LB

AD Package Width

6.9400

AD Package Width UOM

IN

Brand

Square D

Category

Foot Switches & Accessories

Spec 1 Attribute

Action

Spec 1 Attribute Value

1-Step Spring Return

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

9002

Spec 12 Attribute

Type

Spec 12 Attribute Value

Heavy Duty

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC/DC

Spec 13 Attribute Value

600

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Pedal

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

5

Spec 4 Attribute

Color

Spec 4 Attribute Value

Yellow

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

Spdt

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

15 A at 120 V AC, 10 A at 240 V AC, 6 A at 480 V AC, 5 A at 600 V AC, 15 A at 125/250 V DC

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

11-1/8 in L x 6-13/32 in W x 6-17/64 in H

Spec 8 Attribute

Enclosure

Spec 8 Attribute Value

NEMA 2/4/13

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
