Square D

9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC

Category Miscellaneous

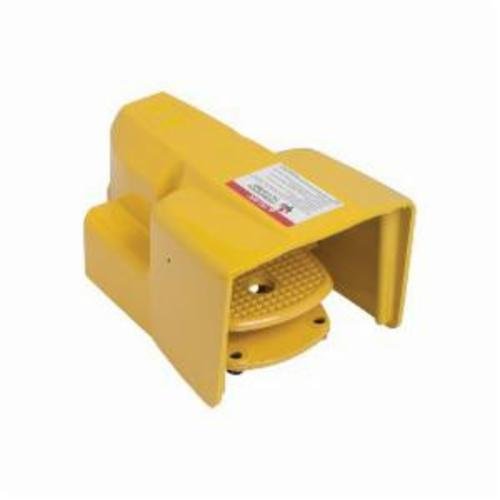

Picture of 9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC Picture of 9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC
Picture of 9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC Picture of 9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC
Square D

9002AW133 - Foot Switch, Harmony 9002AW, industrial, oversized pedal and side shields, DPDT contact, NEMA 2, 4, 13, 0.6A at 600V AC

Item Code: 1128660
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9002AW133

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has oversized pedal and side shields. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.

Specifications

Weight

10.38

Height

6.4

Width

6.75

Length

11.08

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9002aw132/9002aw132.spin

AD Alternative Part Number

7999772

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901060482

AD Gtin

00785901060482

AD IDEA Index ID

7999772

AD Invoice Description

SWITCH FT 600VAC/VDC 0.6A DPDT 9002

AD Item Features 01

This industrial switch is part of the 9002 Heavy Duty Industrial Foot Switch product range

AD Item Features 02

It has double pole double throw operation with a spring return with mechanical latch

AD Item Features 03

An oversized pedal shield, side shields, and heavy duty cast metal provide a robust design

AD Item Features 04

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Keywords

9002AW133 Dust-Tight Oiltight Watertight Foot Switch, 600 V AC/DC, 0.6 A ; Schneider Electric ; Square D ; 9002AW133 ; 9002AW133 ; 785901060482 ; Foot Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.4000

AD Package Height UOM

IN

AD Package Length

11.0800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

496.1300

AD Package Volume UOM

cu-in

AD Package Weight

10.3800

AD Package Weight UOM

LB

AD Package Width

6.7500

AD Package Width UOM

IN

AD Part Number Keywords

9002AW133 ; 7999772 ; 785901060482 ; 78590106048 ; 00785901060482 ; 0785901060482

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

1-Step Spring Return

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

0.6

Spec 3 Attribute

Contact Configuration

Spec 3 Attribute Value

DPDT

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA 2/4/13

Spec 5 Attribute

Series

Spec 5 Attribute Value

9002

Spec 6 Attribute

Type

Spec 6 Attribute Value

Dust-Tight Oiltight Watertight

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC/DC

Spec 7 Attribute Value

600
