Square D

9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC

Category Miscellaneous

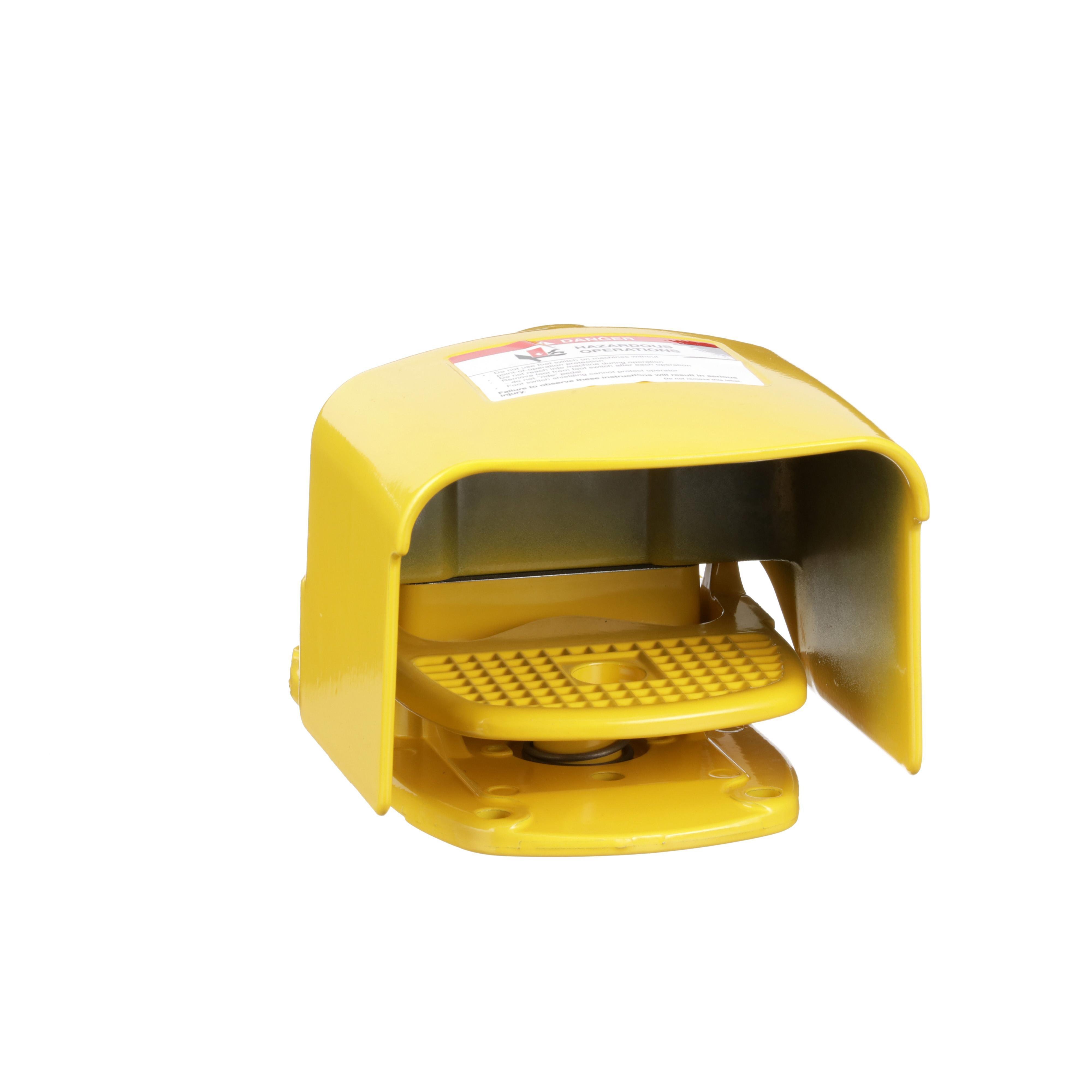

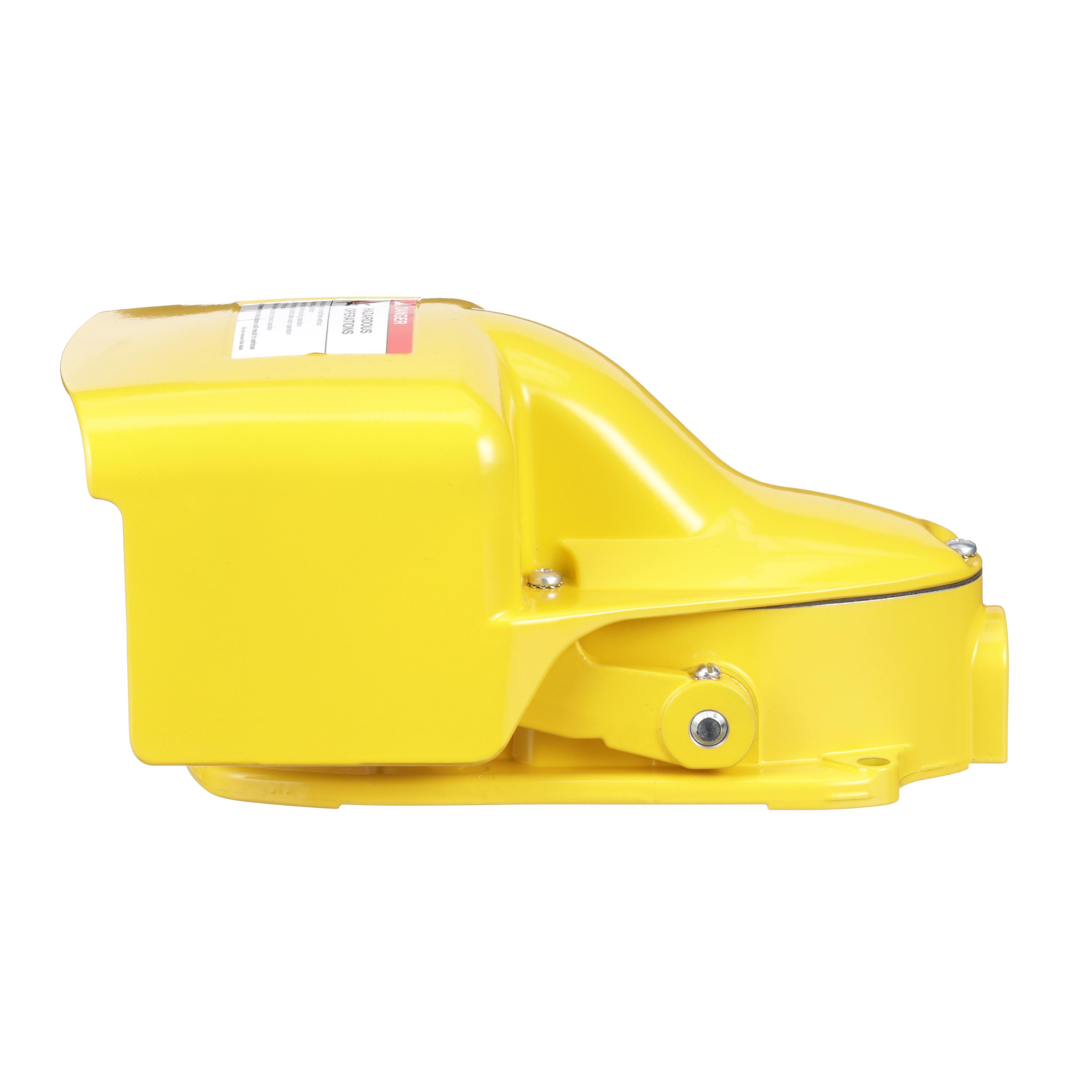

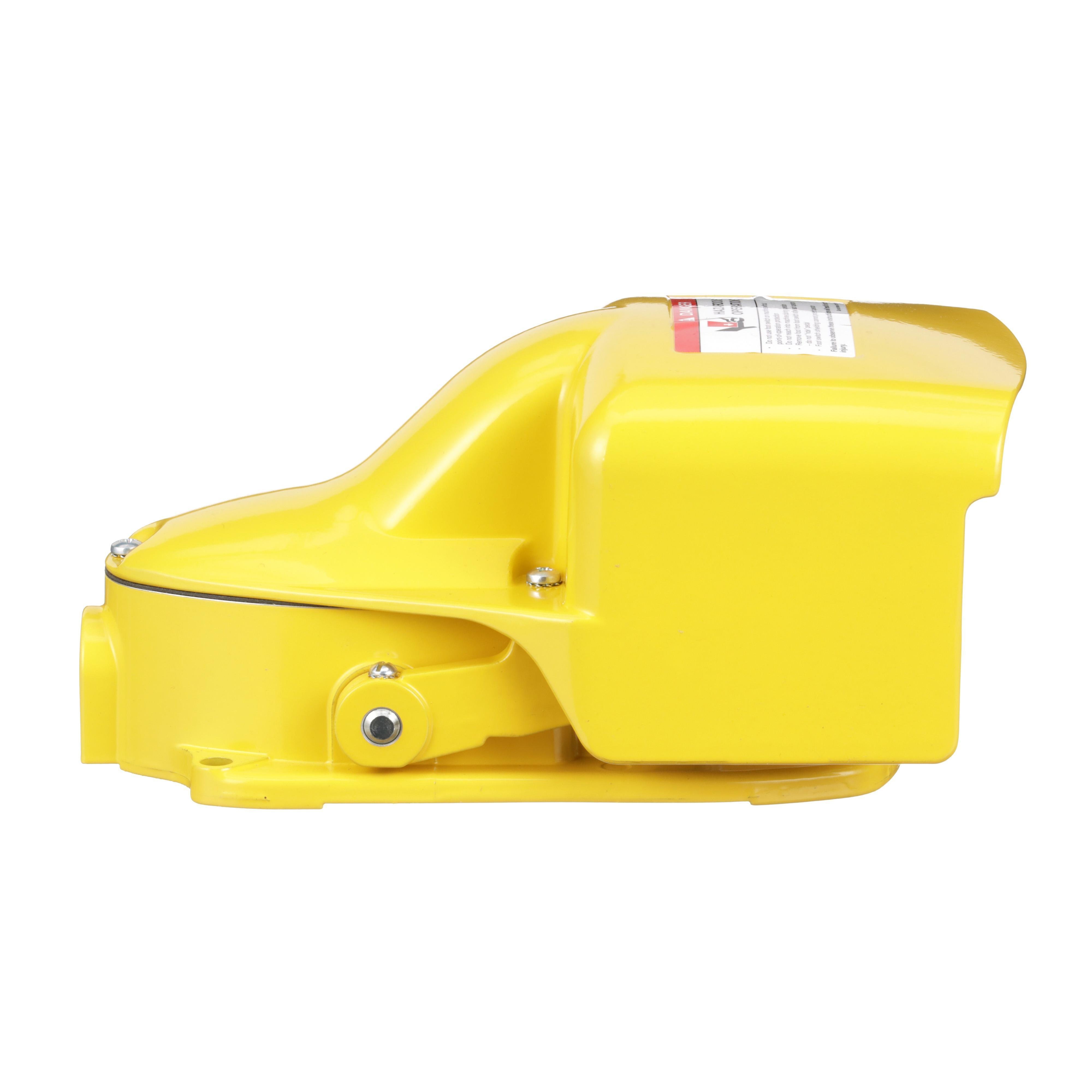

Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC
Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC
Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC
Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC Picture of 9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC
Square D

9002AW14 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, DPDT contact, NEMA 2, 4, 13 enclosure, 0.6A at 600V AC

Item Code: 573137
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9002AW14

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The two pole double throw snap switch used for this foot switch contact is rated at 0.6A resistive at 600 VAC. For other contact ratings, refer to the catalog. The double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.

Specifications

Weight

4.44

Height

7.8

Width

5.65

Length

11.99

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9002AW12/9002AW12.spin

AD All Features

This foot switch has no sheilding

AD Alternative Part Number

8044906

AD Application

Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901817413

AD Gtin

00785901817413

AD IDEA Index ID

8044906

AD Invoice Description

SWITCH FT 600VAC/VDC 0.6A 2 DPDT PEDAL

AD Item Features 01

This foot switch has no sheilding

AD Keywords

Harmony 9002AW14 Heavy Duty Foot Switch With Pedal Shield, Side Shield, 600 V AC/DC, 0.6 A, 2 Poles ; Schneider Electric ; Square D ; 9002AW14 ; 9002AW14 ; 785901817413 ; Foot Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.8000

AD Package Height UOM

IN

AD Package Length

11.9900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

782.5000

AD Package Volume UOM

cu-in

AD Package Weight

4.4400

AD Package Weight UOM

LB

AD Package Width

5.6500

AD Package Width UOM

IN

AD Part Number Keywords

9002AW14 ; 8044906 ; 785901817413 ; 78590181741 ; 00785901817413 ; 0785901817413

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

1-Step Spring Return

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

2

Spec 11 Attribute

Series

Spec 11 Attribute Value

9002

Spec 12 Attribute

Type

Spec 12 Attribute Value

Heavy Duty

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC/DC

Spec 13 Attribute Value

600

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Pedal

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

0.6

Spec 4 Attribute

Color

Spec 4 Attribute Value

Yellow

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

DPDT

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

3 A at 120 V AC, 1.5 A at 240 V AC, 0.75 A at 480 V AC, 0.6 A at 600 V AC, 10 A at 125/250 V DC

Spec 7 Attribute

Dimensions

Spec 7 Attribute Value

9 in L x 5-17/32 in W x 4-27/32 in H

Spec 8 Attribute

Enclosure

Spec 8 Attribute Value

NEMA 2/4/13

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
