Square D

9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC

Category Foot Switches & Accessories

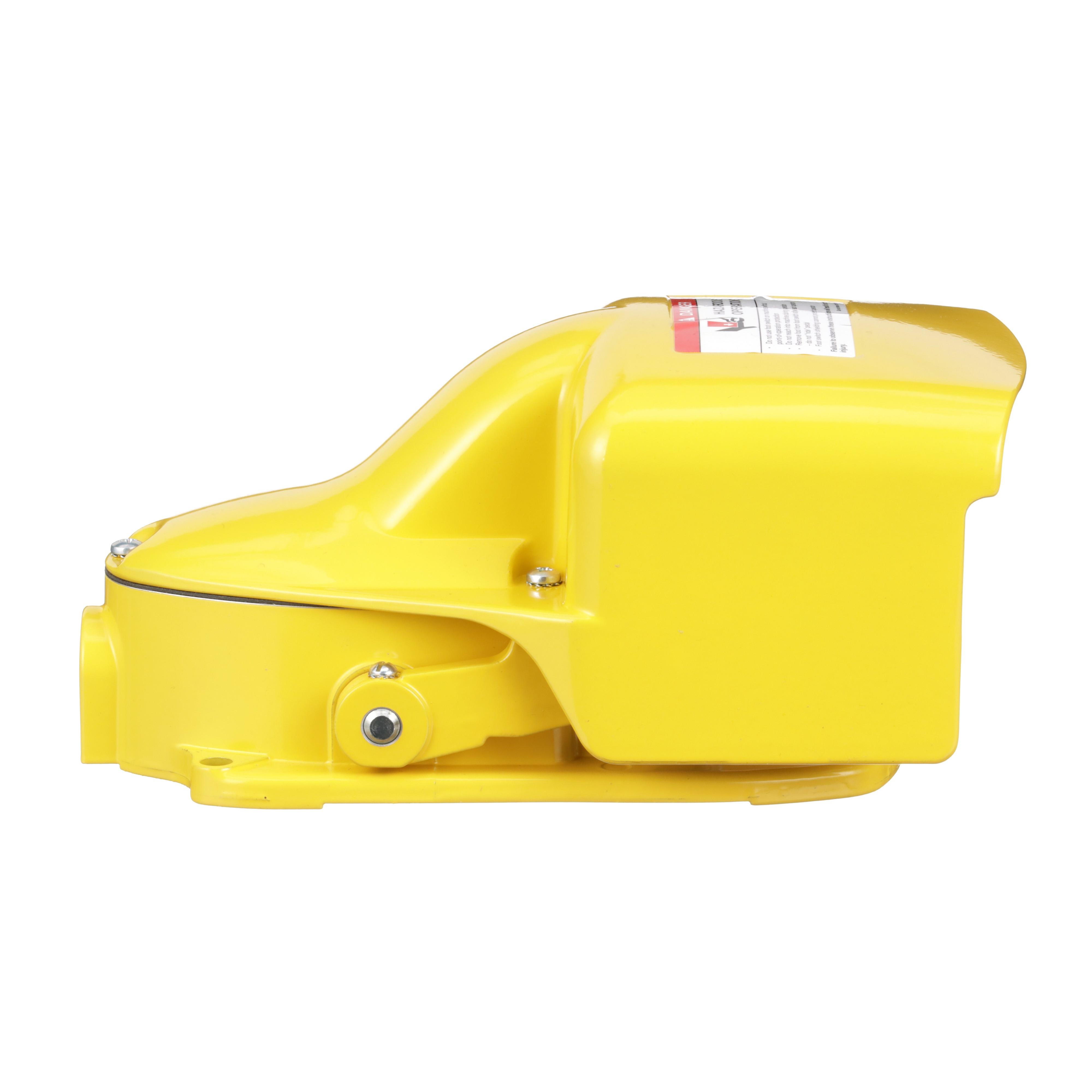

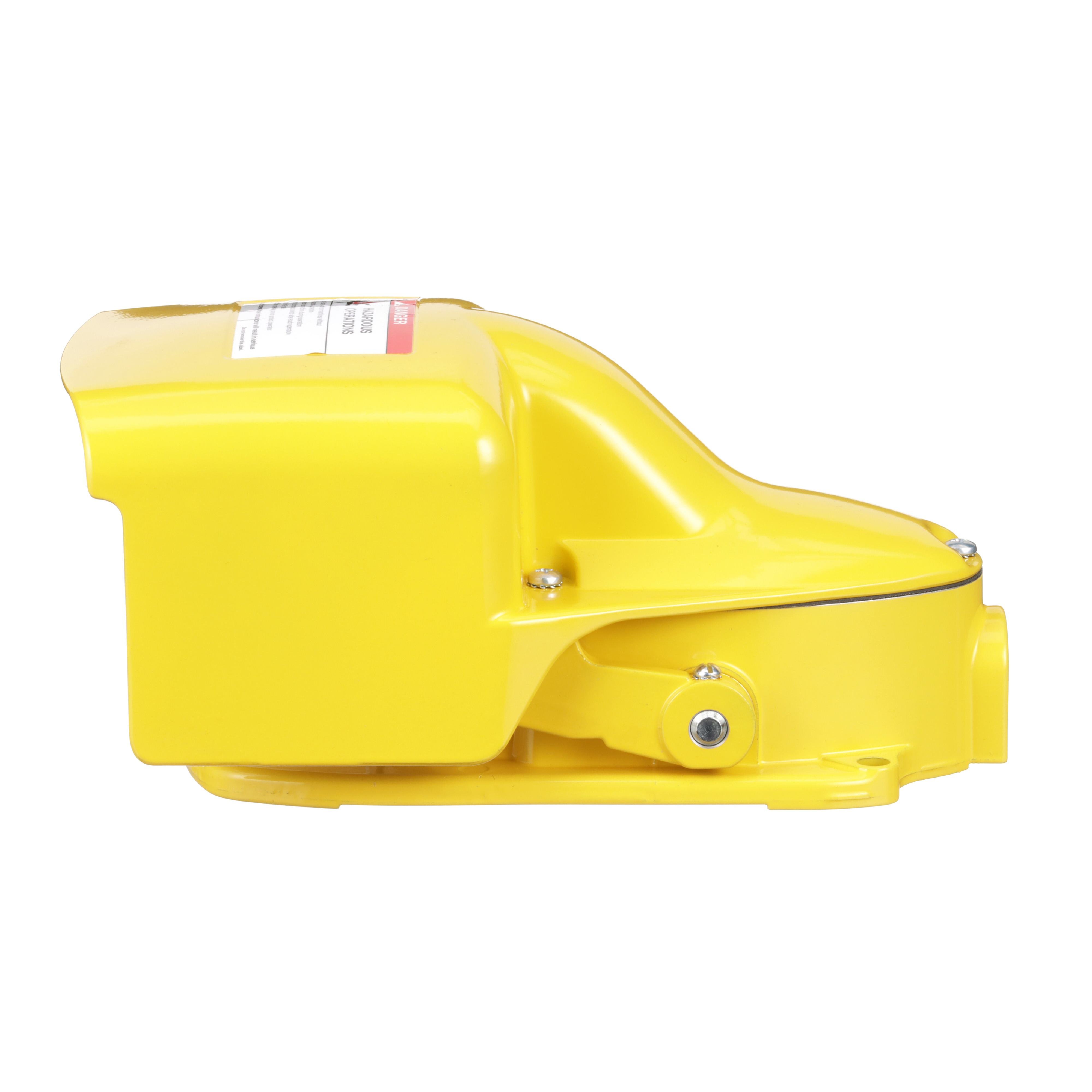

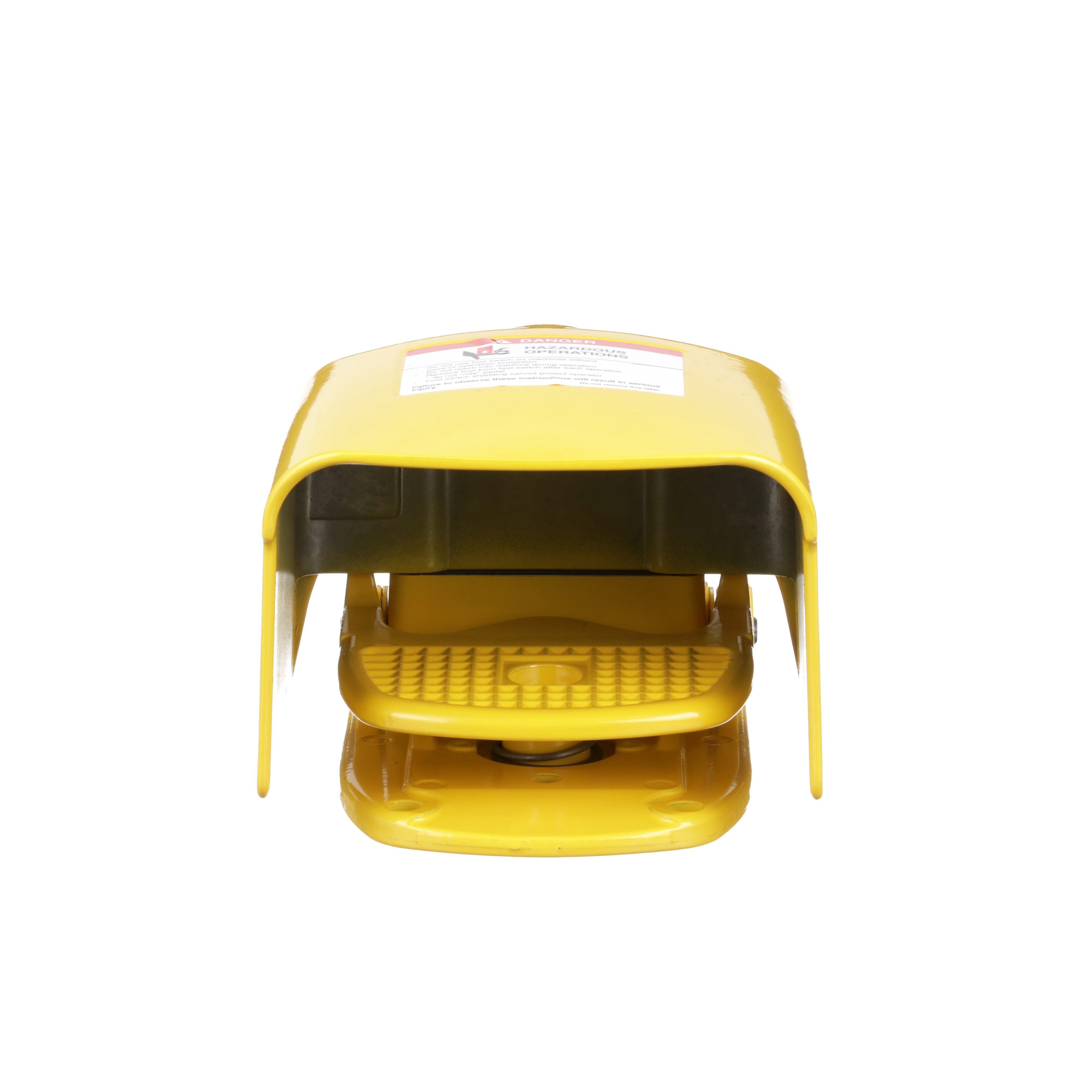

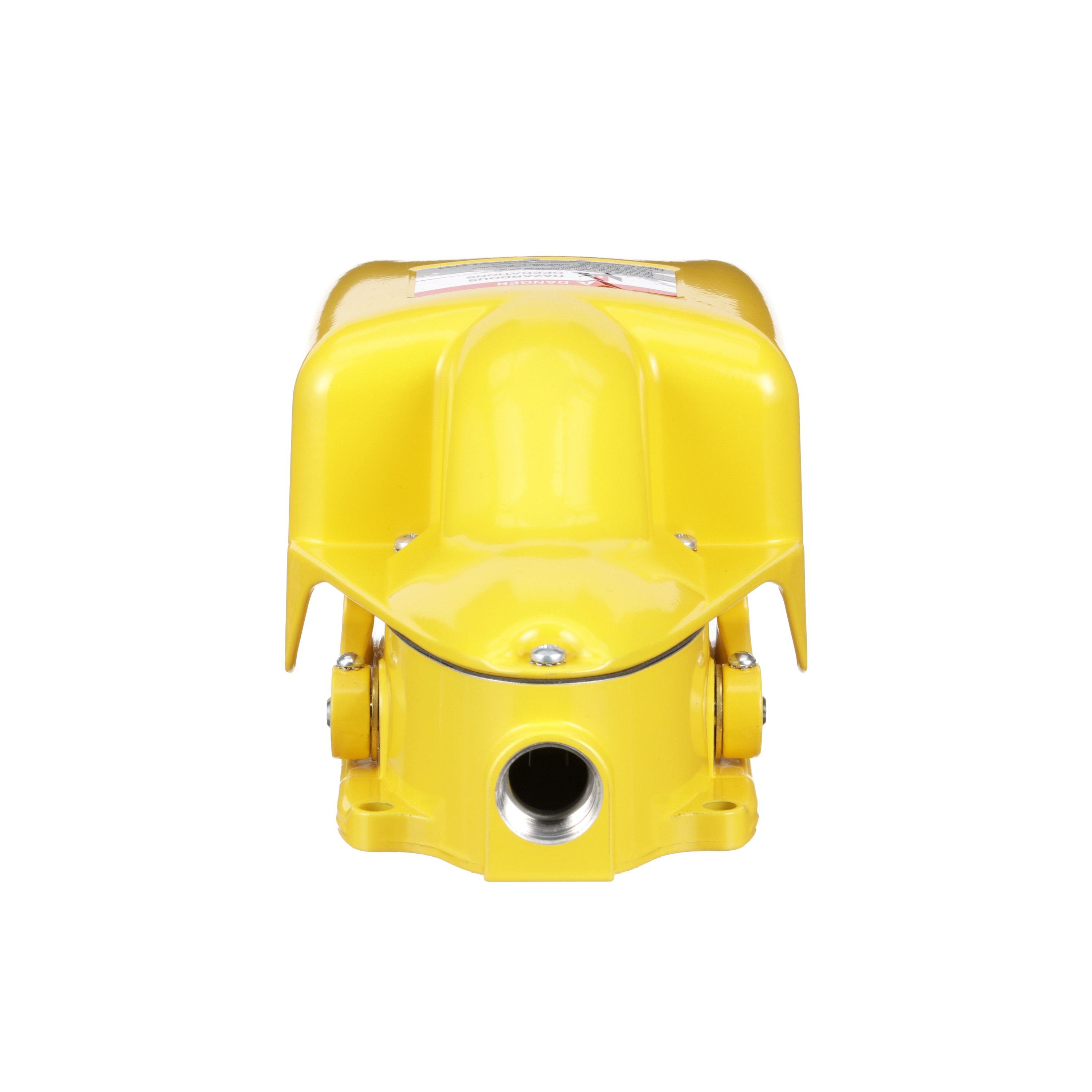

Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC Picture of 9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC
Square D

9002AW2 - Foot Switch, Harmony 9002AW, industrial, pedal and side shields, SPDT contact, NEMA 2, 4, 13 enclosure, 5A resistive at 600V AC

Item Code: 17581
Category Foot Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9002AW2

Document
Call for Availability
Add to Favorites
Compare

Description

9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has pedal and side shields. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.

Specifications

Weight

4.63

Height

5.8

Width

5.55

Length

11.89

AD All Features

A variety of shielding

AD Application

Industrial and Indoor/Outdoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH FT 600VAC/VDC 5A SPDT PEDAL

AD Item Features 01

A variety of shielding

AD Item Features 02

High visibility yellow color

AD Item Features 03

Robust design provides long term reliability

AD Item Features 04

Shielding/safety door helps to prevent inadvertent operation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.8000

AD Package Height UOM

IN

AD Package Length

11.8900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

389.7600

AD Package Volume UOM

cu-in

AD Package Weight

4.6300

AD Package Weight UOM

LB

AD Package Width

5.5500

AD Package Width UOM

IN

Brand

Square D

Category

Foot Switches & Accessories

Spec 1 Attribute

Action

Spec 1 Attribute Value

1-Step Spring Return

Spec 2 Attribute

Actuator

Spec 2 Attribute Value

Pedal

Spec 3 Attribute

Amperage Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

5

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

Spdt

Spec 5 Attribute

Contact Rating

Spec 5 Attribute Value

5 A at 600 V AC/15 A at 125/250 V DC

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

5.38 in W x 4.84 in D x 9 in H

Spec 7 Attribute

Enclosure

Spec 7 Attribute Value

NEMA 2/4/13

Spec 8 Attribute

Series

Spec 8 Attribute Value

9002

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute UOM

V AC/DC

Spec 9 Attribute Value

600
