Schneider Electric

9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open

Category Timing Relays & Accessories

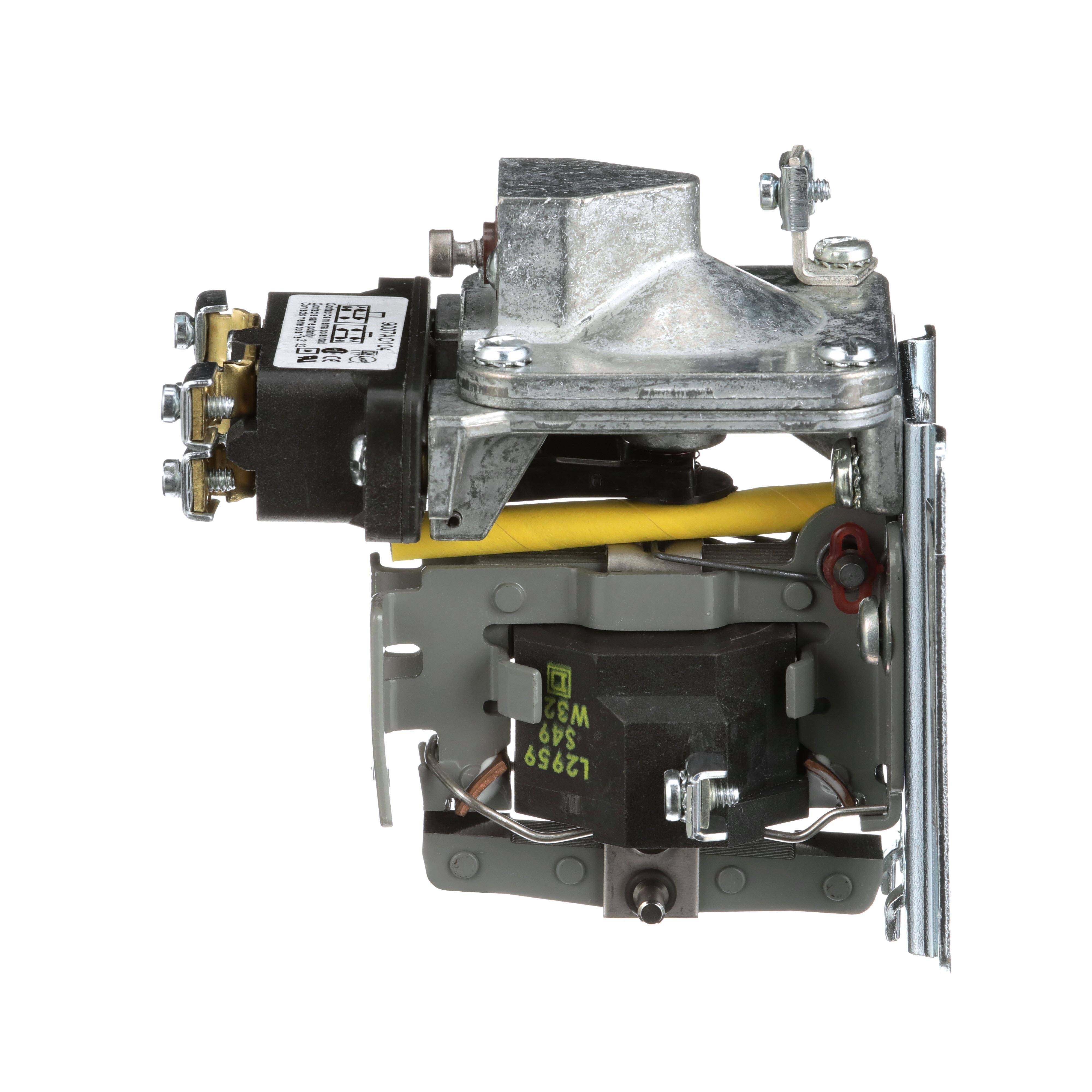

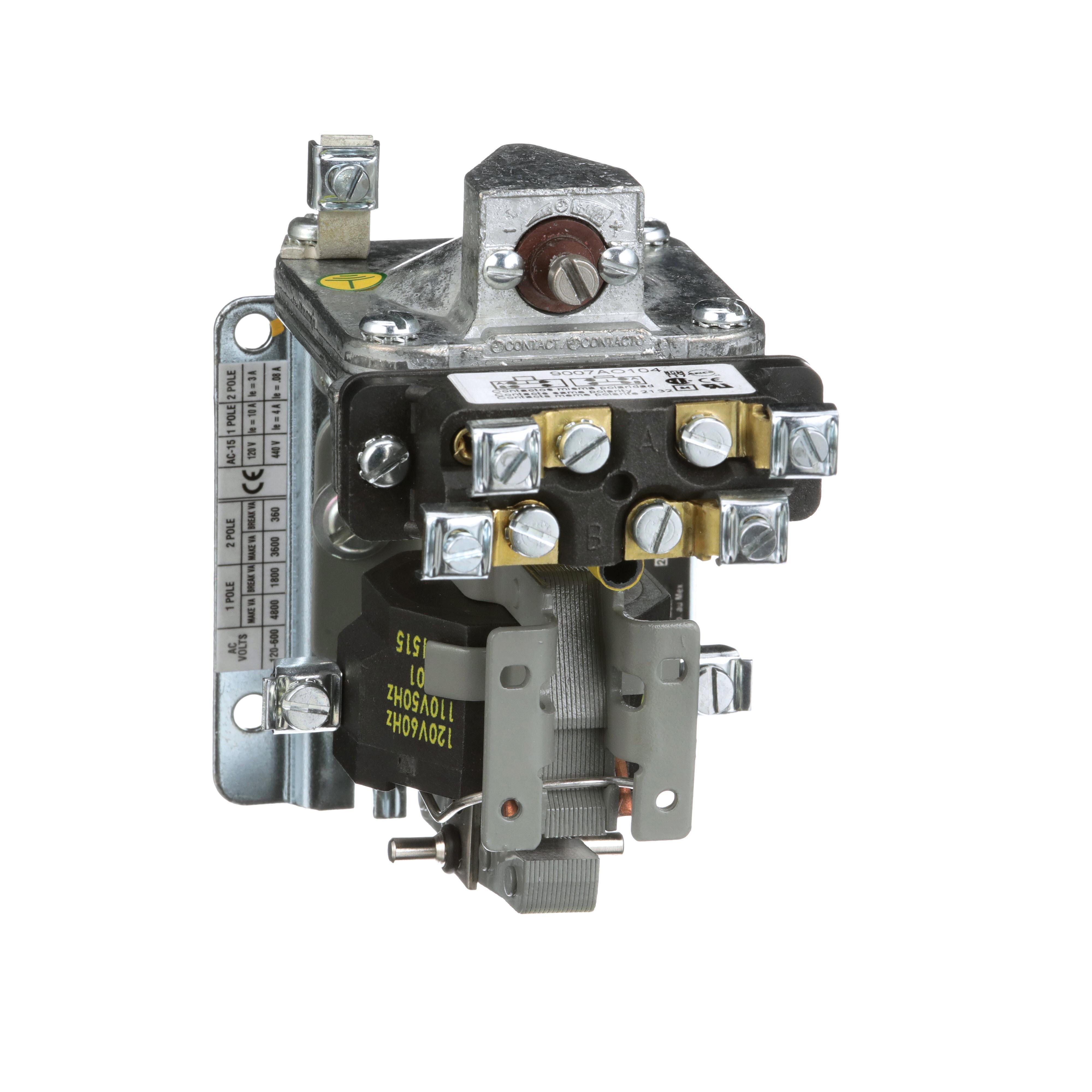

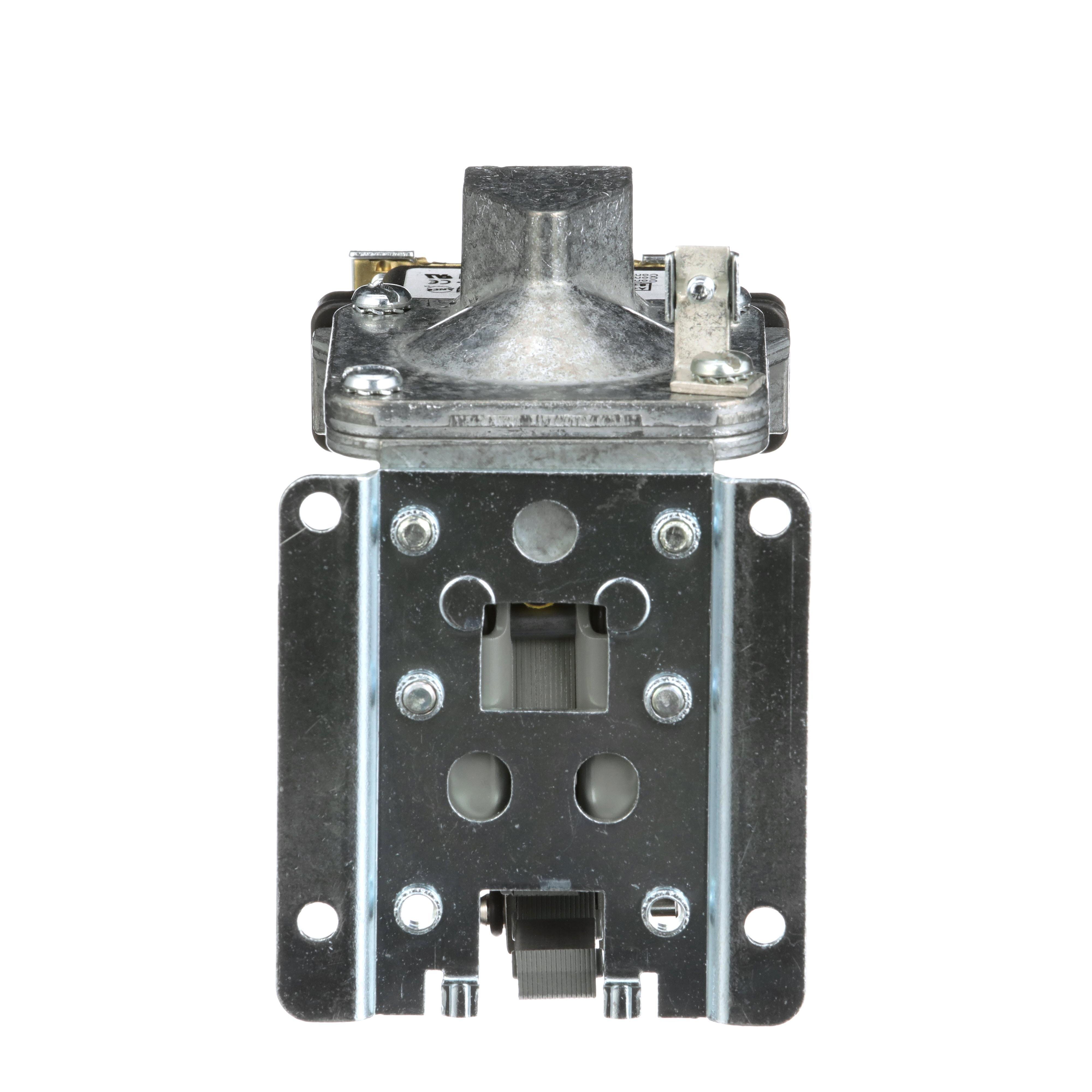

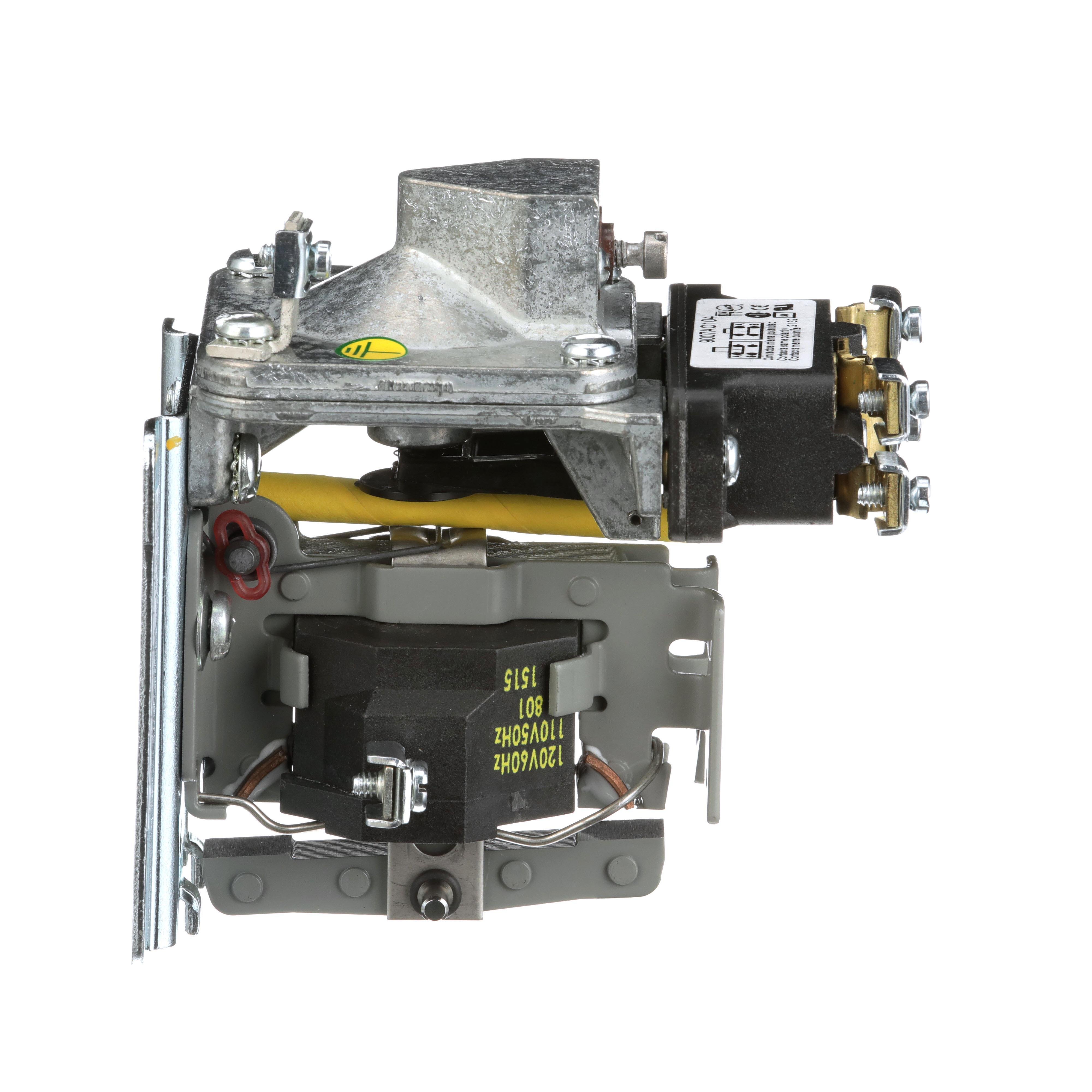

Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open Picture of 9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open
Schneider Electric

9050AO10DV02 - Timing Relay, Type A, pneumatic, off delay, 0.1 to 60 seconds, 15A, 600V, SPDT, timed, 110/120VAC 50/60Hz coil, open

Item Code: 672865
Category Timing Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050AO10DV02

Document
Document
Call for Availability
Add to Favorites
Compare

Description

9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this off delay timer is typically about one minute. This timing relay can be converted by a customer from off delay to on delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 110/120 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. This pneumatic timing relay is 2.64 inches tall, 4.02 inches wide and 4.37 inches deep. 9050A pneumatic timing relays are UL listed and CSA certified.

Specifications

Weight

1.71

Height

3.4

Width

4.85

Length

6.54

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

TIMER PNEU 29 MS ON DLY/27 MS OFF DLY 1

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.4000

AD Package Height UOM

IN

AD Package Length

6.5400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

109.9600

AD Package Volume UOM

cu-in

AD Package Weight

1.7100

AD Package Weight UOM

LB

AD Package Width

4.8500

AD Package Width UOM

IN

Brand

Square D

Category

TIMING RELAYS & ACCESSORIES

Spec 1 Attribute

Coil Voltage

Spec 1 Attribute Value

110 V AC at 50 Hz to 120 V AC at 60 Hz

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

68 to 104

Spec 11 Attribute

Time Setting

Spec 11 Attribute Value

29 ms ON Delay/27 ms OFF Delay

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1NO-1NC (Time Delayed)

Spec 3 Attribute

Contact Rating

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

15

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.64 in H x 4.02 in W x 4.37 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

Open

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Operation Mode

Spec 8 Attribute Value

Off-Delay

Spec 9 Attribute

Series

Spec 9 Attribute Value

9050
