Square D

9050JCK11V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.1 to 10 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Category Timing Relays & Accessories

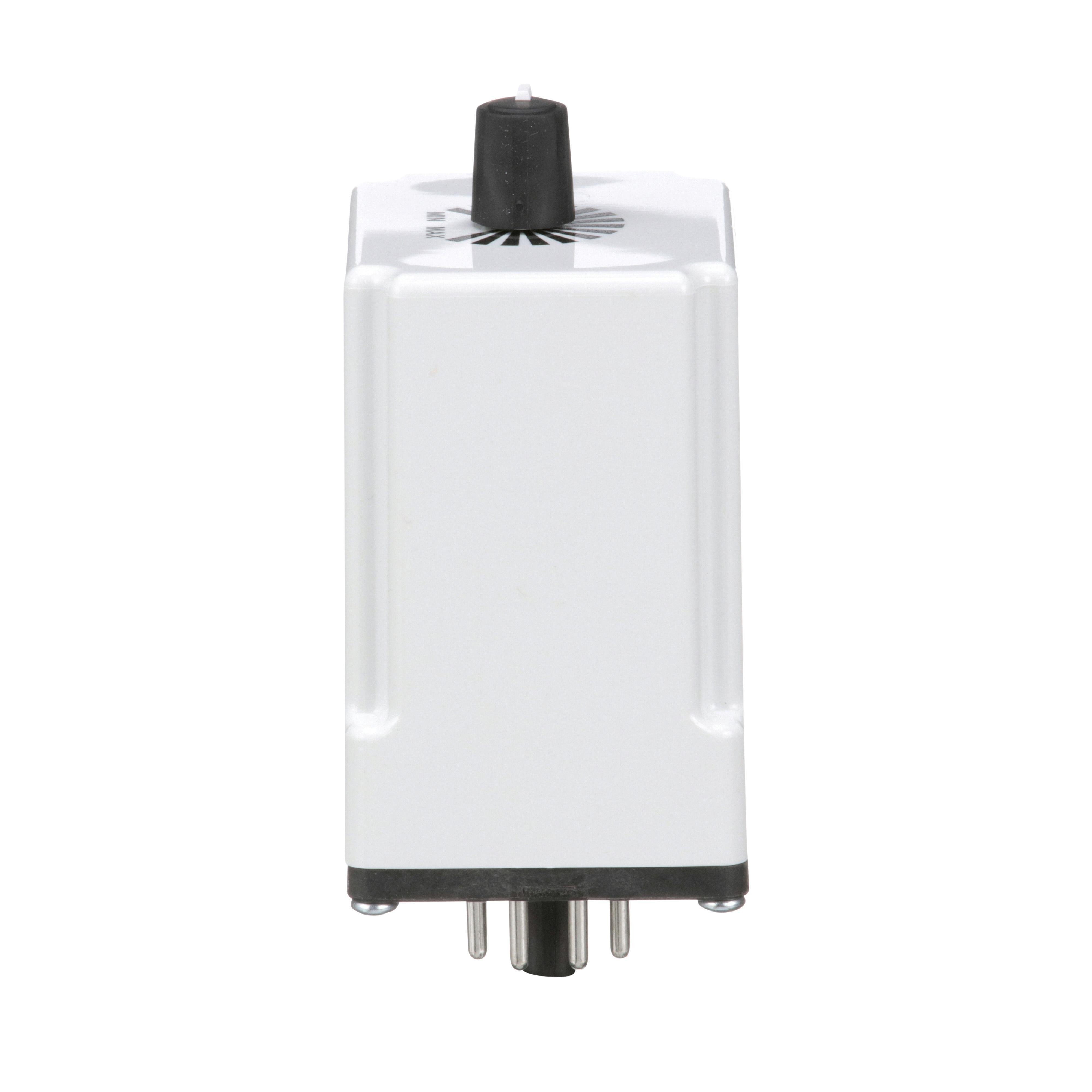

Picture of 9050JCK11V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.1 to 10 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Square D

9050JCK11V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 0.1 to 10 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Item Code: 17633
Category Timing Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK11V20

Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 0.1 to 10 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.27lb

Height

1.9mm

Width

2.48mm

Length

4.26mm

Depth

104mm

Amperage Rating

10 A

Brand

Square D

Category

TIMING RELAYS & ACCESSORIES

Coil Voltage

120 V AC, 110 V DC

Contact Form

2NO-2NC 2 Form C DPDT

Dimensions

43 mm W x 104 mm D x 61 mm H

Electrical Connections

Tubular

Horsepower

2-Jan hp

Mounting Type

Socket

Number of Pins

8

Operation Mode

On-Delay

Series

9050

Temperature Rating

-18 to 150 deg f

Time Setting

0.1 to 10 s

Type

Type JCK Adjustable Time

Voltage Rating

240 V AC
