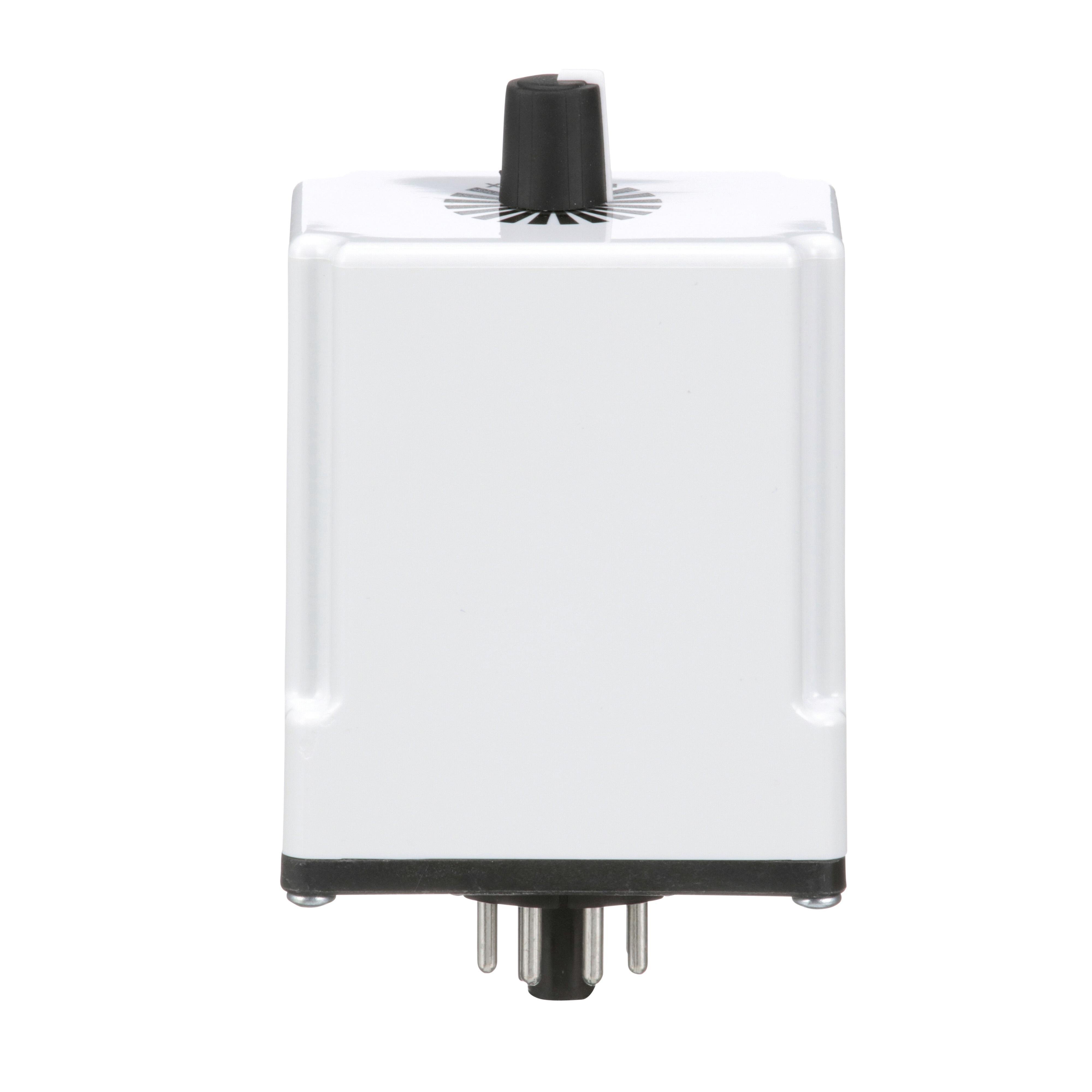

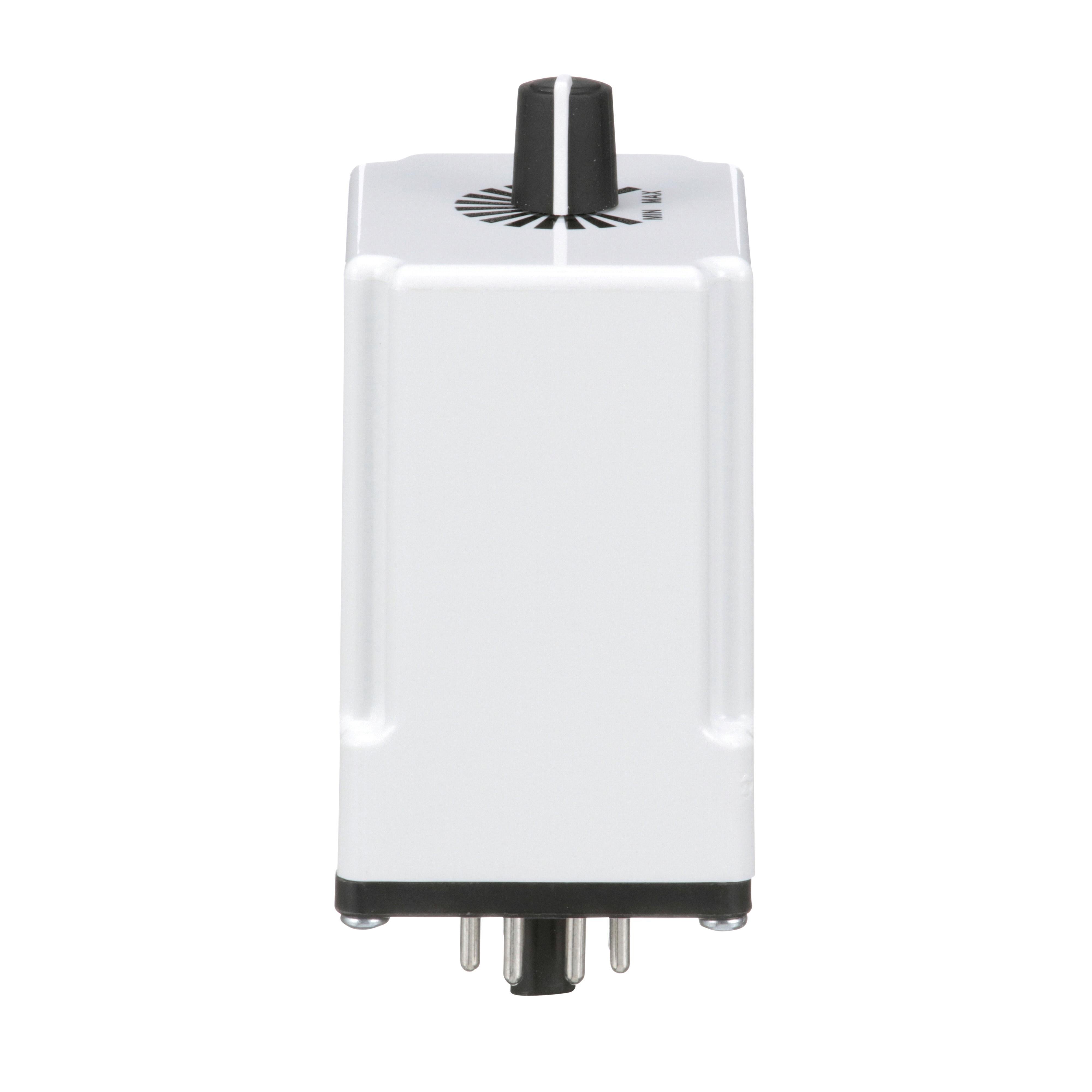

9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Category Miscellaneous
Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC Picture of 9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Square D™

9050JCK15V20 - Timing Relay, Type JCK, plug In, on delay, adjustable time, 1.8 to 180 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Item Code: 17640
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK15V20

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 1.8 to 180 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.27

Height

2

Width

2.48

Length

4.36

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9050JCK15V20/9050JCK15V20.spin

AD All Features

Easy to set up and install

AD Alternative Part Number

8157767

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901032588

AD Gtin

00785901032588

AD IDEA Index ID

8157767

AD Invoice Description

RELAY TMG ON-DLY 240VAC 10A 1/2HP 8 SKT

AD Item Features 01

Easy to set up and install

AD Item Features 02

Wide range of operating temperature from -18.4 deg F to 150.8 deg F

AD Keywords

9050JCK15V20 Type JCK Adjustable Time Timing Relay, 1.8 to 180 s Setting, 240 V AC, 8 Pin, 2NO-2NC 2 Form C DPDT Contact ; Schneider Electric ; Square D ; 9050JCK15V20 ; 9050JCK15V20 ; 785901032588 ; Timing Relays - Fixed Mode Operation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

4.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

22.0000

AD Package Volume UOM

cu-in

AD Package Weight

0.2700

AD Package Weight UOM

LB

AD Package Width

2.4800

AD Package Width UOM

IN

AD Part Number Keywords

9050JCK15V20 ; 8157767 ; 785901032588 ; 78590103258 ; 00785901032588 ; 0785901032588

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

9050

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-18 to 150

Spec 12 Attribute

Time Setting

Spec 12 Attribute UOM

S

Spec 12 Attribute Value

1.8 to 180

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type JCK Adjustable Time

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

120 V AC, 110 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

43 mm W x 104 mm D x 61 mm H

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

2-Jan

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Socket

Spec 8 Attribute

Number of Pins

Spec 8 Attribute Value

8

Spec 9 Attribute

Operation Mode

Spec 9 Attribute Value

On-Delay
