Square D

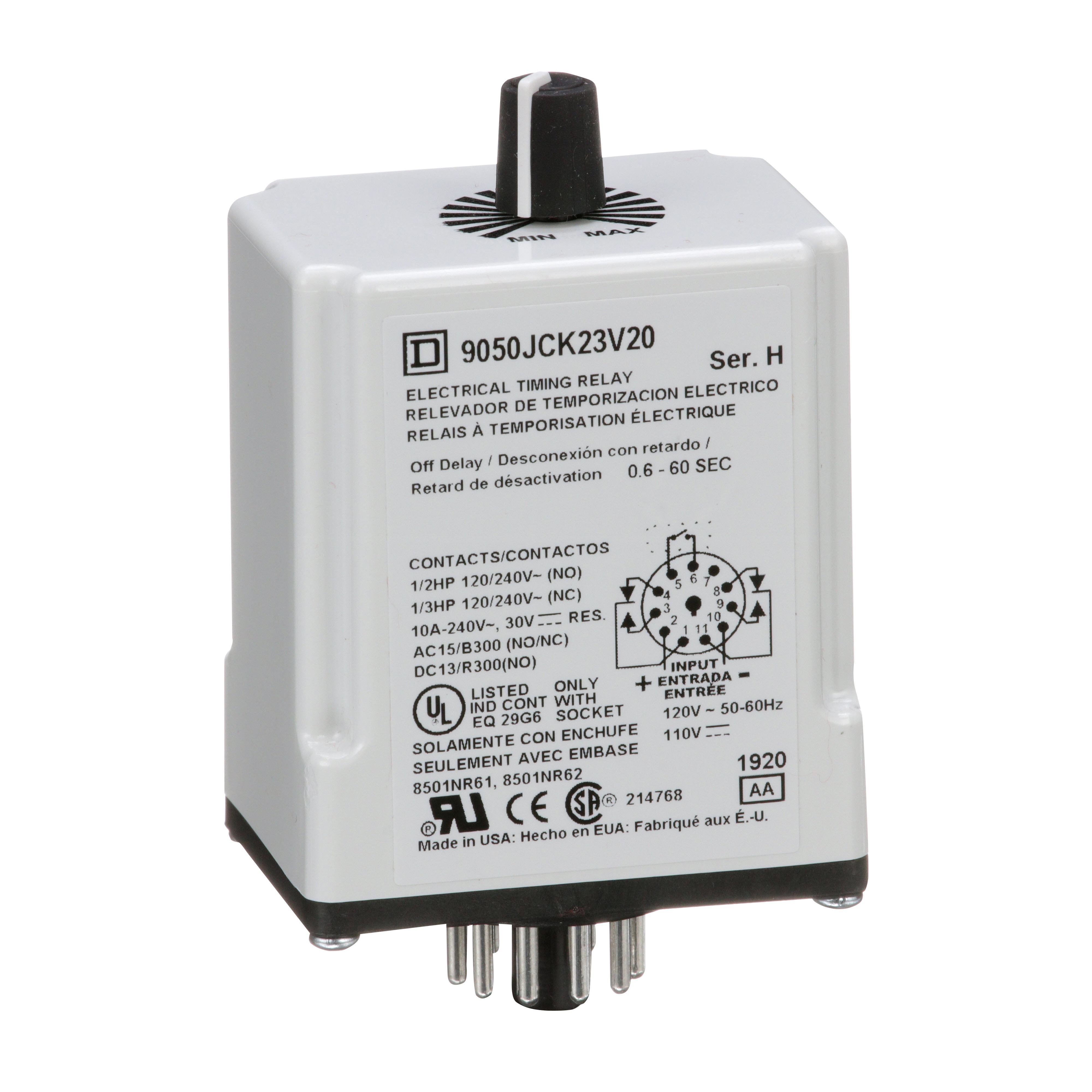

9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Picture of 9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC Picture of 9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Picture of 9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC Picture of 9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC
Square D

9050JCK23V20 - Timing Relay, Type JCK, plug In, off delay, adjustable time, 0.6 to 60 seconds, 10A, 240 VAC, 120 VAC/110 VDC

Item Code: 17651
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK23V20

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an off delay timing mode. Input voltage to the timer must be applied continuously. When the customer supplied trigger switch closes, the timer relay contacts change state instantaneously. When the trigger switch opens, the time delay begins. When the delay is complete, the timer relay contacts return to their shelf state. If the trigger switch closes before the time delay is complete, then timing is reset. When the trigger switch opens, the delay begins again, and the timer relay contacts remain in their energized state. The timing range of 0.6 to 60 seconds is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 120 VAC / 110 VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.26lb

Height

2.6mm

Width

1.98mm

Length

4.36mm

Depth

104mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9050JCK23V20/9050JCK23V20.spin

AD All Features

9050JCK timing relays are designed to provide low-cost timing in a plug-in housing

AD Alternative Part Number

8157802

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901032632

AD Gtin

00785901032632

AD IDEA Index ID

8157802

AD Invoice Description

RELAY TMG OFF-DLY 240VAC 10A 11 TUBULAR

AD Item Features 01

9050JCK timing relays are designed to provide low-cost timing in a plug-in housing

AD Item Features 02

All relays feature DPDT contacts (2 N.O. and 2 N.C.)

AD Item Features 03

Directly interchangeable with many other 8 and 11 pin octal base timers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.6000

AD Package Height UOM

IN

AD Package Length

4.3600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

22.8800

AD Package Volume UOM

cu-in

AD Package Weight

0.2600

AD Package Weight UOM

LB

AD Package Width

1.9800

AD Package Width UOM

IN

AD Part Number Keywords

9050JCK23V20 ; 8157802 ; 785901032632 ; 78590103263 ; 00785901032632 ; 0785901032632

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

Off-Delay

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-18 to 150

Spec 12 Attribute

Time Setting

Spec 12 Attribute UOM

S

Spec 12 Attribute Value

0.6 to 60

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type JCK Class 9050 Electronic Adjustable Time

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

120 V AC, 110 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

43 mm W x 104 mm D x 61 mm H

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

1/2 hp, 1/3 hp

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Socket

Spec 9 Attribute

Number of Pins

Spec 9 Attribute Value

11
