Square D™

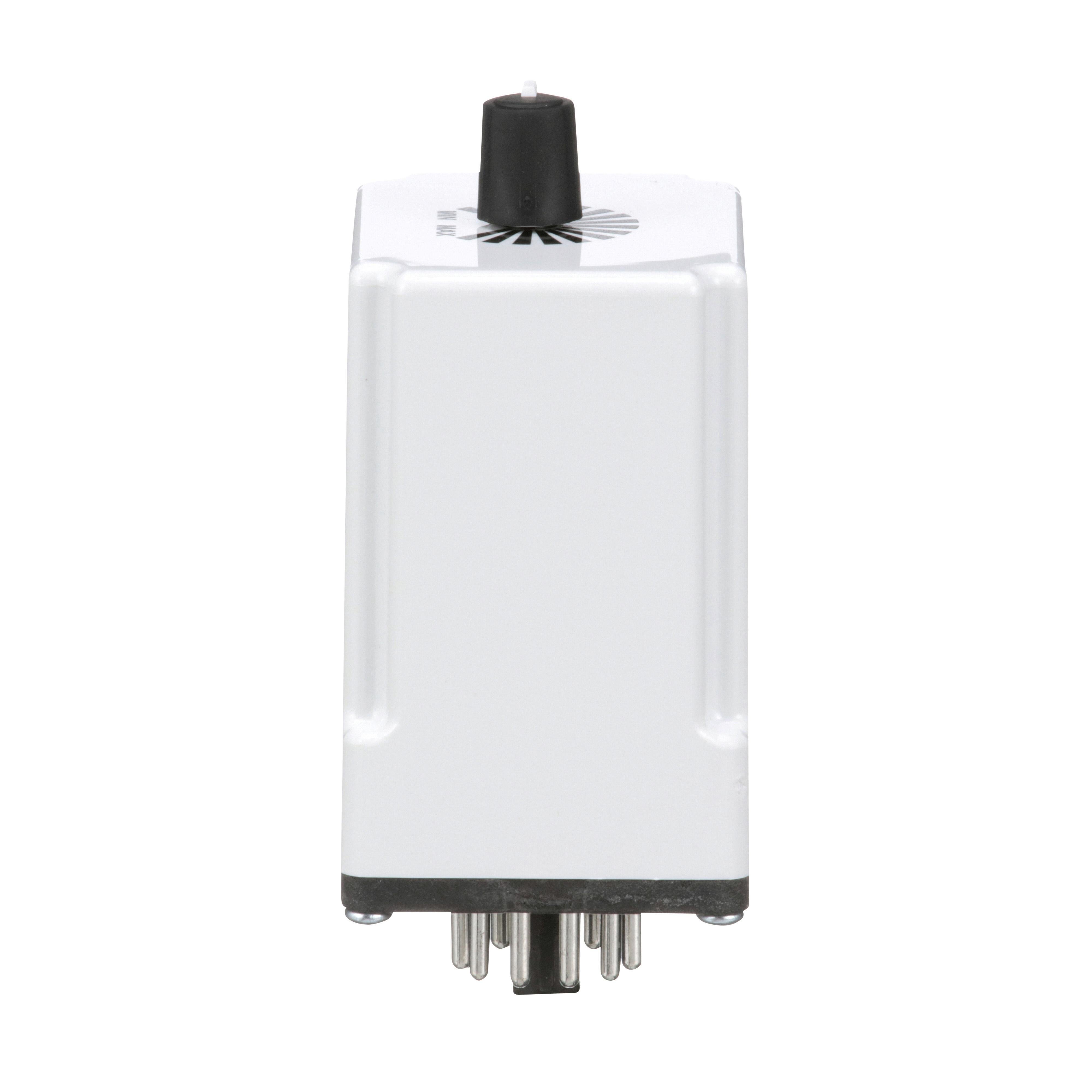

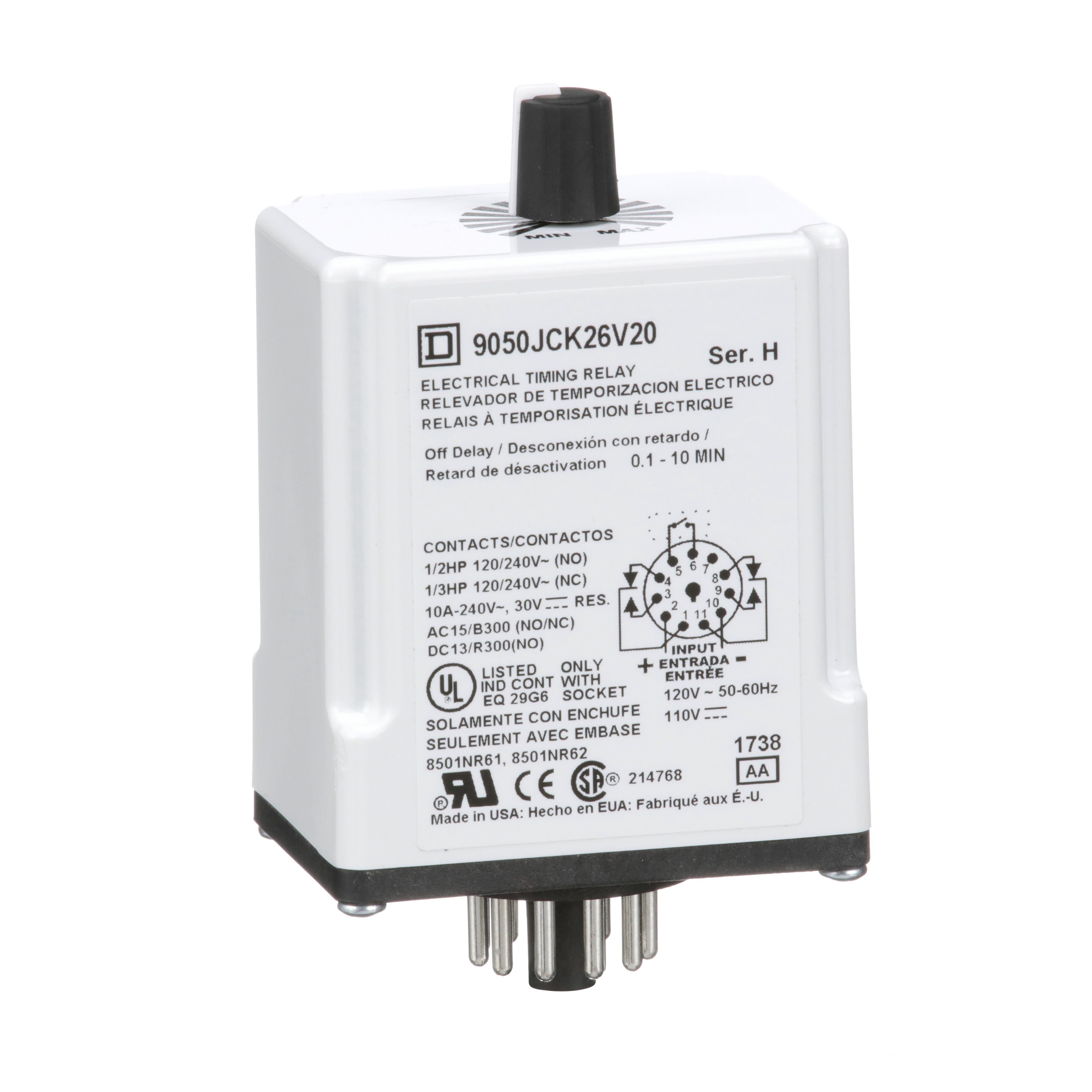

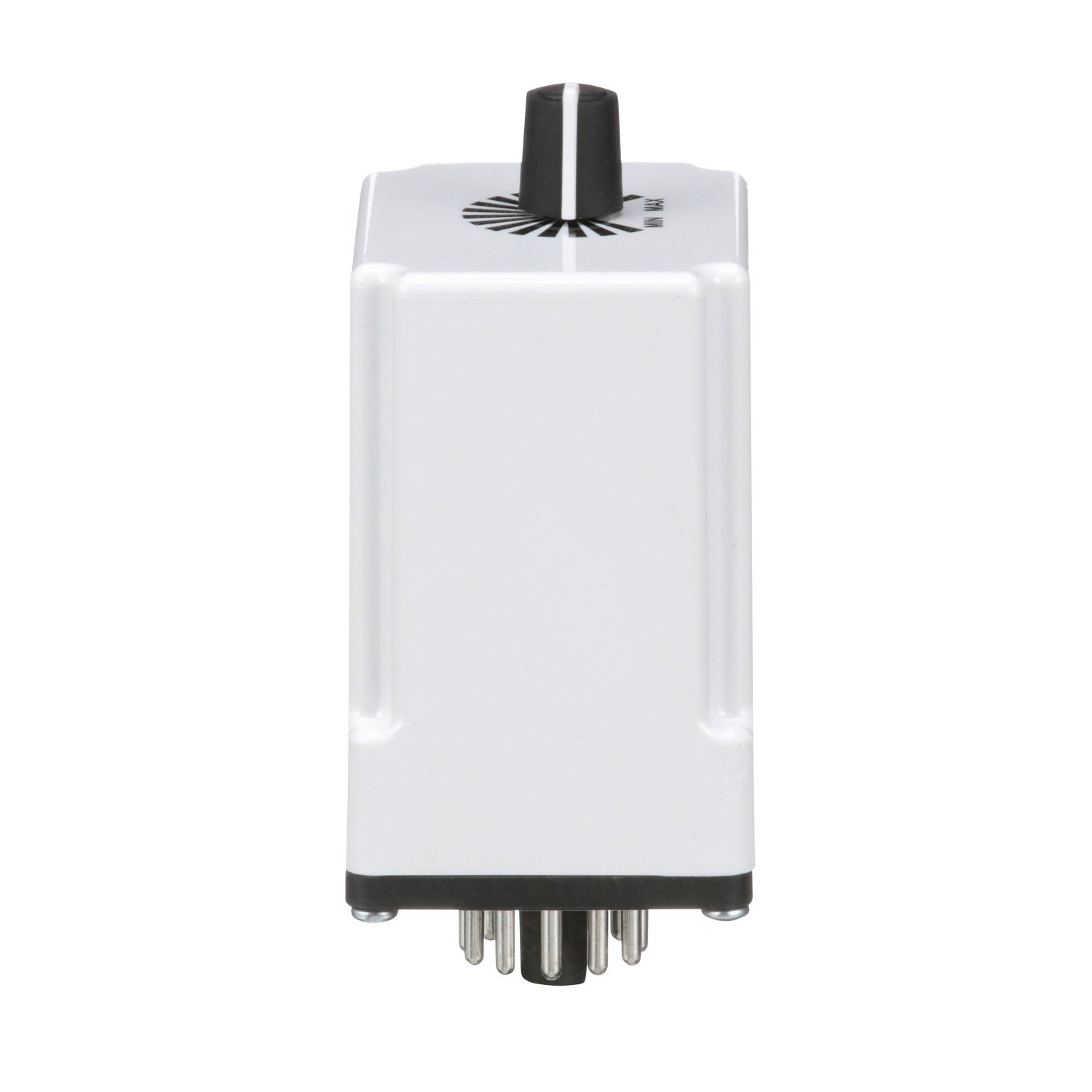

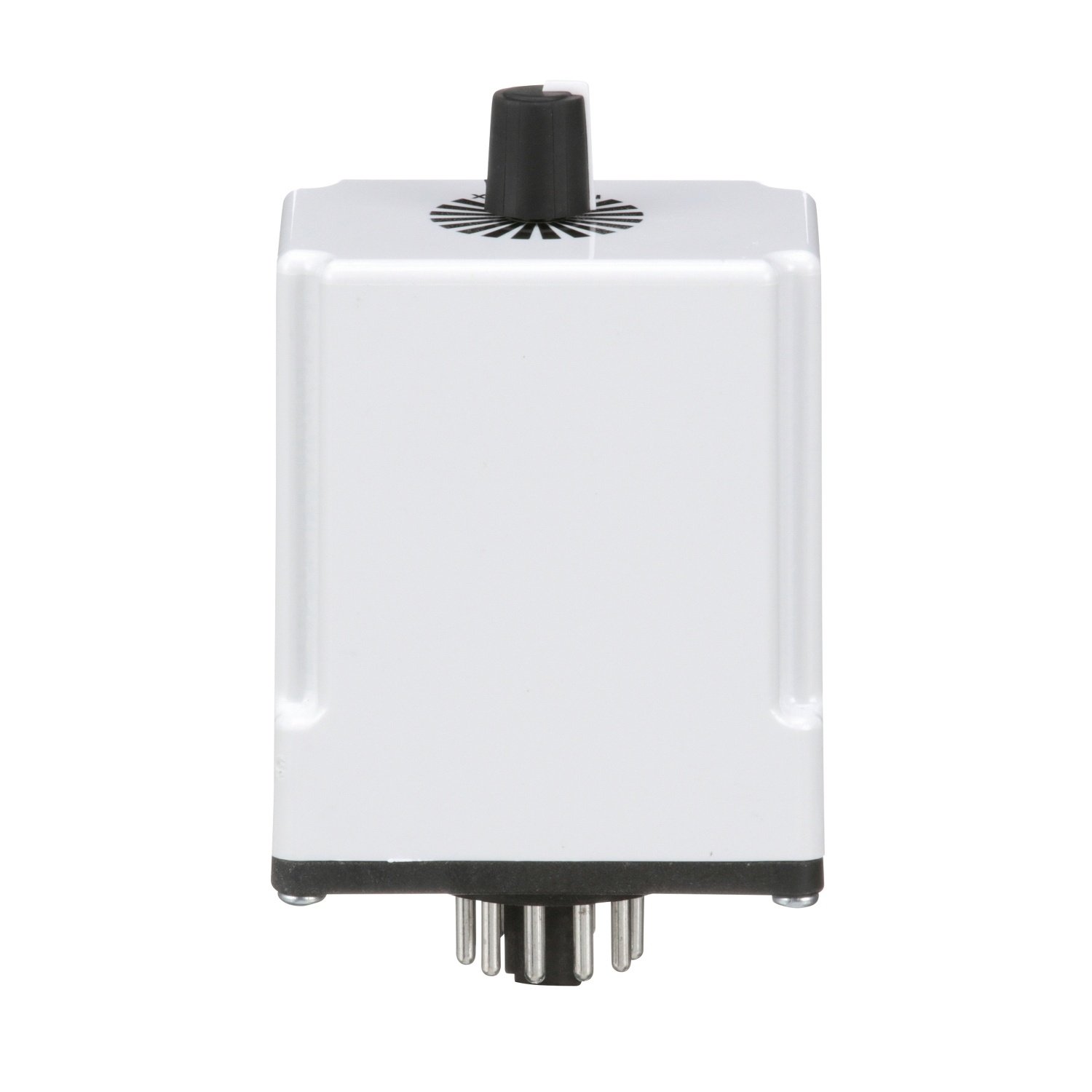

9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC

Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC Picture of 9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC
Square D™

9050JCK26V20 - Timer, Harmony 9050 JCK, off delay, adjustable time, 0.1 to 10 minutes, 10A, 240V AC, 120V AC/110V DC

Item Code: 17657
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK26V20

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an off delay timing mode. Input voltage to the timer must be applied continuously. When the customer supplied trigger switch closes, the timer relay contacts change state instantaneously. When the trigger switch opens, the time delay begins. When the delay is complete, the timer relay contacts return to their shelf state. If the trigger switch closes before the time delay is complete, then timing is reset. When the trigger switch opens, the delay begins again, and the timer relay contacts remain in their energized state. The timing range of 0.1 to 10 minutes is easily adjustable with a knob on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 12 VAC/VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.3lb

Height

61mm

Width

1.98mm

Length

4.26mm

Depth

104mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9050JCK26V20/9050JCK26V20.spin

AD All Features

Easy to set up and install

AD Alternative Part Number

8157823

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901032663

AD Gtin

00785901032663

AD IDEA Index ID

8157823

AD Invoice Description

RELAY TMG OFF-DLY 240VAC 10A 11 TUBULAR

AD Item Features 01

Easy to set up and install

AD Item Features 02

Wide range of operating temperature from -28 deg C to 66 deg C

AD Keywords

9050JCK26V20 Type JCK Adjustable Time Timing Relay, 0.1 to 10 min Setting, 240 V AC, 11 Pin, 2NO-2NC 2 Form C DPDT Contact ; Schneider Electric ; Square D ; 9050JCK26V20 ; 9050JCK26V20 ; 785901032663 ; Timing Relays - Fixed Mode Operation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3000

AD Package Weight UOM

LB

AD Package Width

1.9800

AD Package Width UOM

IN

AD Part Number Keywords

9050JCK26V20 ; 8157823 ; 785901032663 ; 78590103266 ; 00785901032663 ; 0785901032663

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

Off-Delay

Spec 11 Attribute

Series

Spec 11 Attribute Value

9050

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-18 to 150

Spec 13 Attribute

Time Setting

Spec 13 Attribute UOM

MIN

Spec 13 Attribute Value

0.1 to 10

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type JCK Adjustable Time

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

120 V AC, 110 V DC

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

43 mm W x 104 mm D x 61 mm H

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

1/2 hp, 1/3 hp

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Socket

Spec 9 Attribute

Number of Pins

Spec 9 Attribute Value

11
