Square D

9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz

Category Miscellaneous

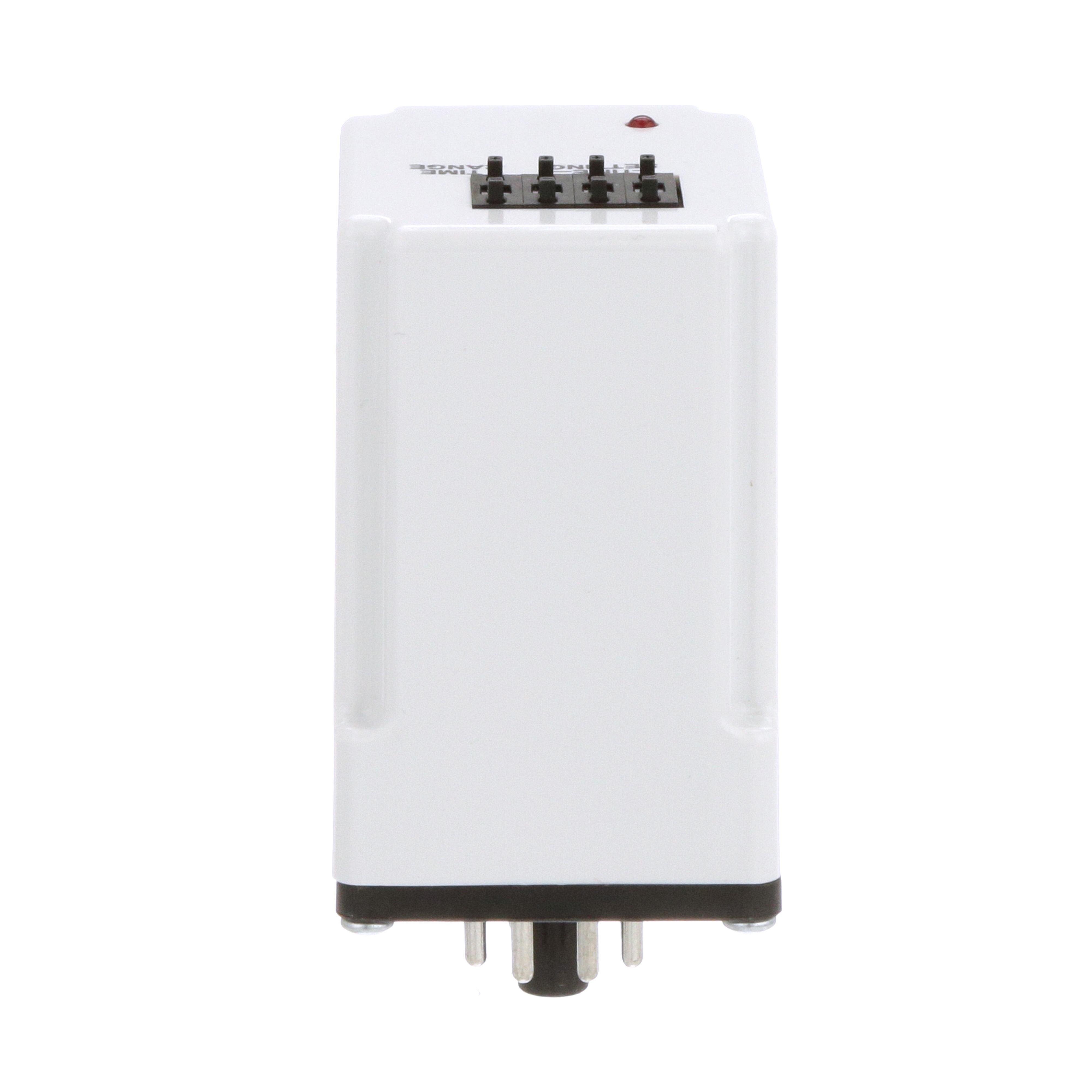

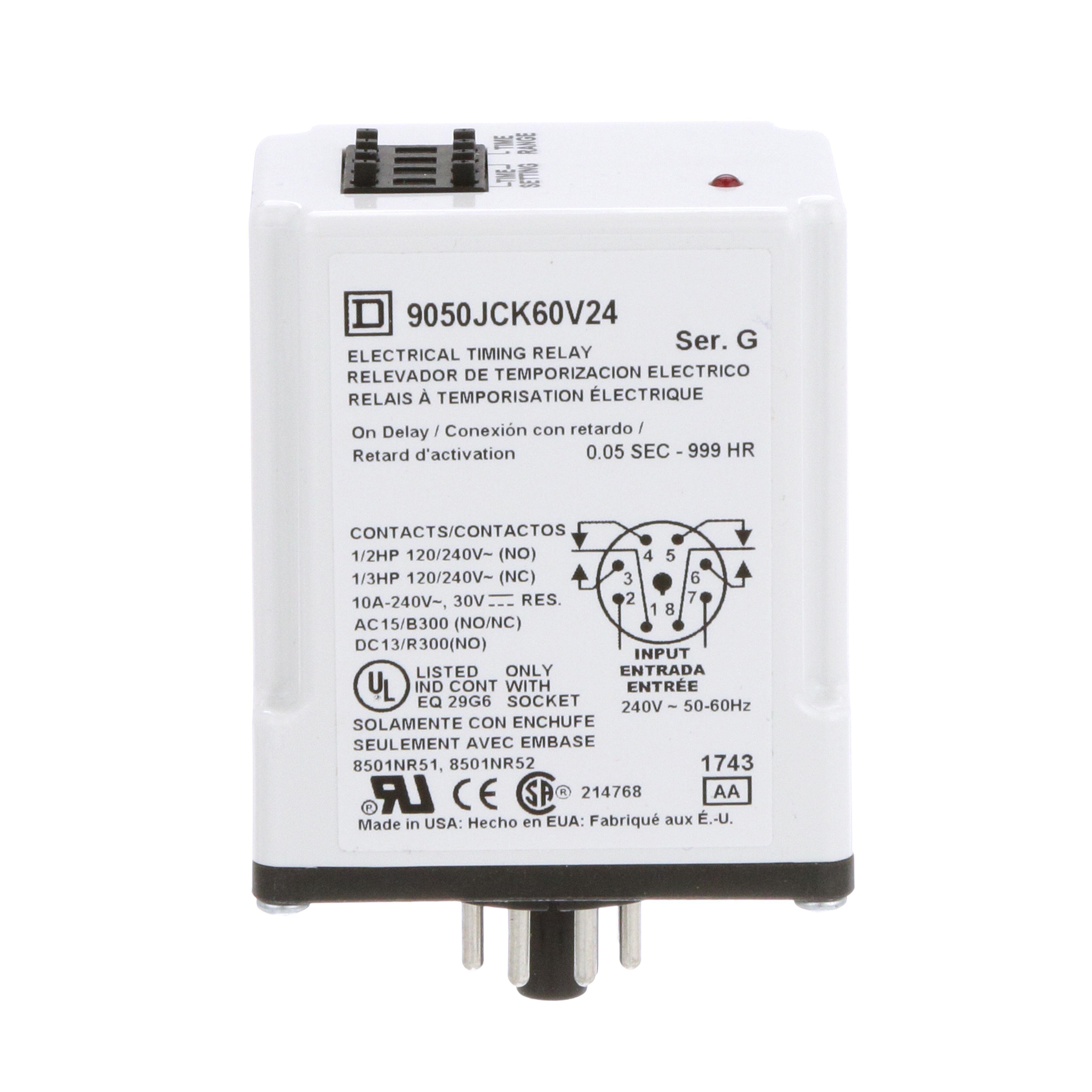

Picture of 9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz Picture of 9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz
Picture of 9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz Picture of 9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz
Square D

9050JCK60V24 - Timing Relay, Type JCK, plug In, on delay, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz

Item Code: 32610
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK60V24

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer has an on delay timing mode. When the input voltage is applied, the time delay begins. Relay contacts change state after time delay is complete. When the input voltage is removed, contacts return to their shelf state. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR51 or 8501NR52 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 240 VAC 50/60 Hz. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.28

Width

4.26

Length

2.58

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9050JCK60V24/9050JCK60V24.spin

AD Alternative Part Number

8042738

AD Application

Crane and Hoist, Material Handling, Amusement Park Ride Controls, Food and Beverage, Industrial Markets, Assembly Lines and Building Automation Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901136903

AD Gtin

00785901136903

AD IDEA Index ID

8042738

AD Invoice Description

RELAY TMR 0.1 TO 99.9HR 240VAC 8 ON-DLY

AD Item Features 01

9050JCK timing relays are designed to provide low-cost timing in a plug-in housing

AD Item Features 02

All relays feature DPDT contacts (2 N.O. and 2 N.C.)

AD Item Features 03

Directly interchangeable with many other 8 and 11 pin octal base timers

AD Item Features 04

9050JCK60 On-Delay timer uses four push button thumbwheels to set the time delay

AD Keywords

9050JCK60V24 9050CJK Type JCK Timer Relay, 0.1 to 99.9 hr Setting, 240 V AC, 8 Pin, 2NO-2NC 2 Form C DPDT Contact ; Schneider Electric ; Square D ; 9050JCK60V24 ; 9050JCK60V24 ; 785901136903 ; Timing Relays - Selectable Mode Operation

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.5800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

4.2600

AD Package Width UOM

IN

AD Part Number Keywords

9050JCK60V24 ; 8042738 ; 785901136903 ; 78590113690 ; 00785901136903 ; 0785901136903

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

-18 to 122

Spec 11 Attribute

Time Setting

Spec 11 Attribute UOM

HR

Spec 11 Attribute Value

0.1 to 99.9

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type JCK

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

240

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

2.36 in H x 1.73 in W x 3.58 in D

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Socket

Spec 7 Attribute

Number of Pins

Spec 7 Attribute Value

8

Spec 8 Attribute

Operation Mode

Spec 8 Attribute Value

On-Delay

Spec 9 Attribute

Series

Spec 9 Attribute Value

9050CJK
