Square D

9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC

Category Timing Relays & Accessories

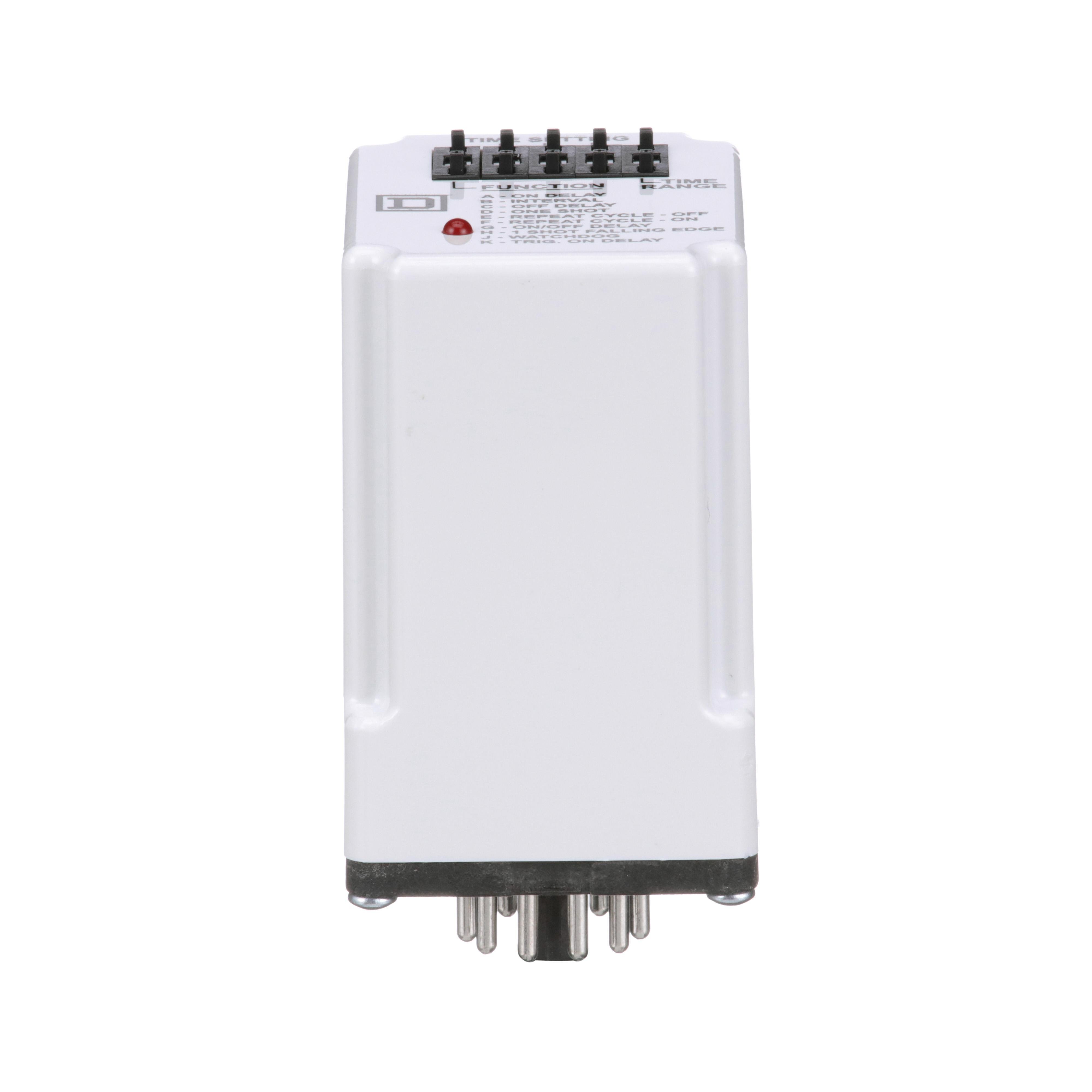

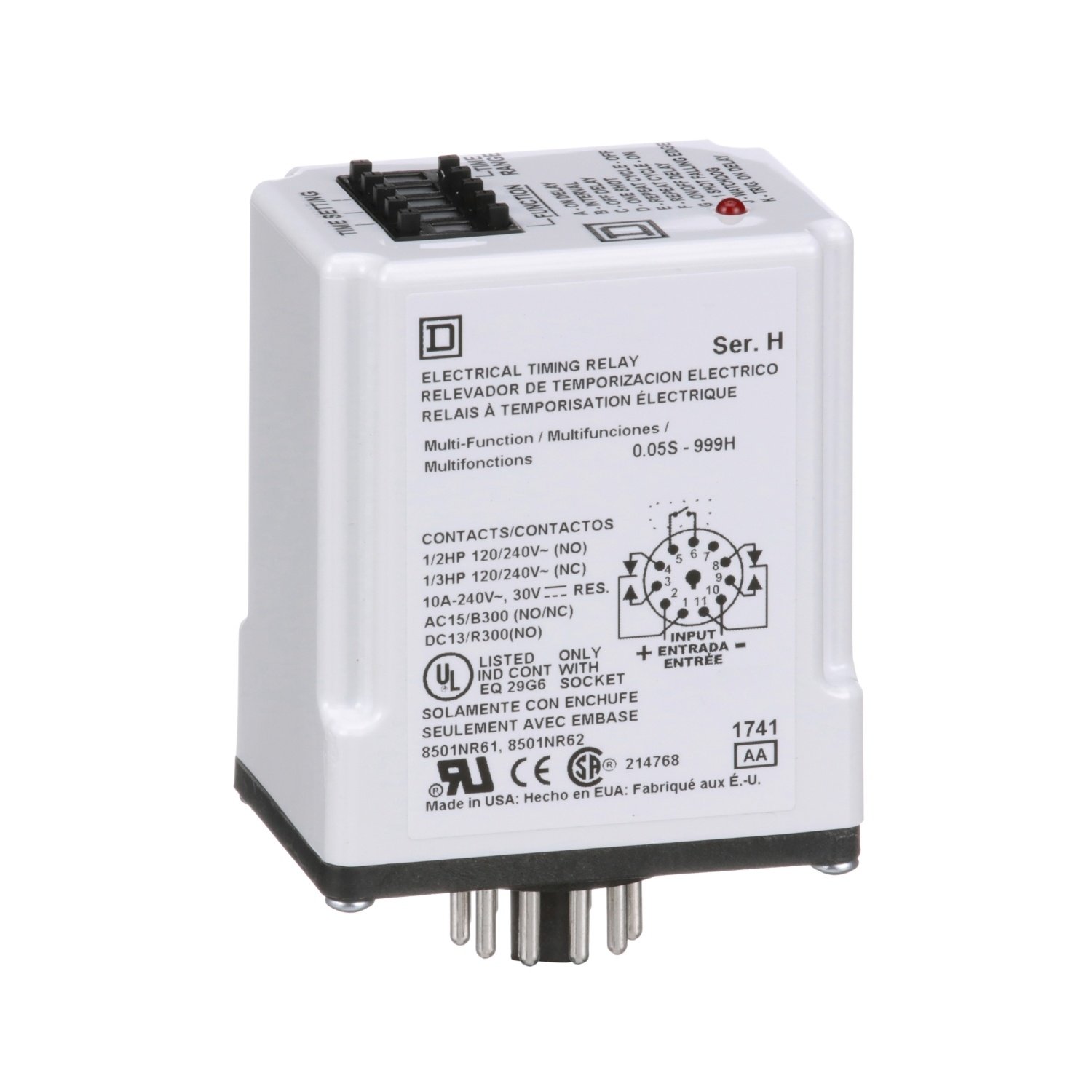

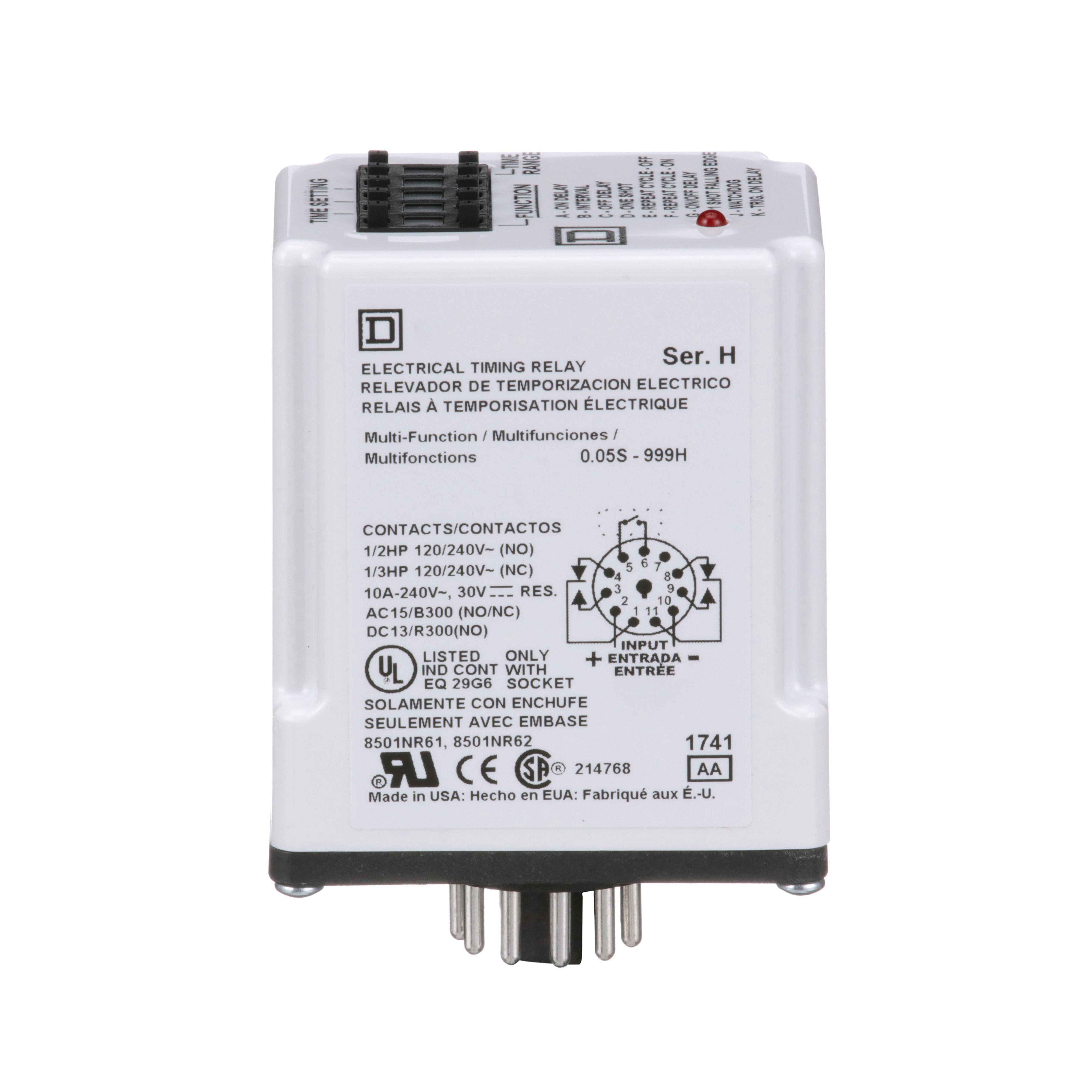

Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC Picture of 9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC
Square D

9050JCK70V14 - Timer, Harmony 9050 JCK, multifunction, programmable, 0.5 second to 999 hours, 10A, 240V AC, 24V AC/DC

Item Code: 620235
Category Timing Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK70V14

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 24 VAC/VDC. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.28

Height

1.9

Width

2.48

Length

4.26

AD All Features

Easy to set up and install

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

RELAY TMG ON-DLY 240VAC 10A 11 24VAC SKT

AD Item Features 01

Easy to set up and install

AD Item Features 02

Wide range of operating temperature from -28 deg C to 66 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.9000

AD Package Height UOM

IN

AD Package Length

4.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

20.4300

AD Package Volume UOM

cu-in

AD Package Weight

0.2800

AD Package Weight UOM

LB

AD Package Width

2.4800

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Category

TIMING RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

On-Delay

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-18 to 150

Spec 12 Attribute

Time Setting

Spec 12 Attribute UOM

MIN

Spec 12 Attribute Value

1 to 999

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type JCK Class 9050 Electronic

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

44 mm W x 60 mm D x 91 mm H

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

1/2 hp, 1/3 hp

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Socket

Spec 9 Attribute

Number of Pins

Spec 9 Attribute Value

11
