Square D

9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz

Category Miscellaneous

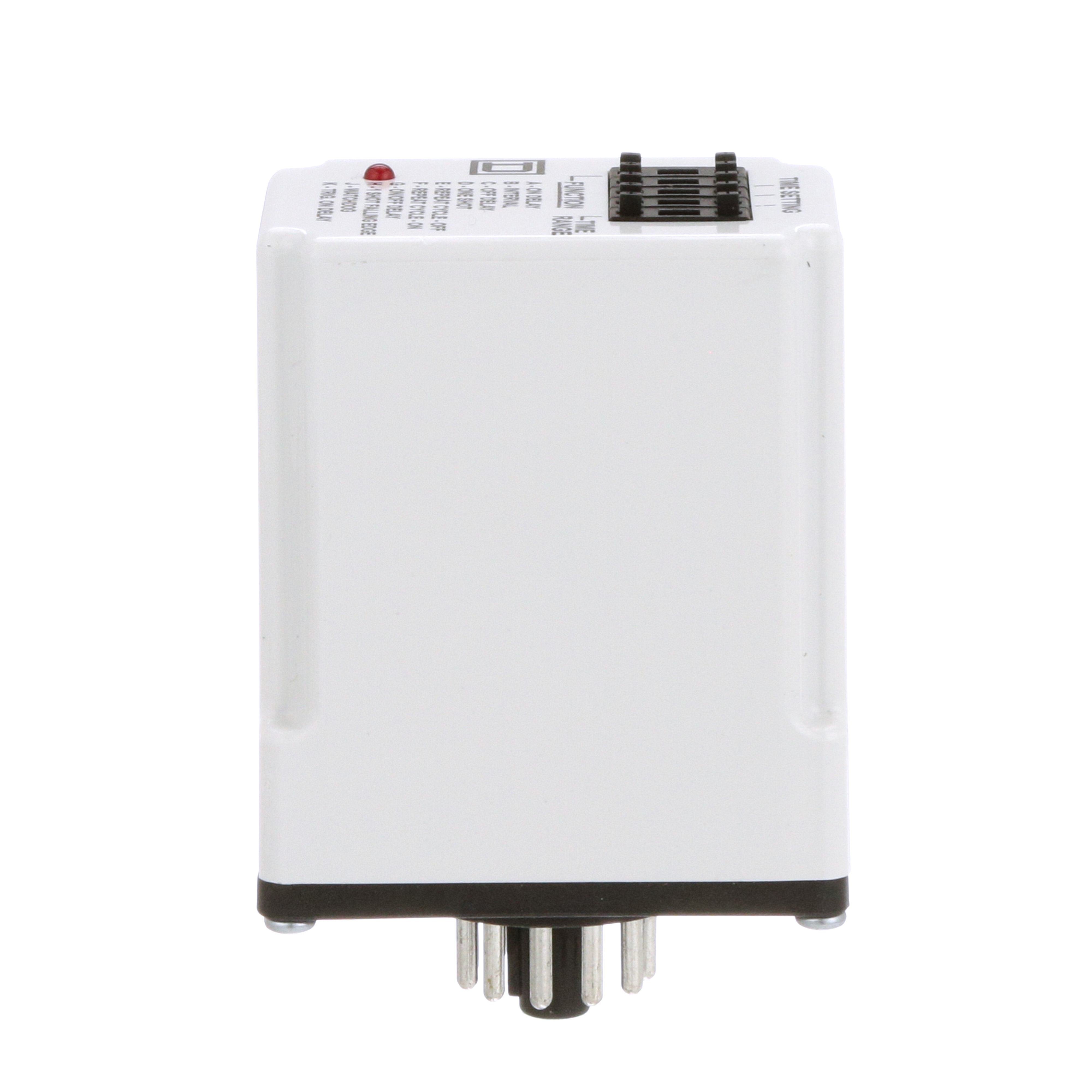

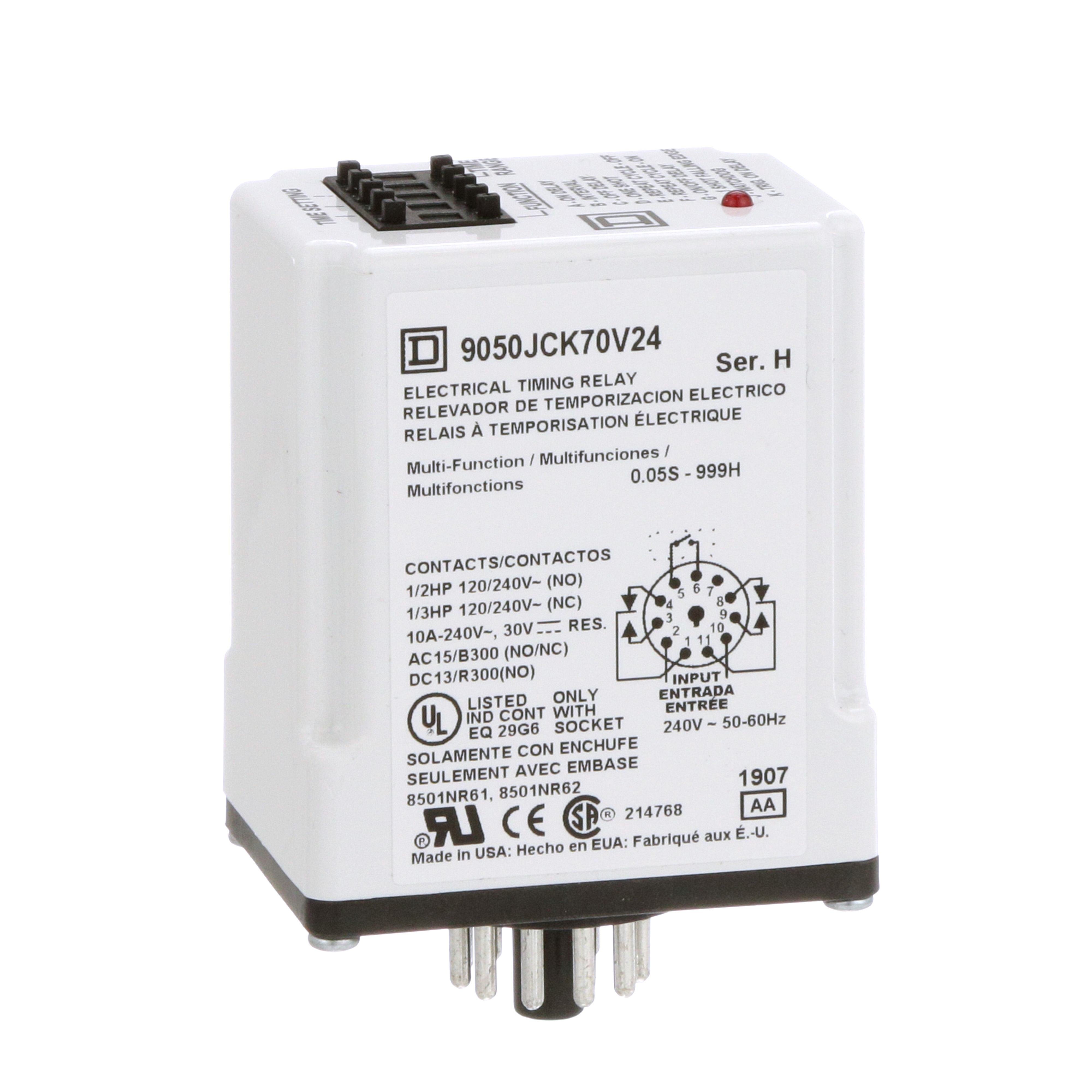

Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz

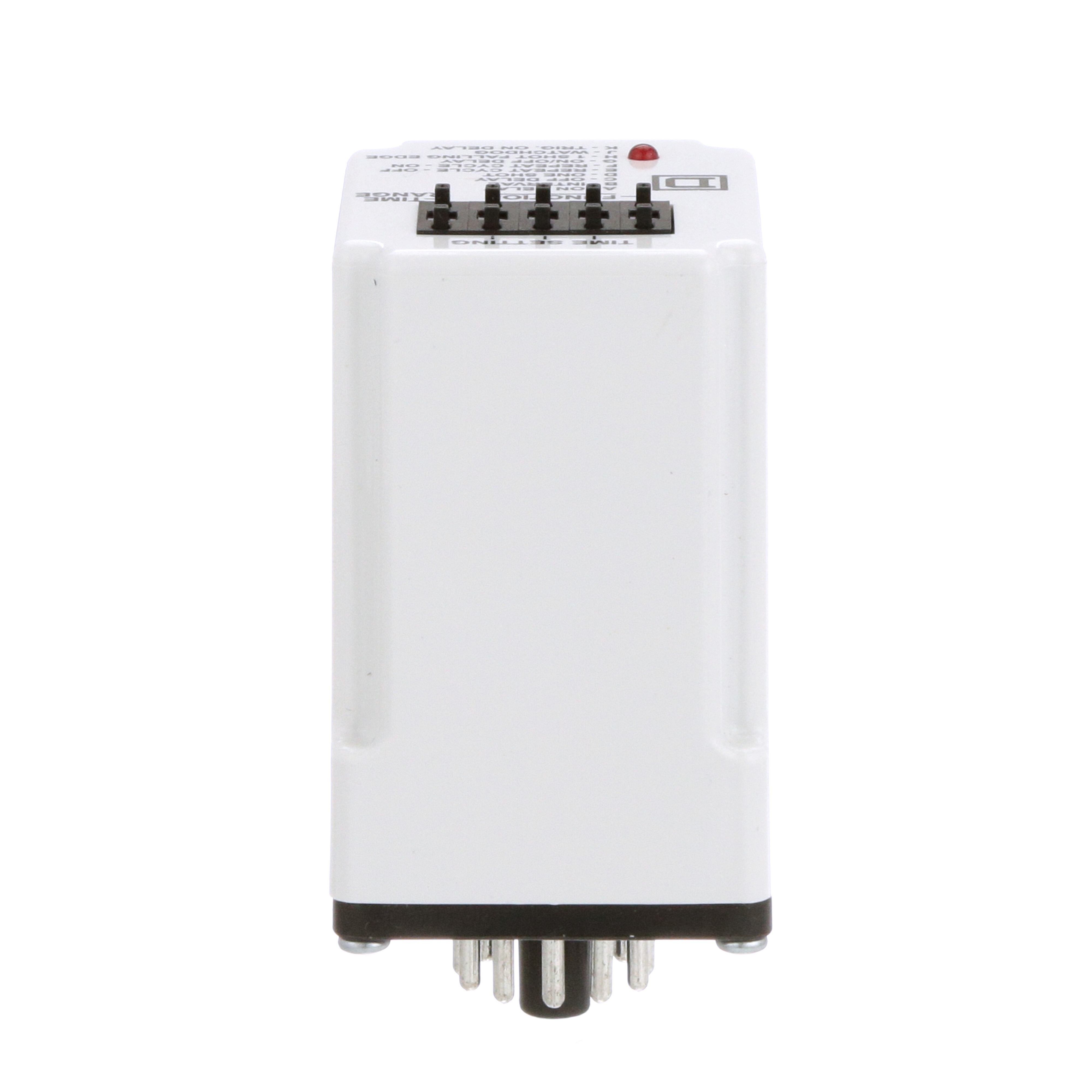

Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz
Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz Picture of 9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz
Square D

9050JCK70V24 - Timing Relay, Type JCK, plug In, multifunction, programmable, 0.5 second to 999 hours, 10A, 240 VAC, 240 VAC 50/60 Hz

Item Code: 32611
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9050JCK70V24

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

9050JCK plug in timers are designed to provide low cost timing in a plug in housing. This timer can be programed to have an on delay, off delay, interval, one shot, repeat cycle off, repeat cycle on, on/off delay, one shot falling edge, watchdog or trigger on delay timing mode. The timing range of 0.5 seconds to 999 hours is easily adjustable with thumb wheels on the top of the timer. This plug in timer plugs into an 8501NR61 or 8501NR62 relay socket. These relay sockets can be mounted on 35 mm DIN 3 mounting track or directly to a panel. All wiring is made to the relay socket. The DPDT contacts are rated 10 amperes resistive at 120 VAC, 240 VAC and 30 VDC, 3 amperes inductive at 120 VAC, 240 VAC and 30 VDC, 1/3 HP on the NC contacts at 120 VAC and 240 VAC, 1/2 HP on the NO contacts at 120 VAC and 240 VAC. This plug in timer is powered up with 240 VAC 50/60 Hz. 9050JCK plug in timers are UL listed when the proper 8501NR relay socket is used, UL component recognized and CSA certified.

Specifications

Weight

0.33

Height

2.6

Width

1.88

Length

4.26

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9050JCK70V24/9050JCK70V24.spin

AD All Features

9050JCK timing relays are designed to provide low-cost timing in a plug-in housing

AD Alternative Part Number

8042046

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901132707

AD Gtin

00785901132707

AD IDEA Index ID

8042046

AD Invoice Description

RELAY TMG ON-DLY 240VAC 10A 11 240VAC

AD Item Features 01

9050JCK timing relays are designed to provide low-cost timing in a plug-in housing

AD Item Features 02

All relays feature DPDT contacts (2 N.O. and 2 N.C.)

AD Item Features 03

Directly interchangeable with many other 8 and 11 pin octal base timers

AD Item Features 04

9050JCK70 features 10 different timing modes

AD Keywords

9050JCK70V24 Type JCK Class 9050 Electronic Timing Relay, 1 to 999 min Setting, 240 V AC, 11 Pin, 2NO-2NC 2 Form C DPDT Contact ; Schneider Electric ; Square D ; 9050JCK70V24 ; 9050JCK70V24 ; 785901132707 ; Timing Relays - Fixed Mode Operation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.6000

AD Package Height UOM

IN

AD Package Length

4.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

21.2400

AD Package Volume UOM

cu-in

AD Package Weight

0.3300

AD Package Weight UOM

LB

AD Package Width

1.8800

AD Package Width UOM

IN

AD Part Number Keywords

9050JCK70V24 ; 8042046 ; 785901132707 ; 78590113270 ; 00785901132707 ; 0785901132707

AD Video Links

https://www.youtube.com/embed/LISYDXFh9Xk

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Operation Mode

Spec 10 Attribute Value

On-Delay

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-18 to 122

Spec 12 Attribute

Time Setting

Spec 12 Attribute UOM

MIN

Spec 12 Attribute Value

1 to 999

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type JCK Class 9050 Electronic

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

240

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C DPDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

44 mm W x 60 mm D x 91 mm H

Spec 5 Attribute

Electrical Connections

Spec 5 Attribute Value

Tubular

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP20

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute Value

1/2 hp, 1/3 hp

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Socket

Spec 9 Attribute

Number of Pins

Spec 9 Attribute Value

11
