Square D

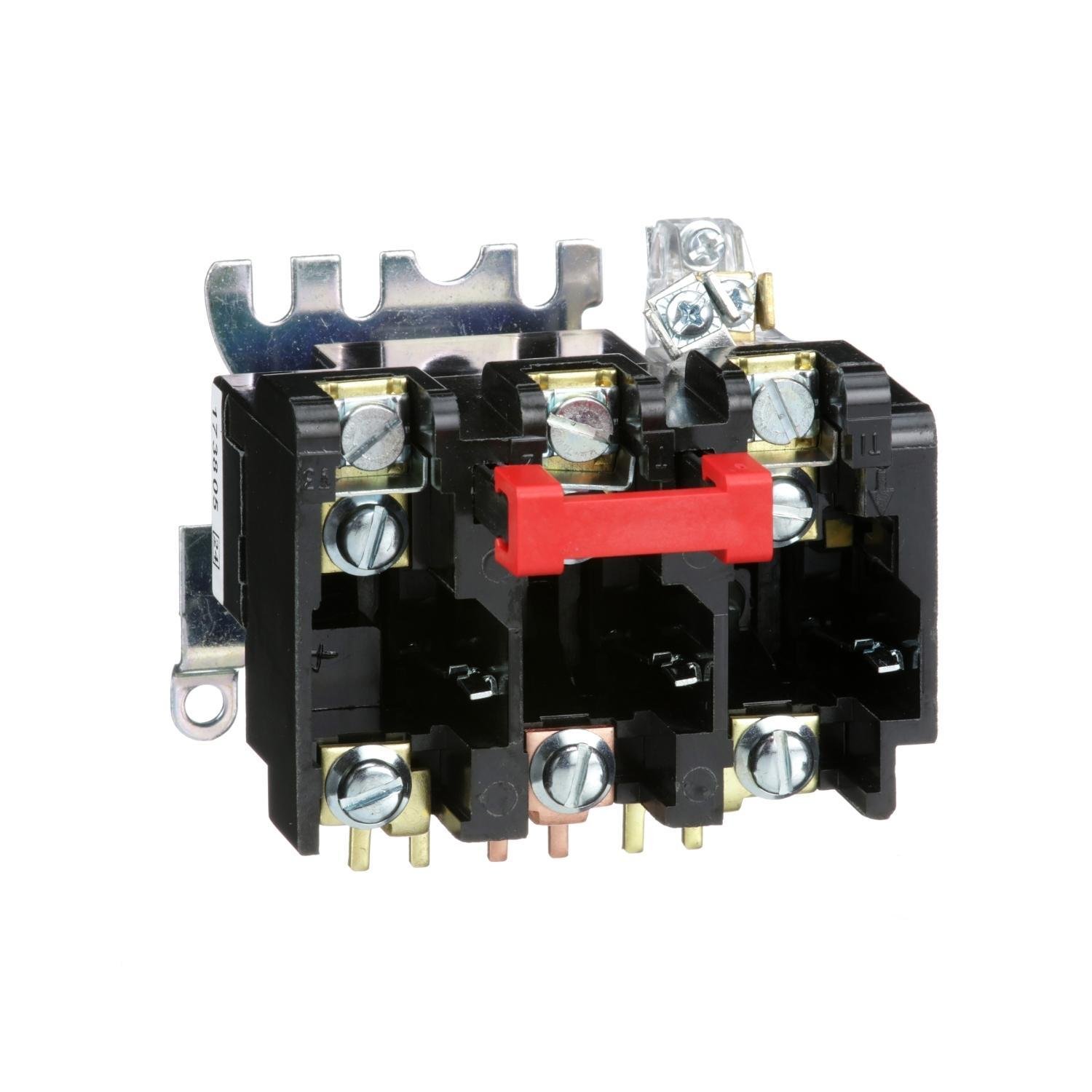

9065SDO5 - Overload Relay, Type S, melting alloy, replacement overload, NEMA sizes 00, 0, 1, 3 to 5 pole, 27A, 600VAC

Category Miscellaneous
Picture of 9065SDO5 - Overload Relay, Type S, melting alloy, replacement overload, NEMA sizes 00, 0, 1, 3 to 5 pole, 27A, 600VAC
Square D

9065SDO5 - Overload Relay, Type S, melting alloy, replacement overload, NEMA sizes 00, 0, 1, 3 to 5 pole, 27A, 600VAC

Item Code: 32612
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9065SDO5

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This 27A replacement overload relay is for a Type S NEMA size 00 three phase starters with 3 poles. This replacement overload relay can also be used on Type S NEMA size 0 or 1 three phase starters with 3 to 5 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. Relay has a maximum voltage rating of 600 VAC. This overload relay is 4.00 inches tall, 3.50 inches wide and 3.97 inches deep.

Specifications

Weight

0.95

Height

4.4

Width

5.26

Length

5.46

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9065SDO5/9065SDO5.spin

AD Alternative Part Number

8074808

AD Application

For class 8536 starters applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Full Engineering Drawing

AD Document Caption 3

Technical Bulletin

AD EAN

0785901882312

AD Gtin

00785901882312

AD IDEA Index ID

8074808

AD Invoice Description

RELAY OVLD THRM 27A 50/60HZ 3 SURF

AD Item Features 01

Comes standard installed both non-reversing and reversing and combination and multispeed starters

AD Item Features 02

Simple Installation

AD Item Features 03

Field interchangeable thermal units for replacement motor installations

AD Item Features 04

Available as direct mount or separate mount

AD Item Features 05

Provides thermal protection for the most costly equipment

AD Keywords

9065SDO5 Thermal Overload Relay, 27 A ; Schneider Electric ; Square D ; 9065SDO5 ; 9065SDO5 ; 7.85902E+11 ; Overload Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.4000

AD Package Height UOM

IN

AD Package Length

5.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

121.1800

AD Package Volume UOM

cu-in

AD Package Weight

0.9500

AD Package Weight UOM

LB

AD Package Width

5.2600

AD Package Width UOM

IN

AD Part Number Keywords

9065SDO5 ; 8074808 ; 785901882312 ; 78590188231 ; 00785901882312 ; 0785901882312

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

27

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

1NC 1 Form B

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 00/0/1

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Surface

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

3
