Square D

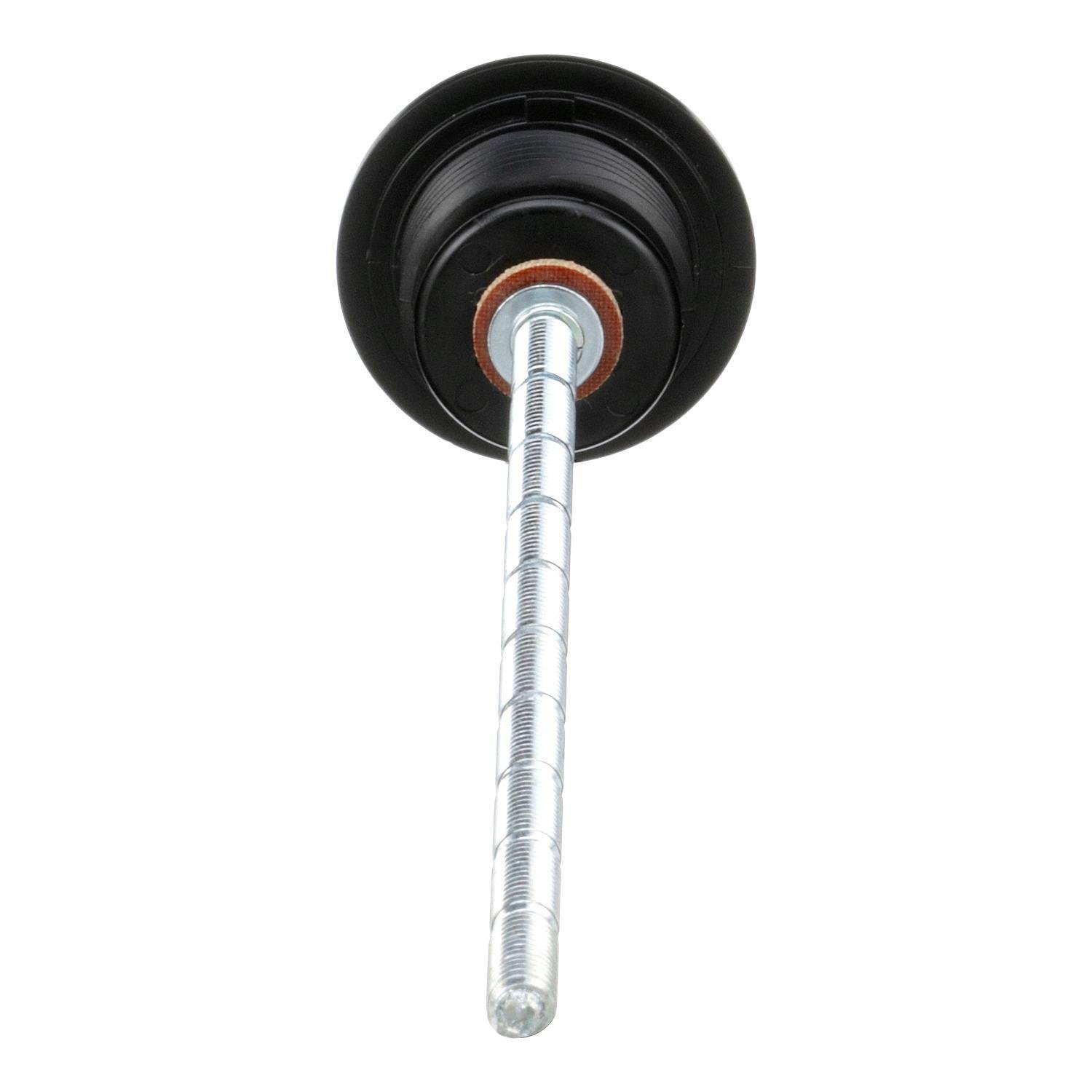

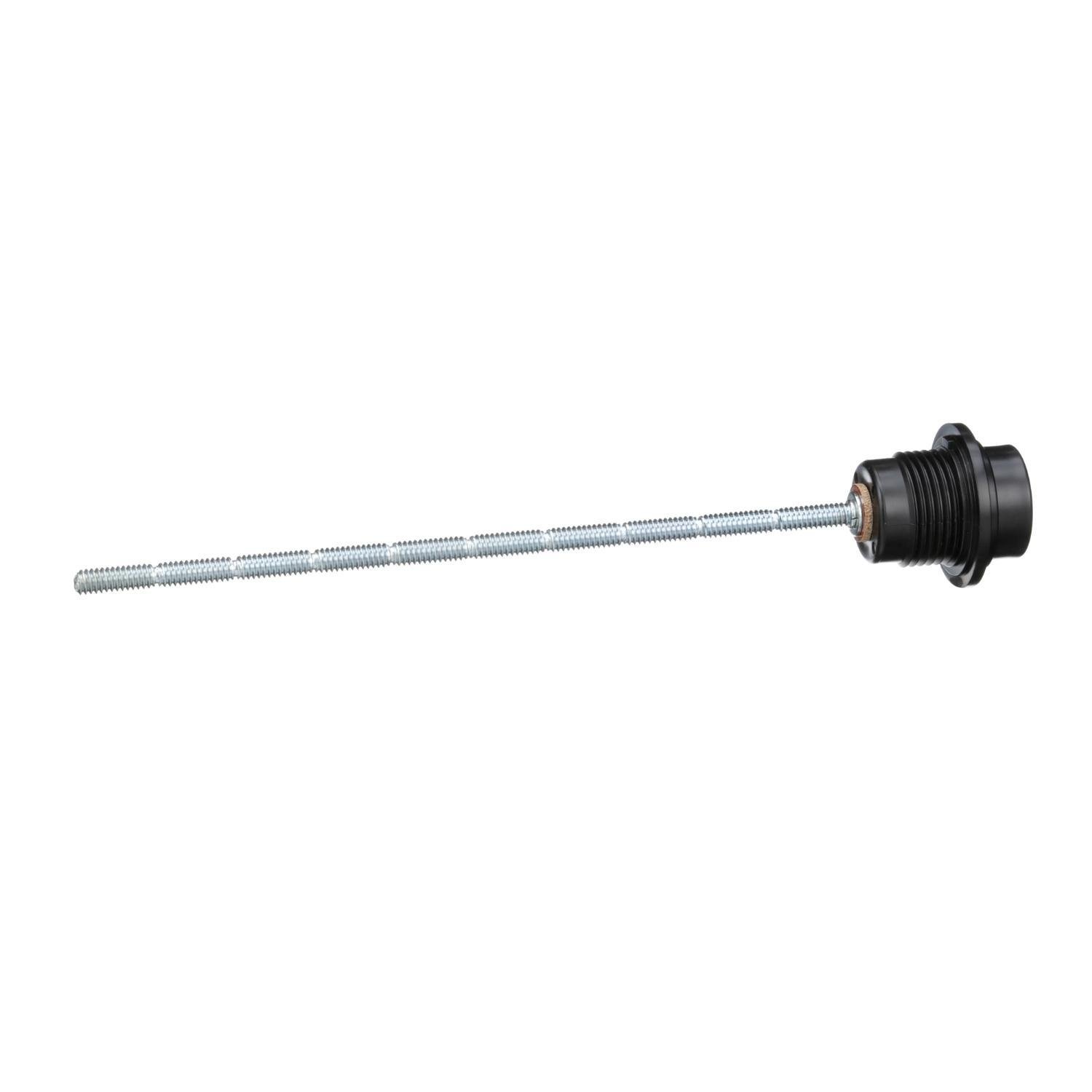

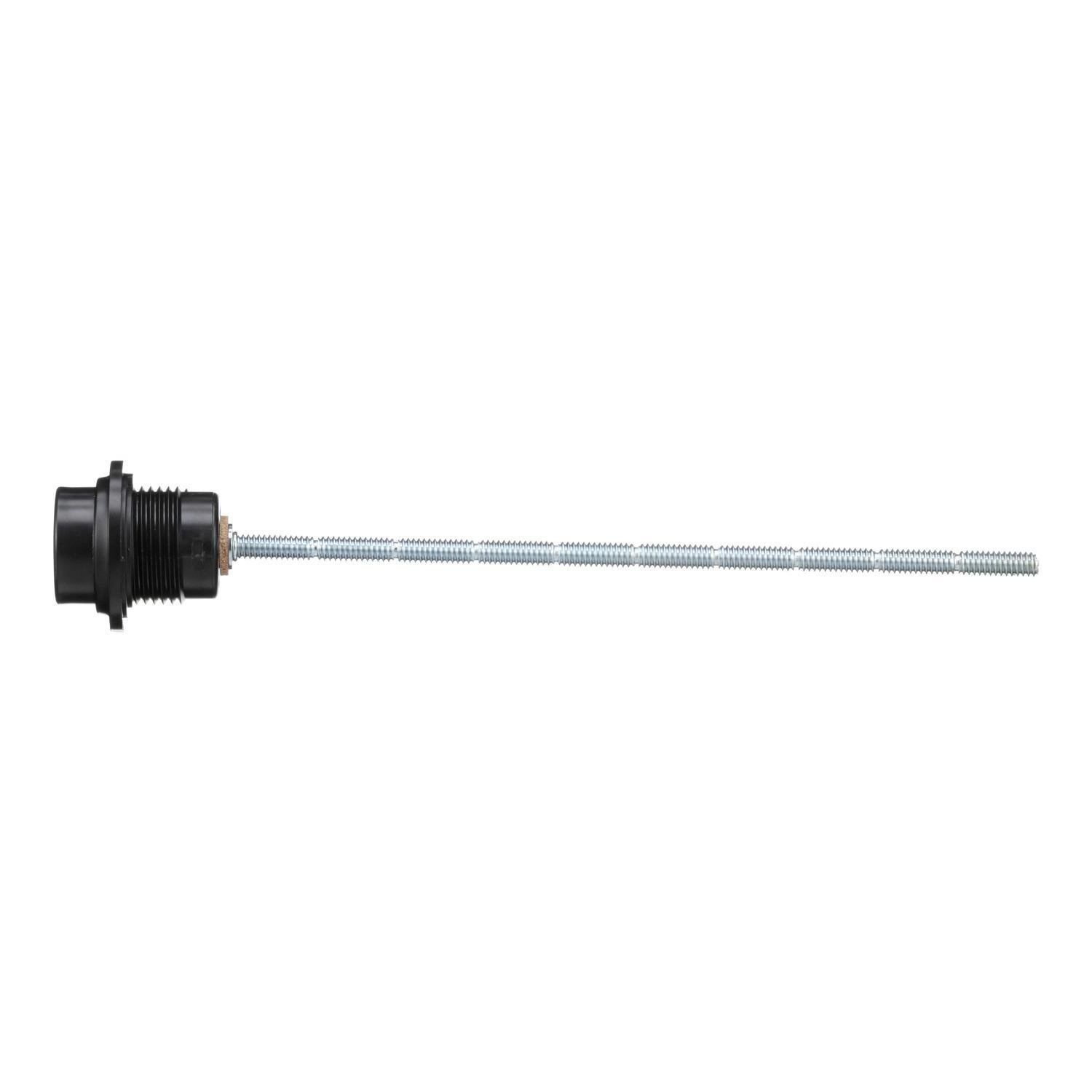

9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12

Category Miscellaneous
Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12 Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12
Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12 Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12
Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12 Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12
Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12 Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12
Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12 Picture of 9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12
Square D

9066RA1 - External reset mechanism, OEM kit, with reset button and one rod, NEMA 1 and 12

Item Code: 17679
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9066RA1

Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

External reset mechanism allows the reset of the Type S overload relay without open the enclosure. The grey push button operator is mounted into the cover of the NEMA 1 or 12 enclosure. The push button is marked RESET. The kit contains one threaded reset rod that is grooved at intervals of 0.75 inches. The grooves allows the 9 inch long rod to be cut to the approximate length required without damaging the threads. Final adjustment is easily made after installation by rotating a plunger and tightening the lock not.
