Square D

9070T1000D1 - Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Category Industrial Control Transformers

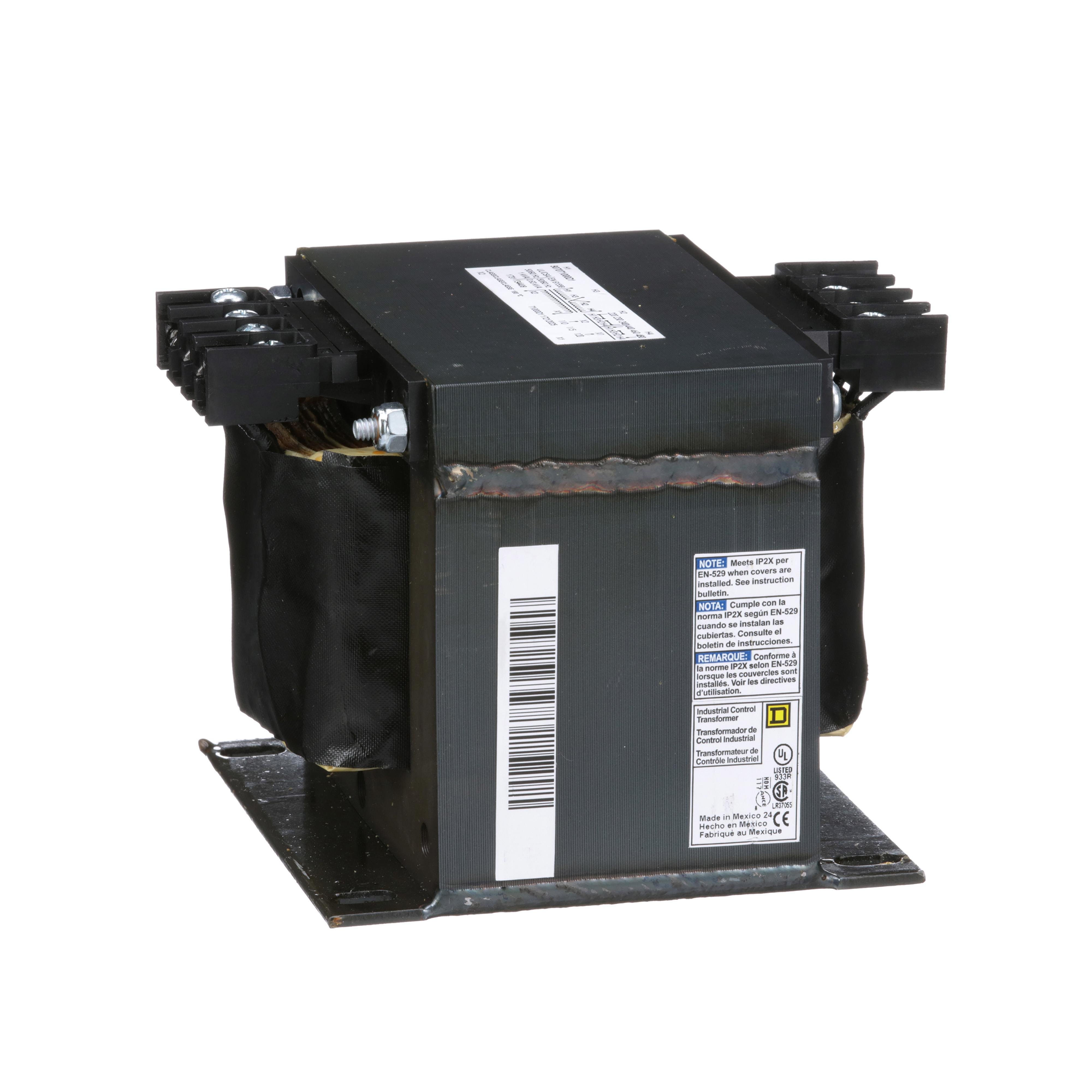

Picture of 9070T1000D1 - Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Square D

9070T1000D1 - Transformer, Type T, industrial control, 1000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Item Code: 32620
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T1000D1

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 100VA and is 1 phase. This transformer has a 240 x 480V primary voltage and 120V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.

Specifications

Weight

21.5lb

Height

8mm

Width

8.02mm

Length

6.74mm

Depth

6.3mm

AD All Features

Designed with various temperature classes

AD Application

For handling high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes and OEM commercial, industrial markets and electrical equipment OEM applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

TRANSFORMER CTRL 110/115/120VAC 1000VA

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.0000

AD Package Height UOM

IN

AD Package Length

6.7400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

729.1200

AD Package Volume UOM

cu-in

AD Package Weight

21.5000

AD Package Weight UOM

LB

AD Package Width

8.0200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/115/120

Spec 11 Attribute

Series

Spec 11 Attribute Value

9070

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

115

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type T Industrial Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.25 in W x 6.04 in D x 4.43 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

1000

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

220/230/240/440/460/480
