Square D

9070T100D12 - Transformer, Type T, industrial control, 100VA, 1 phase, 480V primary, 240V secondary, 55C rise

Category Miscellaneous

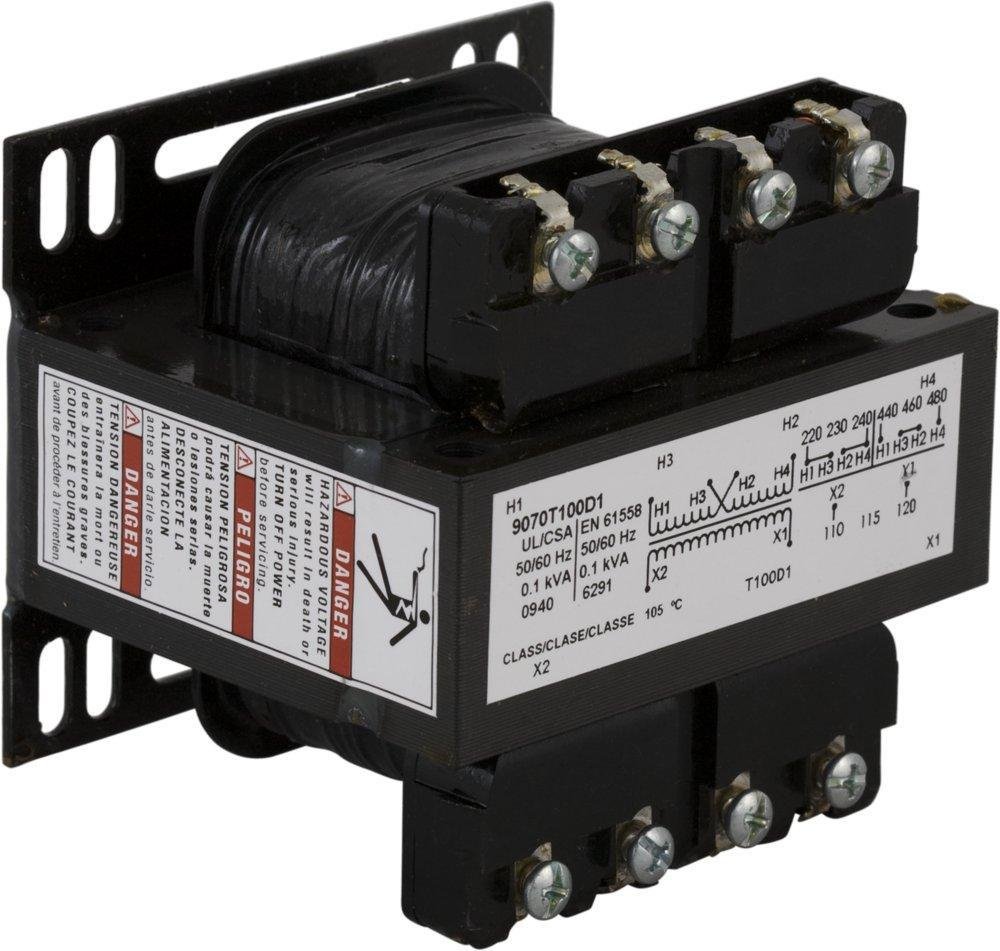

Picture of 9070T100D12 - Transformer, Type T, industrial control, 100VA, 1 phase, 480V primary, 240V secondary, 55C rise
Square D

9070T100D12 - Transformer, Type T, industrial control, 100VA, 1 phase, 480V primary, 240V secondary, 55C rise

Item Code: 40730
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T100D12

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 480V primary voltage and 240V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Weight

3.79

Height

3.8

Width

3.86

Length

3.96

AD All Features

Designed with various temperature classes

AD Alternative Part Number

8054748

AD Application

Industrial Markets, OEM Commercial, Electrical Equipment OEM

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901845478

AD Gtin

00785901845478

AD IDEA Index ID

8054748

AD Invoice Description

TRANSFORMER CTRL 480VAC 240VAC 100VA 1PH

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Keywords

9070T100D12 Type T Control Transformer, 480 V AC Primary, 240 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase ; Schneider Electric ; Square D ; 9070T100D12 ; 9070T100D12 ; 785901845478 ; Control Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

3.9600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

59.2800

AD Package Volume UOM

cu-in

AD Package Weight

3.7900

AD Package Weight UOM

LB

AD Package Width

3.8600

AD Package Width UOM

IN

AD Part Number Keywords

9070T100D12 ; 8054748 ; 785901845478 ; 78590184547 ; 00785901845478 ; 0785901845478

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

240

Spec 11 Attribute

Series

Spec 11 Attribute Value

9070

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type T

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.38 in W x 3.34 in D x 2.89 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute UOM

deg C

Spec 3 Attribute Value

55

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg F

Spec 5 Attribute Value

221

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

100

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

480
