Square D

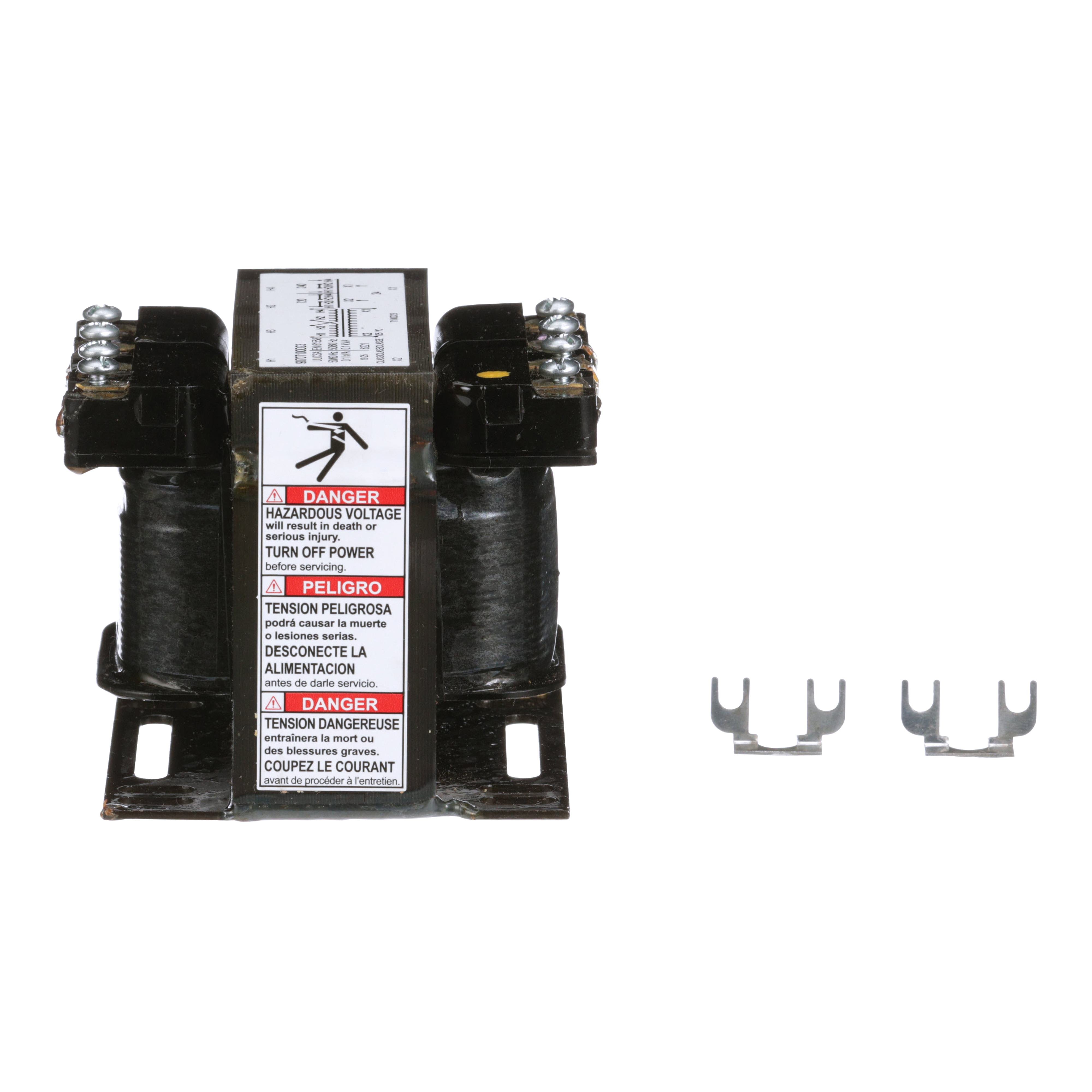

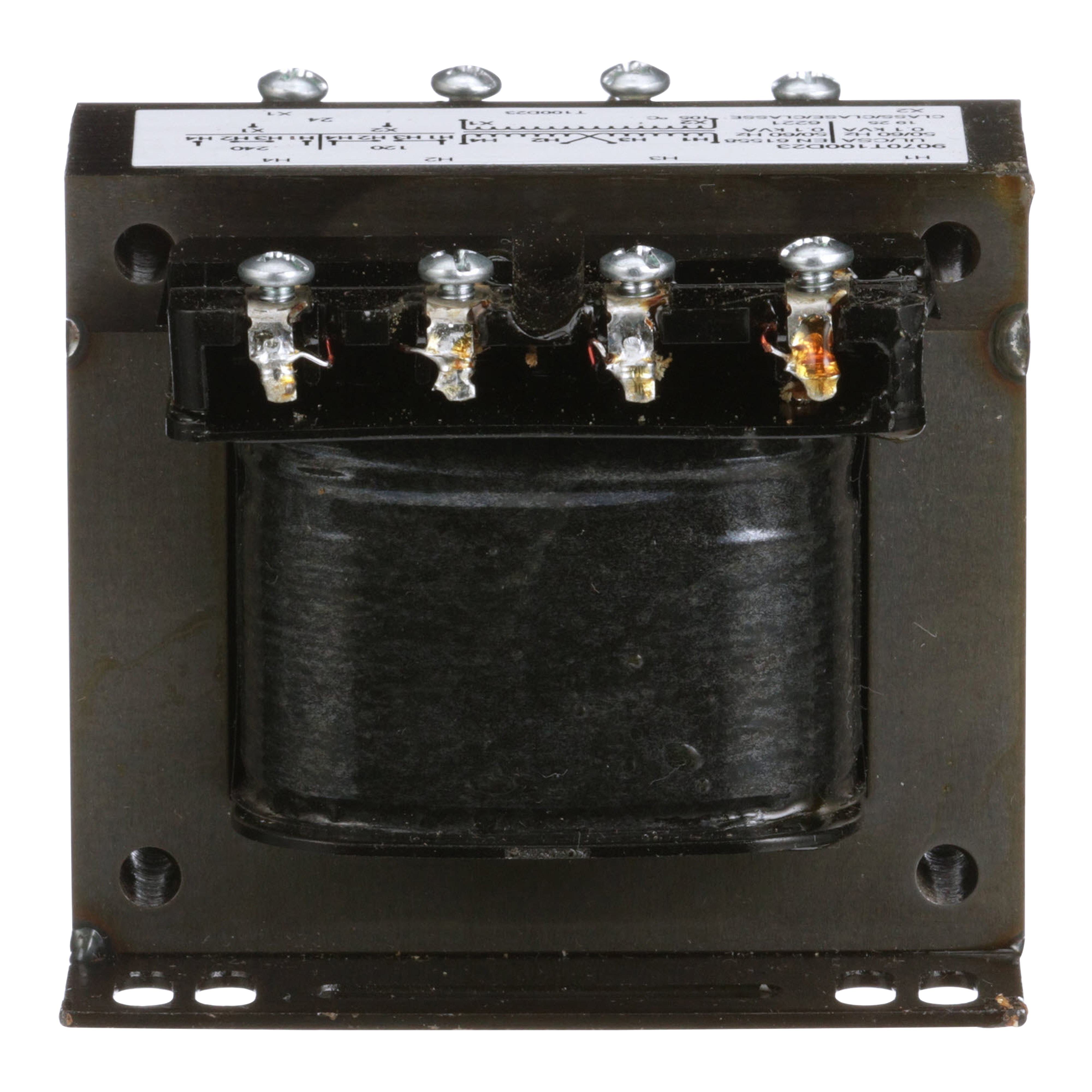

9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise

Category Miscellaneous
Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise
Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise
Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise Picture of 9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise
Square D

9070T100D23 - Transformer, Type T, industrial control, 100VA, 1 phase, 120x240V primary, 24V secondary, 55C rise

Item Code: 17690
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T100D23

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 120x240V primary voltage and 24V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.
