Square D

9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Category Industrial Control Transformers

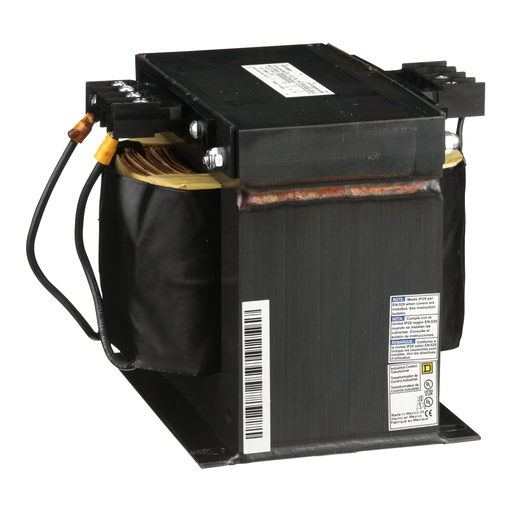

Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Square D

9070T2000D1 - Transformer, Type T, industrial control, 2000VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Item Code: 590393
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T2000D1

RoHS
Specification Sheet
Technical Bulletin
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 2000VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 6.17 in (H), 7.06 in (W), 7.17 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2. This product comes with an 18 month warranty.

Specifications

Weight

48.5lb

Height

12mm

Width

11.59mm

Length

14.56mm

Depth

7.17mm

Brand

Square D

Category

Industrial Control Transformers

Connection Type

Screw clamp

Dimensions

7.06 in W x 7.04 in D x 6.16 in H

Enclosure Type

Open

Frequency Rating

50/60 Hz

Insulation

180 Deg C

Mounting Type

Panel

Phase

1

Power Rating

2000 VA

Primary Voltage

240 x 480, 230 x 460, 220 x 440 V AC

Secondary Voltage

110/115/120 V AC

Temperature Rating

115 deg C

Type

Type T Industrial
