Square D

9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise

Category Miscellaneous

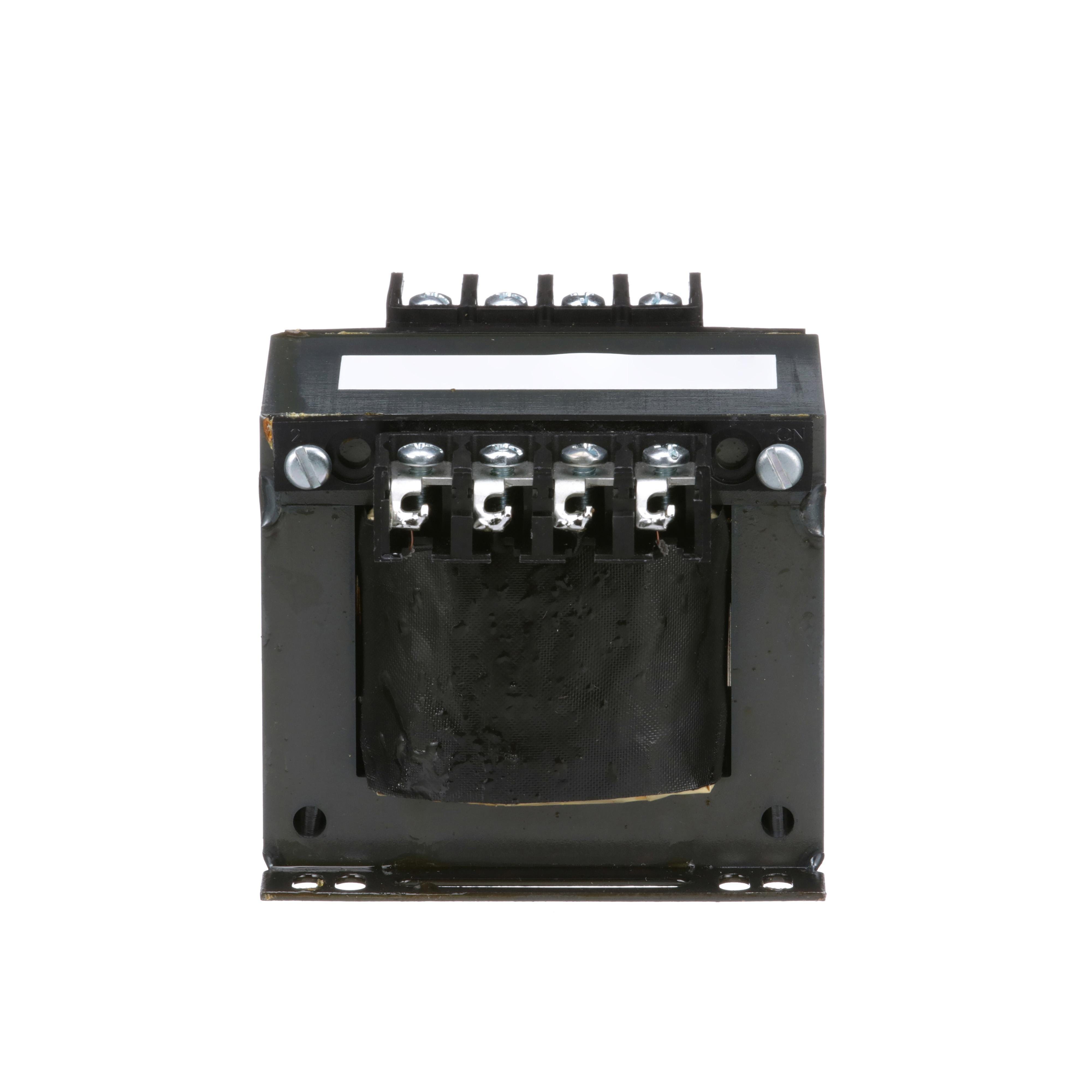

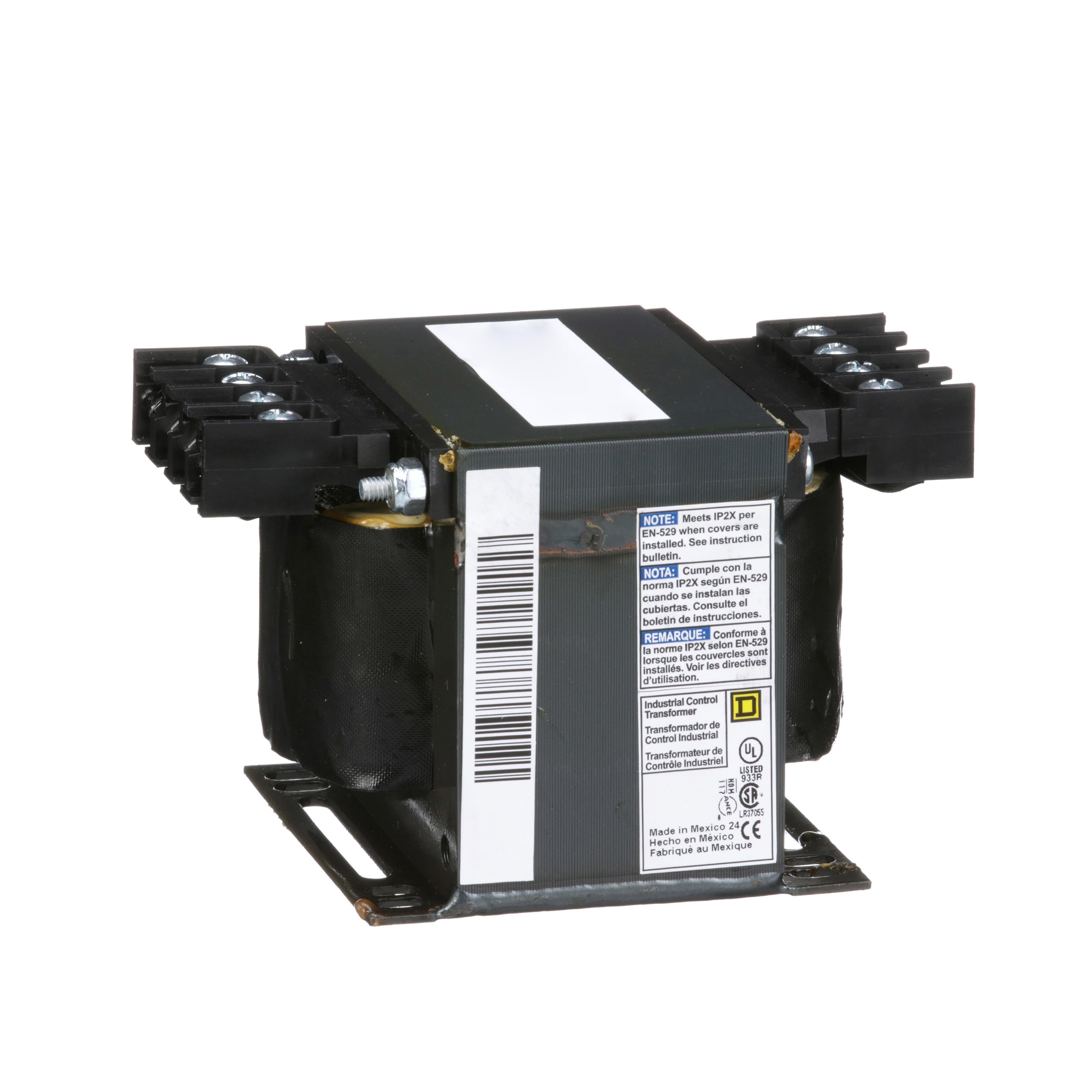

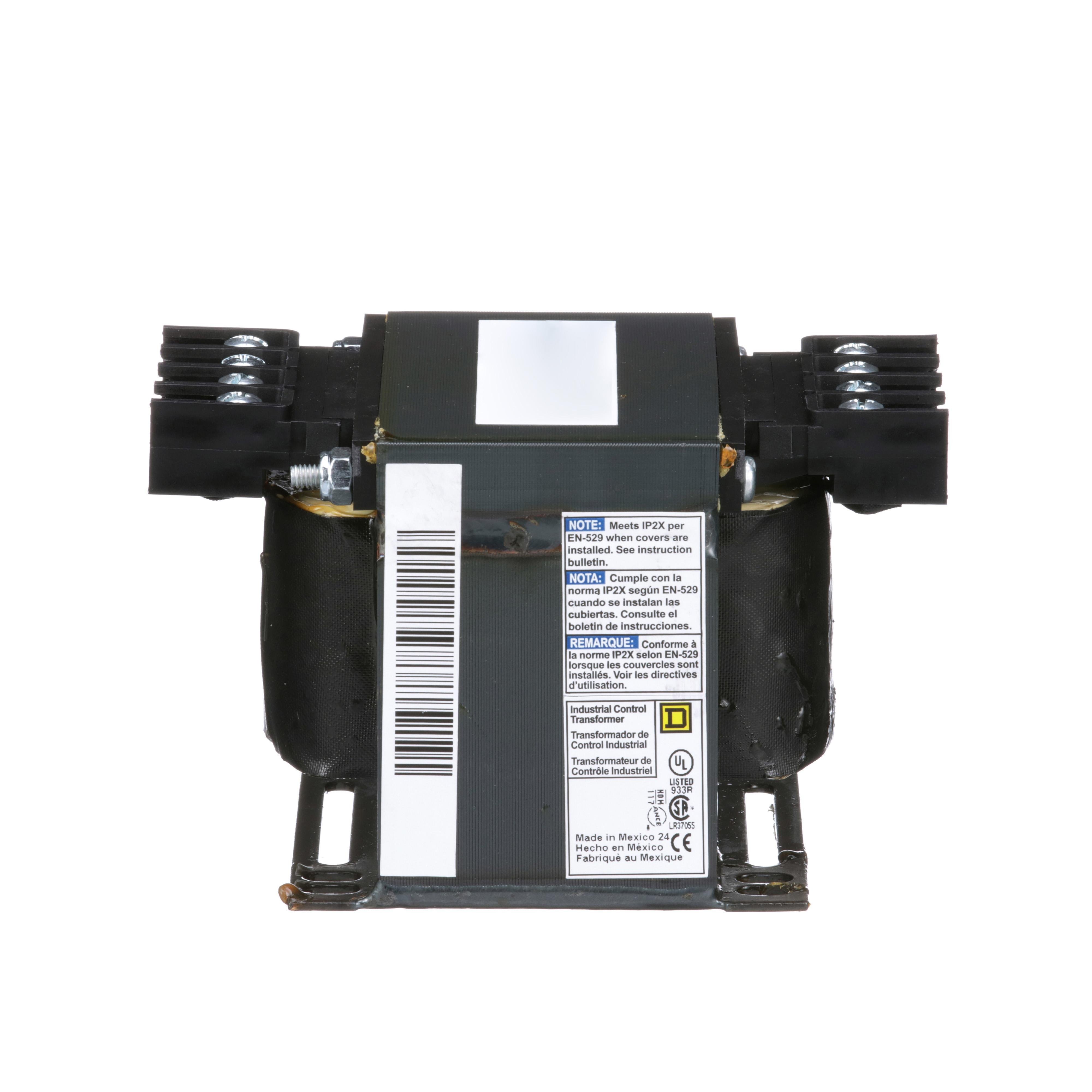

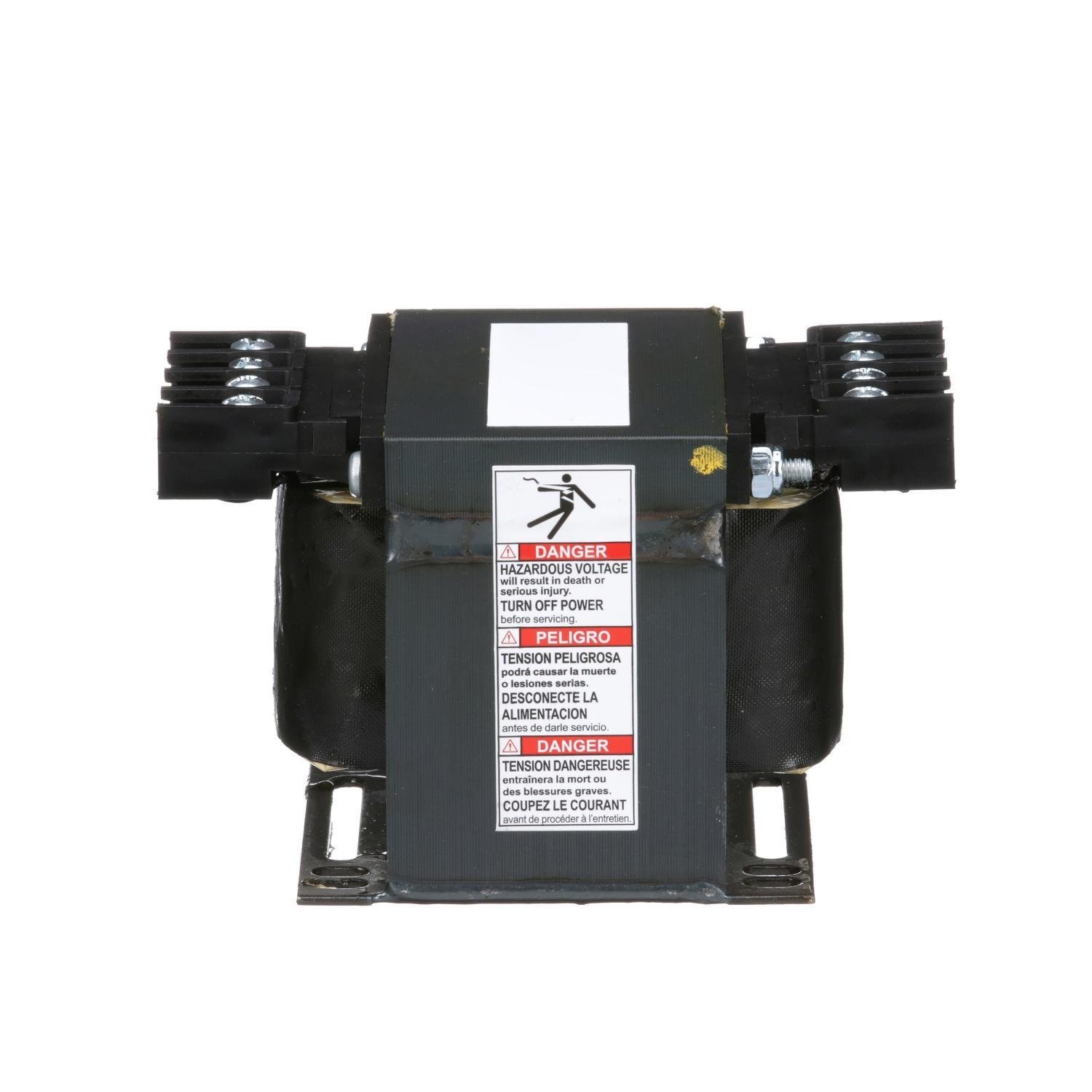

Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise
Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise
Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise
Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise
Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise Picture of 9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise
Square D

9070T250D5 - Transformer, Type T, industrial control, 250VA, 1 phase, 600V primary, 120V secondary, 80C rise

Item Code: 1183806
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T250D5

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 250VA and is 1 phase. It has a 600V primary voltage and 120V secondary voltage. It also has a temperature rise of 80 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Weight

7.95

Width

6.14

Length

7.03

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9070T250D14/9070T250D14.spin

AD All Features

Designed with various temperature classes

AD Alternative Part Number

8128370

AD Application

For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes, industrial markets, OEM commercial and electrical equipment OEM applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901301110

AD Gtin

00785901301110

AD IDEA Index ID

8128370

AD Invoice Description

TRANSFORMER CTRL 550/575/600VAC 250VA

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Keywords

9070T250D5 Type T Industrial Control Transformer, 550/575/600 V AC Primary, 110/115/120 VAC Secondary, 250 VA Power Rating, 50/60 Hz, 1 Phase ; Schneider Electric ; Square D ; 9070T250D5 ; 9070T250D5 ; 785901301110 ; Control Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.0300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.9500

AD Package Weight UOM

LB

AD Package Width

6.1400

AD Package Width UOM

IN

AD Part Number Keywords

9070T250D5 ; 8128370 ; 785901301110 ; 78590130111 ; 00785901301110 ; 0785901301110

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/115/120

Spec 11 Attribute

Series

Spec 11 Attribute Value

9070

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

80

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type T Industrial

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.2 in H x 3.75 in W x 5.3 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

130

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

250

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

550/575/600
