Square D

9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Category Industrial Control Transformers

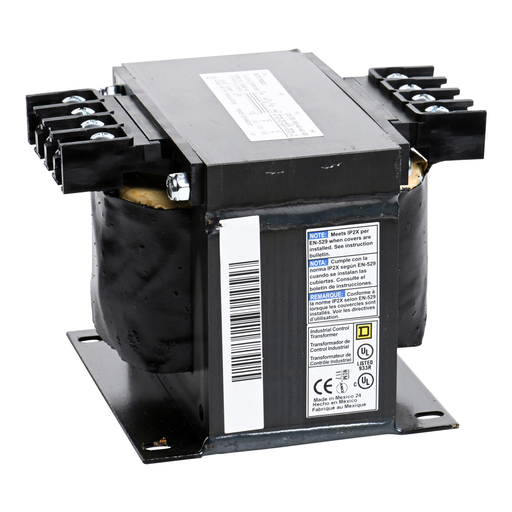

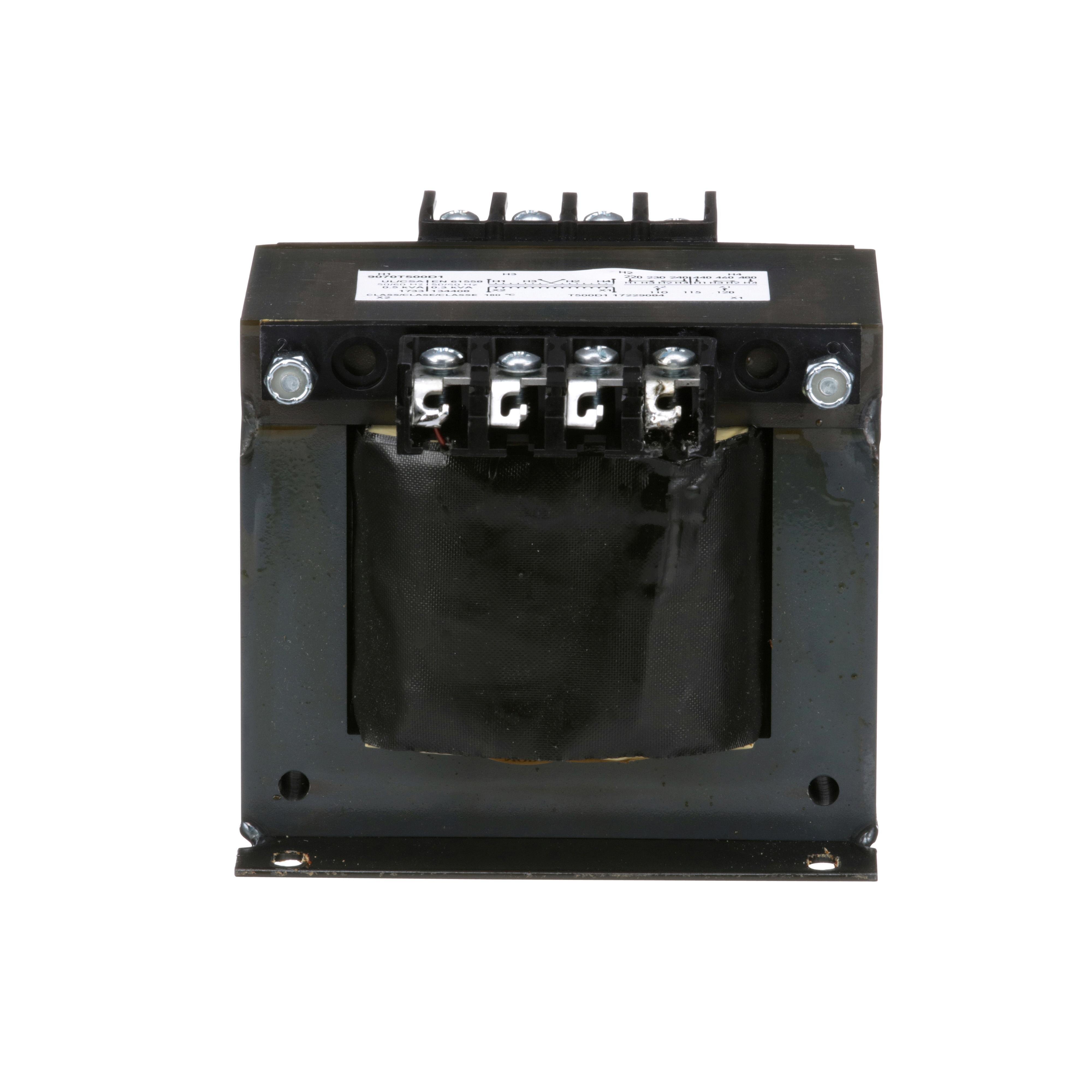

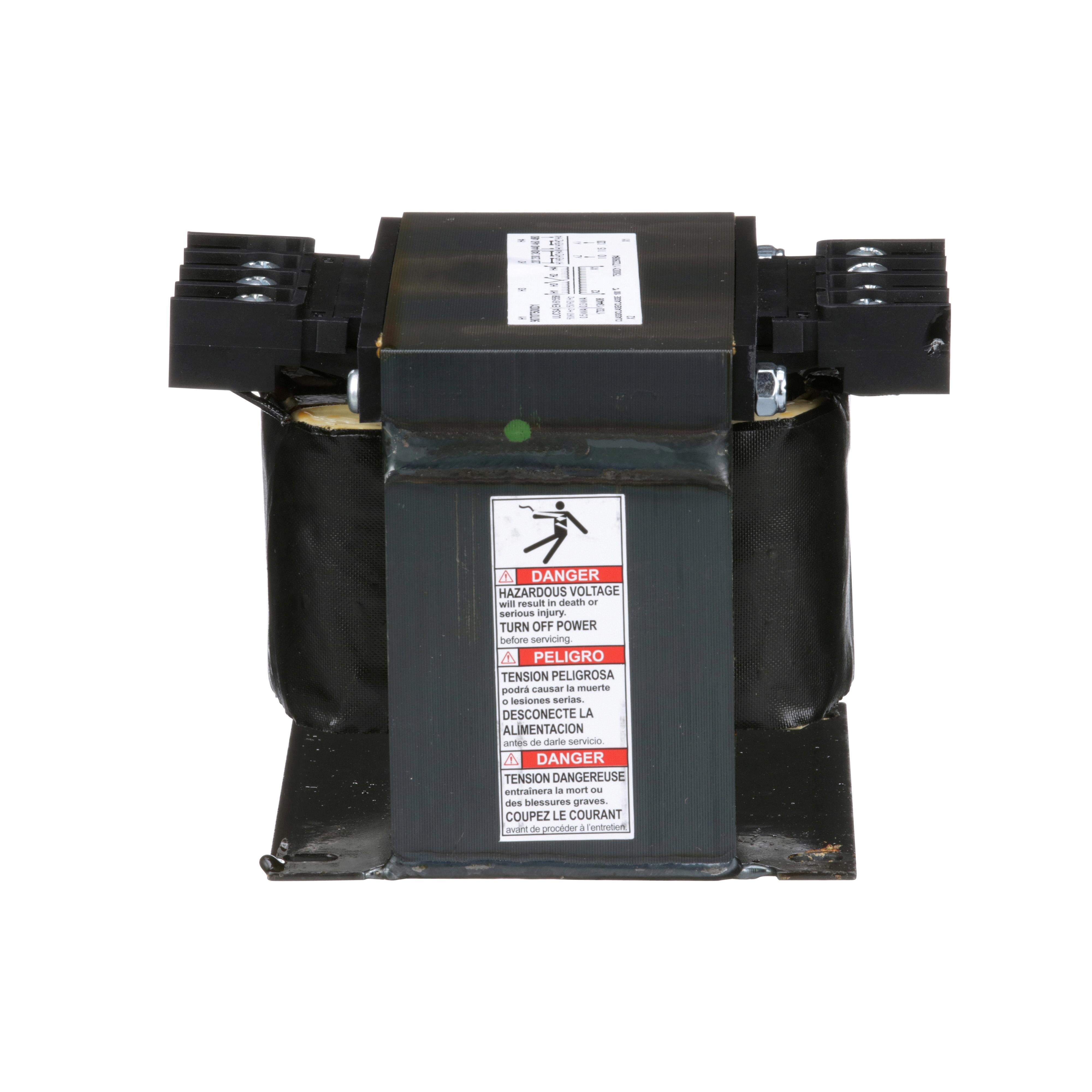

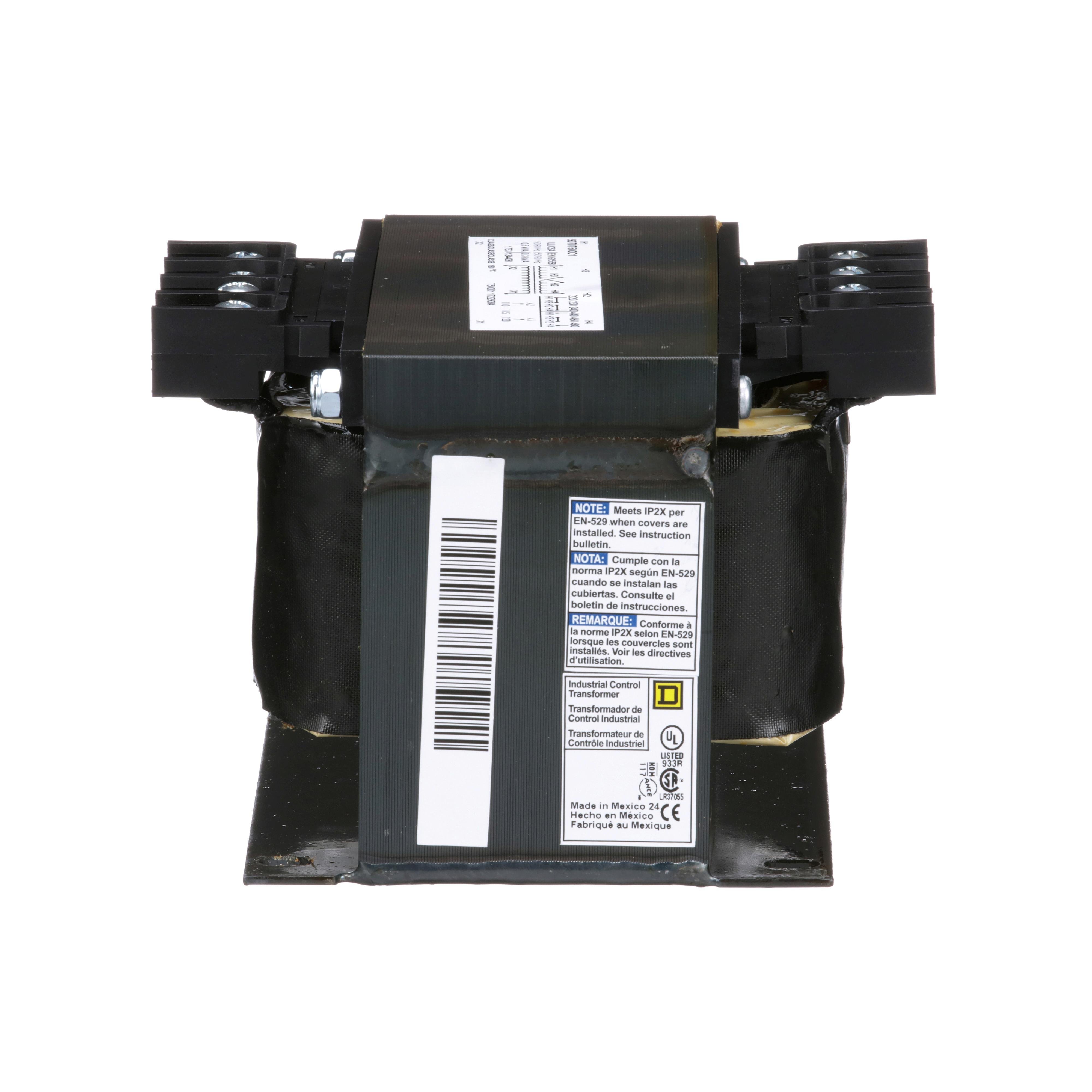

Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise Picture of 9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise
Square D

9070T500D1 - Transformer, Type T, industrial control, 500VA, 1 phase, 240x480V primary, 120V secondary, 115C rise

Item Code: 17698
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T500D1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 500VA and is 1 phase. This transformer has a 240 x 480 V primary voltage and 120 V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product.

Specifications

Weight

12.42lb

Height

6.4mm

Width

6.74mm

Length

7.63mm

Depth

5.49mm

AD All Features

Designed with various temperature classes

AD Application

For handling high inrush associated with contactors and relays for applications such as conveyor systems, paint lines, punch presses or overhead cranes and OEM commercial, industrial markets and electrical equipment OEM applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

TRANSFORMER CTRL 110/115/120VAC 500VA

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.4000

AD Package Height UOM

IN

AD Package Length

7.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

335.1000

AD Package Volume UOM

cu-in

AD Package Weight

12.4200

AD Package Weight UOM

LB

AD Package Width

6.7400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/115/120

Spec 11 Attribute

Series

Spec 11 Attribute Value

9070

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

115

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type T Industrial Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

4.5 in W x 5.46 in D x 3.8 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

500

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

220/230/240/440/460/480
