Square D

9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise

Category Industrial Control Transformers

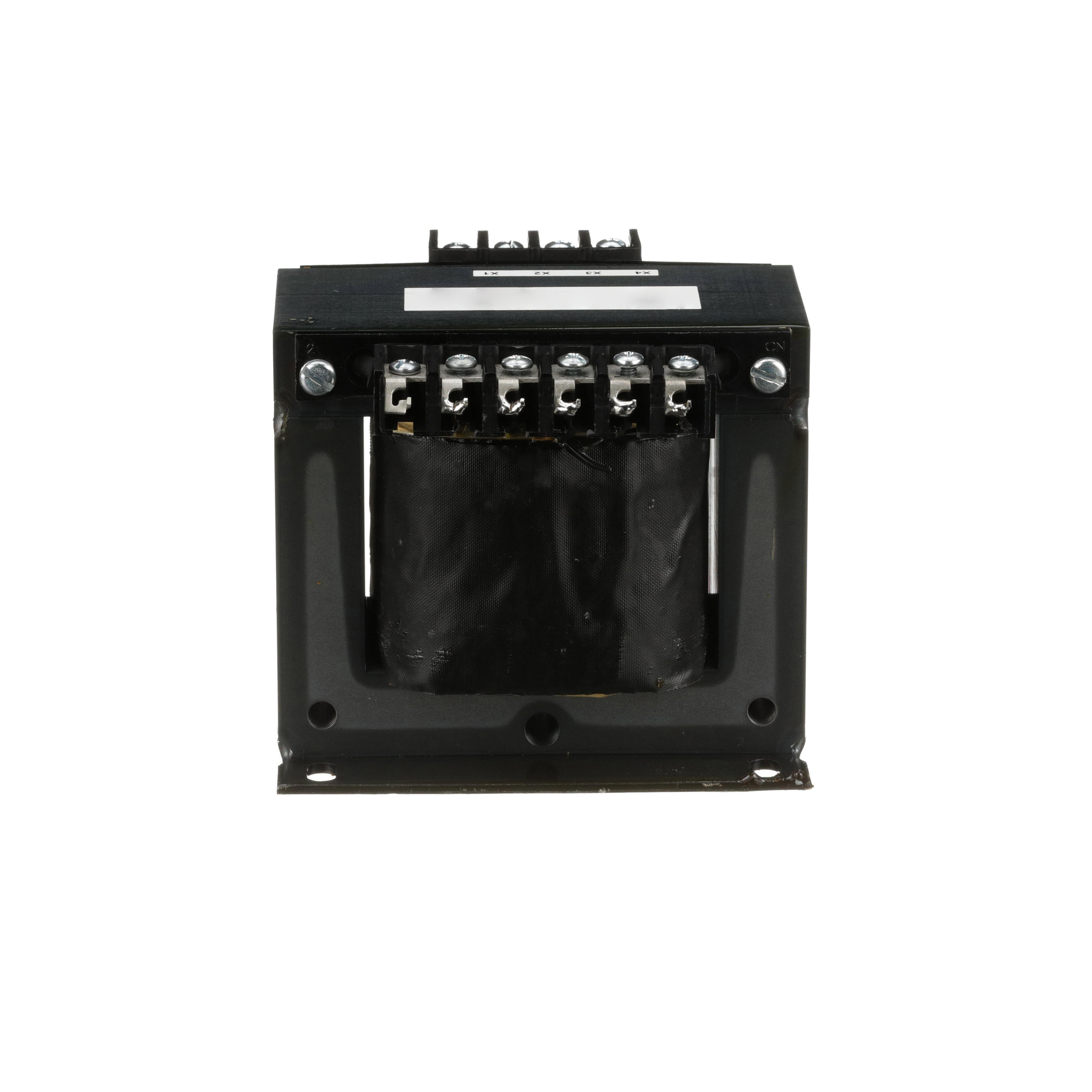

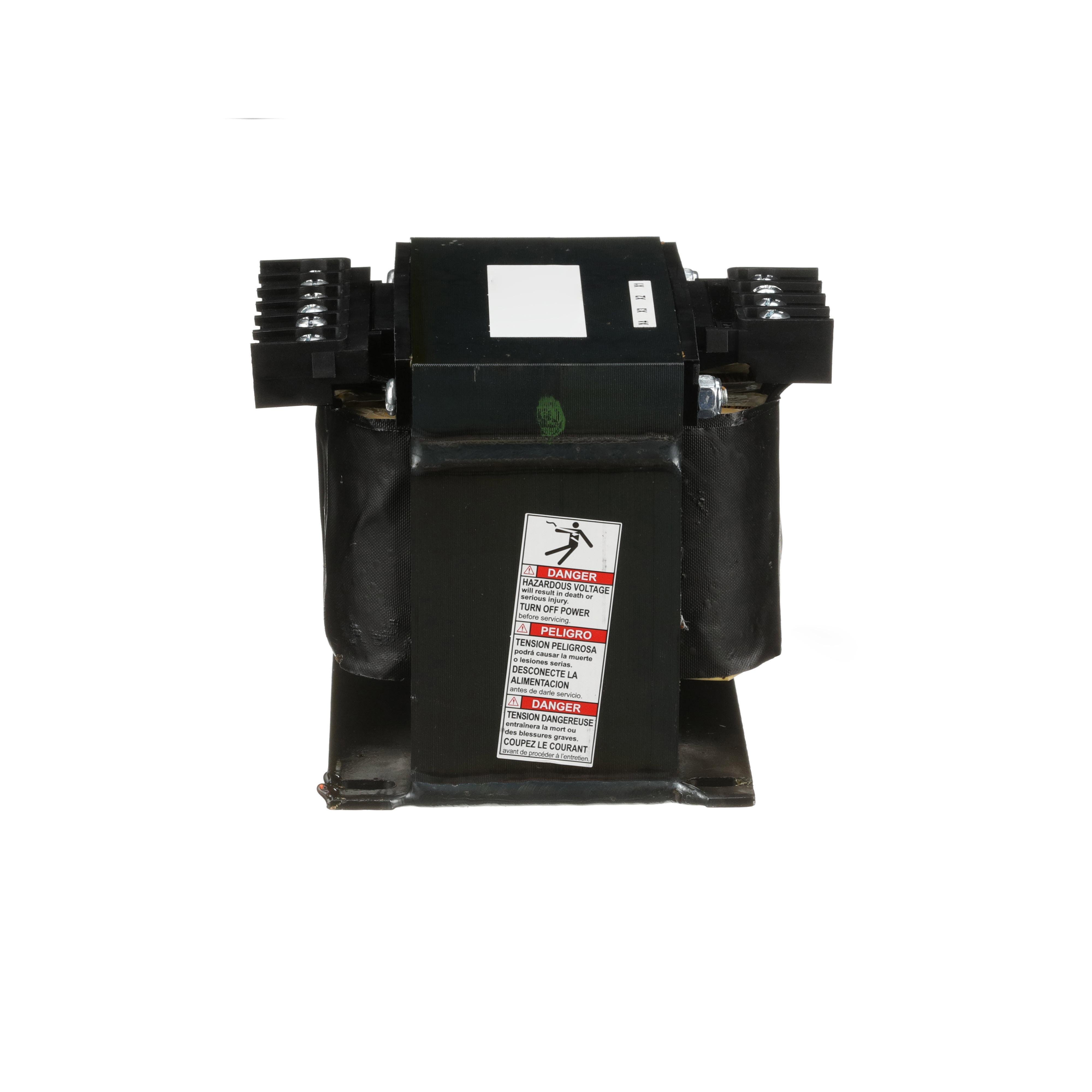

Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise
Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise
Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise Picture of 9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise
Square D

9070T500D19 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/240/277/380/480V primary, 24V secondary, 115C rise

Item Code: 667534
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T500D19

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 500VA and is 1 phase. It has a 208/240/277/380/480V primary voltage and 24V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Weight

16.76

Height

6.9

Width

8.02

Length

8.72

AD All Features

Designed with various temperature classes

AD Application

For handling high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TRANSFORMER CTRL 208/240/277/380/480VAC

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.9000

AD Package Height UOM

IN

AD Package Length

8.7200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

491.8300

AD Package Volume UOM

cu-in

AD Package Weight

16.7600

AD Package Weight UOM

LB

AD Package Width

8.0200

AD Package Width UOM

IN

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

24

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type T Industrial Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

4.43 in H x 5.25 in W x 5.66 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

500

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

208/240/277/380/480
