Square D

9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise

Category Industrial Control Transformers

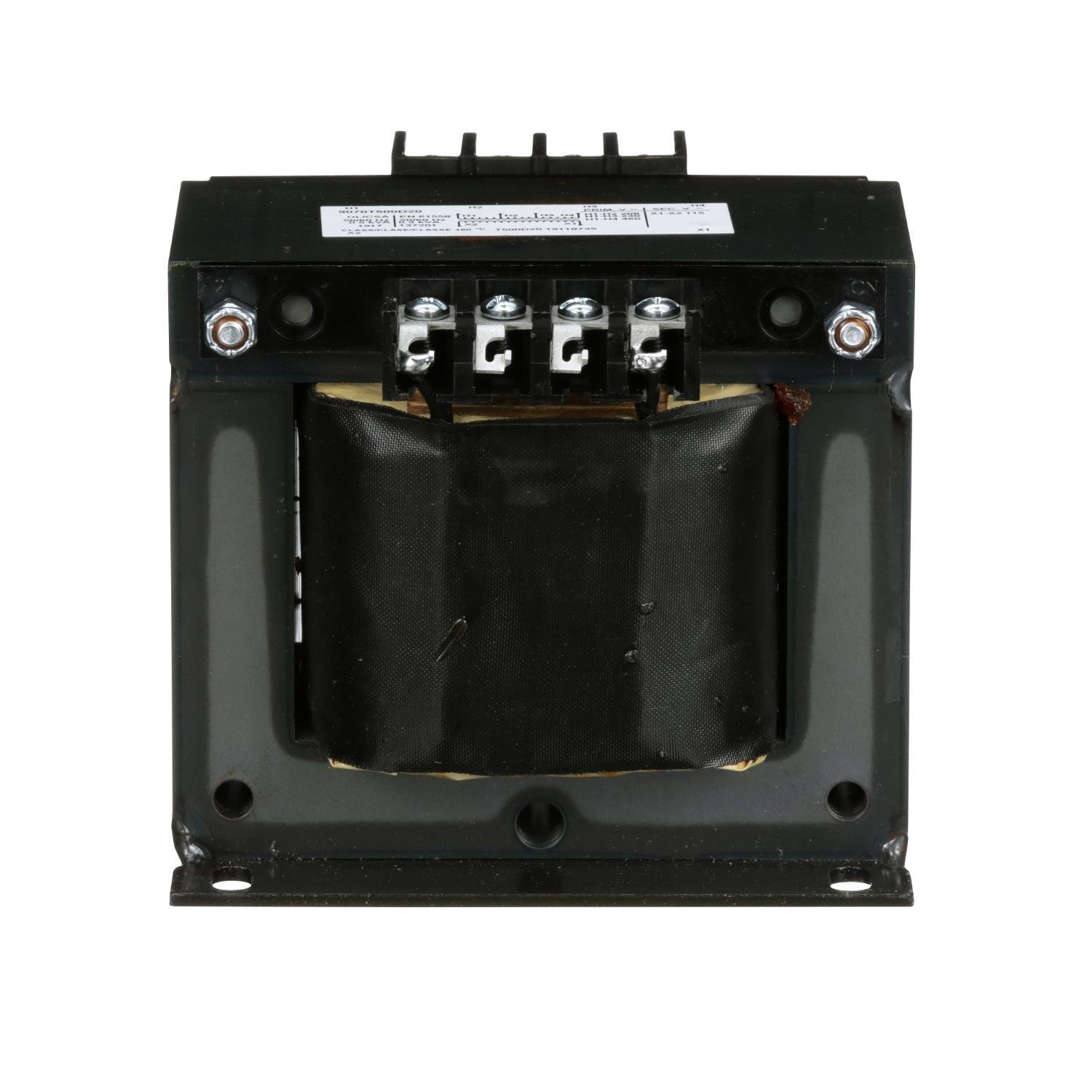

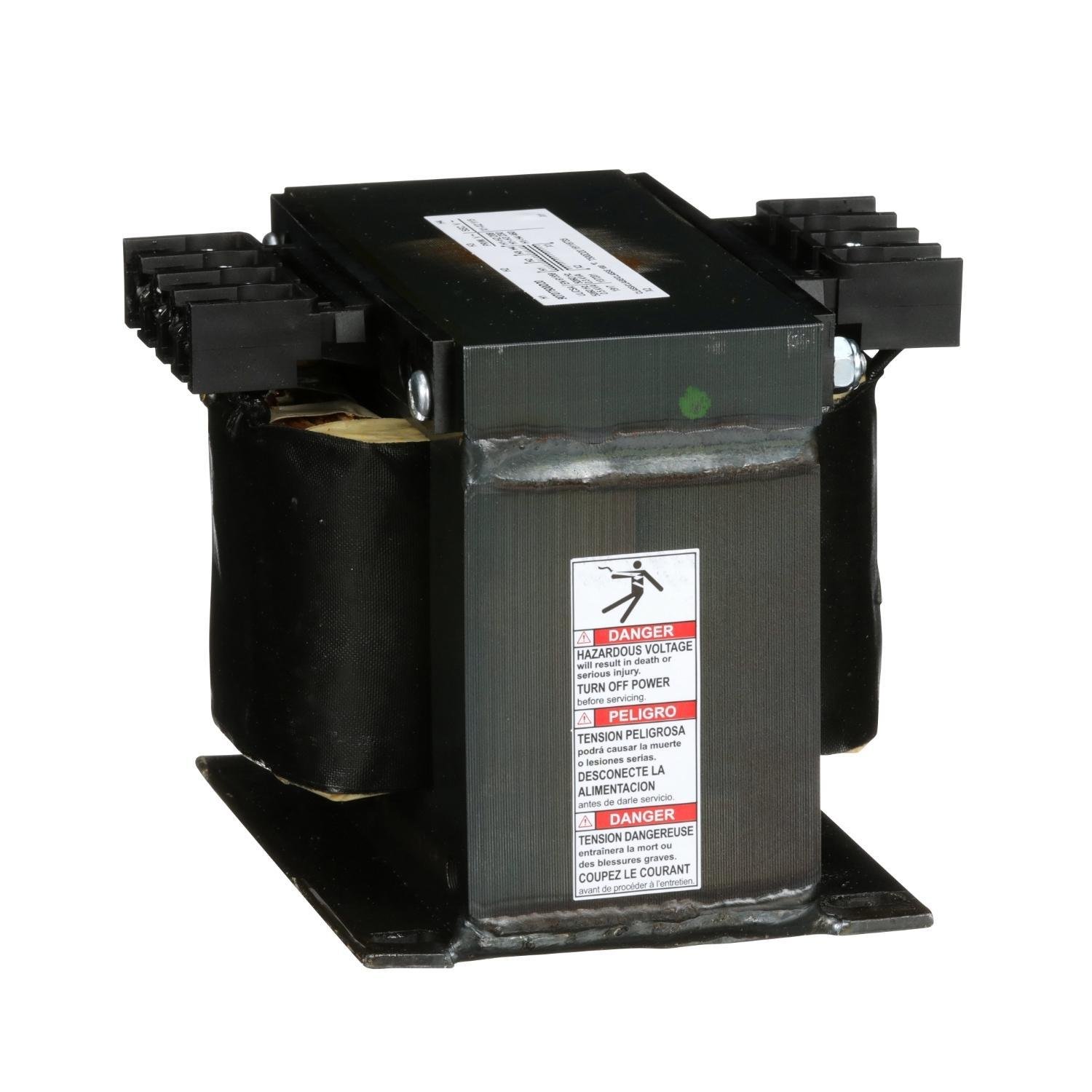

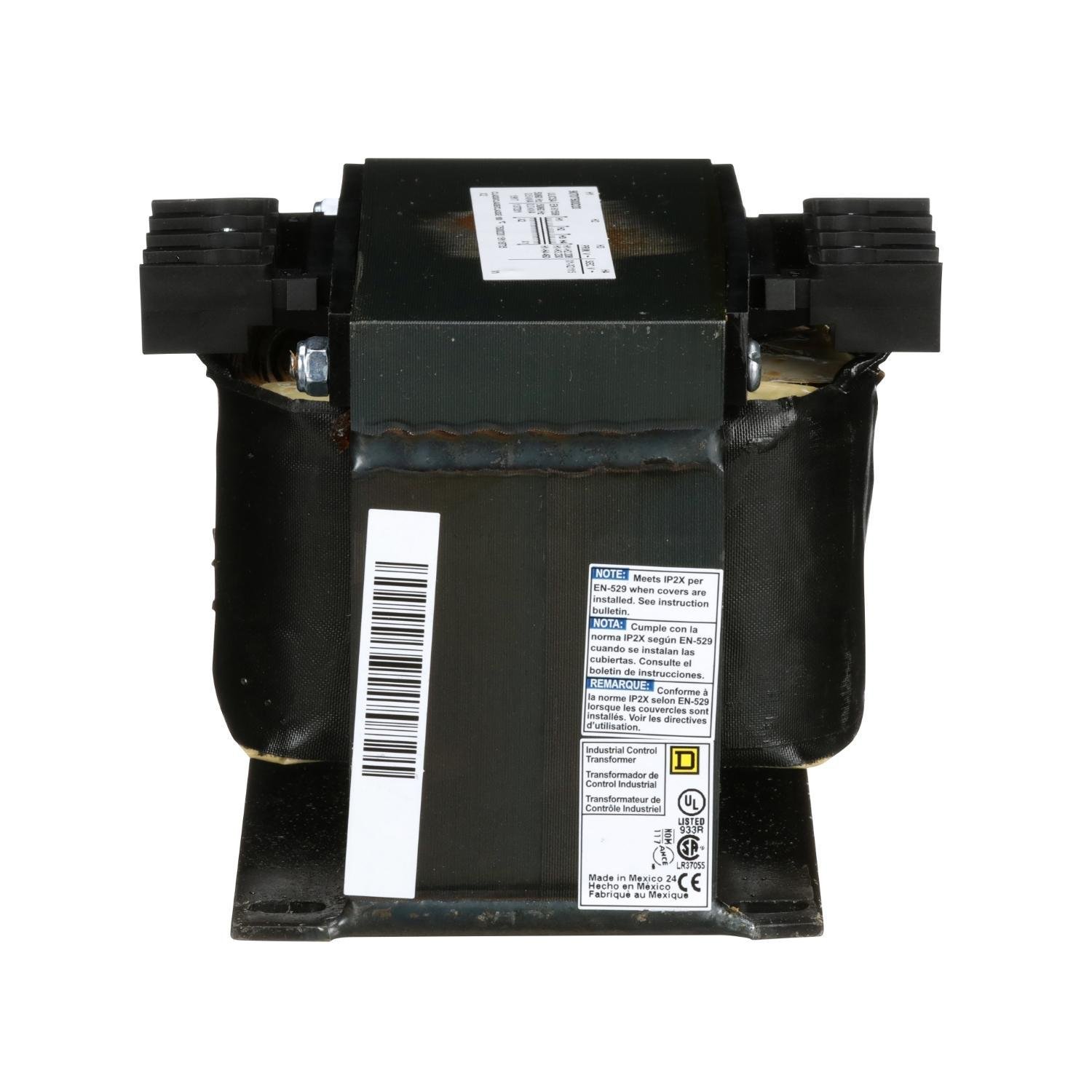

Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise
Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise
Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise
Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise Picture of 9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise
Square D

9070T500D20 - Transformer, Type T, industrial control, 500VA, 1 phase, 208/230/460V primary, 115V secondary, 115C rise

Item Code: 627880
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T500D20

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 500VA and is 1 phase. It has a 208/230/460V primary voltage and 115V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Weight

18.16

Width

5.62

Length

5.2

AD All Features

Designed with various temperature classes

AD Application

Industrial Markets, OEM Commercial and Electrical Equipment Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

TRANSFORMER CTRL 208/230/460VAC 115VAC 1

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

18.1600

AD Package Weight UOM

LB

AD Package Width

5.6200

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Primary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

208/230/460

Spec 11 Attribute

Secondary Voltage

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

115

Spec 12 Attribute

Series

Spec 12 Attribute Value

9070

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

115

Spec 14 Attribute

Type

Spec 14 Attribute Value

Type T Industrial

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.25 in W x 5.61 in D x 4.51 in H

Spec 3 Attribute

Efficiency

Spec 3 Attribute UOM

%

Spec 3 Attribute Value

91.6

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

Open

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Insulation

Spec 6 Attribute UOM

deg C

Spec 6 Attribute Value

180

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

VA

Spec 9 Attribute Value

300/500
