Square D

9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise

Category Industrial Control Transformers

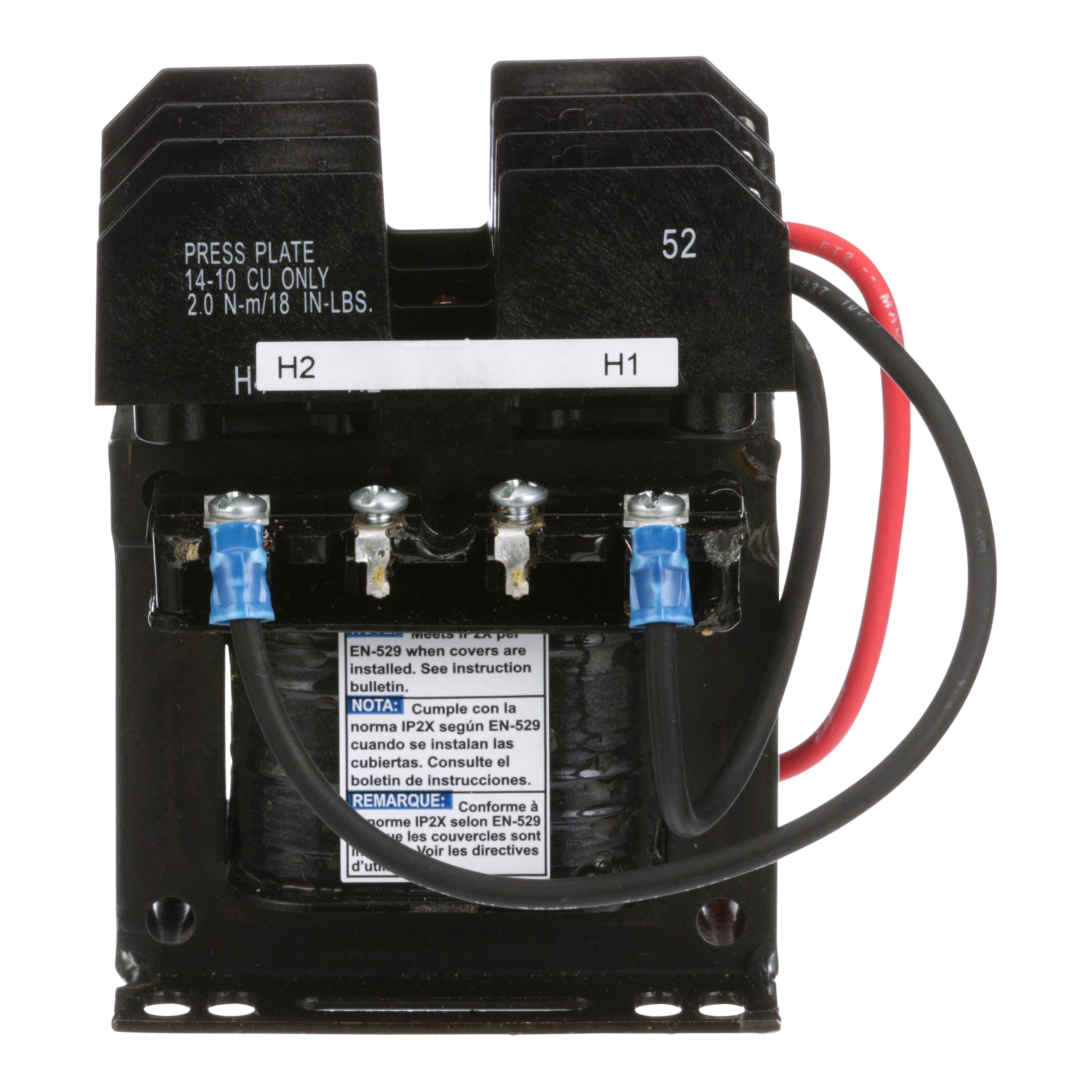

Picture of 9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise Picture of 9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise
Picture of 9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise Picture of 9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise
Square D

9070T50D3 - Transformer, Type T, industrial control, 50VA, 1 phase, 208V primary, 120V secondary, 55C rise

Item Code: 17704
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T50D3

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 50VA and is 1 phase. This transformer has a 208V primary voltage and 120V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 2.58 in (H), 3 in (W), 3.09 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty.

Specifications

Weight

2.97lb

Height

3.7mm

Width

6.24mm

Length

7.13mm

Depth

3.09mm

AD All Features

Designed with various temperature classes

AD Application

For used to handle high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

TRANSFORMER CTRL 208VAC 120VAC 50VA 1

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.7000

AD Package Height UOM

IN

AD Package Length

7.1300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

59.1600

AD Package Volume UOM

cu-in

AD Package Weight

2.9700

AD Package Weight UOM

LB

AD Package Width

6.2400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

55

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type T Industrial Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3 in W x 3.09 in D x 2.58 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

105

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

50

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

208
