Square D

9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise

Category Miscellaneous

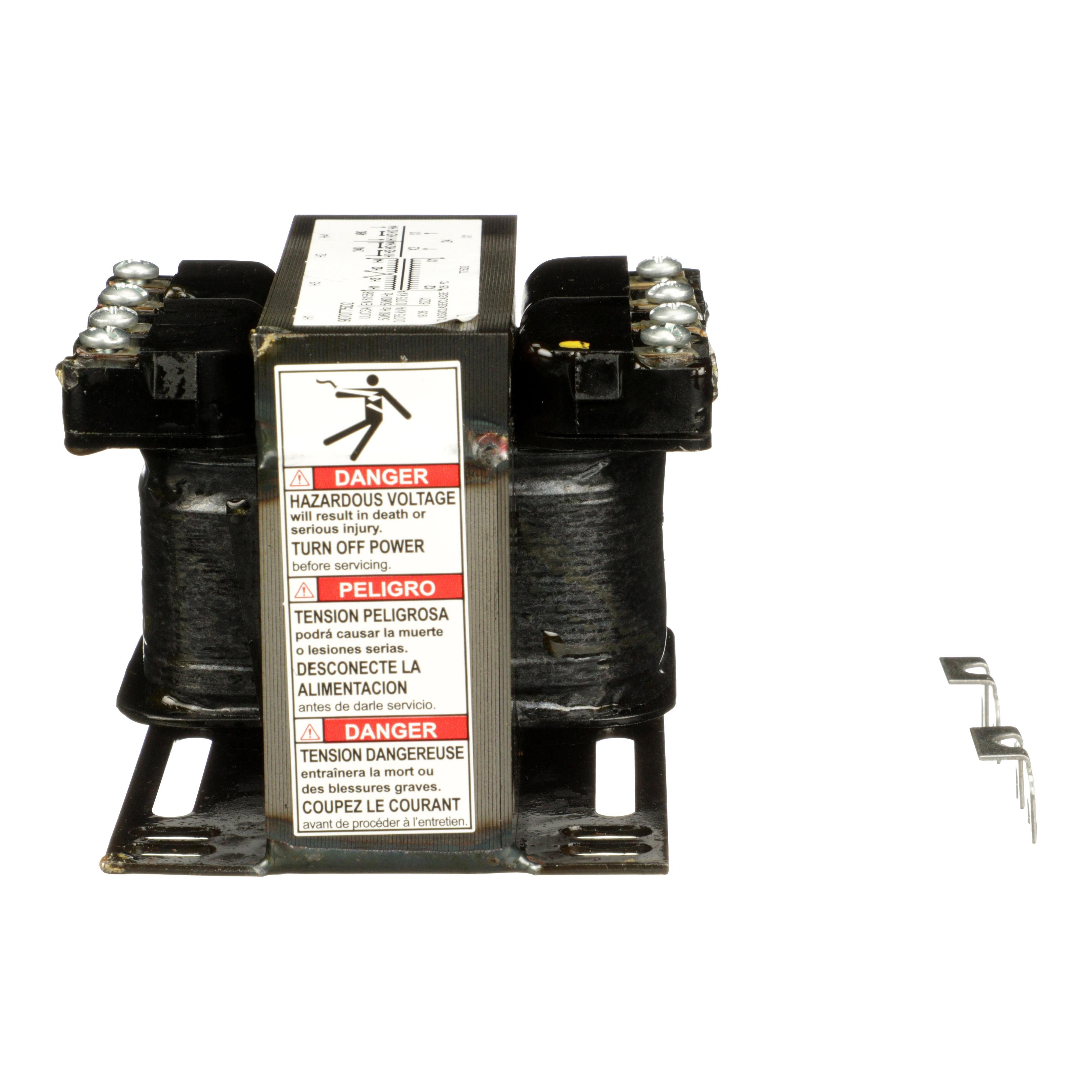

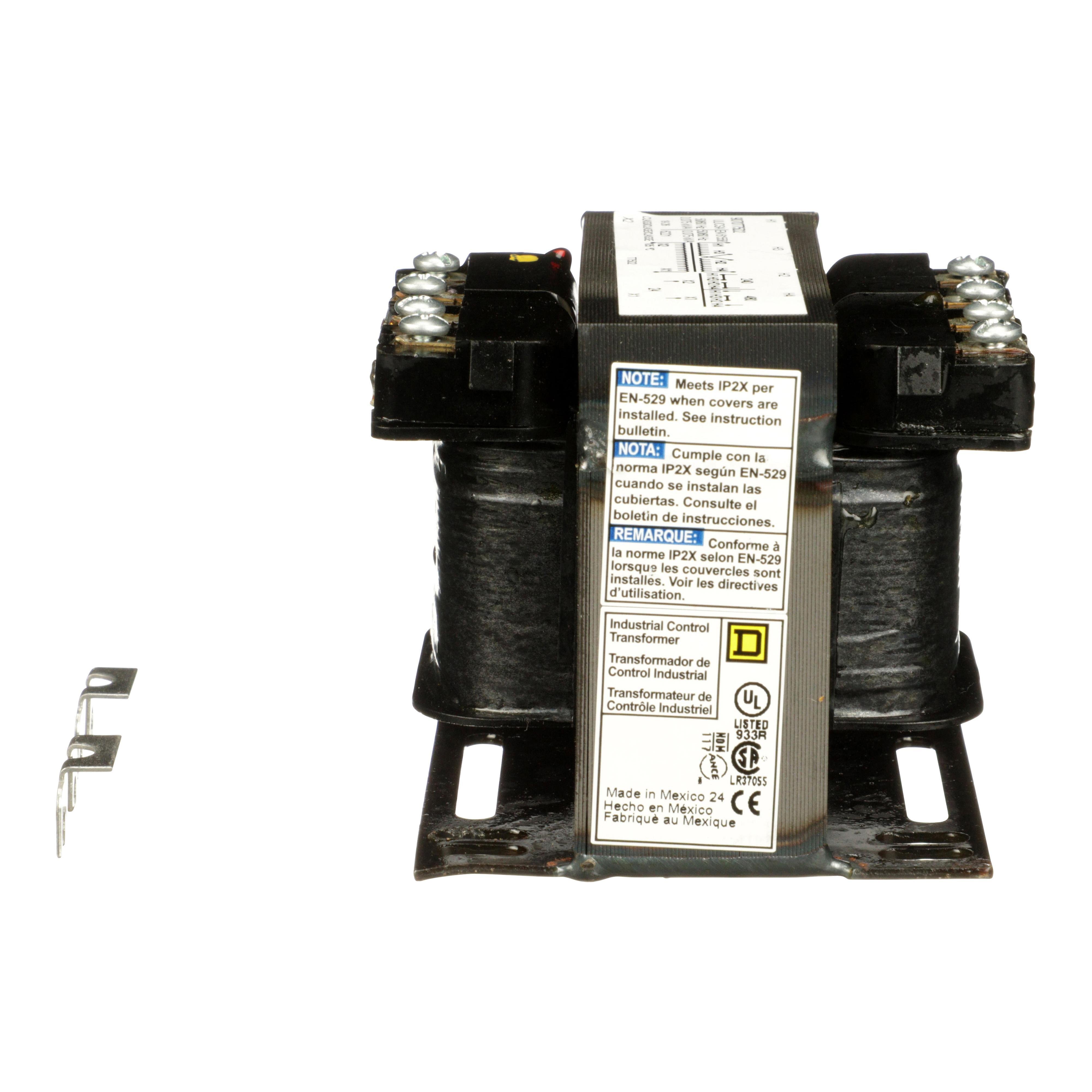

Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise
Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise
Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise Picture of 9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise
Square D

9070T75D2 - Transformer, Type T, industrial control, 75VA, 1 phase, 240x480V primary, 24V secondary, 55C rise

Item Code: 565195
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070T75D2

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 75VA and is 1 phase. It has a 240x480V primary voltage and 24V secondary voltage. It also has a temperature rise of 55 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Specifications

Weight

3.79

Height

3.8

Width

3.96

Length

4.06

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9070T75D2/9070T75D2.spin

AD All Features

Designed with various temperature classes

AD Alternative Part Number

8082081

AD Application

For used to handle high inrush associated with contactors and relays applications such as conveyor systems, paint lines, punch presses or overhead cranes applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901904977

AD Gtin

00785901904977

AD IDEA Index ID

8082081

AD Invoice Description

TRANSFORMER CTRL 240/480VAC 24VAC 75VA 1

AD Item Features 01

Designed with various temperature classes

AD Item Features 02

Customer installed accessories

AD Item Features 03

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Keywords

9070T75D2 Type T Open Style Industrial Control Transformer, 240/480 V AC Primary, 24 VDC Secondary, 75 VA Power Rating, 50/60 Hz, 1 Phase ; Schneider Electric ; Square D ; 9070T75D2 ; 9070T75D2 ; 785901904977 ; Control Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

4.0600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

62.3200

AD Package Volume UOM

cu-in

AD Package Weight

3.7900

AD Package Weight UOM

LB

AD Package Width

3.9600

AD Package Width UOM

IN

AD Part Number Keywords

9070T75D2 ; 8082081 ; 785901904977 ; 78590190497 ; 00785901904977 ; 0785901904977

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V DC

Spec 10 Attribute Value

24

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

55

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type T Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.38 in W x 3.34 in D x 2.89 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute Value

55 DEG C Rise

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

75

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240/480
