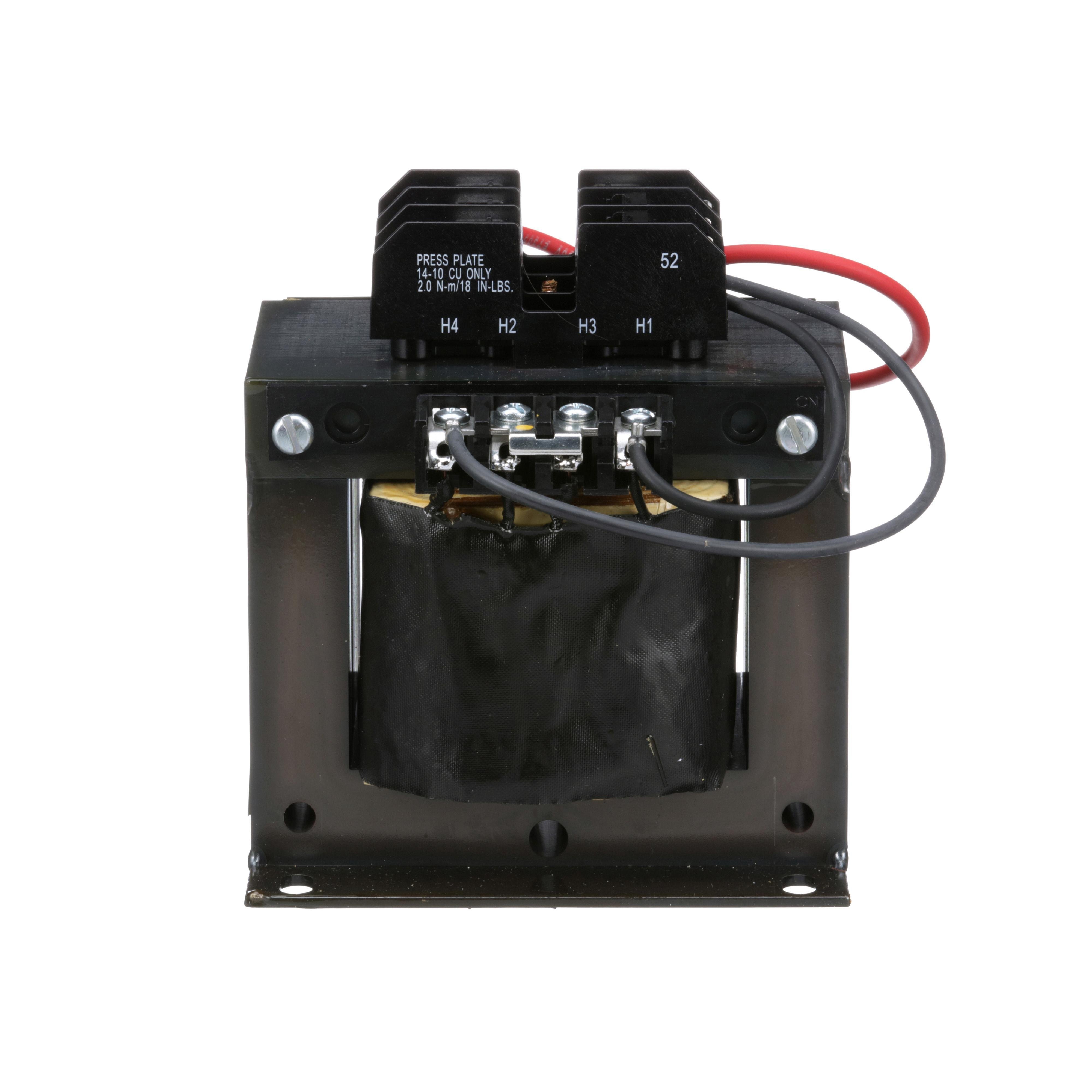

9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz

Category Industrial Control Transformers
Picture of 9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz
Square D

9070TF1000D1 - Industrial control transformer, Type TF, 1 phase, 1000VA, 240x480V primary, 120V secondary, 50/60Hz

Item Code: 671252
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF1000D1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 1000 VA and is 1 phase(UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 115 °C. Dimensions for the unit are 5.8 in (H)5.25 in (W)6.3 in (D) with the winding material of copper. This design frees up space normally used for separate fuse blocks
