Square D

9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz

Category Industrial Control Transformers

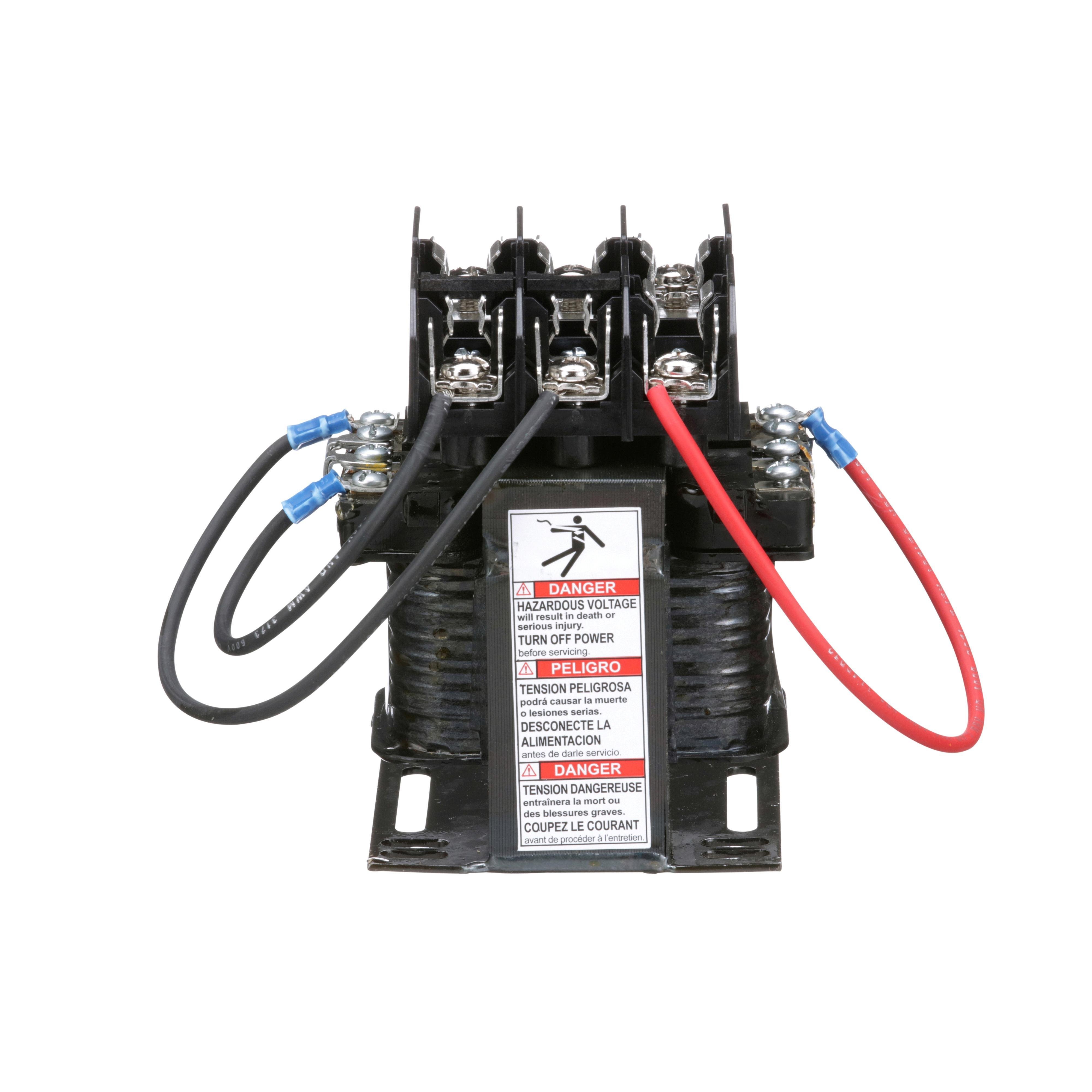

Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz

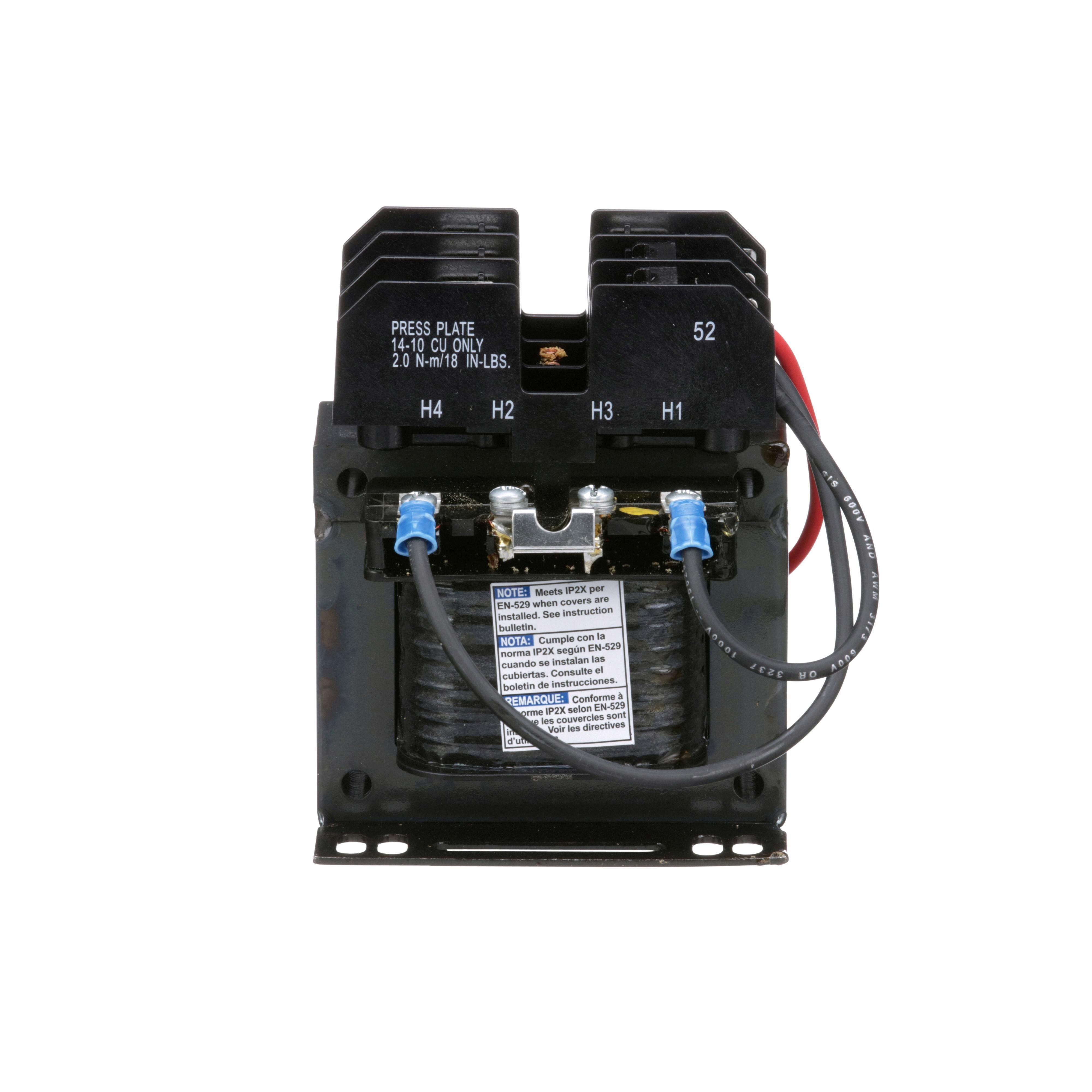

Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz
Square D

9070TF100D1 - Industrial control transformer, Type TF, 1 phase, 100VA, 240x480V primary, 120V secondary, 50/60Hz

Item Code: 17706
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF100D1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 100VAand is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 55 °C. Dimensions for the unit are 5.8 in (H)5.25 in (W)6.3 in (D) with the winding material of copper. This design frees up space normally used for separate fuse blocks

Specifications

Weight

4.59lb

Height

7.8mm

Width

6.64mm

Length

7.73mm

Depth

3.34mm

AD All Features

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Top Mounted Fuse Block

AD Invoice Description

TRANSFORMER CTRL 110/115/120VAC 100VA 1

AD Item Features 01

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Item Features 02

Provides reliable power using voltage regulation

AD Item Features 03

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.8000

AD Package Height UOM

IN

AD Package Length

7.7300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

535.3900

AD Package Volume UOM

cu-in

AD Package Weight

4.5900

AD Package Weight UOM

LB

AD Package Width

6.6400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers
