Square D

9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz

Category Industrial Control Transformers

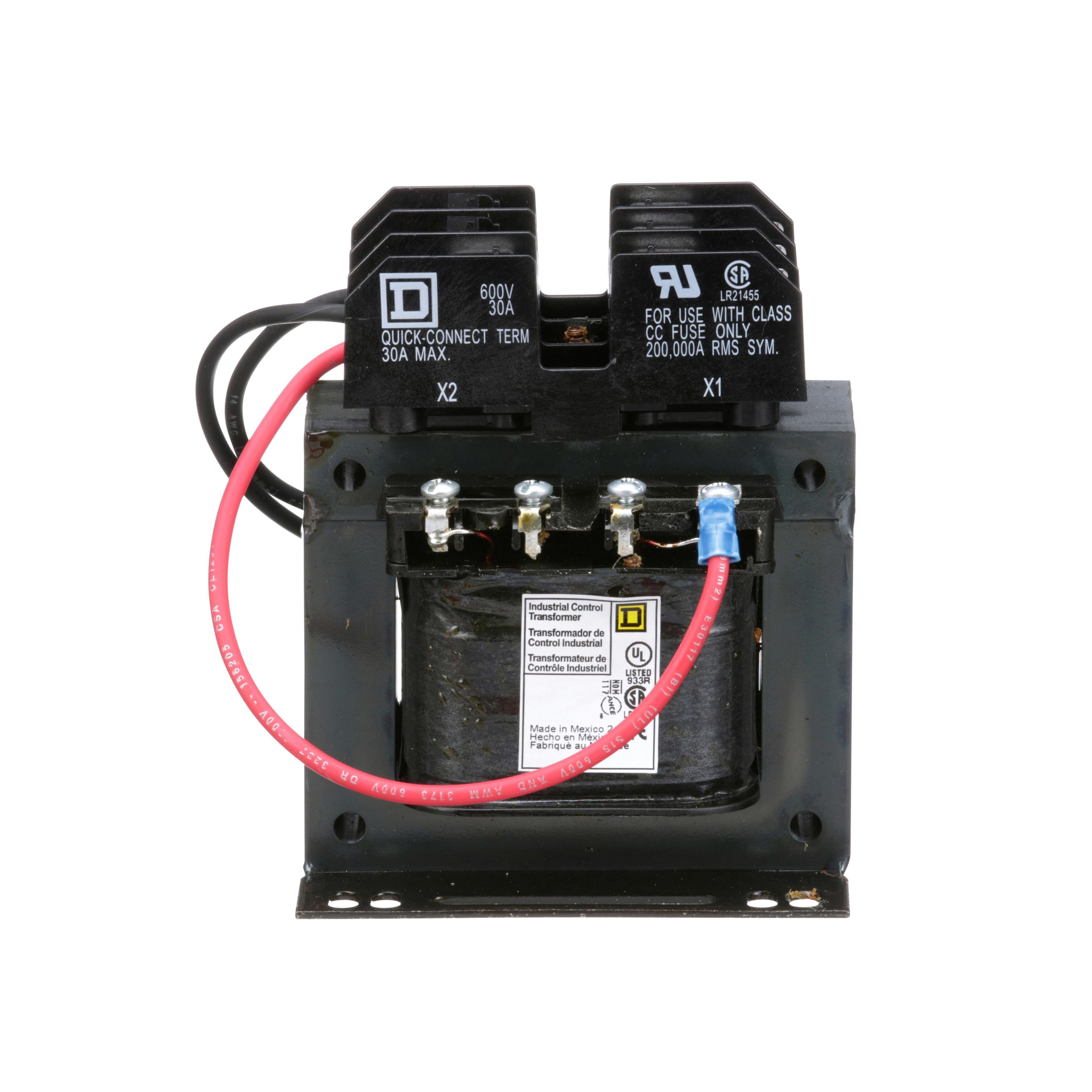

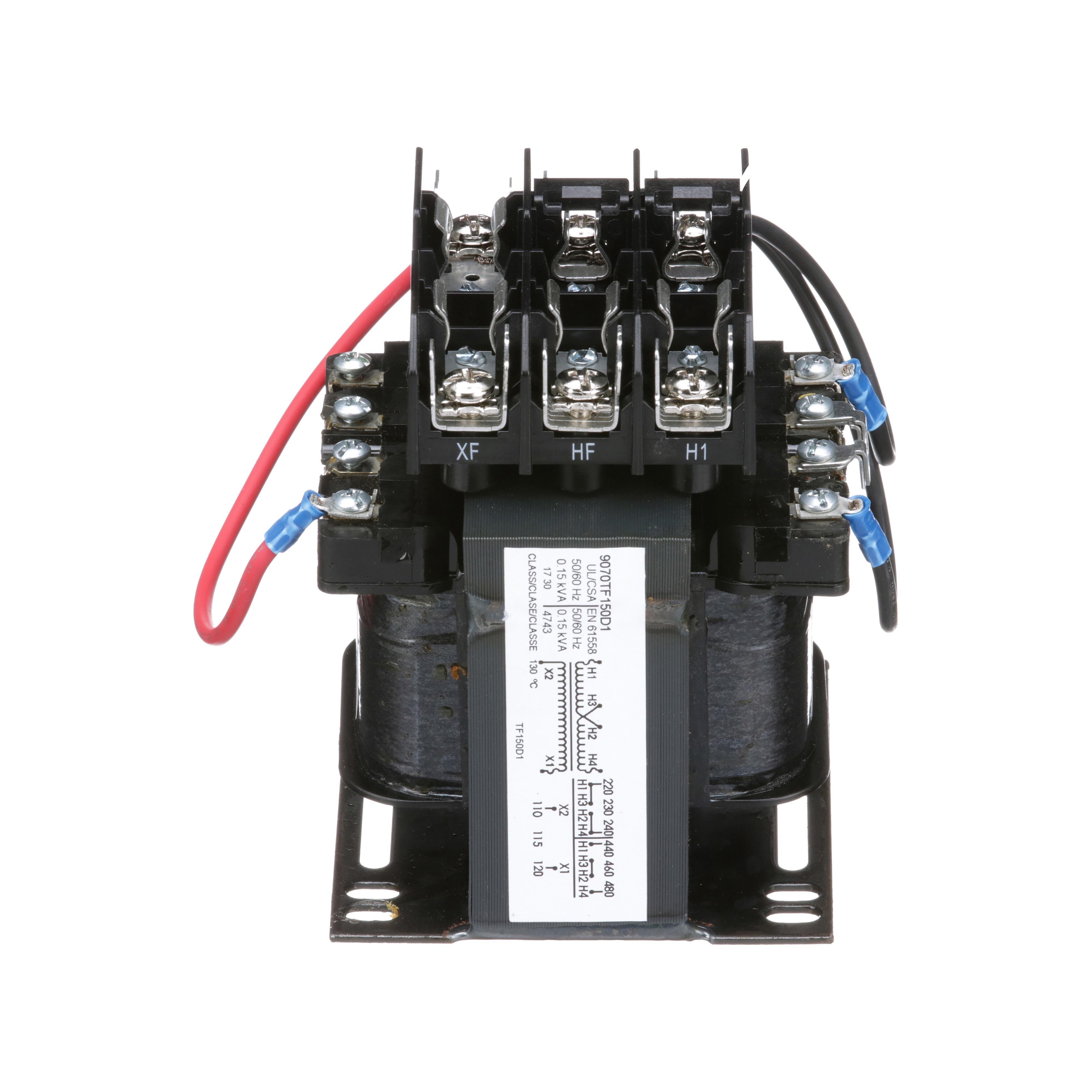

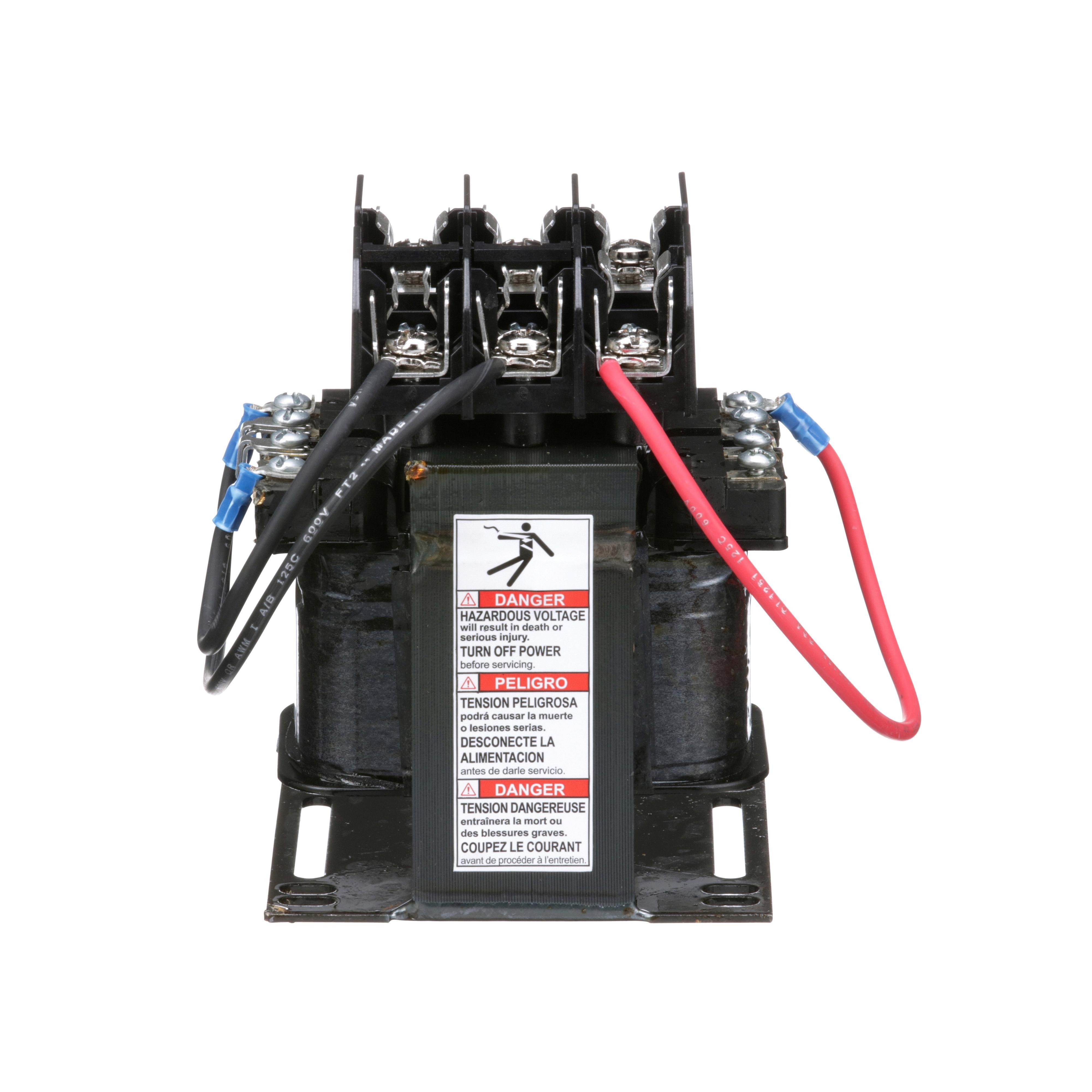

Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz
Square D

9070TF150D1 - Industrial control transformer, Type TF, 1 phase, 150VA, 240x480V primary, 120V secondary, 50/60Hz

Item Code: 32625
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF150D1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. They are designed with low impedance windings for excellent voltage regulation and can accommodate the high inrush current associated with contactors, starters, solenoids, and relays. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This industrial control transformer has a power rating, of 150VA and is 1 phase (UL). With a primary voltage of 240 x 480V and a secondary voltage of 120V. This transformer complies to UL, CSA, CE standards. The fuse type for this transformer is CC with a fuse size of 0.41 x 1.50 in and will be mounted on the top of the unit. The temperature rise is rated at 55 °C. Dimensions for the unit are 4.5 in (H)3.75 in (W)3.59 in (D) The winding material is copper. This design frees up space normally used for separate fuse blocks

Specifications

Weight

6.69

Height

6.5

Width

6.93

Length

7.63

AD All Features

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Top Mounted Fuse Block

AD Invoice Description

TRANSFORMER CTRL 110/115/120VAC 150VA 1

AD Item Features 01

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Item Features 02

Provides reliable power using voltage regulation

AD Item Features 03

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.5000

AD Package Height UOM

IN

AD Package Length

7.6300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

335.3400

AD Package Volume UOM

cu-in

AD Package Weight

6.6900

AD Package Weight UOM

LB

AD Package Width

6.9300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/115/120

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

55

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type TF Industrial Open Style

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.75 in W x 3.59 in D x 4.55 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

105

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

150

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240/480/230/460/220/440
