Square D

9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz

Category Miscellaneous

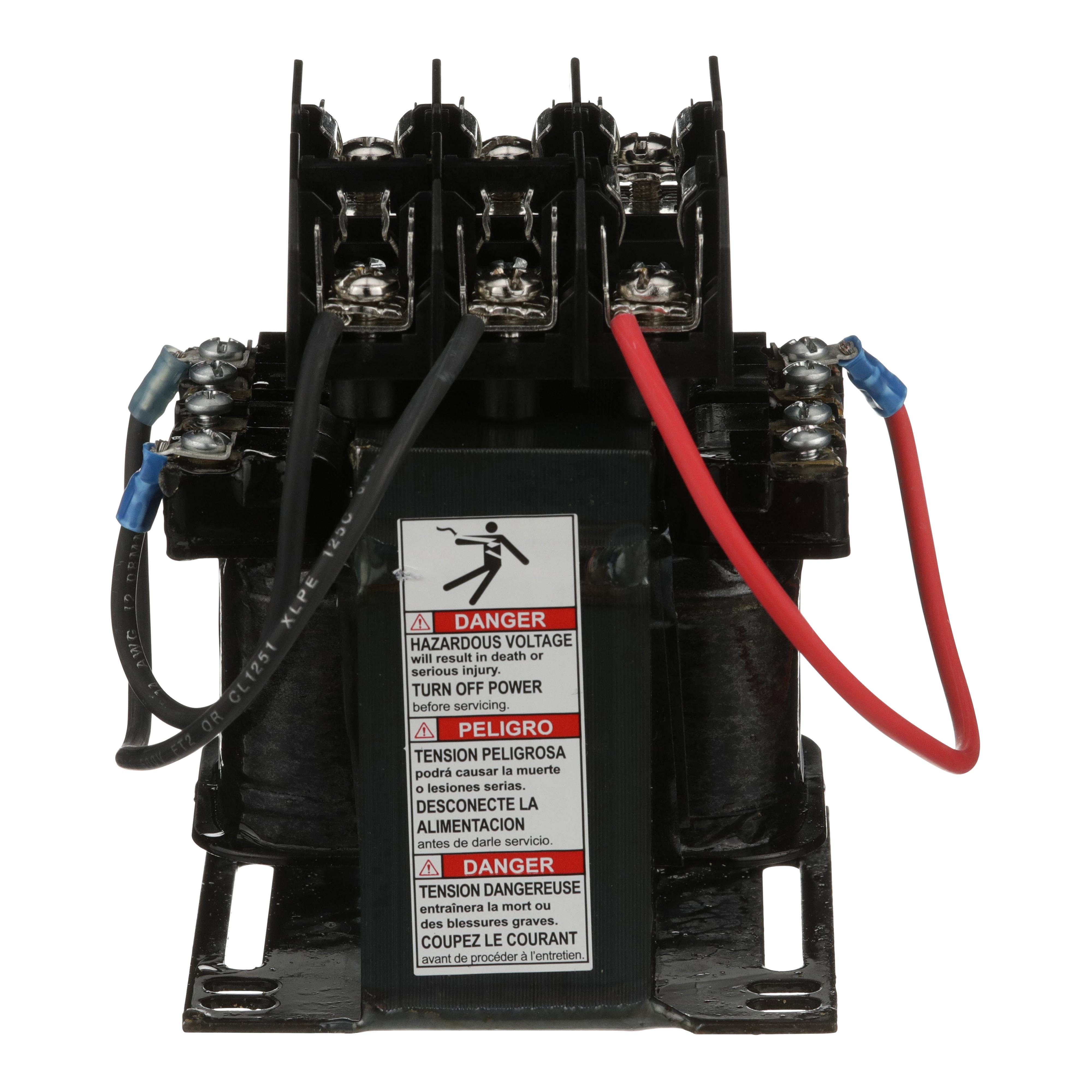

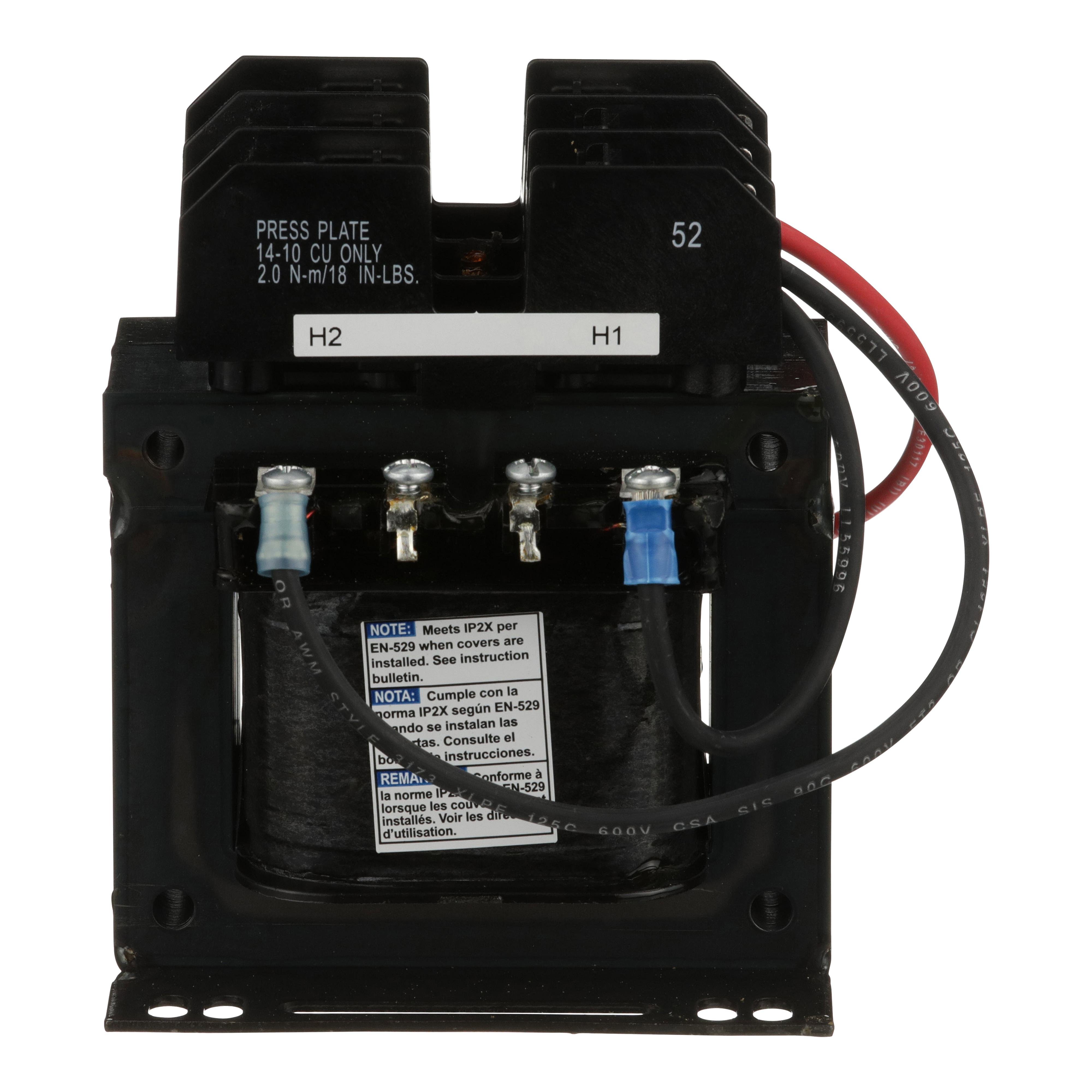

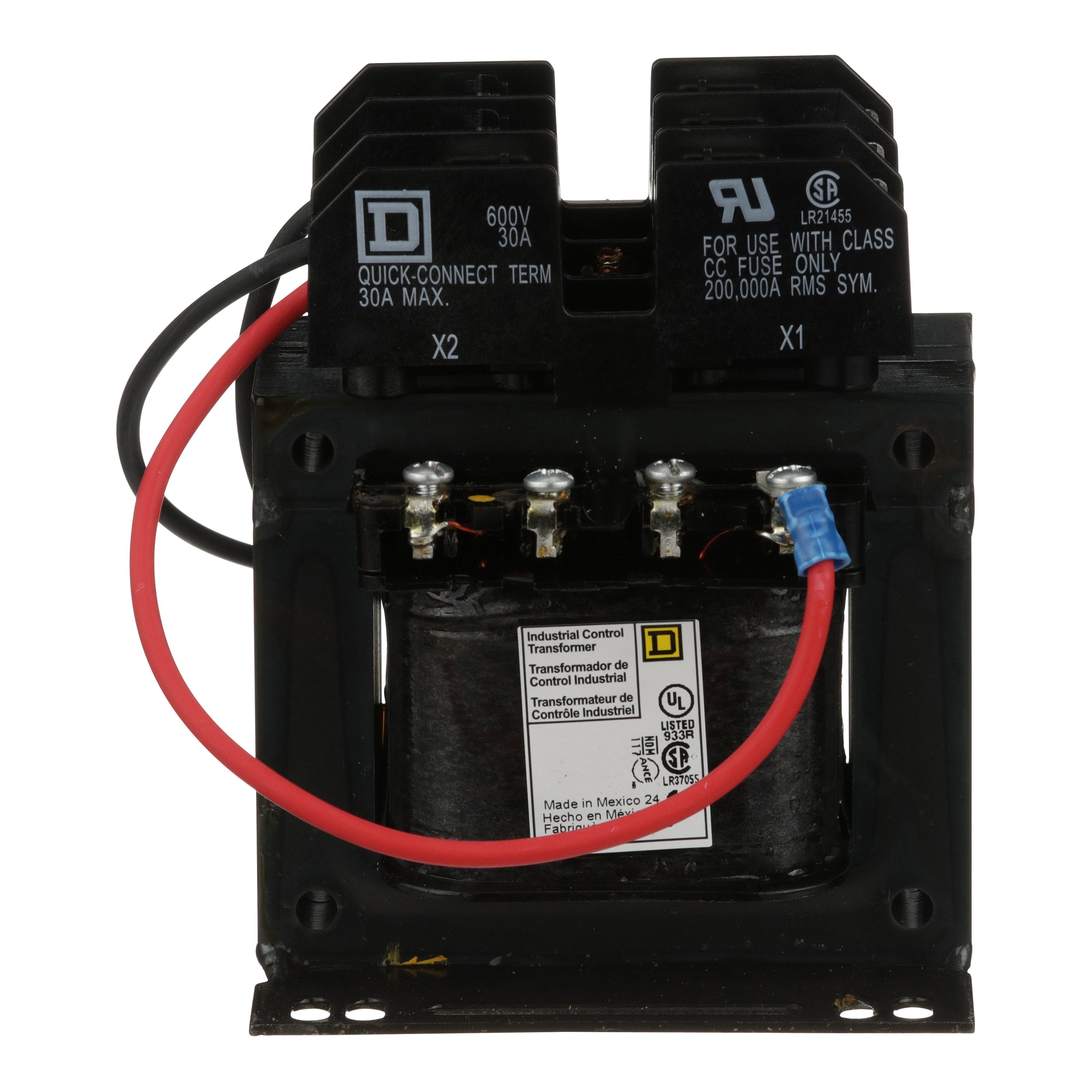

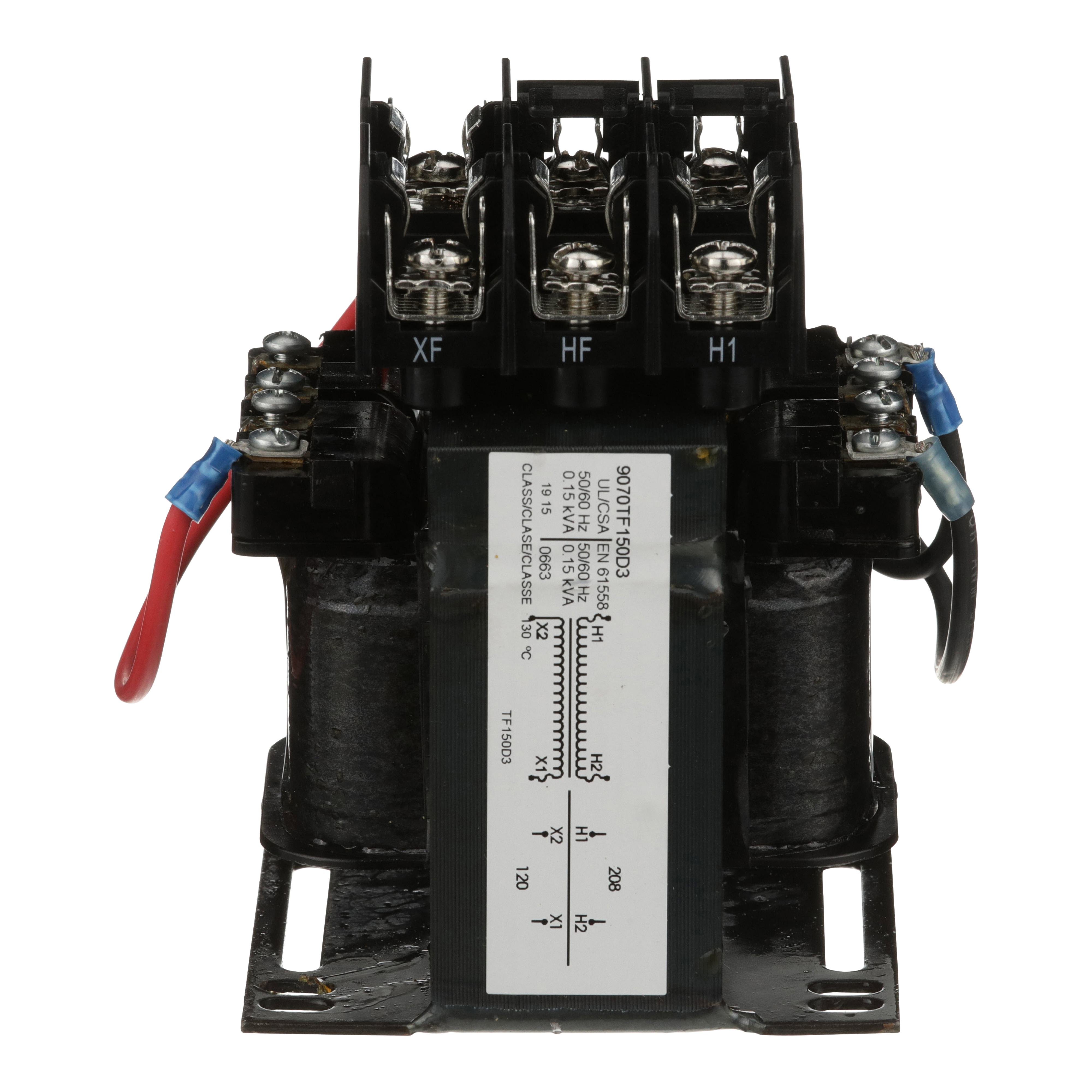

Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz
Square D

9070TF150D3 - Industrial control transformer, Type TF, 1 phase, 150VA, 208V primary, 120V secondary, 50/60Hz

Item Code: 533267
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF150D3

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 150VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 3.2 in (H), 3.75 in (W), 3.59 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.
