Square D

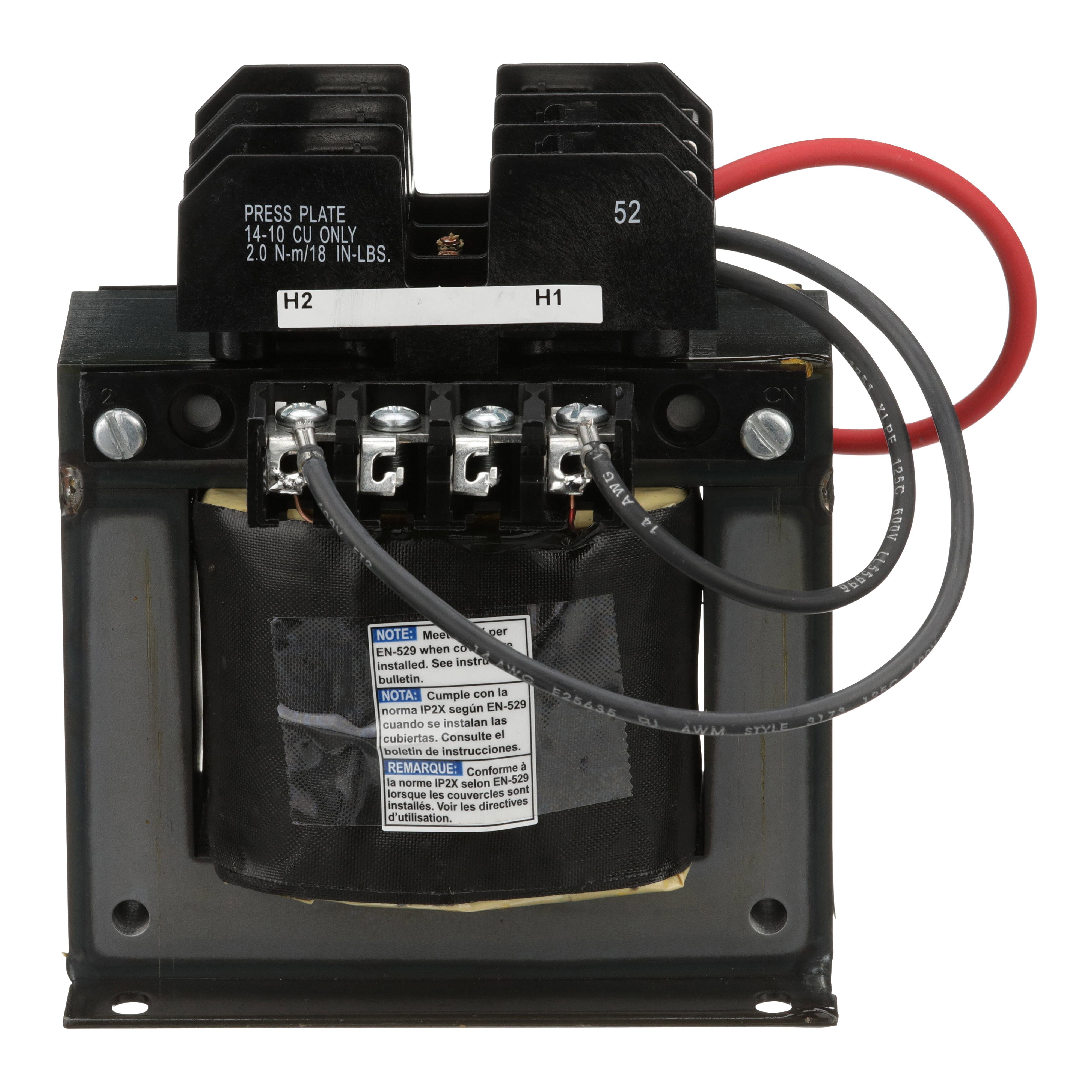

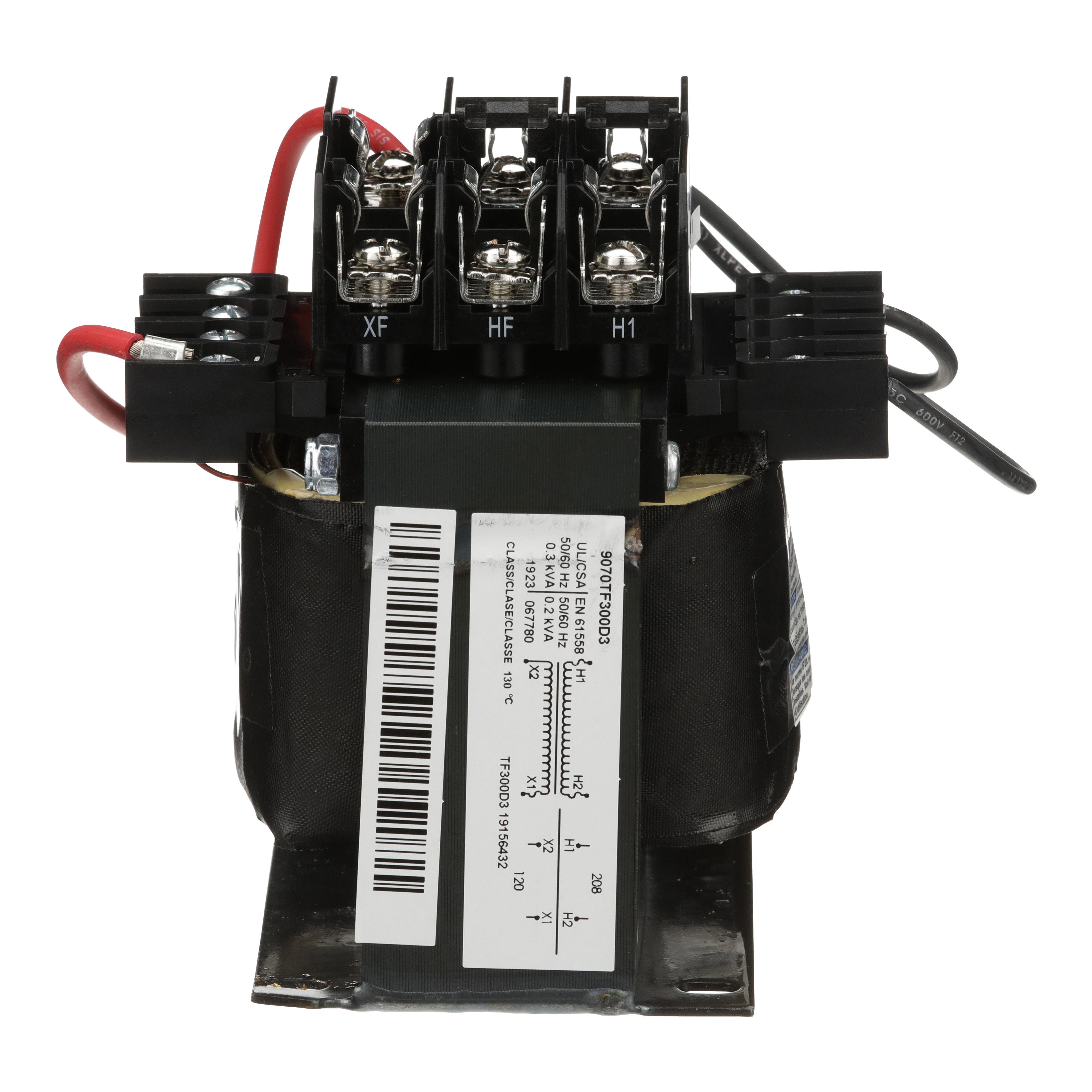

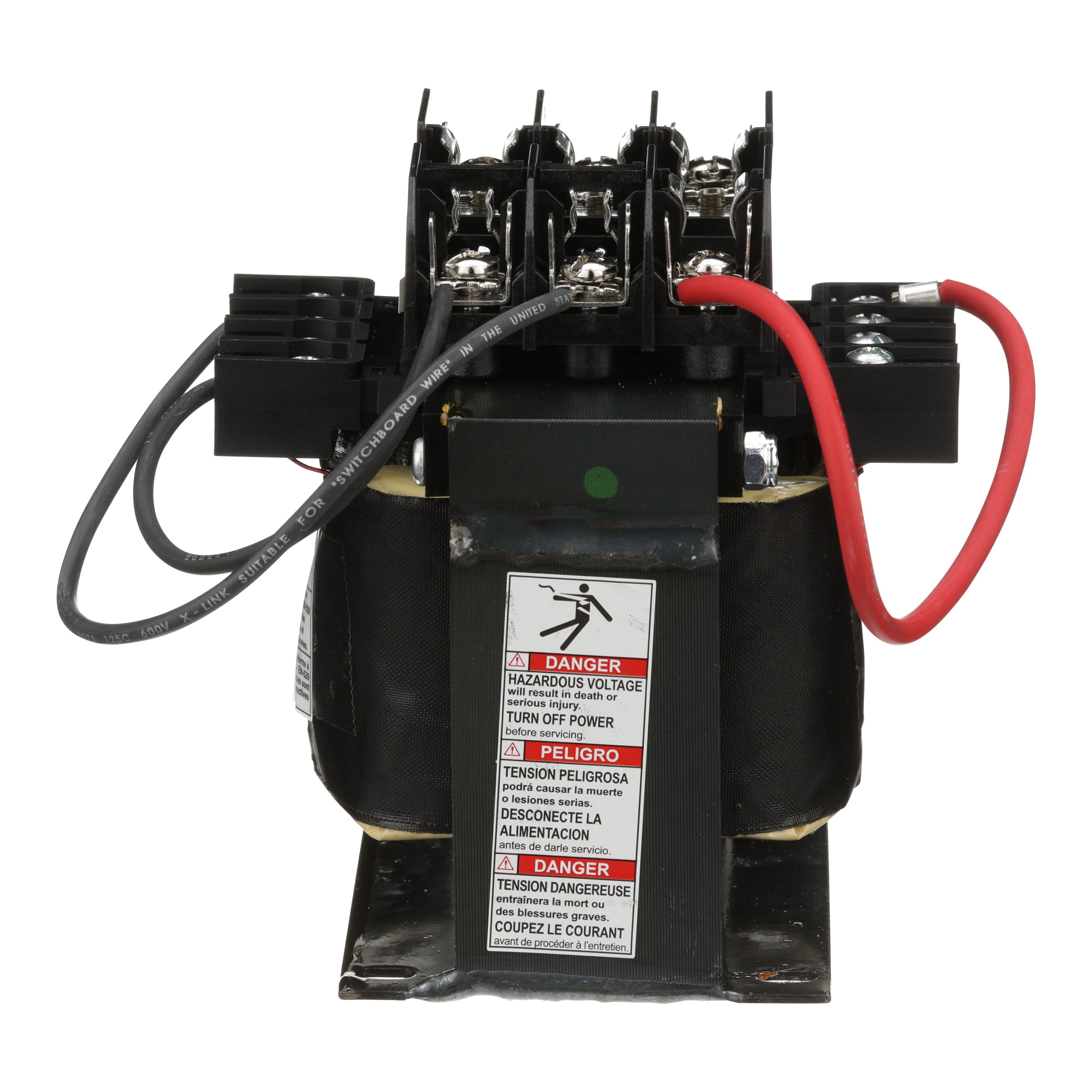

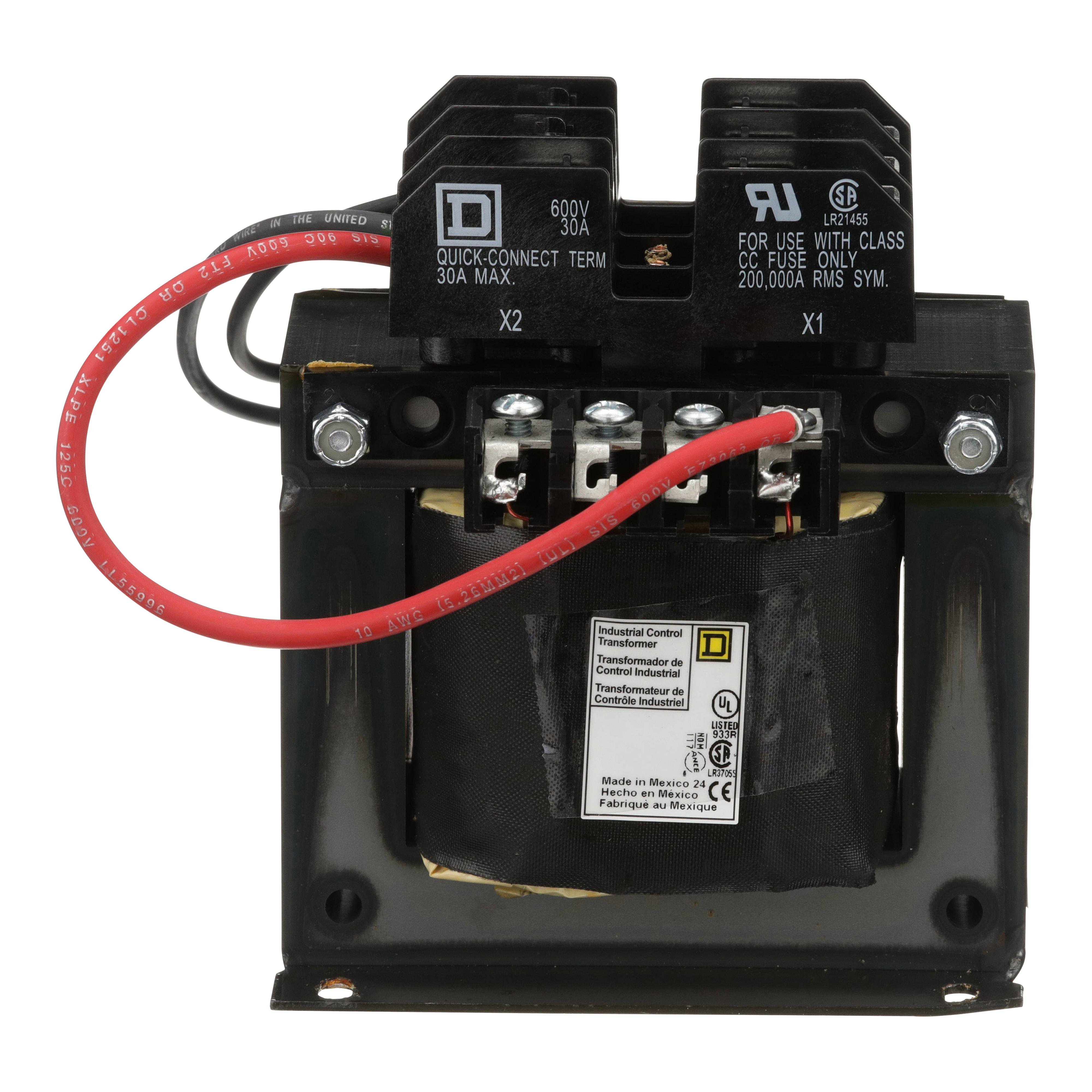

9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz

Category Industrial Control Transformers
Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz
Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz Picture of 9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz
Square D

9070TF300D3 - Industrial control transformer, Type TF, 1 phase, 300VA, 208V primary, 120V secondary, 50/60Hz

Item Code: 977348
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF300D3

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 300VA and is single phase. It has a 208 V primary voltage and 120 V secondary voltage with a temperature rise of 80 °C. Dimensions for this product are 5.73 in (H), 5.25 in (W), 6.04 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.

Specifications

Weight

9.55

Height

6.7

Width

6.64

Length

7.83

AD All Features

Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Top Mounted Fuse Block

AD Invoice Description

TRANSFORMER CTRL 208VAC 120VAC 300VA

AD Item Features 01

Type TF's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays

AD Item Features 02

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.7000

AD Package Height UOM

IN

AD Package Length

7.8300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

354.6300

AD Package Volume UOM

cu-in

AD Package Weight

9.5500

AD Package Weight UOM

LB

AD Package Width

6.6400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

120

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

80

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type TF Industrial

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.1 in H x 4.5 in W x 4.7 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

130

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

300

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

208
