Square D

9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz

Category Industrial Control Transformers

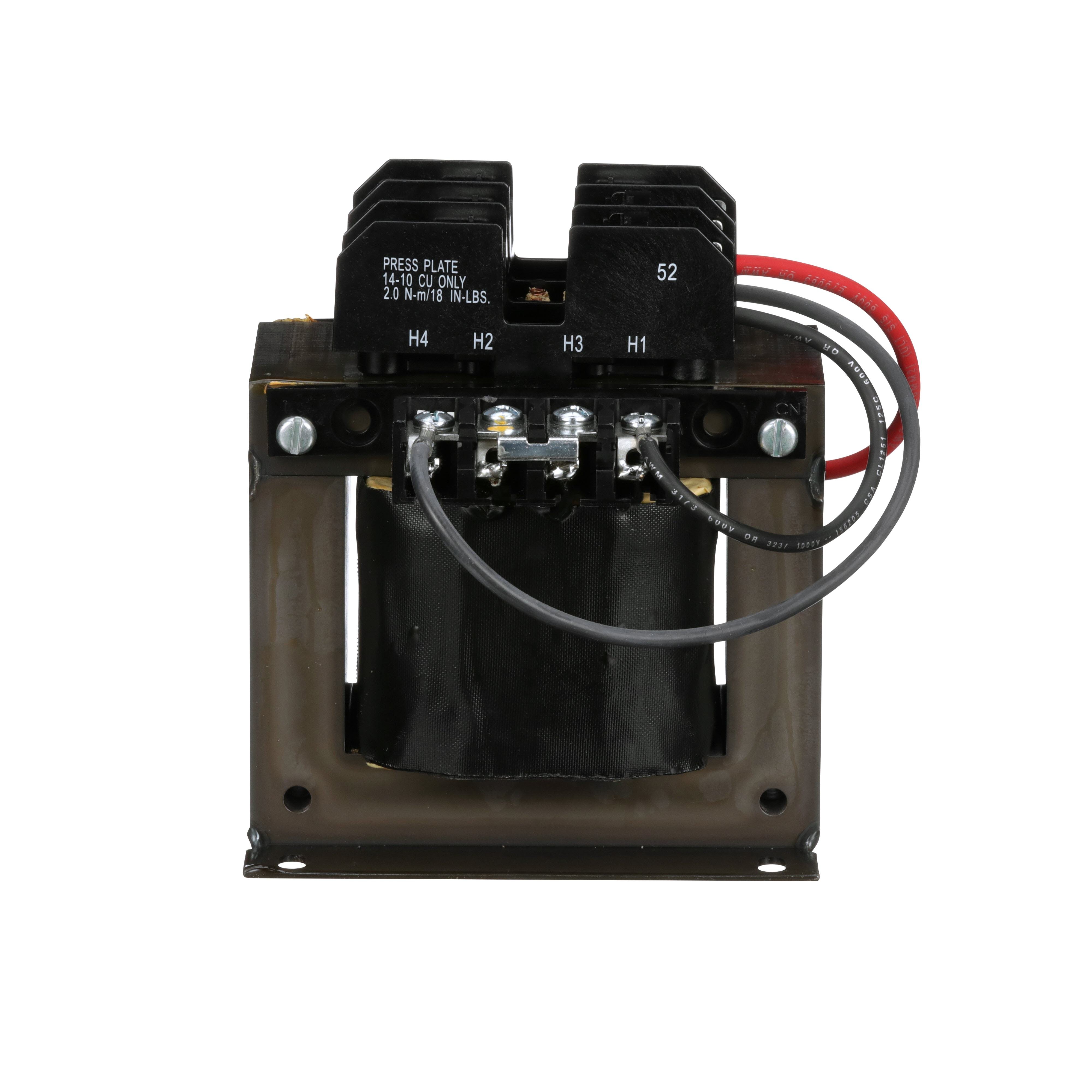

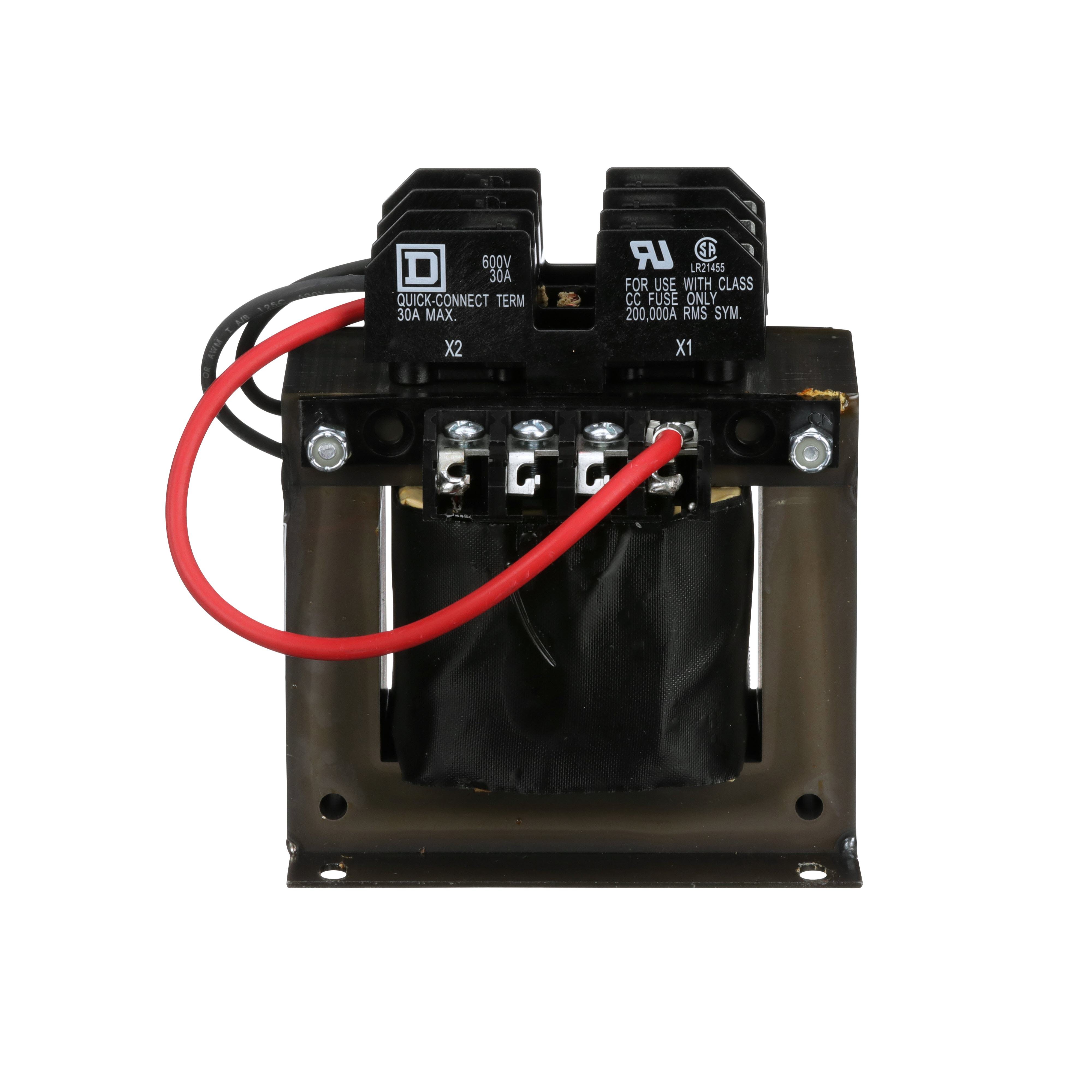

Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz
Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz Picture of 9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz
Square D

9070TF350D1 - Industrial control transformer, Type TF, 1 phase, 350VA, 240x480V primary, 120V secondary, 50/60Hz

Item Code: 636187
Category Industrial Control Transformers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF350D1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 350VA and is 1 phase. This transformer has a 220 x 440V primary voltage and 110V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 5.13 in (H), 4.5 in (W), 5.11 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2.

Specifications

Weight

11.04lb

Height

6.4mm

Width

5.06mm

Length

4.46mm

Depth

5.11mm

AD All Features

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Top Mounted Fuse Block

AD Invoice Description

TRANSFORMER CTRL 110/115/120VAC 350VA 1

AD Item Features 01

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Item Features 02

Provides reliable power using voltage regulation

AD Item Features 03

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.4000

AD Package Height UOM

IN

AD Package Length

4.4600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

339.4600

AD Package Volume UOM

cu-in

AD Package Weight

11.0400

AD Package Weight UOM

LB

AD Package Width

5.0600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Category

Industrial Control Transformers

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

110/115/120

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

80

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type TF Industrial

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

4.5 in W x 5.09 in D x 5.1 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

130

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

350

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

240 x 480, 230 x 460, 220 x 440
