Square D

9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz

Category Miscellaneous

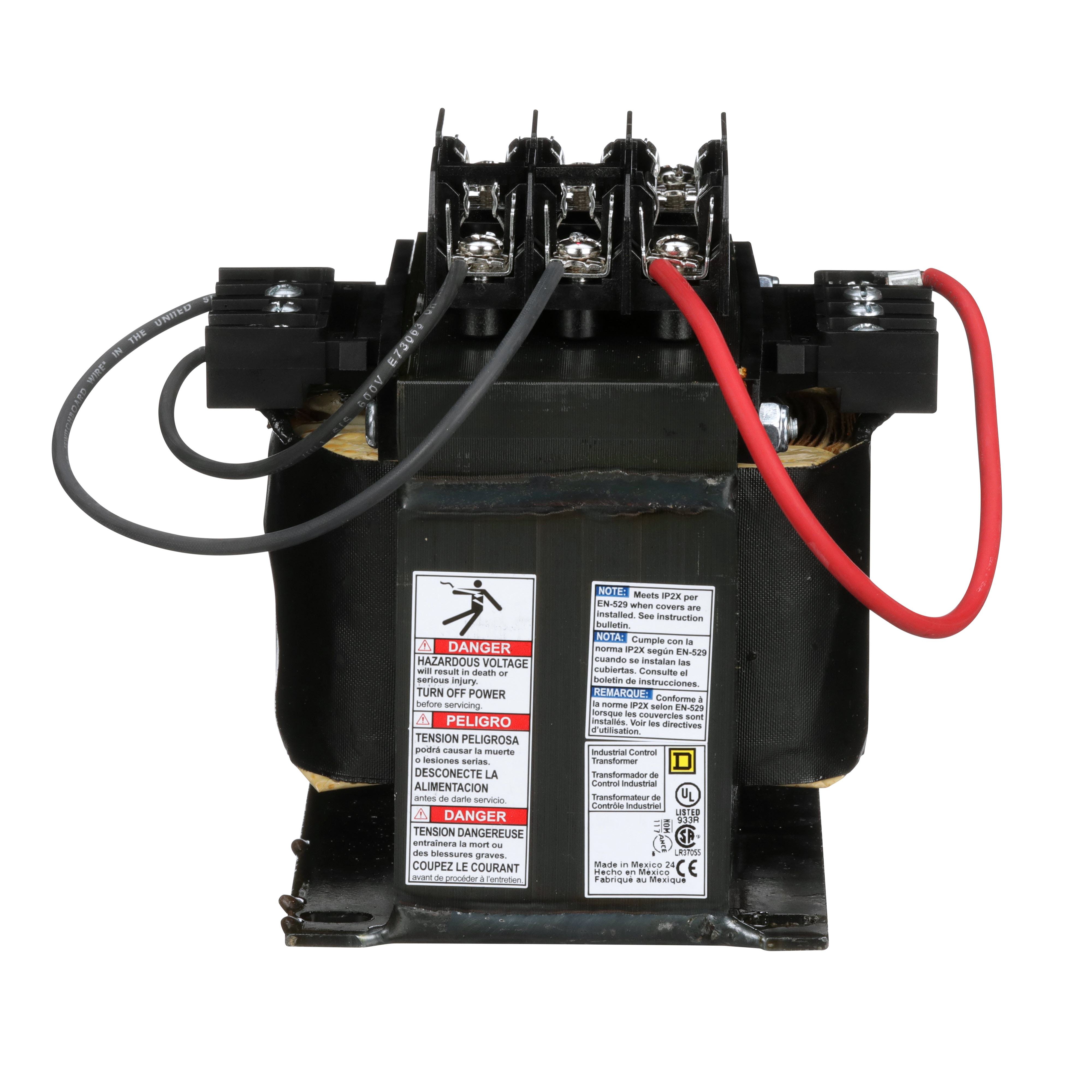

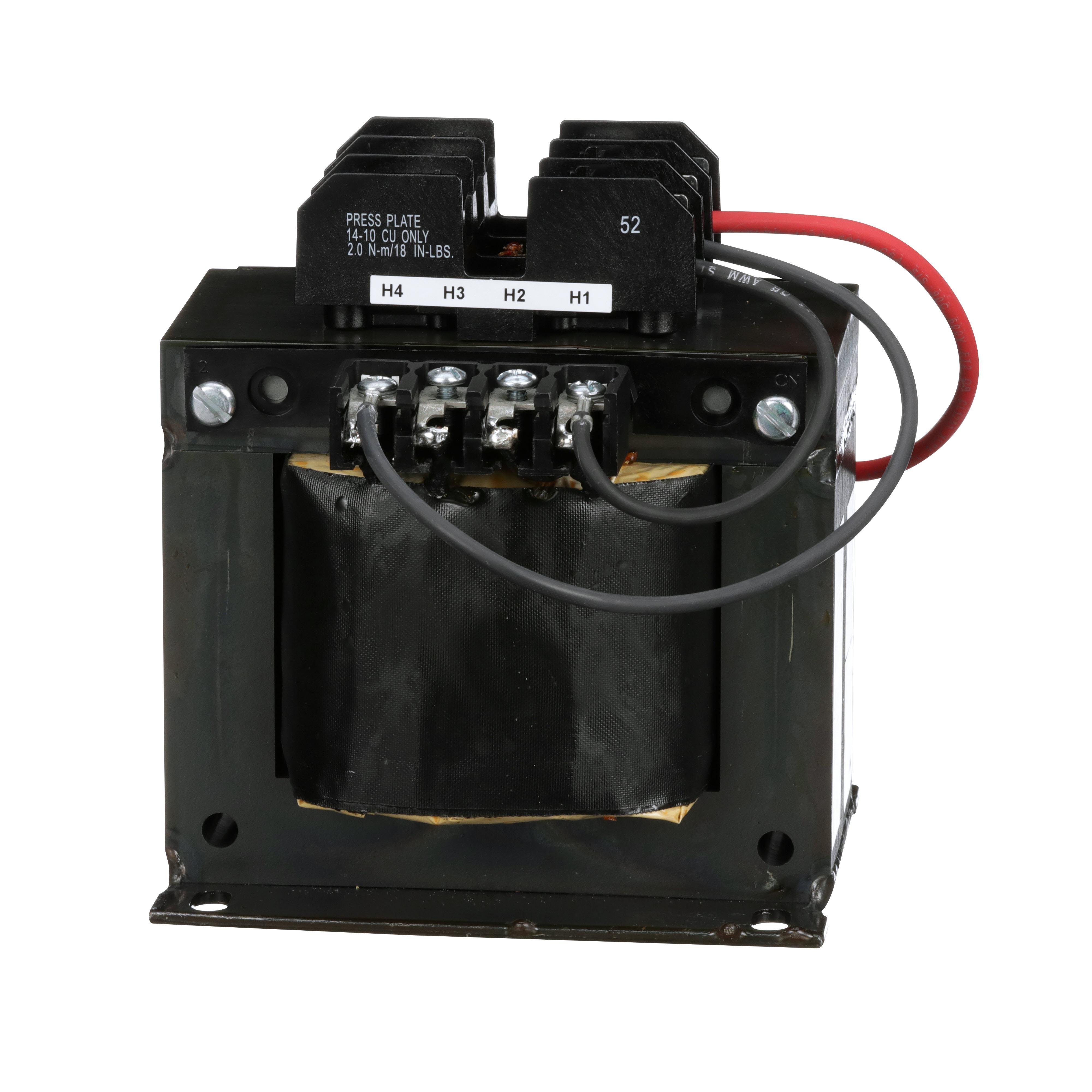

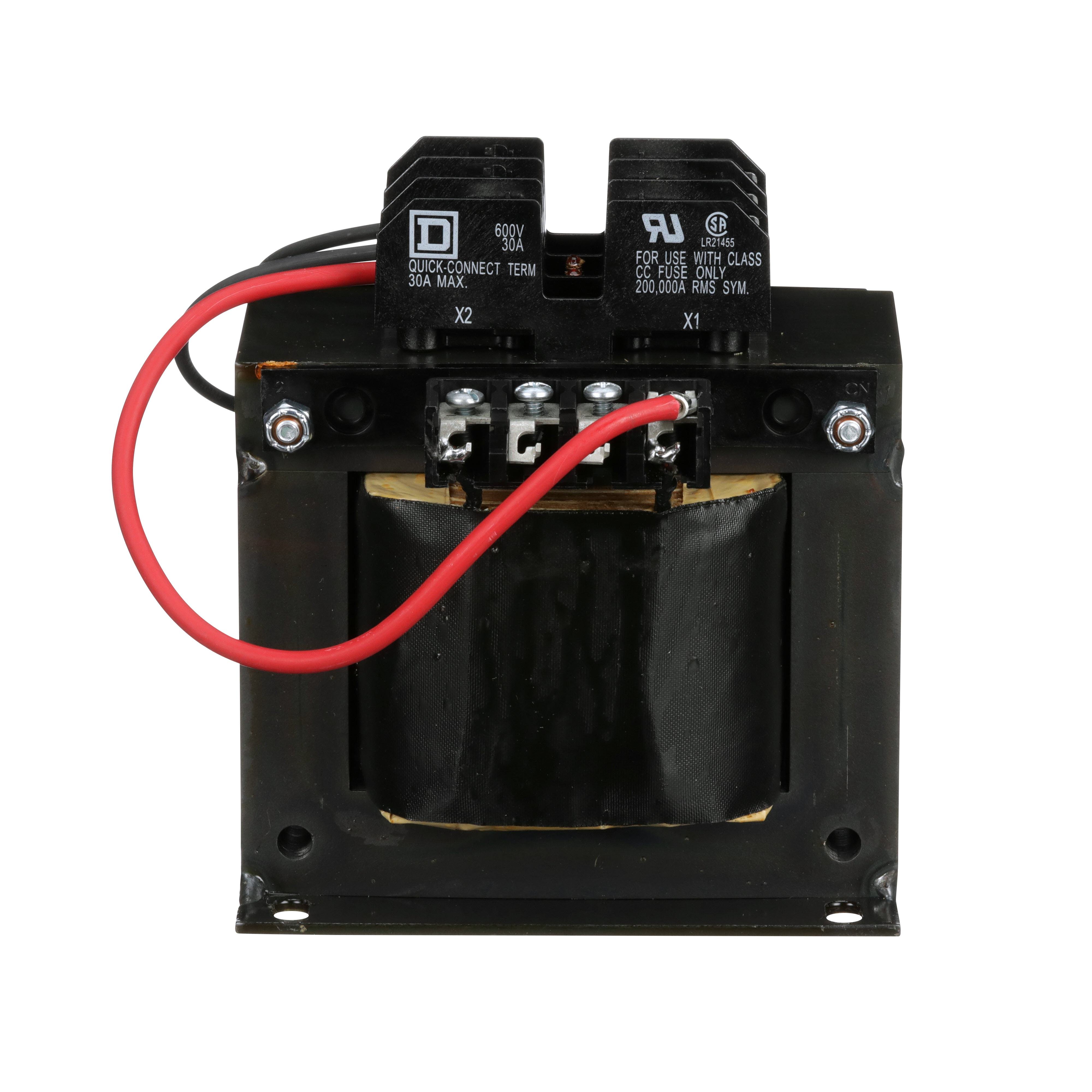

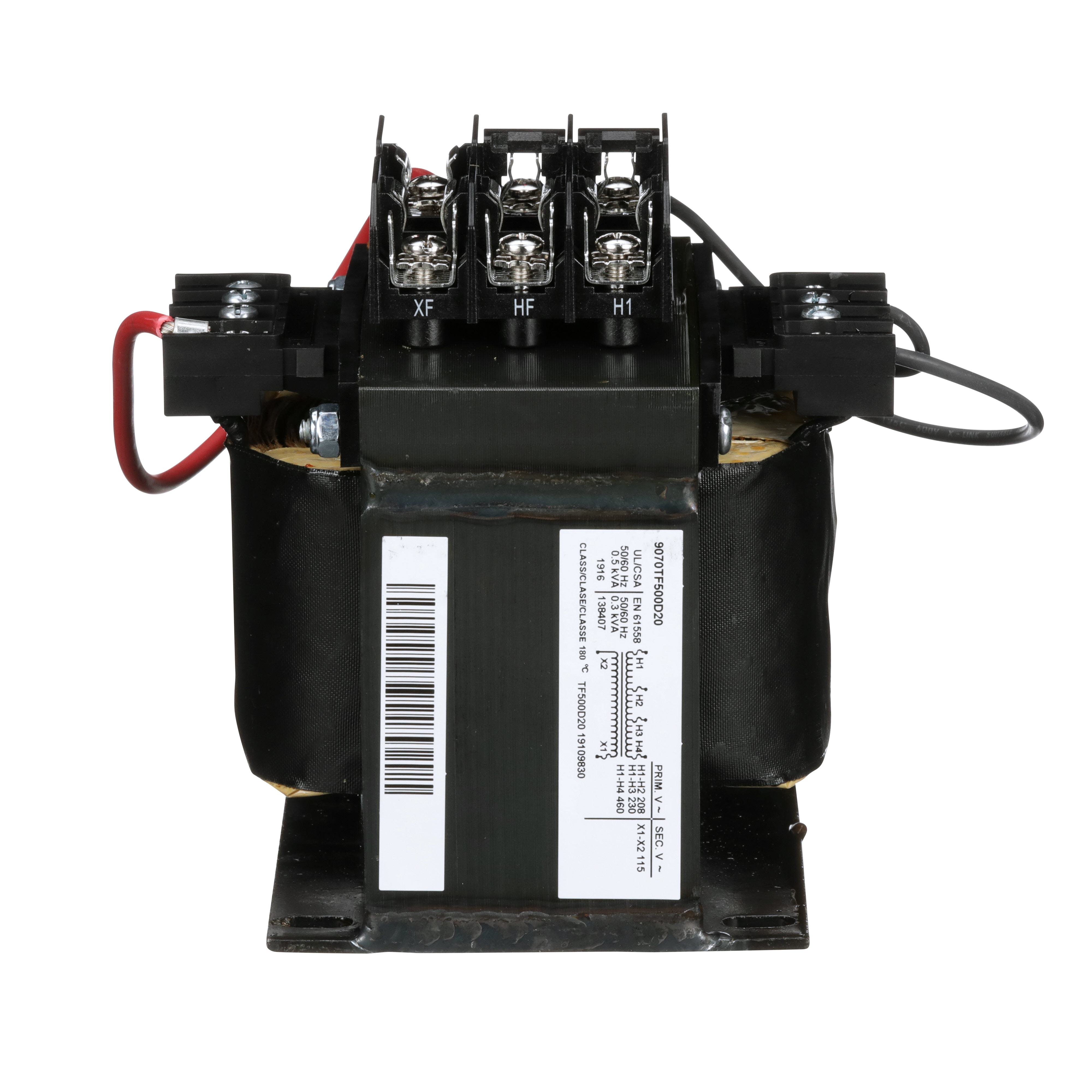

Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz
Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz
Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz
Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz
Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz Picture of 9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz
Square D

9070TF500D20 - Industrial control transformer, Type TF, 1 phase, 500VA, 208/230/460V primary, 115V secondary, 50/60Hz

Item Code: 550978
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF500D20

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

We offer both product lines with factory installed overcurrent protection fuse blocks. Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF and EOF transformers have the same footprint as the Type T and Type EO units, respectively. This design frees up space normally used for separate fuse blocks. We also have an extensive fuse block offering for custom applications. See the overcurrent section of this catalog for full details. This Industrial Control Transformer has a power rating of 500VA and is 1 phase. This transformer has a 208/230/460V primary voltage and 115V secondary voltage. This transformer complies to UL, CE & CSA standards. Dimensions for this product are 5.8 in (H), 5.25 in (W), 5.61 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC2.

Specifications

Weight

18.46

Width

8.12

Length

8.52

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9070TF500D20/9070TF500D20.spin

AD All Features

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Alternative Part Number

8082314

AD Application

OEM Commercial, Industrial Markets, Electrical Equipment and FSC2 Fingersafe Cover

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Technical Bulletin

AD EAN

0785901905295

AD Gtin

00785901905295

AD IDEA Index ID

8082314

AD Includes

Primary and Secondary Fuse

AD Invoice Description

TRANSFORMER CTRL 208/230/460VAC 115VAC 1

AD Item Features 01

Type TF units are designed to free up space by fuse blocks pre-wired and factory installed saving you time

AD Item Features 02

Provides reliable power using voltage regulation

AD Item Features 03

Protects against accidental shocks through the use of touch-safe terminals

AD Keywords

9070TF500D20 Type TF Industrial Control Transformer, 208/230/460 V AC Primary, 115 VAC Secondary, 500/300 VA Power Rating, 50/60 Hz, 1 Phase ; Schneider Electric ; Square D ; 9070TF500D20 ; 9070TF500D20 ; 785901905295 ; Control Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

8.5200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

18.4600

AD Package Weight UOM

LB

AD Package Width

8.1200

AD Package Width UOM

IN

AD Part Number Keywords

9070TF500D20 ; 8082314 ; 785901905295 ; 78590190529 ; 00785901905295 ; 0785901905295

AD Video Links

https://www.youtube.com/embed/c35mQsPEA58

Brand

Square D

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

Screw clamp

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V AC

Spec 10 Attribute Value

115

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

115

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type TF Industrial

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

5.25 in W x 5.61 in D x 5.8 in H

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

Open

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Insulation

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

180

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

500/300

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V AC

Spec 9 Attribute Value

208/230/460
