9070TF50D3 - Industrial control transformer, Type TF, 1 phase, 50VA, 208V primary, 120V secondary, 50/60Hz

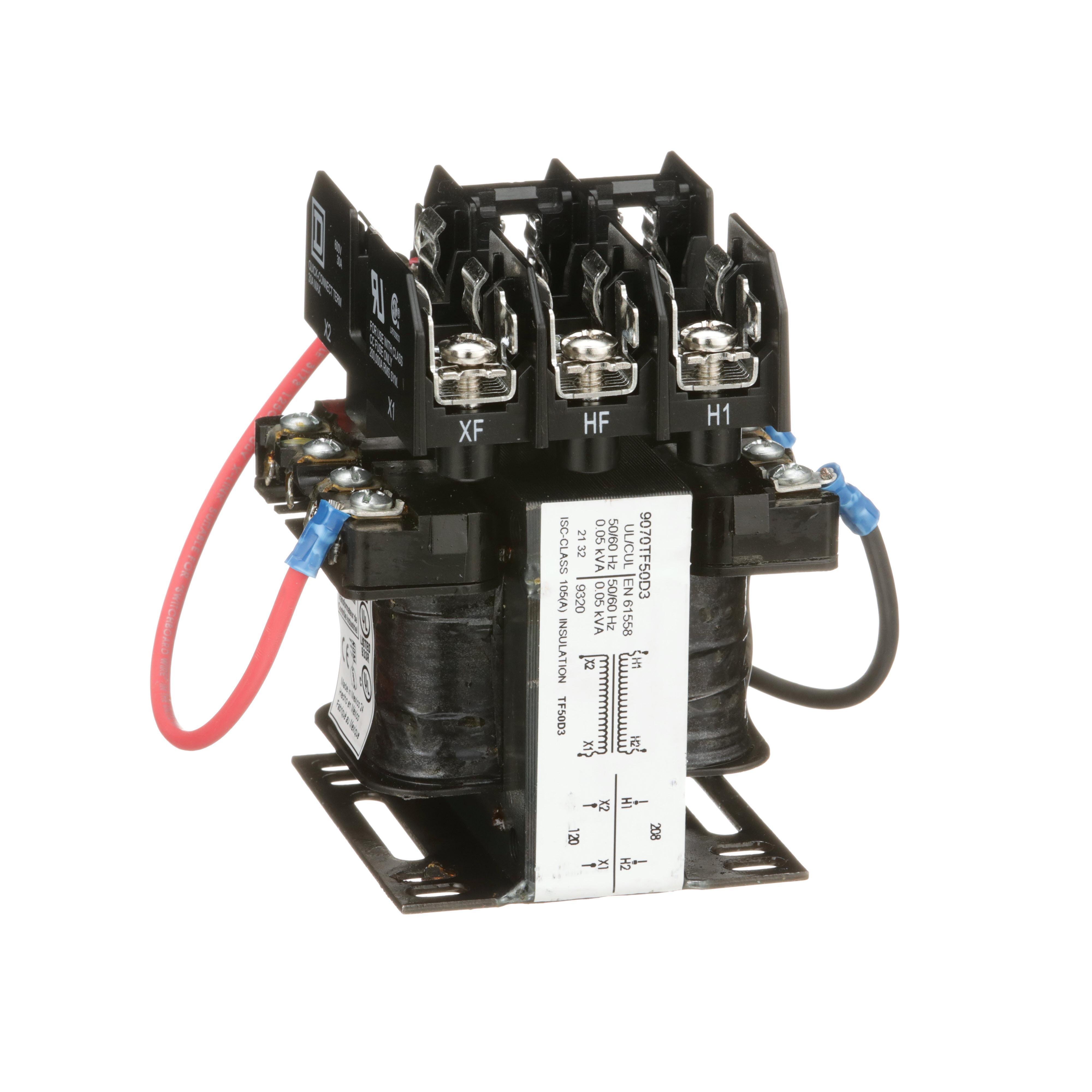

Picture of 9070TF50D3 - Industrial control transformer, Type TF, 1 phase, 50VA, 208V primary, 120V secondary, 50/60Hz
Square D

9070TF50D3 - Industrial control transformer, Type TF, 1 phase, 50VA, 208V primary, 120V secondary, 50/60Hz

Item Code: 526706
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9070TF50D3

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 50VA transformer designed for 208VAC primary with a 120VAC secondary. It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
