Square D

9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC

Category Miscellaneous

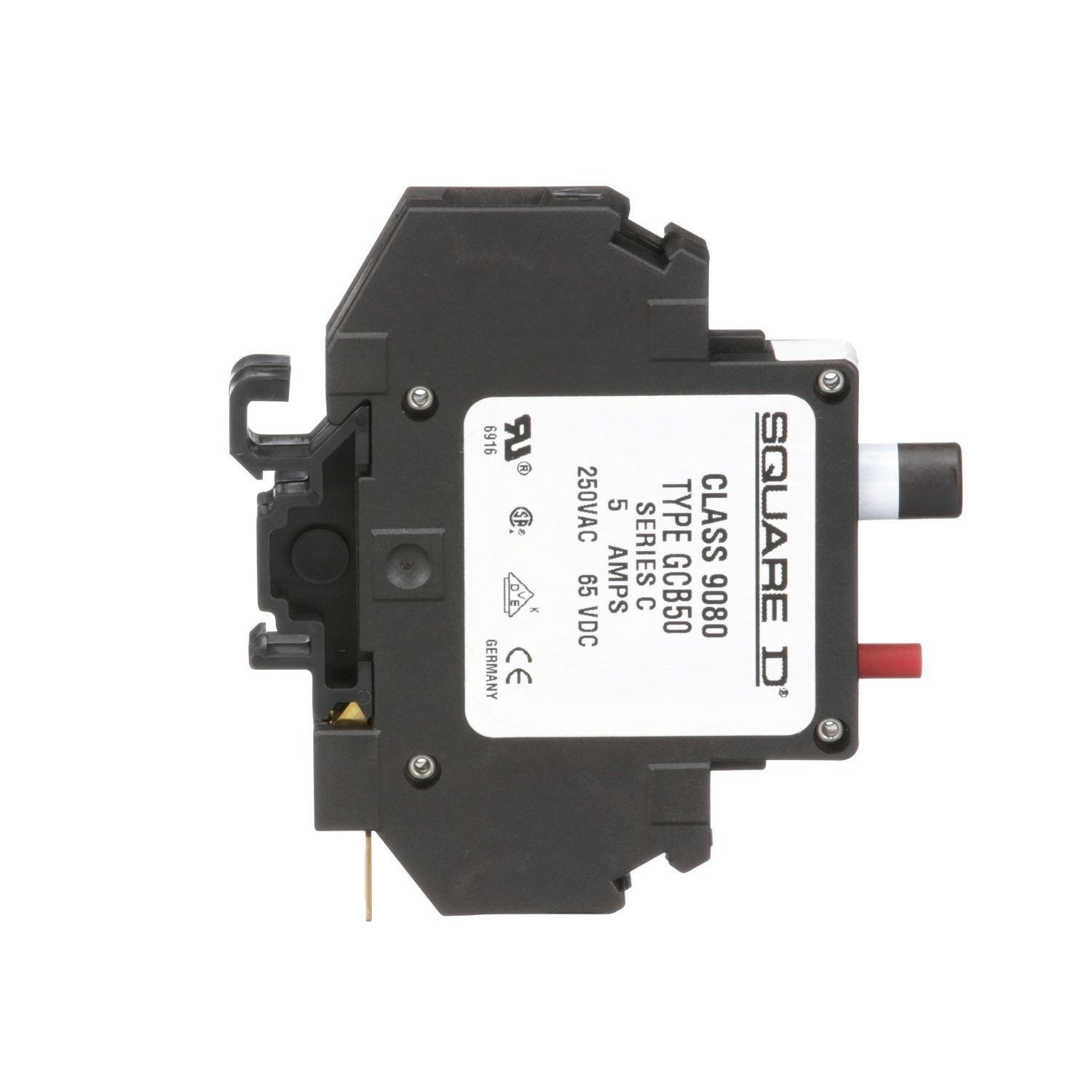

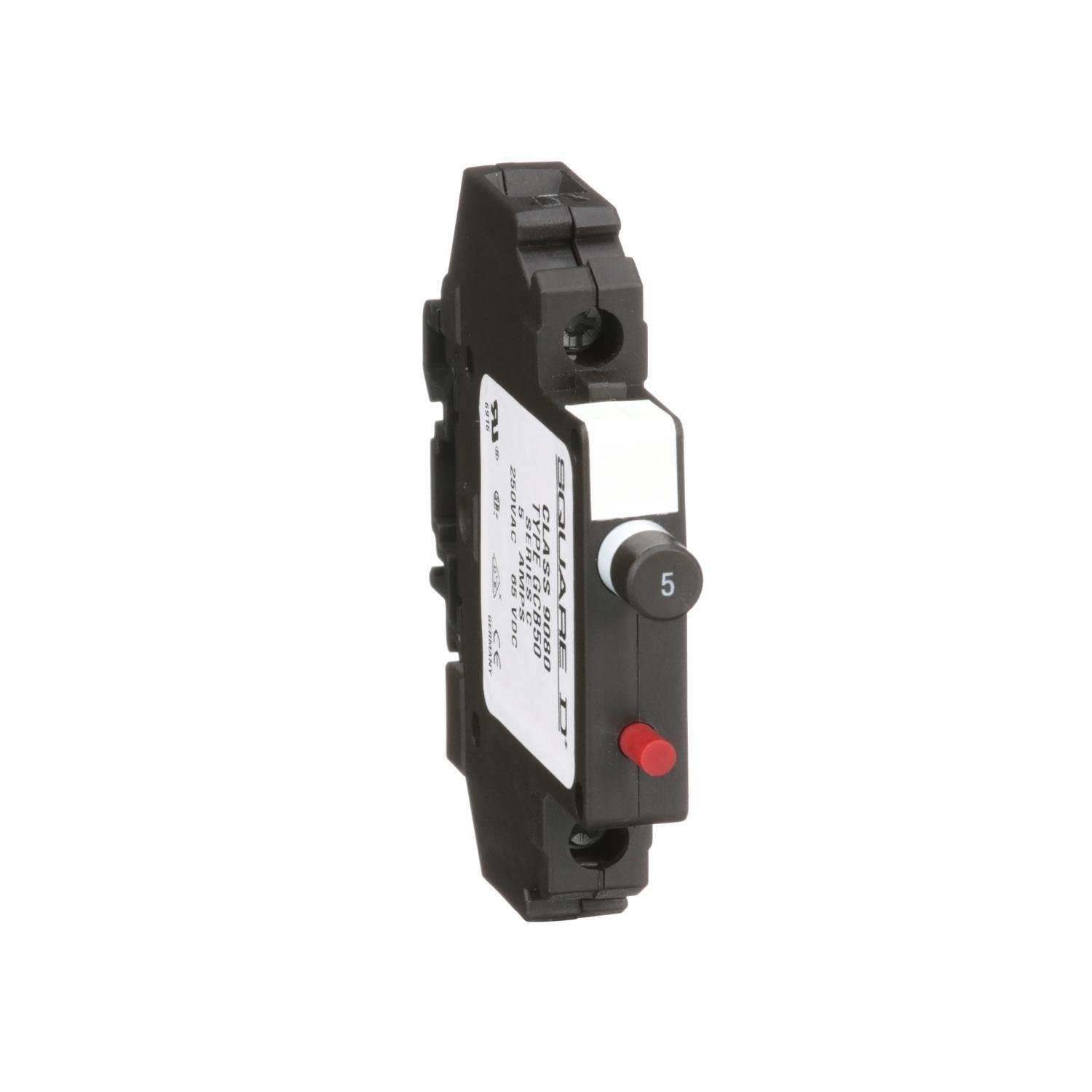

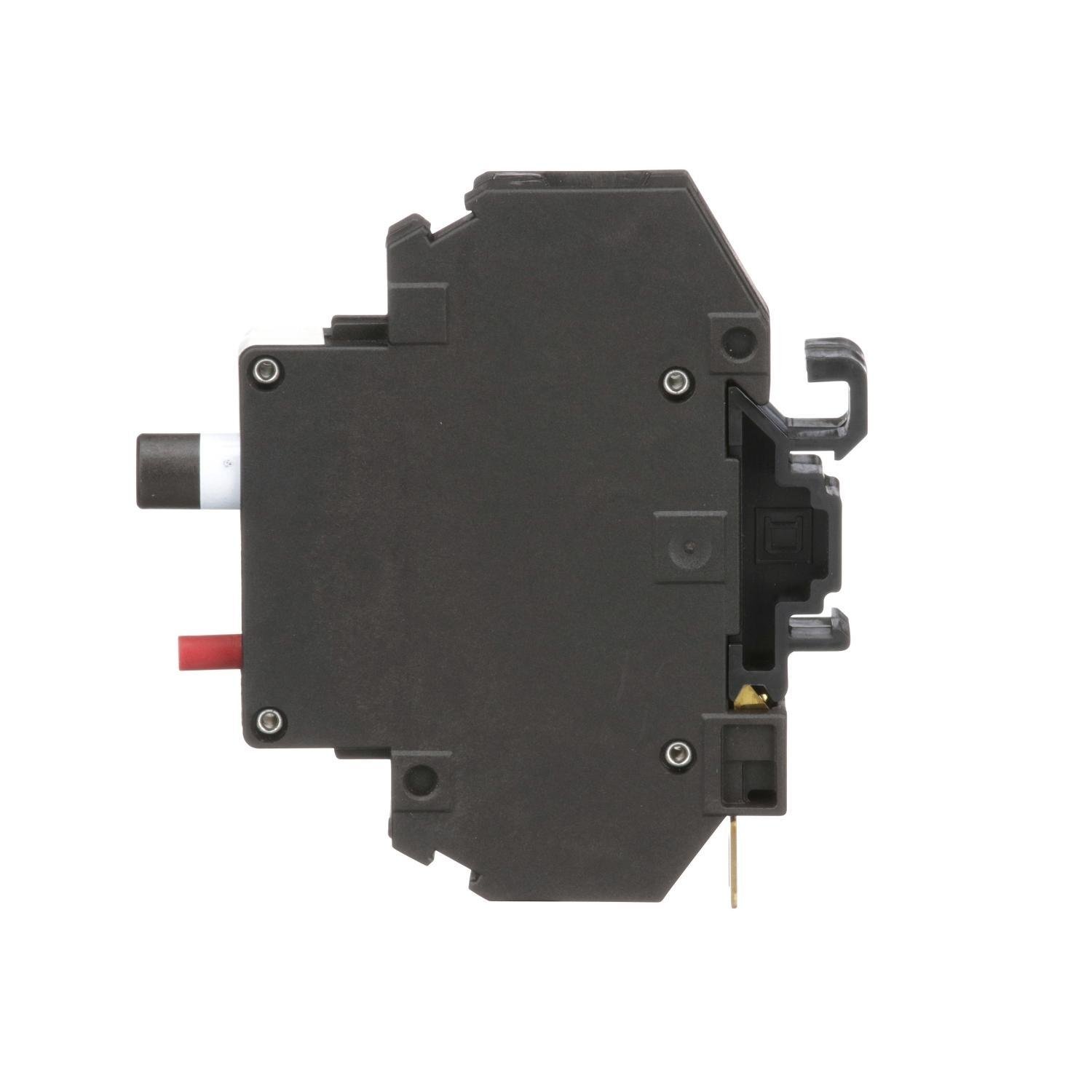

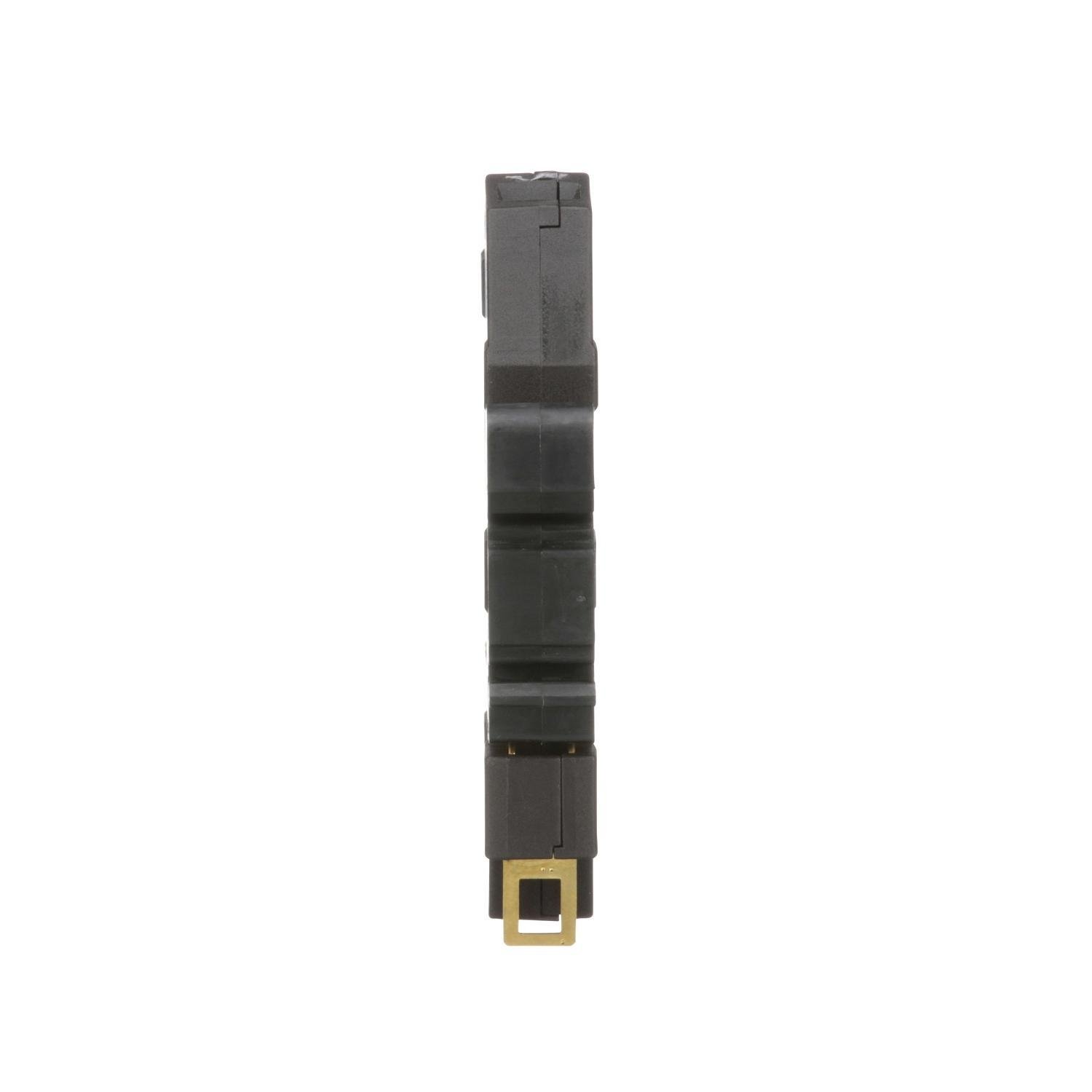

Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC
Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC
Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC
Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC
Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC Picture of 9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC
Square D

9080GCB50 - Circuit protector, Linergy, thermal magnetic overcurrent, track mount, 5.0A, 250VAC, 65VDC

Item Code: 583716
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080GCB50

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 5.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.

Specifications

Weight

0.16

Height

1

Width

3.37

Length

3.67

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9080GCB50/9080GCB50.spin

AD All Features

One pole, 5 Aand 250 VAC

AD Alternative Part Number

8062250

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

DE

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901481027

AD Gtin

00785901481027

AD IDEA Index ID

8062250

AD Invoice Description

PROTECTOR CKT 250 VAC 65 VDC 5A BOX LUG

AD Item Features 01

One pole, 5 Aand 250 VAC

AD Item Features 02

Can be mounted on 35 mm DIN track or Square D terminal block track

AD Item Features 03

Easily find blown circuit

AD Item Features 04

24 circuits per foot due to small size

AD Keywords

9080GCB50 Overcurrent Circuit Protector, 250 V AC/65 V DC, 5 A ; Schneider Electric ; Square D ; 9080GCB50 ; 9080GCB50 ; 785901481027 ; Standard Thermal Magnetic Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.0000

AD Package Height UOM

IN

AD Package Length

3.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

12.5800

AD Package Volume UOM

cu-in

AD Package Weight

0.1600

AD Package Weight UOM

LB

AD Package Width

3.3700

AD Package Width UOM

IN

AD Part Number Keywords

9080GCB50 ; 8062250 ; 785901481027 ; 78590148102 ; 00785901481027 ; 0785901481027

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Box Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

0.5 in W x 3.15 in D x 3.11 in H

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

DIN Rail/Track

Spec 5 Attribute

Series

Spec 5 Attribute Value

9080GCB

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg F

Spec 6 Attribute Value

-4 To 140

Spec 7 Attribute

Type

Spec 7 Attribute Value

Overcurrent

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute Value

250 V AC/65 V DC

Spec 9 Attribute

Wire Size

Spec 9 Attribute UOM

AWG

Spec 9 Attribute Value

16 To 10
