Square D

9080GK6 - Terminal block, Linergy, box connector, natural colored block, 40A, 600 V

Category Miscellaneous

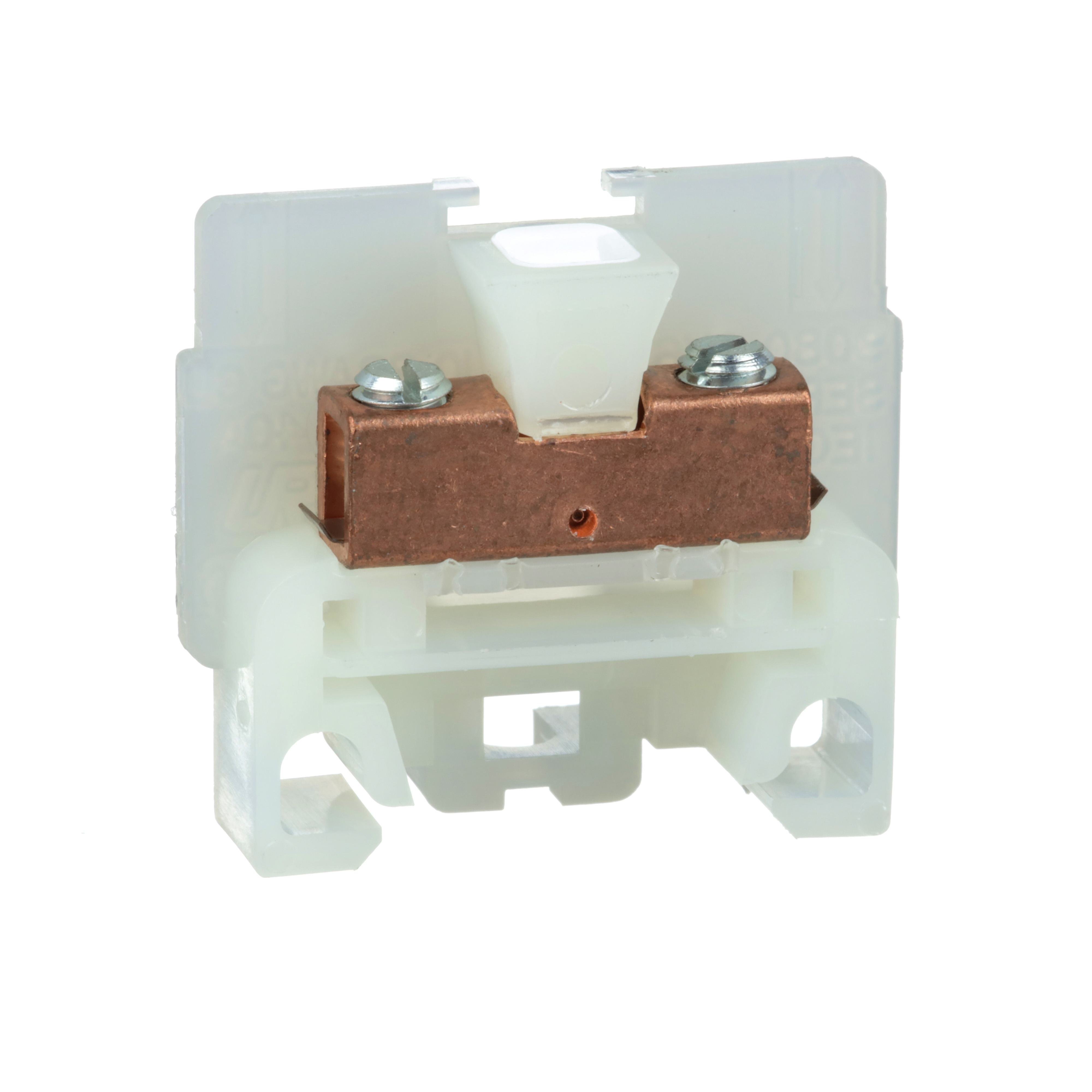

Picture of 9080GK6 - Terminal block, Linergy, box connector, natural colored block, 40A, 600 V
Square D

9080GK6 - Terminal block, Linergy, box connector, natural colored block, 40A, 600 V

Item Code: 17724
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref 9080GK6

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 or 2 #12 AWG, 1 or 2 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This block is UL component recognized for up to 70 amperes and CSA certified for up to 40 ampere. Both UL and CSA have the block rated at up to 600 VAC or VDC.

Specifications

Weight

0.03

Height

0.7

Width

0.7

Length

1.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/9080GK6/9080GK6.spin

AD All Features

There versatility and easy wiring makes them ideal terminal block

AD Alternative Part Number

8138506

AD Application

9080G and GM6B Terminal Blocks

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

0785901000822

AD Gtin

00785901000822

AD IDEA Index ID

8138506

AD Invoice Description

BLOCK TERM 600VAC/VDC 40A 22 TO 10AWG

AD Item Features 01

There versatility and easy wiring makes them ideal terminal block

AD Item Features 02

Offers labor savings with easy wiring requiring a standard screwdriver

AD Keywords

9080GK6 9080G Standard Terminal Block, 600 V AC/DC, 40 A, 22 to 10 AWG Wire, 1 Poles, DIN Rail/Panel Mount ; Schneider Electric ; Square D ; 9080GK6 ; 9080GK6 ; 785901000822 ; Feed-Thru Blocks, Standard

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.7000

AD Package Height UOM

IN

AD Package Length

1.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1.1800

AD Package Volume UOM

cu-in

AD Package Weight

0.0300

AD Package Weight UOM

LB

AD Package Width

0.7000

AD Package Width UOM

IN

AD Part Number Keywords

9080GK6 ; 8138506 ; 785901000822 ; 78590100082 ; 00785901000822 ; 0785901000822

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

40

Spec 10 Attribute

Type

Spec 10 Attribute Value

Standard

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC/DC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute UOM

AWG

Spec 12 Attribute Value

22 to 10

Spec 2 Attribute

Color

Spec 2 Attribute Value

Natural

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

6.8 in L x 4.2 in W x 1.4 in H

Spec 4 Attribute

Material

Spec 4 Attribute Value

Nylon

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

DIN Rail/Panel

Spec 6 Attribute

Number Of Poles

Spec 6 Attribute Value

1

Spec 7 Attribute

Series

Spec 7 Attribute Value

9080G

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

75

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Box Lug
